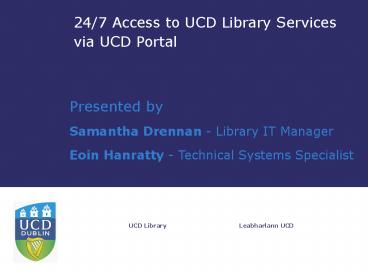

247 Access to UCD Library Services via UCD Portal

1
24/7 Access to UCD Library Services via UCD Portal
Presented by Samantha Drennan - Library IT
Manager Eoin Hanratty - Technical Systems
Specialist
UCD Library
Leabharlann UCD
2
Overview

• UCD Portal
• Integration Projects at UCD
• Previous System
• Problems with the System
• Why Integrate?
• Business Goals
• Strategy Employed
• Technology Used
• Advantages/Challenges
• Usage Statistics
• Technical Overview of the Solution

3
UCD Connect

• UCD Connect provides access to a wide range of
  University services and information.  Accessed
  via the Internet, UCD Connect is always available
  whether you're on or off campus.

4
Integration Projects at UCD

• Two key areas
• Authentication for Electronic Resources
• Authentication For My Library Account
• Both functions now integrated into the University
  Portal (UCD Connect)
• September 2005
• E-Resources Integration LIVE
• February 2006
• My Library Account Integration LIVE

5
Previous System

• Staff/Students had three sets of credentials
• Network Login
• (E-mail, Files etc)
• Athens Login
• (E-Resources Access)
• Borrower Number and PIN
• (My Library Account Access)

6
Problems with the System

• Difficult for users to remember all three sets of
  credentials
• Confusion as to which set of credentials to use
  and when
• General lack of understanding of Athens Concept
• Increased administrative workload for Library and
  Computing Services

7
Why Integrate?

• Changing Student Profile (Distance
  learners, Clinical Placements, Mature students,
  Life long learners)
• Increasing Demand for 24/7 Services
  (On and Off Campus)
• One Stop Shop Mentality
• Integration Imperative

8
Business Goals

• To Enable All Users to
• Access E-mail, Network files etc
• Authenticate for E-Resources
• Access their library account
• By Logging into one central site,
• With one set of credentials,
• That only have to be entered once.

9
Strategy Employed

• Create a Single Sign On (SSO) scenario for
  students and staff by integrating library
  functions into UCD Connect using available
  technology
• AthensDA (E-Resources)
• Talis Keystone (Library Account)

10
Technology Used

• AthensDA (Devolved Authentication)By
  integrating with a local authentication
  system(s), AthensDA allows an organisation
  to maintain a single set of credentials for a
  user, and for that user to be authorised for
  access to online services depending
  on permissions defined by the organisation.
• http//www.athensams.net/local_auth/athensda/
• Talis KeystoneA middleware solution that
  delivers systems integration between LMS and
  external systems (e.g. Portal, Student Registry
  etc) using XML and Web Services standards.
• http//www.talis.com/downloads/white_papers/Keysto
  neWhitePaper.pdf

11
Advantages of AthensDA

• Ease of Use
• One set of credentials
• SSO to many resources
• Reduced administrative workload for both Library
  and Computing Services
• Account Management streamlined
• Library functions mainstreamed and promoted via
  portal integration

12
Advantages of Talis Keystone

• No PIN required
• Modular Can purchase individual modules as
  required
• Based on widely accepted standards so easier to
  support, future proofed
• Customisable
• Proven compatibility with SCT Luminis

13
Challenges AthensDA

• Lack of standardisation across publishers with
  AthensDA
• Not all resources are truly SSO
• Re-registration required in some cases (Science
  Direct, Beilstein Crossfire)
• Still maintaining two sets of URLs
• Extensive re-vamp of user education for
  Electronic resources required

14
Challenges Talis Keystone

• User Accounts
• Error Message Handling
• Integration increases need for comprehensive
  procedures

15
Usage Statistics

• Athens Usage
• Prior to and Following Implementation

16
Usage Statistics

• Talis Keystone

17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
Technical overview of the solution
UCD Computing Services
28
The solution components

• UCD Connect
• UCDs Web Portal solution
• Based on Sungard HES Luminis III.2
• Athens
• Access Management System
• Controls secure access to web based services
• Talis
• Library Management System

UCD Computing Services
29
UCD Connect

• Web portal implementation
• Sungard HES Luminis III.2
• uPortal 2.0
• Fully-featured web server
• CGI
• Java Servlets
• LDAP database
• Identifiers and credentials for external
  systems
• Encrypted using portal password
• Software development kits
• Expose external system credentials
• Send to external systems as required

UCD Computing Services
30
Athens

• Access management system
• Controls access to web-based resources
• Single sign-on system
• A user who has presented valid credentials to
  Athens need not present those credentials again
  each time a new protected resource is accessed
• Athens Devolved Authentication (Athens DA)
• Use a local authentication service as a trusted
  service for access to AthensSSO resources

UCD Computing Services
31
Athens Devolved Authentication

• Local Authentication Service (LAS)
• Typically already in place UCD Connect LDAP
  directory
• iPlanet Directory Server 5.1
• eXtensible Authentication Point (XAP)
• Collects the user authentication credentials
• Sends these to the UAI
• Receives authorisation information from UAI
• Sends authorisation information to Athens via
  HTTPS
• User Authorisation Interface
• Receives credentials from the XAP
• Authenticates user
• Returns authorisation information to the XAP
• Identifier
• Permission set

UCD Computing Services
32
Athens Devolved AuthenticationModes of Operation

• Home Domain Discovery (HDD)
• User attempts to access a protected resource
  without having first logged into the portal
• Athens will intercept the request and route the
  user to the XAP where they can provide
  credentials
• Once authenticated, user continues to the
  protected resource
• Local Authentication Assertion (LAA)
• User logs in to the portal
• An Athens session is pre-emptively established
• User seamlessly accesses protected resources from
  within the portal

UCD Computing Services
33
Talis Keystone

• A middleware solution to support integration of
  the Library Management System with the portal
• Supports standards XML, Web Services, SOAP
• Components
• Talis Keystone installed on Talis server
• Client toolkit installed on portal server
• Java servlets developed using client toolkit
  and portal sdks

UCD Computing Services
34
Luminis Targeted Content Manager

• An administrative interface that allows
  authorised portal users to develop and maintain
  portal content
• Used extensively by UCD Library staff
• Examples of channels developed using this tool
• Library News
• Library Focus
• How can we help you?
• Information and services

UCD Computing Services
35
The Solution

• User logs into UCD Connect
• User credentials passed to UCD XAP/UAI
  implementation and, assuming the user is
  authenticated, an Athens session is now
  established maintained using a cookie for the
  browser session
• When the user navigates to any Athens protected
  resources from within the portal interface, they
  are passed seamlessly through
• User clicks on the My Library tab
• The My Library Account servlet sends a request
  to Talis Keystone and receives a response
  containing the users library account details.
  Including a single sign-on URL returned by
  Keystone
• This information including the SSO link is
  presented in the My Library Account channel
• Other Library content channels also rendered
  under the My Library tab

UCD Computing Services
