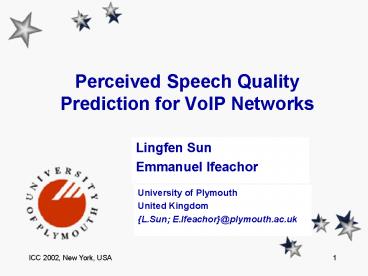

Perceived Speech Quality Prediction for VoIP
Networks

• Lingfen Sun
• Emmanuel Ifeachor

2
Outline

• Introduction
• Simulation system
• Perceived speech quality analysis
• Impact of loss on speech quality
• Impact of talkers on speech quality
• Perceived speech quality prediction using Neural
  Network (NN) method
• Conclusions and future work

3
Introduction

• Speech quality Measurement
• Subjective method (Mean Opinion Score -- MOS)
• Objective methods
• Intrusive methods (e.g. ITU P.862 PESQ)
• Nonintrusive methods (e.g. E-model, NN model)
• Why do we need to predict speech quality?
• For online monitoring VoIP call
• For Quality of Service (QoS) control for VoIP
  applications

4
How to predict speech quality?

• E-model
• All impairments are mapped to R-scale (R? MOS)
• Principle "Psychological factors on the
  psychological scale are additive"
• Static and computational model.
• NN-model
• To learn the non-linear relationships between
  network impairments and perceived speech quality
• To adapt to dynamic IP network conditions.

5
Previous work

• NN databases are based on subjective test only
• As subjective test is time consuming, costly and
  stringent, available databases are limited and
  cannot cover all the possible scenarios
• Only a limited number of subjects attended MOS
  tests
• Limited number of codecs
• Talker dependency has not been considered.

6
Main objectives of work

• To undertake a fundamental investigation of the
  impact of packet loss on perceived speech quality
  using an objective measurement algorithm (e.g.
  PESQ)
• To investigate the impact of different talkers on
  perceived speech quality
• To develop a robust NN model for speech quality
  prediction based on PESQ.

7
Simulation system structure
quality measure (PESQ)
Measured MOS
Simulated VoIP system
encoder
loss simulator
decoder
Degraded speech
Reference speech

• Reference speech is from a speech database

8
Loss Simulator
2 state Gilbert Model to simulate packet loss
characteristics

• Network packet loss late arrival loss due to
  jitter
• Unconditional loss probability (ulp, or average
  loss rate), ulp p / (p 1 q)
• Conditional loss probability (clp), clp q to
  reflect burst loss features

9
Impact of loss on speech quality

• How do packet loss and loss burstiness affect
  speech quality?
• How does packet size affect speech quality?
• How does codec affect speech quality?
• ? Using PESQ to calculate perceived MOS score
• ? Average over 300 different random "seeds" to
  reduce the impact from different loss locations

10
Bursty loss analysis (G.729)
11
Bursty loss analysis (G.723.1)
12
Bursty loss effect

• clp has an obvious impact on the perceived speech
  quality even for the same average loss rate (ulp)
• When burst loss increases (clp increasing), the
  MOS score decreases and the variation of the MOS
  score also increases.
• ? Identify ulp and clp as input parameters
  related to loss for NN analysis

13
Impact of packet size (G.729)
14
Impact of packet size (G.723.1)
15
Impact of packet size on quality

• Packet size has, in general, no obvious influence
  on speech quality for a given loss rate.
• Variation in speech quality for the same network
  loss rate depends on packet size and codec.
• Variation in quality due to loss location is the
  main obstacle in the prediction of speech quality
• ? To consider loss only during active talkspurt
  frames (not for silence frames or SID frames).

16
Impact of talker on speech quality

• To investigate whether difference in talker (male
  or female) has an effect on perceived speech
  quality
• TIMIT data set and ITU data set are used for
  investigation

17
Talker Dependency

• For 3 male and 3 female samples

18
Talker Dependency (cont.)

• For 6 mixed male and female samples

19
Impact of talker on MOS

• Impact of different talkers on perceived speech
  quality appears to depend mainly on the gender of
  the talker (male or female).
• The quality for the female talker tends to be
  worse than that of the male talker for the same
  network impairments.
• ? Identify gender (male and female) as one of the
  input parameters for NN analysis.

20
Quality prediction based on NN

• Developed a neural network model (using Stuttgart
  Neural Network Simulator).
• Identified four variables as inputs to NN
• Codec type (G.729, G.723.1 and AMR)
• Gender (male and female)
• Unconditional loss probability ? ulp (VAD)
• Conditional loss probability ? clp(VAD)
• One output (MOS)

21
NN structure (for a 4-5-1 net)

• a three-layer, feed-forward, neural network
  architecture
• standard Backpropagation learning algorithm

22
NN database generation

• Codec G.729, G.723.1 (6.3Kb/s), AMR (12.2Kb/s)
• Gender Male and female
• ulp 0, 10, 20, 30 and 40
• clp 10, 50 and 90
• Packet size 1 to 5
• ? A total of 362 samples (patterns) were
  generated based on PESQ. 70 were chosen as the
  training set and 30 as the test dataset.

23
NN training process
Measured MOS
Quality measure (PESQ)
Simulated VoIP system
Reference speech

Degraded speech
?
Backprop
-
Network, Codec Speech parameters
Predicted MOS
24
Predicted MOS vs Measured MOS
Train ? 0.967, r 0.12 Test ?
0.952, r 0.15
25
Validation of the NN model

• Generated a validation dataset from other talkers
  and different network loss conditions (total 210
  samples)
• Obtained ? 0.946, r 0.19 for the validation
  dataset using a trained 4-5-1 neural network.
• ? This suggested that the neural network model
  works well for speech quality prediction in
  general.

26
Conclusions

• Investigated the impact of packet loss, codec and
  talker on perceived speech quality based on PESQ
• The loss pattern, loss burstiness and the gender
  of the talker have an impact on speech quality.
• Packet size has, in general, no obvious influence
  on speech quality, but the deviation in speech
  quality depends on packet size and codec.
• Based on codec, bursty loss rate and gender of
  the talker, a NN model was developed successfully
  for speech quality prediction.

27
Future work

• Extended to conversational speech quality
  prediction to cater for the impact from delay.
• Use real VoIP trace data instead of generated
  data from Gilbert loss model.
• Use more robust neural networks.
• Application to QoS Control in VoIP systems.
