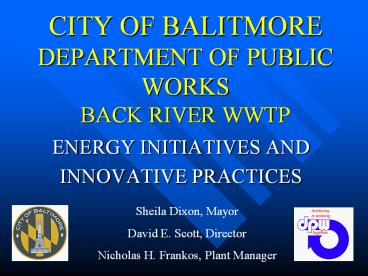

CITY OF BALITMORE DEPARTMENT OF PUBLIC WORKS BACK RIVER WWTP

1
CITY OF BALITMOREDEPARTMENT OF PUBLIC WORKSBACK
RIVER WWTP

• ENERGY INITIATIVES AND
• INNOVATIVE PRACTICES

Sheila Dixon, Mayor David E. Scott,
Director Nicholas H. Frankos, Plant Manager
2
Presentation Outline

• Plant Overview
• Water Reuse
• Potable Water Conservation
• Electrical Distribution Upgrades
• Performance Based Energy Contract
• BGE Load Response Program
• On-Site Bleach Generation
• Future Energy Considerations

3
Back River WWTP

• Built in 1907 on 466-acre tract located in
  eastern Baltimore County
• Design flow 180 MGD
• Average flow 140 MGD
• 140 sq. mile service area/1.3 million customers
• Two outfalls-Back River and Sparrows Point
• Annual O M budget - 50 million
• 300 employees
• Removal Efficiencies FY-08
• BOD 99, SS 99, TP 94, TN 68

4
PLANT AERIAL VIEW
5
BACK RIVER FACILITIES
6
Water Reuse Overview

• Sparrows Point approached City to use Back River
  effluent for process water at steel plant.
• In 1941 Back River and Sparrows Point Steel Plant
  entered into a Water Reuse Agreement.
• SP currently takes approximately 40 MGD of Back
  Rivers final effluent.
• SP reimburses the City for electrical, chlorine
  and water costs 950,000 per year.
• Current steel plant owner is Severstal

7
BS Sparrows Point PlantBackground

• Built in 1887 on 3500 acre tract of land with
  frontage on the Patapsco River
• Location selected so ships could off-load raw
  materials and transport finished product
• Produced steel plates, strip steel, sheet steel,
  and tin plate
• Plant has downsized since its heyday in the
  1950s when it employed over 30,000 people

8
Water Reuse Agreement - History

• Bethlehem Steel needed larger supply of water
  than available from ordinary sources
• Original Agreement executed in 1941
• Bethlehem Steel constructed 4.5 mile 60 pipeline
  to convey water
• Max rate of 50 MGD
• 1947 amended to 100 MGD max

9
Water Reuse Agreement - History

• 1951 amended to 100 MGD min 200 max
• - built additional 96 pipeline
• - built treatment facilities at Back River to
  further treat effluent
• Mid-1980s abandoned treatment facilities.
• Flow gradually has been reduced over time to the
  current level of 40 45 MGD
• Agreement can be cancelled by either party with a
  two year notification.

10
LIFT PUMPS
11
High Head Lake
12
Effluent Water Uses at BS

• Currently takes 40 MGD of Back River final
  effluent for process water
• Used in various steel production processes
• Cooling and cleaning of hot gas streams
• After use the water is treated at their
  Humphreys Creek Facility prior to discharge into
  the Chesapeake Bay

13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
2008 Annual Water Reuse Costs Paid to City by
Sparrows Point
Bleach 724,155 Power
190,945 Water 24,500 949,600/
Year Based on 44 MGD 2600/day
17
Waste Pickle Liquor Agreement

• 1979 initial agreement Bethlehem Steels waste
  product used for P removal at Back River
• 40,000 gal/day
• City constructed loading, storage and dosing
  facilities at Back River
• Trucking costs were split
• 1982 amended City pays 2/3 trucking and
  Bethlehem Steel 1/3

18
Waste Pickle Liquor Agreement

• 1986 amended City pays 100 trucking
• December 2000 changed from ferrous sulfate to
  ferrous chloride
• Ferrous chloride a preferred product due to
  decreased acidy and higher iron content
• Reduced quantity to less than 10,000 gallons/day
• Current average usage is 8,000 gallons/day

19
(No Transcript)
20
(No Transcript)
21
POTABLE WATER CONSEVATION

• Plant has converted pump seal water systems and
  polymer mixing systems from potable water to
  plant flushing water
• Saves over 100,000 gpd of potable water
• Potable water still used as backup source
• Saves over 36.5 million gallons of potable water
  per year
• Annual savings of over 50,000

22
Seal Water System
23
Poly-Blend System
24
ELECTRICAL DISTRIBUTION UPGRADES

• SC- 9555 Electrical Distribution Upgrade
• 4,000,000 capital cost
• Installed four new 34.5 kV capacitor banks to
  maintain power factor between 0.9 and 0.98
• Upgraded the 13.2 and 2.4 kV feeders to 34.5kV
• Standardize entire plant distribution system to
  34.5kV
• SC- 835 Blower House 2 Controls System
  Improvement
• 1,800,000 capital cost
• Replaced across the line starters with soft
  starts
• Replaced blower and guide vane controls
• These projects improved energy efficiency and
  increased system reliability

25
ENERGY PERFORMANCE CONTRACTING

• Mechanism to implement necessary infrastructure
  improvements that reduce energy consumption and
  operating costs.
• Financed through operating budget utility
  savings.
• No impact to capital funding program.
• Performance and savings guaranteed.

26
ENERGY PERFORMANCE CONTRACTING PROCESS

• Preliminary Feasibility Study
• Share information and identify potential savings
• Phase 1 Agreement
• Lists ECMs and potential savings
• Develops costs for Phase 1 Proposal
• Phase 1 Proposal
• Completes detailed energy audit, project scope,
  savings and final proposal
• Phase 2 Agreement
• Complete design followed by construction
• After construction, measurement and verification
  data collected and reconciled annually

27
PROJECT RESULTS

• Project Cost 14.1 Million
• 1.8 Million in Annual Energy and Operational
  savings in first year
• Sustainable and reliable solution
• Funded through savings in operating budget
• Increased equipment redundancy and reliability
• Demonstrates BRWWTPs commitment to energy
  conservation

28
ENERGY CONSERVATION MEASURES (ECM)

• ECM 1 - Digester Gas Utilization
• ECM 2 - Digester Recirculation Pump
  Improvements
• ECM 3 - HVAC Improvements
• ECM 4 - Direct Digital Ventilation Controls
• ECM 5 - Lighting Improvements
• ECM 6 - Water Conservation

29
ECM 1 DIGESTER GAS UTILIZATION

• Digester Gas Conditioning
• Two new gas conditioning skids for cleaning,
• drying and siloxane removal
• Engine Generators
• Three 1 MW Waukesha Enginators designed for
  landfill and digester gas
• Recovery Steam Generators (HRSGs)
• Capture waste heat from engine exhaust to produce
  low pressure steam

30
ECM 1 DIGESTER GAS UTILIZATION

• Plant biogas needs will be met first and all
  excess biogas will be used by generators.
• Generators sized to handle annual average of 1.1
  million cubic feet of gas per day.
• Electricity generated must be used on-site and
  cant be fed back to grid (Interconnect
  Agreement)
• Cogen Facility will be operated and maintained
  by JCI under a Maintenance Agreement

31
ECM 1 DIGESTER GAS UTILIZATION

• Financial and Operational Benefits
• Clean gas will be available throughout site.
• Improved reliability of HVAC and process boilers
  due to clean gas.
• Convert wasted flared biogas to electricity.
• Heat recovery/steam generation results in more
  digester gas available to engines.
• Sustainable and reliable solution.
• Produces 20 of Plants electrical requirements

32
(No Transcript)
33
(No Transcript)
34
ECM 2 DIGESTER RECIRCULATION PUMP

• ESD Recirculation Pump Improvement
• Replace one vortex pump in each digester
• Replace with a Hidrostal pump
• Energy consumption reduced by 55 HP

35
ECM 3 HVAC IMPROVEMENTS

• 320 ton York absorption chiller boiler unit
• 125 gallon domestic water heater
• Split system heat pump with programmable
  thermostat
• 2 cast iron sectional hot water boilers
• Benefits
• More efficient use of digester gas
• Increased equipment service life
• Reduced maintenance and improved redundancy

36
ECM 4 DIRECT DIGITAL CONTROL/VENTILATION
OPTIMIZATION

• Direct Digital Control
• Metasys energy management system (EMS)
• Lab exhaust fan monitoring and control
• Ventilation Optimization
• Establish schedule and ventilation rates for fan
  systems
• Optimize return and outside air ratios
• Electric Unit Heaters
• New non-adjustable fixed range thermostats

37
ECM 5 LIGHTING IMPROVEMENTS

• Energy efficient electronic ballast
• Occupancy sensors for low use areas.
• Re-lamping/ re-ballast existing fixtures with 28W
  T8 lamps and magnetic ballasts.
• Replace metal halide high pressure sodium
  fixtures with energy efficient high output T5
  fixtures.
• LED exit signs.

38
ECM 6 WATER CONSERVATION

• Installation of the following water conservation
  devices
• Replace 3.5 gpf toilets with 1.6 gpf low flush
  toilets and flush valves
• Replace 4 gpm shower heads with 2.5 gpm reduced
  flow shower heads
• 0.5 gpm aerators on restroom sinks
• Water less urinals in Administration Bld.

39
SUMMARY OF ANNUAL SAVINGS (Year 1)

• ECM 1 Digester Gas Utilization 1,630,000
• ECM 2 ESD Recirculation Pump 15,145
• ECM 3 HVAC Improvements 32,250
• ECM 4 Digital HVAC Control
  46,500
• ECM 5 Lighting Improvements
  81,350
• ECM 6 Water Conservation 1,050
• TOTAL 1,806,000

40
BGEs RIDER 24 LOADRESPONSE PROGRAM

• Customers that can reduce electric loads during
  peak demands receive credits on bill for
  enrolling
• Credits based on amount of load reduction
• 1,000 kw load reduction worth 70,000/yr
• Customers can participate by either shutting down
  equipment or running generators
• Maximum load response is 10 times per year for up
  to 6 hours. (Monday-Friday)
• Average number of activations over past 6 years
  was1.6 requests per year

41
WWFD ENROLLMENT

• Location Capacity (kw) Annual Credit ()
• Back River 2,000 144,682
• Patapsco 1,366 98,329
• Eastern Ave PS 433 31,869
• Jones Falls PS 250 18,400
• Dundalk PS 115 8,454
• TOTAL SAVINGS 301,734

42
ONSITE BLEACH GENERATION

• Construction of bleach/chlorine gas generation
  facility of maximum 15,000 /day equivalent
  chlorine.
• Hybrid system which produces chlorine gas for
  immediate use, 12 bleach and excess caustic
  soda.
• Estimated project cost 18.5 million
• Excess caustic use in scrubbers and future ENR
• Project payback less than 6 years
• Estimated production cost for chlorine 0.40
  vs. bulk delivery cost of 0.97.

43
FUTURE ENERGY CONSIDERATIONS

• Solar Power
• Hydrogen Gas Utilization from OSBG
• Digestion Process Enhancements
• Possible 4th Enginator
• Biodiesel production from scum and grease

44
QUESTIONS?
