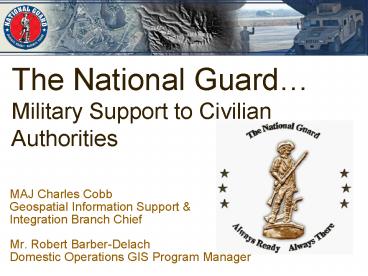

The National Guard Military Support to Civilian Authorities

1
The National GuardMilitary Support to Civilian
Authorities

• MAJ Charles Cobb
• Geospatial Information Support
• Integration Branch Chief
• Mr. Robert Barber-Delach
• Domestic Operations GIS Program Manager

2
Overview

• What is the National Guard
• National Guard Mission
• NG Domestic Capabilities
• GIS in the National Guard
• National Guard Operations GIS
• Current Future Capabilities

3
Who We Are The National Guard

• Made up of the State Militias within
• 50 US States
• District of Columbia
• Guam
• Puerto Rico
• US Virgin Islands
• and the National Guard Bureau
• In the States/Territories, the National Guard is
  typically referred to as the State Military Dept.
  or Dept. of Military Affairs

4
The First Muster
5
Before We Were A Nation
6
National Guard Bureau

• The National Guard Bureau (NGB) is a Joint Bureau
  of the US Army Air Force by law (since 1958)
• NGB is the State/Federal military interface
• NGB coordinates use of National Guard personnel
  and resources for contingency operations,
  Military Operations Other Than War, natural
  disasters, Military Support to Civil Authorities,
  and special events.

• We are Joint

7
Constitutionally Unique
President
Governors
SEC Defense
SEC Air Force
SEC Army
Chief of Staff
Chief of Staff
CHANNEL OF COMMUNICATIONS
Chief, NGB
Adjutants General
Vice CNGB, Director, ARNG
Vice CNGB, Director, ANG
ARNG Units
ANG Units
Director, Joint Staff NGB
8
National Guard Missions

• National Defense - Defend the U.S. and its
  Interests
• Coordinated by ARNG/ANG
• U.S. Constitution Article 1 Sect. 8 Cl 15,16
  To provide for calling the Militia to execute
  the Laws of the Union, suppress insurrections and
  repel invasions to provide for organizing,
  arming, and disciplining the militia
• The Guard as the first-line reserve of the Army
  and Air Force
• Domestic Operations
• Coordinated by NGB, Joint Operations Center

9
Guard Response Status

• NG responds to domestic incidents almost
  exclusively in State status (State Active Duty,
  or Federally funded State Active Duty (US Code
  Title 32))
• Federalizing the Guard
• Overseas Warfighting
• Incidents of National Significance (maybe)
• Federally Mandated Marshall Law

10
NG Effectiveness

• Effective, comprehensive, and rapid response
• Geographically dispersed
• Centralized control, decentralized execution
• Keen understanding of the domestic environment
• Cost Effective
• e.g. 12 of Army budget enables 38 of Army Force
  Structure
• Maximizes habitual relationship with emergency
  responders

11
(No Transcript)
12
NG Domestic Capabilities

• Joint Force Headquarters (JFHQ)
• Joint Task Force State
• State Joint Operations Centers (JOC)
• WMD Civil Support Teams (CST)
• CBRN Enhanced Response Force (CERFP)
• National Guard Reaction Force (NGRF)
• Aviation (fixed wing and rotor)
• Engineer (Search Rescue)
• Medical
• Communications
• Security
• Maintenance
• Transportation
• Logistics
• Critical Infrastructure Protection Mission
  Assurance Assessments (CIP - MAA)

13
Mission Types

• Key Asset Protection
• Border Security
• WMD (CBRN)
• Wildfire Fighting
• Hurricanes
• Snow Storms
• Floods
• Other Natural and Man-made Disasters
• National Special Security Events (NSSE)

14
State Adjutant General Roles
15
Governors Emergency Powers

• Governor May Declare State of Emergency for all
  or part of State
• Suspend State Laws
• Order evacuations
• Eminent Domain
• Control Access to Disaster Area
• State to State requests for Assistance (EMAC)
• Activate the National Guard in State Status
• Request Federal Assistance
• Governor is in Command

16
NG Joint Operation Centers

• NGB Joint Operations Center (JOC)
• 24/7/365 Operation Routine staffing
• Federal Disasters Enhanced Manning

17
State JOC EOCs
18
JOC is Channel of Communications
Governor
Adjutant General
NGB JOC
State NG JOC
State EOC
DHS
NORTHCOM
ARNG Units
ANG Units
19
National Guard GIS
20
GIS Use in States

• gt75 Fulltime GIS Staff
• gt100 Desktop GIS Users
• Environmental Compliance
• Land Management
• Training/Range Mgmt
• Range Safety
• Facilities Management
• Force Protection
• Recruiting
• Weapons of Mass Destruction (WMD) response
• Operations/Homeland Security

21
GIS Systems/Data

• States Systems Capabilities
• Varies widely from State-to-State
• All States/Territories have desktop GIS
• lt ½ have ArcSDE, ArcIMS, or ArcGIS Server
• Geospatial Data
• Most data for NG owned/leased facilities
• Little data for areas outside the fence

22
NGB GIS Support to States

• GIS Support Programs
• Environmental Division
• Installations Division
• Training Division
• Aviation Safety Division
• Strength Maintenance Division (recruiters)
• Air Guard Construction Engineering
• Domestic Operations Directorate (in process)
• Provide Staffing, GIS software, Training, and
  centralized data acquisition

23
NGB GIS Programs

• Army Guard 7 GIS staff across 5 Divisions
• Air Guard GIO and 4 GIS staff
• Joint Domestic Operations Directorate
• Branch Chief (functional GIO)
• GIS Program Manager
• Joint Operations Center GIS Analyst(s)
• Counter Drug GIS Mapping and Analysis Support
  to State/Local Law Enforcement
• Joint Intelligence Directorate

24
Operations GIS
25
Requirements for Operations GIS

• Common Operating Picture (COP)/Situational
  Awareness
• Location of the incident
• Proximity
• Critical infrastructure
• Response resources/personnel
• Hazard Modeling
• Threat Assessment/Response Planning
• Post-event Damage Assessment
• Briefing and Status Information (geospatially
  enabled business processes)

26
NG Joint Operations Centers

• 54 NG Joint Operations Centers
• Few have in-house GIS capabilities
• Most rely on other NG GIS staff for geospatial
  information support in times of crisis
• NGB standing up a Joint information exchange
  system
• To include Geospatial data sharing between State
  JOCs and NGB JOC
• Mapping of NG Operations data for basic users up
  to support for Desktop GIS users
• Exploring WebEOC and E-Team integration
• Web Map Services-based information sharing with
  other Federal Agencies

27
Common Operating Picture (COP)Situational
Awareness
28
NG Current Operations Map
29
(No Transcript)
30
Aerial Sensors

• Pan Chromatic (BW) Digital Camera
• Thermal Infrared Video
• Natural Color Video
• Video Downlink

31
Hazard Modeling

• National Guard Modeling Capabilities
• WMD Civil Support Team (CST) Modelers
• Modeling Software
• ArcGIS Desktop
• CATS (Consequence Assessment Tool Set)
• HPAC
• IMAAC
• CAMEO/ALOHA/MARPLOT
• VAPO
• HAZUS

32
Threat Assessment/Planning
33
Post-Event Damage Assessment
34
GIS Emergency Support
35
WMD/Civil Support Teams
Mission Support civil authorities at a domestic
chemical, biological, radiological, and nuclear
(CBRN) incident site by identifying CBRN agents,
assessing consequences, advising on response, and
assisting with requests.
36
CST Locations
37
GIS Emergency Support Staff?

• Few NG States have qualified GIS staff to support
  operations
• GIS support staff can be deployed from NGB to
  State JOC
• In the event of a disaster, other GIS staff will
  support operations
• Coordination across State agencies is critical
  prior to an emergency
• How to make contact?

38
Questions?

• MAJ Charles Cobb
• Geospatial Information Support Integration
  Branch Chief
• Tel [phone]
• Email Charles.C.Cobb_at_ng.army.mil
• Rob Barber-Delach
• Domestic Operations GIS Program Manager
• Tel [phone]
• Email Robert.Barber-Delach_at_ngb.army.mil

39
Backup Slides
40
NGB Charter

• Facilitating and coordinating with the
  Departments of the Army and the Air Force the use
  of National Guard personnel and resources for
  contingency operations, Military Operations Other
  Than War, natural disasters, Military Support to
  Civil Authorities, and special events.
• NGB is responsible for monitoring and assisting
  the National Guard in the 54 States, Territories,
  and District of Columbia

41
Personnel Statusbackup slide
42
(No Transcript)
43
Status and Briefing Maps

• Goal Maximize Automation of Status Map Briefing
  slides
