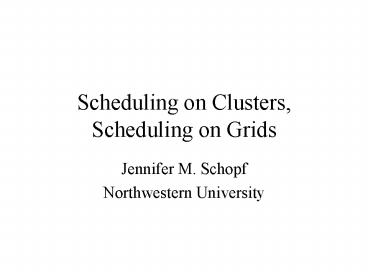

Scheduling on Clusters, Scheduling on Grids

1
Scheduling on Clusters,Scheduling on Grids

• Jennifer M. Schopf
• Northwestern University

2
Outline

• Stochastic Scheduling
• Thesis work
• UC San Diego Fran Berman
• Data Replica Selection
• Work in progress
• Northwestern University Jeff Mezger, Christopher
  Beckmann
• Argonne National Lab Sudharshan Vazhkudai and
  Mohamed Kerasha

3
Stochastic Scheduling OverviewThe Problem

• Clusters of workstations can provide the
  resources required to execute a scientific
  application efficiently
• Cannot achieve good performance for any single
  application when resources are shared

4
Our Solution

• Scheduling techniques can be developed to make
  use of the dynamic performance characteristics of
  shared resources
• The approach
• Structural performance models
• Stochastic values and predictions
• Stochastic scheduling techniques

5
Why use shared clusters of workstations?

• More resources at a low cost
• Multiple distributed resources
• Processors
• Storage and Data sources
• Memory
• Cooperation execution of a single application
• Focus on performance speed and capacity

6
How can these resources be used effectively?

• Efficient scheduling
• Selection of resources
• Mapping of tasks to resources
• Allocating data
• Accurate prediction of performance
• Good performance prediction modeling techniques

7
Stochastic Value Parameters
Point Value Parameters
Structural Prediction Models
Stochastic Prediction
Stochastic Scheduling
8
Modeling performance on shared clusters

• Challenges
• Heterogeneous setting
• Multiple languages and programming styles
• Multiple implementations of application
• Non-dedicated and possibly highly contended
  resources

9
Modeling approach must incorporate

• Different models for different machine types and
  different application types
• Different models for the same application, or
  parts of the application
• Extensible and flexible models to adjust to
  changing resources

10
Structural Modeling

• Method to construct flexible, extensible
  performance models for distributed parallel
  applications
• Application performance is decomposed according
  to the structure of the application
• Each sub-task can have its own model
• Result is a performance equation
• Parameters are application and system
  characteristics

11
Successive Over-Relaxation (SOR)

• Iterative solution to Laplaces equation
• Typical stencil application
• Divided into a red pahse and a black phase
• 2-d grid of data divided into strips

12
SOR
13
Models
14
Dedicated SOR Experiments

• Platform- 2 Sparc 2s. 1 Sparc 5, 1 Sparc 10
• 10 mbit ethernet connection
• Quiescent machines and network
• Prediction within 3 before memory spill

15
Non-dedicated SOR results

• Available CPU on workstations varied from .43 to
  .53

16
Platforms with Scattered Range of CPU Availability
17
Improving structural models

• Available CPU has range of 0.48 /- 0.05
• Prediction should also have a range

18
Using Additional Information

• Point value
• Bandwidth reported as 7Mbits/sec
• Single Value
• Often a best guess, estimate under ideal
  circumstances, or a value accurate only for a
  given time frame

• Stochastic value
• Bandwidth reported as 7Mbits /- 2 Mbits
• A set of possible values weighted by
  probabilities
• Represents a range of likely behavior

19
Stochastic Structural Models

• Goal Extend structural models so that resulting
  predictions are distributions
• Structural model is an equation so
• Need to represent stochastic information
• Normal distribution
• Interval
• Histogram
• Need to be able to mathematically combine the
  stochastic values in a timely manner

20
Using Normal Distributions

• A distribution is a set of values with associated
  probabilities
• General distributions have no unifying
  characteristics (and no associated tractable
  arithmetic)
• Can often summarize with a well-known family of
  distributions

21
Normal distributions

• Symmetric and bell-shaped
• Summarized by a mean and a standard deviation
• Range of 2 standard deviations captures 95 of
  the values
• Assume that stochastic data can be adequately
  represented by normal dist

22
Dedicated Execution Time
23
Practical issues when using stochastic data

• Who/what can supply stochastic data?
• User
• Data from past runs
• On-line measurement tools
• Network weather service time series data
• Time frame
• Given a time series, how much data should we
  consider?

24
Accuracy of stochastic results

• Result of a stochastic prediction will also be a
  range of values
• Need to consider how to achieve a tight (sharp)
  interval
• What to do if interval isnt tight

25
How can I use these predictions in scheduling?
Point Value Parameters
Stochastic Value Parameters
Structural Prediction Models
Stochastic Prediction
Stochastic Scheduling
26
Using stochastic predictions

• Simplest scheduling situation Given a data
  parallel application, adjust amount of data
  assigned to each processor to minimize execution
  time

27
Delay in 1 can cause delay in all
28
Stochastic Scheduling

• Examine
• Stochastic data represented as normal
  distributions
• Data parallel codes
• Fixed set of shared resources
• Question How should data be distributed to
  minimize execution time?
• Approach Adjust data allocation so that a high
  variance machine receives less work in order to
  minimize the effects of contention

29
Time Balancing

• Minimize execution time by assigning data so that
  each processor finishes at roughly the same time
• Di data assigned to processor I
• Ui time per unit of data on processor I
• Ci time to distributed the data
• DiUi Ci Dj Uj Cj for all i,j
• Sum Di Dtotal

30
Stochastic Time Balancing

• Adapt time to compute a unit of data (ui) to
  reflect stochastic information
• Larger ui means smaller Di (less data)
• If we have normal distributions
• 95 confidence interval corresponds to m-2sd,
  m2sd
• If we set u m2 sd
• 95 conservative schedule

31
Stochastic Time Balancing (cont)

• Set of equations is now
• Di (mi 2 sdi ) Ci Dj(mj 2 sdj ) Cj
• for all i, j
• Sum Di Dtotal

32
How do policies compare in a production
environment

• 4 contended Sparcs over 10 Mbit shared ethernet

33
Set of Schedules
34
Tuning factor

• Tuning factor is the knobto turn to decide how
  conservative a schedule should be
• For example,m used to determine number of
  standard deviations to add to mean
• Let ui mi sdiTF
• Solve
• Di (mi sdiTF) Ci Dj (mjsdjTF) Cj

35
Extensible approach

• Dont have to use mean and standard deviation
• TF can be defined in a variety of ways

36
Defining our stochastic scheduling policy goals

• Decrease execution time
• Predictable performance
• Avoid spikes in execution behavior
• More conservative when in doubt

37
System of benefits and penalties

• Based on Sih and Lees approach to scheduling
• Benefit (give a less conservative schedule to)
• Platforms with fewer varying machines
• Low variance machines, especially those with
  lower power

38
Partial ordering
39
Algorithm for TF
40
Scheduling Experiments

• Platform-
• 4 contended PCs running Linux
• 100 mbit shared ethernet connection
• 3 policies run back to back
• Mean Ui based on runtime mean pred.
• VTF Ui based on mean and heuristic TF
  evaluation
• 95TF Ui based on 95 conf. interval

41
Metrics

• Window Which of each window of three runs has
  fastest execution time?
• Compare How often was one policy better than,
  worse than, or split when compared with the
  policy run just before and just after
• Whats the right metric?

42
SOR- scheduling 1

• Window Mean 9, CTF 27, 95TF 22 (of 57)
• Compare Better Mixed Worse
• Mean 3 4 12
• VTF 10 7 3
• 95TF 6 9 4

43
CPU performance
44
SOR 2
SOR- scheduling 2

• Window Mean 8, VTF 39, 95TF 11 (of 57)
• Compare Better Mixed Worse
• Mean 3 7 9
• VTF 15 2 3
• 95TF 3 8 8

45
CPU
46
Experimental Conclusions

• Stochastic information was more beneficial when
  there was a higher variability in available CPU
• Almost always we saw a reduction in variation in
  actual execution times
• Unclear when it is better to use which heuristic
  scheduling policy at this point

47
Summary

• The ability to parameterize structural models
  with stochastic values in order to meet the
  prediction needs of shared clusters of
  workstations
• A stochastic scheduling policy that can make use
  of stochastic predictions to achieve better
  execution times and more predictable application
  behavior

48
The Grid

• What is a Grid?
• Shared resources
• Coordinated problem solving
• Grid Problems
• Multiple sites (multiple institutions)
• Autonomy
• Heterogeneity
• Focus on the user

49
Scheduling on the Grid

• Select resources
• Machines
• Network
• Storage Devices (Data replica)
• Move
• Data to compute
• Compute to Data
• Both

50
Moving Compute to Data

• Find the fastest data source, move compute
• Pro
• Often most efficient (BW is scarce commodity)
• Cons
• Executables are picky (compilers, libraries, etc)
• Authentification/authorization/accounting
• Many minimum parameters memory, disk,
  bandwidth, etc
• Socio-political

51
Move Data to Compute

• Select best compute resource, copy data
• Pro
• Common model today
• Sure that application will run
• Con
• May not be most efficient (Best compute may be
  far from data)
• Need to pick best data source for a given compute
  source

52
Data Replication

• Extremely large data sets
• Distributed storage sites
• One file may be available from a number of
  different sources
• Question where is the best source for me to copy
  it from?

53
High Energy Physics Example
Image courtesy H. Newman, Caltech and C.
Kesselman, ISI
54
Data Replica Selection

• Given a logical file name, Replica Catalog
  returns a set of physical file names
• Which replica should we copy the data from?
• (What happens if that connection is interrupted?)

55
What do we need to do?

• Need information
• Need to make a decision
• These are intertwined

56
Where does the info come from?
VO Specific Agg Dirs
D
D
Registration
R
R
R
R
57
What info is available?

• Anything in the MDS
• Anything we write GRISs for
• GridFTP
• NWS

58
How do we make a decision?

• Depends on the data
• Sudharshan
• Grid FTP Data, NWS data on bandwidth
• NWS predictors
• Christopher and Jeff
• Data transfer data
• Case based Reasoning techniques

59
Stochastic Predictions

• Given variance information about
• Bandwidth
• Disk access times
• Example
• Data transfer from A will take 5-7 minutes
• Data transfer from B will take 3-9 minutes
• Which to pick?

60
The Bigger Picture

• Wed like a framework for data replica selection
• Choose any info available
• Choose your own algorithm
• Wed like to combine data replica selection with
  CPU selection
• Wed like to make life easier for the application
  scientist

61
Collaborators

• The AppLeS group Fran Berman (UCSD), Rich
  Wolski (Univ Tennessee, UCSB)
• The Northwestern University Parallel Distributed
  (Beer) Lab Team
• Argonne DSL Students

62
Contact

• jms_at_cs.nwu.edu
• http//www.cs.nwu.edu/jms
• Funding
• NASA GSRP grant NGT-1-52133
• Darpa Contract N66001-97-C-8521
• NSF Career Grant ACI-0093300
