Selfcalibrating Online Wearout Detection

1

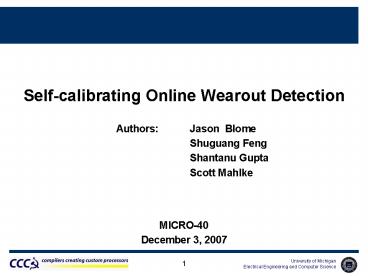

Self-calibrating Online Wearout
Detection Authors Jason Blome Shuguang
Feng Shantanu Gupta Scott Mahlke
MICRO-40 December 3, 2007
2
Motivation

• Designing Reliable Systems from Unreliable
  Components
• - Shekhar Borkar (Intel)

Failures will be wearout induced
More failures to come
3
Current Approaches

• Traditional
• Design margins
• Burn-in
• Detection based on replication of computation
• TMR (Tandem/HP NonStop servers)
• DIVA (Bower, MICRO05)
• Prediction utilizes precise analytical models
  and/or sensors
• Canary circuits (SentinelSilicion, RidgeTop)
• RAMP (Srinivasan, UIUC/IBM)

Impractical
Static
Costly
4
Wearout Mechanisms

• Many failure mechanisms have been shown to be
  progressive

• Hot carrier injection (HCI)

• Negative Bias Temperature Inversion (NBTI)

• Electromigration (EM)

• Oxide Breakdown (OBD)

5
Objective

• Propose a failure prediction technique that
  exploits the progressive nature of wearout
• Monitor impact on path delays

• Prediction
• Monitors evolution of wearout
• Proactive
• enables failure avoidance/mitigation
• Continuous feedback
• False negatives and positives

• Detection
• Identifies existing fault
• Reactive
• enables failure recovery
• End-of-life feedback
• False negatives

6
Oxide Breakdown (OBD)

• Accumulation of defects leads to a conductive
  path

Percolation Model Stathis, JAP06
7
OBD HSPICE Model

• Post-breakdown leakage modeling

BSIM4.6.0, 06
8
Characterization Testbench

• 90nm standard cell library

tcircuit
tcell
9
Impact on Propagation Delay
10
Delay Profiling Unit (DPU)
input signal
1
1
1
Latency Sampling
uArch Module
1
1
11
TRIX Analysis
Magnitude of divergence between TRIXglobal and
TRIXlocal reflects amount of degradation
12
TRIX Analysis Details

• Exponential Moving Average (EMA)
• Triple-smoothed Exponential Moving Average

13
Noisy Latency Profile
Percent Nominal Delay ()
Increasing Age
14
DPU with TRIX Hardware
TRIXl Calculation
input signal
Latency Sampling
Prediction
TRIXg Calculation
15
Wearout Detection Unit (WDU)
TRIXl Calculation
Latency Sampling
Prediction
TRIXg Calculation
16
Evaluation Framework
Gate-level Processor Simulator
OR1200 Verilog
Synthesis and Place and Route
90nm Library
Timing, Power, and Temperature Simulations
MediaBench Suite
Workload Simulator
OBD Wearout Model
HSPICE Simulations
Wearout Simulator
17
WDU Accuracy
18
WDU Overhead
19
WDU Overhead
20
Long-term Vision

• Introspective Reliability Management (IRM)
• Intelligent reliability management directed by
  on-chip sensor feedback
• Prospective sensors
• Delay (WDU)
• Leakage/Vt
• Temperature

21
Introspective Reliability Management
22
Conclusions

• Many progressive wearout phenomenon impact
  device-level performance.
• Its possible to characterize this impact and
  anticipate failures
• WDU performance
• Failure predicted within 20 of end of life
  (tunable)
• Area overhead lt 3 (hybrid)
• Low-level sensors can be used to enable
  intelligent reliability management

23
Questions?
?
