Chapter 8: Input and Output

1

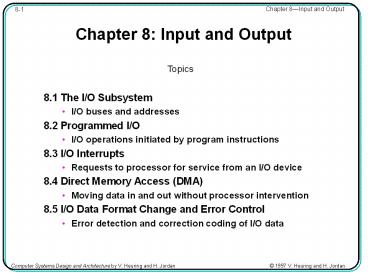

Chapter 8 Input and Output
Topics

• 8.1 The I/O Subsystem
• I/O buses and addresses
• 8.2 Programmed I/O
• I/O operations initiated by program instructions
• 8.3 I/O Interrupts
• Requests to processor for service from an I/O
  device
• 8.4 Direct Memory Access (DMA)
• Moving data in and out without processor
  intervention
• 8.5 I/O Data Format Change and Error Control
• Error detection and correction coding of I/O data

2
Components of a Computer System

• I/O subsystem connects CPU to external devices
  other than memory
• Keyboard, mouse, network, monitor, other
  peripherals
• Disk drives
• These devices have very different characteristics
• Interface protocol
• Timing - 100s to millions of clock cycles

3
Three Requirements of I/O Data Transmission

• (1) Data location
• Correct device must be selected
• Data must be addressed within that device
• (2) Data transfer
• Amount of data varies with device and may need be
  specified
• Transmission rate varies greatly with device
• Data may be output, input, or either with a given
  device
• (3) Synchronization
• For an output device, data must be sent only when
  the device is ready to receive it
• For an input device, the processor can read data
  only when it is available from the device

4
Location of I/O Data

• Data location may be trivial once the device is
  determined
• Character from a keyboard
• Character out to a serial printer
• Location may involve searching
• Record number on a tape drive
• Track seek and rotation to sector on a disk
• Location may not be simple binary number
• Drive, platter, track, sector, word on a disk
  cluster

5
SynchronizationI/O Devices Are Not Timed by
Master Clock

• Not only can I/O rates differ greatly from
  processor speed, but I/O is asynchronous
• Processor will interrogate state of device and
  transfer information at clock ticks
• I/O status and information must be stable at the
  clock tick when it is accessed
• Processor must know when output device can accept
  new data
• Processor must know when input device is ready to
  supply new data

6
Interfacing to Asynchronous Devices
Fig 8.7 Synchronous, Semi-synchronous, and
Asynchronous Data Input
C
y
c
l
e

t
i
m
e
C
y
c
l
e

t
i
m
e
o
f

m
a
s
t
e
r
o
f

m
a
s
t
e
r
R
e
a
d

(
M
)
R
e
a
d

(
M
)
v
a
l
i
d
v
a
l
i
d
D
a
t
a

(
S
)
D
a
t
a

(
S
)
S
t
r
o
b
e

d
a
t
a

(
M
)
C
o
m
p
l
e
t
e

(
M
)
S
t
r
o
b
e

d
a
t
a

(
M
)

• Used for memory to CPU read with few cycle memory

• Used for register to register inside CPU

• Used for I/O over longer distances (feet)

7
Fig 8.7c Asynchronous Data Input
Yes, you may.
Youre welcome.
May I?
Thanks.
Ready
Acknowledge
v
a
l
i
d
Data
Strobe data
8
Reducing Location and Synchronization to Data
Transfer

• Since the structure of device data location is
  device dependent, device should interpret it
• The device must be selected by the processor, but
• Location within the device is just information
  passed to the device
• Synchronization can be done by the processor
  reading device status bits
• Data available signal from input device
• Ready to accept output data from output device
• Speed requirements will require us to use other
  forms of synchronization discussed later
• Interrupts and DMA are examples

9
Fig 8.2 Independent and Shared Memory and I/O
Buses

• Allows tailoring bus to its purpose, but
• Requires many connections to CPU (pins)

• Least expensive option
• Speed penalty

• Memory and I/O access can be distinguished
• Timing and synchronization can be different for
  each

10
Programmed I/O

• CPU directly manages the I/O process through
  program control
• I/O device is controlled by reading and writing
  information into device interface registers
  (inside I/O device)
• I/O device interface registers are configured to
  look like additional memory locations (memory
  mapped I/O)
• Combine memory control and I/O control lines to
  make one unified bus for memory and I/O
• Reduces the number of connections to the
  processor chip
• Increased generality may require a few more
  control signals
• Standardizes data transfer to and from the
  processor
• Asynchronous operation is optional with memory,
  but demanded by I/O devices

11
Fig 8.3 Address Space of a Computer Using
Memory-Mapped I/O
. . .
12
Programmed I/O - More Details

• Requirements for a device using programmed I/O
• Device operations take many instruction times
• One word data transfersno burst data
  transmission
• Program instructions have time to test device
  status bits, write control bits, and read or
  write data at the required device speed
• Example status bits
• Input data ready
• Output device busy or off-line
• Example control bits
• Reset device
• Start read or start write

13
Fig 8.4 Programmed I/O Device Interface Structure
M
e
m
o
r
y

b
u
s
C
o
n
t
r
o
l
A
d
d
r
e
s
s
C
P
U
D
a
t
a
A
d
d
r
e
s
s

d
e
c
o
d
e
r
s
I
/
O

i
n
t
e
r
f
a
c
e
I
/
O

i
n
t
e
r
f
a
c
e
I
/
O

i
n
t
e
r
f
a
c
e
I
n
O
u
t
C
o
m
m
a
n
d
S
t
a
t
u
s
P
r
i
n
t
e
r
K
e
y
b
o
a
r
d
D
i
s
k

d
r
i
v
e
D
e
v
i
c
e

i
n
t
e
r
f
a
c
e

r
e
g
i
s
t
e
r
s
I
/
O

d
e
v
i
c
e

• Focus on the interface between the unified I/O
  and memory bus and an arbitrary device. Several
  device registers (memory addresses) share address
  decode and control logic.

14
Programmed I/O Example - An FP Coprocessor for
the SRC

• A floating point (FP) coprocessor that can
  multiply two 32-bit FP numbers and return the
  result to the SRC
• The coprocessor is memory mapped and uses 4
  device registers mapped to 4 memory locations in
  the SRCs memory space
• The first two registers are write only and are
  used to hold the two FP operands to be multiplied
• The third register is read-write and is the
  status register
• A write (of any data value) to this register
  starts the multiply operation
• A read from this register returns a non-zero
  value if the coprocessor is busy - the current
  calculation is not complete
• The fourth register is read only and holds the
  result of the FP multiply operation
• A read to this register before the result is
  computed causes wait states to be inserted until
  the operation is complete

15
Programmed I/O Example (cont.)

• There are two basic modes of operation for this
  coprocessor
• Wait for completion
• 1) Write FP operands to A and B registers
• 2) Write (any data) to status register to start
  multiply operation
• 3) Read from result register - wait states
  inserted until operation is complete
• Polling
• 1) Write FP operands to A and B registers
• 2) Write (any data) to status register to start
  multiply operation
• 3) Read from status register to check busy
  (non-zero value is returned)
• 4) If busy, repeat step 3 until not busy (zero
  value is returned)
• 5) Read from result register - no wait states
  will be inserted

16
Programmed I/O Example - Memory Map

• FP coprocessor device registers are placed in SRC
  memory map above system ROM and RAM

17
Programmed I/O ExampleSystem Architecture
Memory Controller
SRC CPU
System ROM
System RAM
FP Coprocessor Controller
FP Coprocessor
18
Programmed I/O ExampleSystem Architecture (cont.)
FP Coprocessor Controller
FP Coprocessor
19
Programmed I/O ExampleFP coprocessor Address
Decoding

• FP coprocessor selected for any address in the
  range of 0x0000A000

20
Programmed I/O - Code Example

• Polling - the CPU reads the status register in a
  loop to determine when the operation is complete
• This would allow the CPU to potentially do other
  things while it is waiting (interrupts)

.org 0 0x1000 ld r1,
data1 Load multiplier from RAM ld r2,
data2 Load multiplicand from RAM lar r30,
loop load address for loop st r1,
a_fp_data send A to fp coprocessor st r2,
b_fp_data send B to fp coprocessor st r3,
status start fp coprocessor loop ld r3,
status load status to check for
busy brnz r30,r3 loop while status busy
(! 0) ld r4, fp_result load result back from
fp coprocessor st r4, Result store result in
RAM stop .org 32768 0x8000 - start of
RAM data1 .dw 1 storage for
result data2 .dw 1 storage for
result Result .dw 1 storage for
result .org 40960 0xA000 - start address
for FP coprocessor a_fp_data .dw 1 location
for A data b_fp_data .dw 1 location for B
data status .dw 1 location for
status fp_result .dw 1 location for FP result
21
Programmed I/O - Polling Results
22
Programmed I/O - Code Example

• Wait - the CPU reads the result register and wait
  states are inserted until the result is ready
• The CPU is blocked until the result is returned

.org 0 0x1000 ld r1,
data1 Load multiplier from RAM ld r2,
data2 Load multiplicand from RAM st r1,
a_fp_data send A to fp coprocessor st r2,
b_fp_data send B to fp coprocessor st r3,
status start fp coprocessor ld r4,
fp_result load result back from fp coprocessor
(wait) st r4, Result store result in
RAM stop .org 32768 0x8000 - start of
RAM data1 .dw 1 storage for
result data2 .dw 1 storage for
result Result .dw 1 storage for
result .org 40960 0xA000 - start address
for FP coprocessor a_fp_data .dw 1 location
for A data b_fp_data .dw 1 location for B
data status .dw 1 location for
status fp_result .dw 1 location for FP result
23
Programmed I/O - Wait Results
24
I/O Interrupts

• Key idea instead of processor executing wait
  loop, device requests interrupt when ready
• Interrupt line is another (asynchronous) input to
  CPU
• The interrupting device typically must return the
  vector address and interrupt information bits
• Processor must tell device when to send this
  informationdone by acknowledge signal
• Request and acknowledge form a communication
  handshake pair
• CPU must have the capacity to disable interrupts
• Critical portions of the code may require
  completion without being interrupted for correct
  operation
• It should be possible to disable interrupts from
  individual devices

25
Interrupts - The Basic Process

• CPU is executing some normal code
• I/O device becomes ready for servicing (e.g.,
  user hits a key, network traffic arrives, etc.)
• I/O device requests interrupt to indicate to CPU
  that it needs service - asserts IREQ line
• CPU acknowledges interrupt request - asserts IACK
  line
• I/O device sends data to CPU to indicate which
  device it is and possibly what type of service it
  needs - interrupt vector
• CPU selects code to execute to provide I/O device
  with requested service - interrupt service
  routine
• CPU returns to execution of normal code before
  interrupt

26
Interrupt Requests
CPU
IREQ
Interrupt flip-flop
Single Line Interrupt System
27
Interrupt Requests (cont.)
CPU
IREQ0
IREQ1
Interrupt register
IREQ2
IREQ3
Multiple Line Interrupt System
28
Acknowledging Interrupts
IREQ0
CPU
IREQ1
IREQ2
IREQ3
IACK3
IACK2
IACK1
IACK0
Multiple Line Interrupt Acknowledgment
29
Acknowledging Interrupts (cont.)
CPU
Daisy-Chained Interrupt Acknowledgement Signal
30
Disabling and Enabling Interrupts

• CPU should have some method of disabling
  interrupts during critical portions of the code
• Operating system functions
• Interrupt service routines
• The normal method is to have an interrupt mask
  bit which when 0, prevents the CPUs control unit
  from seeing the interrupt
• The CPU then has instruction for enabling or
  disabling interrupts (setting or clearing this
  mask bit)
• eni enable interrupts
• dsi disable interrupts

CPU
Interrupt mask bit
Enable/Disable interrupts signal from control unit
D
Q
IREQ
Interrupt signal to control unit
Interrupt signal from I/O devices
31
Servicing Interrupts

• Code location for interrupt service routine may
  be hardwired - (single I/O device or multiple
  line interrupt system)
• More likely is that the I/O device provides the
  location of the interrupt service routine to the
  CPU - Interrupt Vector
• I/O device places interrupt vector onto the CPUs
  data bus
• Vector may contain address of service routine AND
  information on type of service needed

CPU
Data Bus
IREQ
IACK
I/O Device 0
32
Servicing Interrupts - Typical Timing
I/O Device signals interrupt to CPU
I/O Device signals CPU that interrupt vector is
valid
IREQ
CPU signals I/O Device it is ready to service
interrupt
CPU signals I/O Device that it has received the
vector
IACK
Interrupt vector from I/O device to CPU
DATA
33
Fig 8.12 Simplified Interrupt Circuit for an
I/O Interface

• Request and enable flags per device
• Returns vector and interrupt information on bus
  when acknowledged

34
Interrupt Service Routine

• Interrupt service routine actually performs the
  work required by the I/O device
• Storing the block of data from the disk into
  memory
• Storing the value of the key pressed by the user
  in a register
• Writing the value of the next character to the
  network transmitter
• The interrupt service routine functions like a
  subroutine call
• The fact that the routine executed must be
  invisible to the normal program that was running
  when the interrupt occurred - contents of any
  registers used by the interrupt service routine
  must be saved and restored
• The interrupt service routine must return control
  to the program that was executing at the same
  point where it stopped and the interrupt service
  routine started

35
Saving Processor State - The Stack

• Most processors include a stack to simplify
  saving and restoring the contents of registers
  that must be used during an interrupt service
  routine (also useful in normal subroutine calls)
• There is a special register called a stack
  pointer that is used to address memory during
  register saves and restores
• Memory is addressed via register indirect
  addressing using the stack pointer as the address
  register
• The programmer must initialize the stack pointer
  to a portion of RAM reserved for the stack data
• The stack behaves as a last-in, first-out (LIFO)
  queue
• Stack manipulation instructions (example)

las c2(rb) load stack pointer with displacement
address lds c2(rb) load stack pointer from
displacement address sts c2(rb) store stack
pointer to displacement address push ra store
register ra on stack, increment stack pointer pop
ra load register ra on stack, decrement stack
pointer
36
Stack Operation Example
las 32678 load stack pointer with 0x8000 push
r0 store r1 on stack push r1 store r2 on
stack push r2 ... some code for service
routine ... which uses registers r0,r1, and
r2 pop r2 restore r2 from stack pop
r1 restore r1 from stack pop r0 restore r0
from stack
Memory Subsystem
RAM memory
Address
CPU
0x8000
R0
R1
R2
SP
37
General Functions of an Interrupt Handler

• (1) Save the state of the interrupted program
  (using stack)
• (2) Do programmed I/O operations to satisfy the
  interrupt request
• (3) Restart or turn off the interrupting device
• (4) Restore the state and return to the
  interrupted program

38
Nested InterruptsInterrupting an Interrupt
Handler

• Some high-speed devices have a deadline for
  interrupt response
• Longer response times may miss data on a moving
  medium
• A real-time control system might fail to meet
  specifications
• To meet a short deadline, it may be necessary to
  interrupt the handler for a slow device
• The higher priority interrupt will be completely
  processed before returning to the interrupted
  handler
• Hence the designation nested interrupts
• Interrupting devices are priority ordered by
  shortness of their deadlines

39
Steps in the Response of a Nested Interrupt
Handler

• (1) Save the state changed by interrupt (IPC and
  II)
• (2) Disable lower priority interrupts
• (3) Re-enable exception processing
• (4) Service interrupting device
• (5) Disable exception processing
• (6) Re-enable lower priority interrupts
• (7) Restore saved interrupt state (IPC and II)
• (8) Return to interrupted program and re-enable
  exceptions.

40
Direct Memory Access (DMA)

• Allows external I/O devices to access memory
  without processor intervention
• Requires a DMA interface device
• Must be set up or programmed and transfer
  initiated

• DMA Example
• CPU needs a block of data from the disk
• CPU tells disk DMA controller where data is on
  disk and where data should be placed in memory
• CPU goes on and does other things
• Disk DMA controller fetches data from disk into
  buffer (inside controller)
• Disk DMA controller transfers data from buffer
  directly into memory (cycle stealing)
• Disk DMA controller informs CPU (via interrupt)
  that transfer is complete and data is ready

Disk
CPU
Memory
Disk Controller (DMA)
Disk data
41
Steps a DMA Device Interface Must Take to
Transfer a Block of Data

• 1. Become bus master
• 2. Send memory address and R/W signal
• 3. Synchronized sending and receiving of data
  using Complete signal
• 4. Release bus as needed (perhaps after each
  transfer)
• 5. Advance memory address to point to next data
  item
• 6. Count number of items transferred and check
  for end of data block
• 7. Repeat if more data to be transferred

42
Fig 8.18 I/O Interface Architecture for a DMA
Device
43
Fig 8.19 Multiplexer and Selector DMA Channels
44
Error Detection and Correction

• Bit-error rate, BER, is the probability that,
  when read, a given bit will be in error
• BER is a statistical property
• Especially important in I/O, where noise and
  signal integrity cannot be so easily controlled
• 10-18 inside processor
• 10-8 - 10-12 or worse in outside world
• Many techniques
• Parity check
• SECDED encoding
• CRC

45
Parity Checking

• Add a parity bit to the word
• Even parity add a bit if needed to make number
  of bits even
• Odd parity add a bit if needed to make number
  of bits odd
• Example for word 10011010, to add odd parity
  bit 100110101

46
Hamming Codes

• Hamming codes are a class of codes that use
  combinations of parity checks to both detect and
  correct errors.
• They add a group of parity check bits to the data
  bits.
• For ease of visualization, intersperse the parity
  bits within the data bits reserve bit locations
  whose bit numbers are powers of 2 for the parity
  bits. Number the bits from l to r, starting at 1.
• A given parity bit is computed from data bits
  whose bit numbers contain a 1 at the parity bit
  number.

47
Fig 8.20 Multiple Parity Checks Making Up a
Hamming Code

• Add parity bits, Pi, to data bits, Di.
• Reserve bit numbers that are a power of 2 for
  parity bits.
• Example P1 001, P2 010, P4 100, etc.
• Each parity bit, Pi, is computed over those data
  bits that have a "1" at the bit number of the
  parity bit.
• Example P2 (010) is computed from D3 (011), D6
  (110), D7 (111), ...
• Thus each bit takes part in a different
  combination of parity checks.
• When the word is checked, if only one bit is in
  error, all the parity bits that use it in their
  computation will be incorrect.

48
Example 8.1 Encode 1011 Using the Hamming Code
and Odd Parity

• Insert the data bits P1 P2 1 P4 0 1 1
• P1 is computed from P1 ??D3 ??D5 ??D7 1, so P1
  1.
• P2 is computed from P2 ??D3 ??D6 ??D7 1, so P1
  0.
• P4 is computed from P1 ??D5 ??D6 ??D7 1, so P1
  1.
• The final encoded number is 1 0 1 1 0 1 1.
• Note that the Hamming encoding scheme assumes
  that at most one bit is in error.

49
SECDED (Single Error Correct, Double Error Detect)

• Add another parity bit, at position 0, which is
  computed to make the parity over all bits, data
  and parity, even or odd.
• If one bit is in error, a unique set of Hamming
  checks will fail, and the overall parity will
  also be wrong.
• Let ci be true if check i fails, otherwise true.
• In the case of a 1-bit error, the string ck-1, .
  . ., c1, c0 will be the binary index of the
  erroneous bit.
• For example, if the ci string is 0110, then bit
  at position 6 is in error.
• If two bits are in error, one or more Hamming
  checks will fail, but the overall parity will be
  correct.
• Thus the failure of one or more Hamming checks,
  coupled with correct overall parity, means that 2
  bits are in error.
• This assumes that the probability of 3 or more
  bits being in error is negligible.

50
Example 8.2 Compute the Odd Parity SECDED
Encoding of the 8-bit value 01101011

• The 8 data bits 01101011 would have 5 parity bits
  added to them to make the 13-bit value
• P0 P1 P2 0 P4 1 1 0 P8 1 0 1 1.
• Now P1 0, P2 1, P4 0, and P8 0, and we
  can compute that P0, overall parity, 1, giving
  the encoded value
• 1 0 1 0 0 1 1 0 0 1 0 1 1

51
Example 8.3 Extract the Correct Data Value from
the String 0110101101101, Assuming Odd Parity

• The string shows even parity, so there must be a
  single bit in error.
• Checks c2 and c4 fail, giving the binary index of
  the erroneous bits as 0110 6, so D6 is in
  error.
• It should be 0 instead of 1.

52
Cyclic Redundancy Check, CRC

• When data is transmitted serially over
  communications lines, the pattern of errors
  usually results in several or many bits in error,
  due to the nature of line noise.
• The "crackling" of telephone lines is this kind
  of noise.
• Parity checks are not as useful in these cases.
• Instead CRC checks are used.
• The CRC can be generated serially.
• It usually consists of XOR gates.

53
Fig 8.21 CRC Generator Based on the Polynomial
x16 x12 x5 1

• The number and position of XOR gates is
  determined by the polynomial.
• CRC does not support error correction but the CRC
  bits generated can be used to detect multibit
  errors.
• The CRC results in extra CRC bits, which are
  appended to the data word and sent along.
• The receiving entity can check for errors by
  recomputing the CRC and comparing it with the one
  that was transmitted.

54
Fig 8.22 Serial Data Transmission with Appended
CRC Code
55
Chapter 8 Summary

• I/O subsystem has characteristics that make it
  different from main memory
• Speed variations
• Latency
• Band width
• This leads to 3 different kinds of I/O
• Programmed I/O handled completely by software,
  from initiation until completion
• Interrupt-driven I/O combines hardware for
  initiation and software for completion
• DMA allows an all-hardware approach to I/O
  activities
• External connections to devices may require data
  format changes, and error detection and possibly
  correction
