Chapter 8 I/O Programming Chapter 9 Trap Service Routines

1

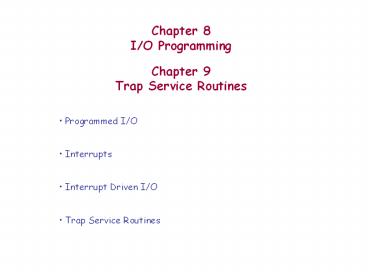

Chapter 8 I/O ProgrammingChapter 9Trap
Service Routines

• Programmed I/O
• Interrupts
• Interrupt Driven I/O
• Trap Service Routines

2
Input/Output Addressing

• Memory Mapped I/O
• A section of the memory address space is reserved
  for I/O Registers rather than general memory
  locations. Think of it as pseudo memory. The
  same instructions are used for general
  programming and I/O programming.
• Non-Memory Mapped I/O
• There is a separate address space for I/O
  programming, and an entirely separate set of I/O
  Instructions.

3
Synchronous vs Asynchronous I/O

• Synchronous
• Latest value of data could be expected to be
  available when the program wanted it.
• It might be periodically updated at a known
  frequency.
• This is not typical nor usually realistic for
  I/O.
• Asynchronous
• Computer is generally much faster than I/O so
  program must wait until requested data is
  available or data provided has been taken.
• Handshaking is used to ensure that data is
  available or I/O device is ready.

4
LC-3 Memory Map (64K of 16 bit words)
256 words 256 words 23.5 K words 39.5 K
words 512 words
5
LC-3 has Memory Mapped I/O
LC-3 Memory Layout x0000 x00FF
Trap vectors (Supports Software Interrupts)
x0020 x0400 GETC (Read Char from
Keyboard) x0021 x0430 OUT
(Write Character to Console) x0022
x0450 PUTS (Write string to Console)
x0023 x04A0 IN (Prompt,
input character from Keyboard, echo character to
Console) x0024 x04E0 PUTSP
(Write packed string to Console) x0025
xFD70 HALT (Turn off run latch in
MCR) x0100 x01FF Interrupt Vectors
(Supports Hardware Interrupts) x0200 x2FFF
System Programs Data (Operating System)
x3000 xFDFF User Programs Area xFE00
xFFFF I/O Programming Registers (Mapped I/O
Regs) xFE00 KBSR 15 Ready, 14 Intr
enable (Keyboard Status Register)
xFE02 KBDR 70ascii data
(Keyboard Data Register) xFE04
DSR 15Done, 14Intr enable
(Display Status Register) xFE06 DDR
70ascii data
(Display Data Register xFFFE MCR
15Run latch
(Machine Control Register)
6
The LC-3 Computer I/O
PSW
I/O
Memory
PSW (Program Status Word) Bits 15
10 9 8 2 1
0 S
Priority N Z P
7
LC-3 Memory Mapped I/O
8
Polling vs Interrrupt Driven I/O

• Polling I/O
• Program initiates I/O and then checks regularly
  to see if I/O is completed. (typically a loop in
  the program)
• Interrupt Driven I/O
• Program initiates I/O and goes to sleep until the
  CPU wakes up the program to say that I/O is
  completed. (instead of going to sleep, the CPU
  may do something else before the wake up call)

9
Handshaking Communications

• A Paradigm Used in Asynchronous Communications
• Typical sequence
• Initiate I/O Request (send signal to I/O device)
• Loop checking for I/O complete (check for
  returned signal)
• Continue Program (perhaps Initiate another I/O
  Request)
• Etc.

10
Keyboard Input Interface
11
Keyboard Input Registers
KBDR (Keyboard Data Register) Assigned to
address xFE02 Data is in KBDR70
Read only Register KBSR (Keyboard Status
Register) Assigned to address xFE00
Status ready is KBSR15
Set to 1 when new data is ready (Set by
Keyboard) Cleared when data
is read (Cleared when user reads data)
12
Simple Polling Program for Input from Keyboard
Waiting for a character to be entered START
LDI R1, KBSR Test for character
input BRzp
START If not here, try again
LDI R0, KBDR Read character
BRnzp NEXT_TASK Go to the next task
KBSR .FILL xFE00
Address of KBSR (Keyboard Status Register) KBDR
.FILL xFE02 Address of KBDR
(Keyboard Data Register)
xFE02 xFE00
13
Console Output Interface
14
Console (Monitor) Output Registers
DDR (Display Data Register) Assigned to
Address xFE06 Data is in
DDR70 DSR (Data Status Register)
Assigned to Address xFE04 Status
done bit is DSR15 Set to
1 when data is picked up
Cleared when new data is written
15
Simple Polling Program to Output to Console
Wait for write to Console done START LDI
R1, DSR Test for output written
BRzp START If not done, try again
STI R0, DDR Write character
BRnzp NEXT_TASK Go to next task
DSR .FILL xFE04
Address of DSR (Display Status Register) DDR
.FILL xFE06 Address of DDR (Display
Data Register)
FE06 FE04
16
Program to Echo from Keyboard to Monitor
Echo keyboard input to Console output START
LDI R1, KBSR Test for input ready
BRzp START LDI R0,
KBDR ECHO LDI R1, DSR
Test for output done BRzp ECHO
STI R0, DDR BRnzp
NEXT_TASK KBSR .FILL xFE00
Address of KBSR KBDR .FILL
xFE02 Address of KBDR DSR
.FILL xFE04 Address of DSR
DDR .FILL xFE06 Address of DDR
17
A Complete I/O Routine to Echo a Line of Input
.orig x3000 Program to read and echo line
from the Console ST R1, SaveR1
Save registers needed ST R2, SaveR2
by this routine ST R3, SaveR3
LD R2, Newline Store newline
Character in R2 L1 LDI R3, DSR
Loop until Monitor is done BRzp L1
STI R2, DDR Move
cursor to new clean line LEA R1,
Prompt Load starting address of prompt
string Loop LDR R0, R1, 0 Get
prompt character BRz Input
Branch to Loop on null (0) L2 LDI R3,
DSR Loop until Monitor is done
BRzp L2 STI R0, DDR
Write prompt character ADD R1,
R1, 1 Increment Prompt pointer
BRnzp Loop Go to get next prompt
character
18
A Complete I/O Routine to Echo a Line of Input
(2)
Input LDI R3, KBSR Poll until a
character is typed BRzp Input
LDI R0, KBDR Get input
character L3 LDI R3, DSR Loop
until Monitor is done BRzp L3
STI R0, DDR Echo input
character ADD R0, R0, -10 Test
for newline (done) BRnp Input
Loop if not done L4 LDI R3, DSR
Loop until Monitor is done BRzp L4
STI R2, DDR Move
cursor to new clean line LD R1,
SaveR1 Restore registers LD R2,
SaveR2 to original values LD
R3, SaveR3 BRnzp NEXT_TASK Do the
program's next task

19
A Complete I/O Routine to Echo a Line of Input
(3)

• SaveR1 .BLKW 1 Memory for
  registers saved
• SaveR2 .BLKW 1
• SaveR3 .BLKW 1
• DSR .FILL xFE04
• DDR .FILL xFE06
• KBSR .FILL xFE00
• KBDR .FILL xFE02
• Newline .FILL x000A ASCII code for
  newline
• Prompt .STRINGZ "Input character linegt "
• NEXT_TASK BRnzp NEXT_TASK Simulates next
  task
• .END

20
I/O Interrupts

• Requirements for a device to interrupt the
  processor
• The device must have the right to request service
• The I/O device must want service
• The device request must be at a higher priority
  than what is being done by the processor or is
  being requested by other devices
• The processor must be completed with the present
  instruction execution

21
Device(s) Generating Interrupt Service Request
to the CPU
Keyboard Monitor
Done/Ready bit is anded with the Interrupt
Enable bit to produce an interrupt request signal
22
Generating the LC-3 Interrupt Request to the CPU
Interrupt Vectors are x0100 to x01FF (x0180 is
for the Keyboard)
23
Servicing an Interrupt

• The following process is followed to service an
  interrupt
• The CPU enters the Supervisor State (PSW Bit 15
  set to 0)
• The context of the present program is saved
  (PC, PSW, SP) (Why?)
• The device provides the address of location in
  the interrupt service routine table where the
  pointer to the service routine should reside.
  (x0180 is the Interrupt Vector for the Keyboard
  Interrupt Service Routine)
• The Supervisor loads the address of the service
  routine into the PC
• The service routine is executed ending with an
  RTI (Any registers used will be saved and
  restored)
• The context of the original program is reloaded,
  and
• The original program resumes

24
Trap Routines

• Programming Trap Service Routines
• Writing the code for them

25
Trap Routines
Trap Instruction TRAP x 1111 0000 trap
vector F0xx PC ? R7 Jump to routine at
trap vector address Return RET 1100 000 111
000000 C1C0 R7 ? PC
(JMP R7) Some Conventions (For the LC-3)
Data passed (read write) in R0,
Error messages returned in R5
26
Trap Process

• Execute TRAP vector - Service Routine
  Addresses
• Trap Vectors are at memory locations
  000000FF
• Trap Vectors contain addresses of Pre
  written (?) Service Routines
• 2) PC is stored in R7
• 3) Address of Trap Service Routine loaded into
  PC
• Service Routine Program executed
• Trap service routine program ends with an RET
• (R7 loaded into PC)

27
TRAP x21 OUT Trap Vector Routine (Output
Character) out.asm .ORIG x0430
System call starting address
ST R1, SaveR1 R1 will be used to poll
the DSR
hardware Write the character TryWrite LDI
R1, DSR Get status BRzp
TryWrite Bit 15 on says display is
ready WriteIt STI R0, DDR Write
character Return from trap Return LD
R1, SaveR1 Restore registers RET
Return from trap (JMP R7,
actually) DSR .FILL xFE04
Address of display status register DDR
.FILL xFE06 Address of display data
register SaveR1 .BLKW 1 Save
area for R1 .END
28
TRAP x23 IN Trap Service
Routine (Input
Character)
in.asm Service Routine for Keyboard
Input .ORIG x04A0 START ST R1,SaveR1
Save the register values ST
R2,SaveR2 that are used so that they
ST R3,SaveR3 can be restored
before RET LD R2,Newline L1
LDI R3,DSR Check DDR -- is it
free? BRzp L1 STI R2,DDR
Move cursor to new clean line
LEA R1,Prompt Prompt is starting
address of
prompt string Loop LDR R0,R1,0
Get next prompt character BRz Input
Check for end of prompt string L2
LDI R3,DSR BRzp L2 STI
R0,DDR Write next character of
prompt string
ADD R1,R1,1 Increment Prompt
pointer BRnzp Loop Input LDI
R3,KBSR Has a character been typed?
BRzp Input LDI R0,KBDR
Load it into R0 L3 LDI R3,DSR
BRzp L3 STI R0,DDR Echo
input character
to the monitor L4 LDI R3,DSR
BRzp L4 STI R2,DDR Move
cursor to new clean line LD
R1,SaveR1 Service routine done, restore
LD R2,SaveR2 original values
in registers. LD R3,SaveR3
RET Return from trap (i.e.,
JMP R7)
SaveR1 .BLKW 1 SaveR2 .BLKW 1 SaveR3
.BLKW 1 DSR .FILL xFE04 DDR .FILL
xFE06 KBSR .FILL xFE00 KBDR .FILL
xFE02 Newline .FILL x000A newline (ASCII)
Prompt .STRINGZ "Input a charactergt" .END
29
TRAP x25 HALT Service Routine
halt.asm Halts the program .ORIG xFD70
Where this routine resides
ST R7, SaveR7 ST R1,
SaveR1 R1 a temp for MC register
ST R0, SaveR0 R0 is used as
working space print message that machine is
halting LD R0,
ASCIINewLine TRAP x21
LEA R0, Message TRAP
x22 LD R0, ASCIINewLine
TRAP x21 clear bit 15 at xFFFE
to stop the machine LDI R1,
MCR Load MC register into R1
LD R0, MASK R0 x7FFF
AND R0, R1, R0 Mask to clear the
top bit STI R0, MCR
Store R0 into MC register return from HALT
routine. (how can this routine return if the
machine is halted above?) LD
R1, SaveR1 Restore registers
LD R0, SaveR0 LD R7,
SaveR7 RET
JMP R7, actually Some constants ASCIINewLine
.FILL x000A SaveR0 .BLKW
1 SaveR1 .BLKW 1 SaveR7 .BLKW
1 Message .STRINGZ "Halting the
machine." MCR .FILL xFFFE
Address of MCR MASK .FILL x7FFF
Mask to clear the top bit .END
30
TRAP 22 PUTS Trap Service Routine (Output a
Character String) puts.asm Output a
Character String This service routine writes a
NULL-terminated string to the console. It
services the PUTS service call (TRAP x22).
Inputs R0 is a pointer to the string to print.
Context Information R0, R1, and R3 are saved,
and R7 is lost in the jump to this
routine .ORIG x0450
Where this Service Routine resides
ST R7, SaveR7 Save R7 for later
return ST R0, SaveR0
Save other registers that are used by this
routine ST R1, SaveR1
ST R3, SaveR3 Loop through
each character in the array Loop LDR
R1, R0, 0 Retrieve the character(s)
BRz Return If it is 0,
done L2 LDI R3,DSR
BRzp L2 STI R1, DDR
Write the character ADD R0, R0,
1 Increment pointer BRnzp
Loop Do it all over again
Return from the request for service call Return
LD R3, SaveR3 Restore Registers
LD R1, SaveR1 LD
R0, SaveR0 LD R7, SaveR7
RET Register locations DSR
.FILL xFE04 DDR .FILL xFE06 SaveR0
.FILL x0000 SaveR1 .FILL
x0000 SaveR3 .FILL x0000 SaveR7
.FILL x0000 .END
