HighBandwidth Packet Switching on the Raw GeneralPurpose Architecture

1

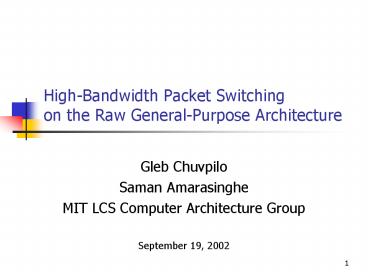

High-Bandwidth Packet Switching on the Raw
General-Purpose Architecture

• Gleb Chuvpilo
• Saman Amarasinghe
• MIT LCS Computer Architecture Group
• September 19, 2002

2
Talk at a Glance

• Motivation
• Architecture of Internet Routers
• Raw Processor Overview
• Raw Router Architecture
• Switch Fabric Design
• Distributed Scheduling Algorithm
• Results and Analysis
• Future Work and Conclusion

3
We are on

• Motivation
• Architecture of Internet Routers
• Raw Processor Overview
• Raw Router Architecture
• Switch Fabric Design
• Distributed Scheduling Algorithm
• Results and Analysis
• Future Work and Conclusion

4
Motivation

• Build a fast IP router on a general-purpose
  architecture

• Why?
• Flexibility ? new protocols and services
• Price ? economies of scale

5
We are on

• Motivation
• Architecture of Internet Routers
• Raw Processor Overview
• Raw Router Architecture
• Switch Fabric Design
• Distributed Scheduling Algorithm
• Results and Analysis
• Future Work and Conclusion

6
Architecture of Internet Routers
7
Switch Fabric
8
Click Modular Router
9
We are on

• Motivation
• Architecture of Internet Routers
• Raw Processor Overview
• Raw Router Architecture
• Switch Fabric Design
• Distributed Scheduling Algorithm
• Results and Analysis
• Future Work and Conclusion

10
Raw Processor Overview

• 16 MIPS-like tiles on a single die
• 2 Megabytes of SRAM on-chip
• Over a thousand signal I/O pins
• Over 200 Gbps of external chip bandwidth
• Scalable to thousands of tiles!

11
Raw Layout
12
Raw Communication Mechanisms

• Two static networks
• Two dynamic networks

13
Raw Static Networks

• Destinations known at compile time
• Message size known at compile time
• Cycle-by-cycle switch schedule
• Three-cycle nearest neighbor send-to-use
  latency

• No processing overhead

14
Static Network Send
15
Static Network Receive
16
Raw Dynamic Networks

• Unpredictable events
• External asynchronous interrupts
• Cache misses
• 15- to 30-cycle nearest neighbor send-to-use
  latency (message header processing overhead)

17
Raw is Good for Streaming
18
We are on

• Motivation
• Architecture of Internet Routers
• Raw Processor Overview
• Raw Router Architecture
• Switch Fabric Design
• Distributed Scheduling Algorithm
• Results and Analysis
• Future Work and Conclusion

19
Given Four Networks
20
and Sixteen Tiles
21
Problem Mapping?
StaticInterconnect
Dynamic Communication
22
Solution Rotating Crossbar
Out 0
Out 1
In 0
In 1
In 3
In 2
Out 3
Out 2
23
We are on

• Motivation
• Architecture of Internet Routers
• Raw Processor Overview
• Raw Router Architecture
• Switch Fabric Design
• Distributed Scheduling Algorithm
• Results and Analysis
• Future Work and Conclusion

24
Rotating Crossbar Highlights

• The idea of a Token Ring network ? absolute
  fairness

• Algorithm uses two static networks, dynamic
  networks are idle

• All deadlock-free configurations are scheduled
  at compile time

• Four headers and token location define a global
  configuration

• Global configuration is computed in a distributed
  manner at run time

25
Rotating Crossbar Illustrated
26
Rotating Crossbar Illustrated
27
Phases of the Algorithm
TILE PROCESSOR
SWITCH PROCESSOR
headers_request
headers
send_prev_config
choose_new_config
route_body
confirm
update_token
28
We are on

• Motivation
• Architecture of Internet Routers
• Raw Processor Overview
• Raw Router Architecture
• Switch Fabric Design
• Distributed Scheduling Algorithm
• Results and Analysis
• Future Work and Conclusion

29
Configuration Space

• Lets enumerate the number of configurations
• SPACE Hdr0 x x Hdr3 x Token,
• where Hdr0 Hdr3 5,
• and Token 4 ?
• therefore
• SPACE 54 x 4 2,500 distinct configurations

30
So What?...

• Each tile has 8,192 words of instruction memory,
  same for switch ?

• ? 8,192/2,500 3.3 instructions per
  configuration ? not enough! ? need to use
  off-chip memory ? slow! ?

• ? need to minimize SPACE

31
Minimization
out
cwnext
in
ccwprev
cwprev
ccwnext
32
Clients and Servers of a Crossbar Processor
33
Outcome of Minimization

• We cut down the number of configurations by 78
  times! Now there are only 32 entries! ?

• ? the program can fit in the local instruction
  memory!

34
We are on

• Motivation
• Architecture of Internet Routers
• Raw Processor Overview
• Raw Router Architecture
• Switch Fabric Design
• Distributed Scheduling Algorithm
• Results and Analysis
• Future Work and Conclusion

35
Implementation

• Raw Router was tested in a cycle-accurate
  simulator of the Raw processor

• Raw prototype clock speed is assumed to be 250
  MHz

• The focus of research is on switch fabric, NOT on
  route lookup, etc.

36
Peak Throughput
37
Average Throughput
38
We are on

• Motivation
• Architecture of Internet Routers
• Raw Processor Overview
• Raw Router Architecture
• Switch Fabric Design
• Distributed Scheduling Algorithm
• Results and Analysis
• Future Work and Conclusion

39
Future Work

• Take advantage of dynamic networks
• Implement IP route lookup
• Add computation on data (encryption)
• Add support of multicast traffic
• Implement Quality of Service
• Add virtual output queueing
• Explore larger router configurations

40
Conclusion

• Implemented a gigabit switch on Raw
• Mapped dynamic communication to static
  interconnect

• Can intermix switch fabric with computation
• High-bandwidth I/O allows performance of custom
  ASIC processors

41
Questions?
