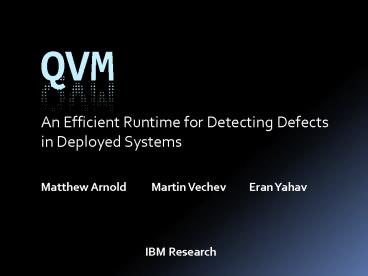

QVM

1
QVM

• An Efficient Runtime for Detecting Defects
• in Deployed Systems

Matthew Arnold
Martin Vechev
Eran Yahav
IBM Research
2
MotivationDynamic Analysis for Debugging
3
MotivationDynamic Analysis for Debugging

• Testing
• High overhead tolerable
• Deep properties relating to program correctness

4
MotivationDynamic Analysis for Debugging

• Testing
• High overhead tolerable
• Deep properties relating to program correctness

• Production
• Low overhead is mandatory
• Very limited information

5
MotivationDynamic Analysis for Debugging

• Production
• Very limited information

• Testing
• High overhead tolerable

• Production
• Low overhead is mandatory

• Testing
• Deep properties relating to program correctness

6
But Why Modify the VM?

• VM Disadvantages
• Portability
• Complexity
• Why not use
• bytecode inst., JVMTI, aspects,
  java.lang.Instrument ???
• VM Advantages
• VM only information
• Free bits in object header
• Can walk the heap if we desire (GC)
• Performance
• Exploit dynamic optimization technology
• Ease of deployment
• No install process. Just set command line flag

7
New Overhead Philosophy

• Traditional dynamic analysis
• If I use your analysis, how much overhead will it
  have?
• QVM user specifies an overhead budget
• I am willing to tolerate an X slowdown
• Goal give user as much useful information as
  possible
• May miss errors
• But enables some checking in scenarios where it
  is currently infeasible

8
Contributions

• Overhead manager (OHM)
• Adapts analyses to meet user-specified overhead
  budget
• Dynamic analyses checking correctness properties
• Typestate property checking
• Object-centric sampling
• Heap probes / assertions
• Java assertions
• QVMI
• Overhead aware interface for medium-granularity
  VM events

All implemented and evaluated IBMs J9 JVM
9
QVM Architecture
Application
typestate specs
violations report
typestate client
assertions client
heap probes client
Clients
QVMI
event filters
event callbacks
Execution Engine
VM Core
QVM
10
QVMI The QVM Interface

• Profiling interface
• Similar to JVMPI/JVMTI
• Method calls, allocations, etc
• Key Difference event filtering

Analysis Client
event filters
JVMTI
event callbacks
VM
Execution Engine
11
QVMI The QVM Interface

• Profiling interface
• Similar to JVMPI/JVMTI
• Method calls, allocations, etc
• Key Difference event filtering

Analysis Client
Analysis Client
event filters
event filters
JVMTI
QVMI
event callbacks
event callbacks
VM
Execution Engine
Execution Engine
12
QVMI The QVM Interface

• When compiling a method
• JIT queries QVM clients
• Does invocation of method foo() require a call
  back?
• If not, no callback is compiled into code
• Ensures no overhead for uninteresting events

13
Overhead Manager (OHM)

• Monitoring measure overhead incurred by clients
• Sampling strategy events callbacks have
  adjustable sample rate
• Controller adjusts sample rate based on measured
  overhead

QVMI
observed overhead
event filters
event callbacks
Execution Engine
specified overhead
OHM
adjust sampling rates
VM Core
14
Overhead Manager Challenges

• Fine grained timers critical
• Read cycle counts via rdtsc instruction
• Must have notion of total application time
• Interactive apps
• We use Linux getrusage()to get cpu time
• Issues for multi-threaded apps
• Details in paper
• Analyses must be able to be turned off
• OK to miss bugs
• But must not produce meaningless results

15
Maximizing Sampling Coverage
Randomly distributed sampling can produce poor
results
Execution frequency
Code
eventA ()
eventB ()
eventC()
16
Maximizing Sampling Coverage
Origin-specific sampling
Execution frequency
Sample Rate
Code
eventA ()
1/1
eventB ()
1/1
eventC()
1/100
17
QVM Client 1 Typestate Property Checker
b

dispose release
disposed
else
undisposed
Objectallocation
err
Objectdeath

18
Typestate Property Checker

• Simple to implement via QVMI
• Events used
• Object Allocation, method invocation, object
  death
• Sampling typestate is problematic
• Ex File Open ? Close
• High problem of sampling close but not open
• Solution object-centric sampling

19
Object Centric Sampling

tracked
tracked
T t new T()

• Tracked objects marked using bit in object header
• Bit checked before executing callbacks

20
Client 2 Heap Probes

• Heap Probes
• Allow programmer to query properties of the heap
• isShared(Object o1)
• Do two or more heap objects point to o1
• isThreadOwned(Thread t, Object o)
• Is o reachable from only thread t only
• Uses components of a parallel GC to evaluate heap
  queries
• Worst case requires traversal of entire heap
• Probe sites automatically sampled by overhead
  manager
• Performs GC in process

21
Use Case Example Azureus
Over 160 million downloads
22
Azureus Resource Leaks

• Typestate checker for undisposed GDI resources
• Actual QVM report

QVM ERROR Resource_not_disposed object
0x98837030 of class org/eclipse/swt/graphics/Im
age allocated at site ID 2742 in
method com/aelitis/azureus/.../ListView.handleRes
ize(Z)V died in state UNDISPOSED with last QVM
method invoked org/.../Image.isDisposed()Z.
23
Azureus Resource Leaks
OS Resources

• void handleResize(boolean bForce)
• // ...
• if (imgView null bForce)
• imgView new Image(listCanvas.getDisplay()
  , clientArea)
• //

imgView
OS Resources
24
Possible Fix

• void handleResize(boolean bForce)
• // ...
• if (imgView null bForce)
• if(imgView ! null !imgView.isDisposed())

• imgView.dispose()
• imgView new Image(listCanvas.getDisplay(),
  clientArea)
• // ...

25
Possible Fix

• void handleResize(boolean bForce)
• // ...
• if (imgView null bForce)
• if(imgView ! null !imgView.isDisposed())

• assert(!QVM.isShared (imgView))
• imgView.dispose()
• imgView new Image(listCanvas.getDisplay(),
  clientArea)
• // ...

26
Experimental Evaluation
27
Overhead Manager stabilization
28
Overhead Manager
29
Leak Detection Results
30
Sampling coverage (5 budget)
31
Summary

• Recap
• Adaptive overhead controller
• Clients typestate, assertions, heap probes
• QVMI
• Found and fixed bugs several real applications
• Future Work
• Improve efficiency of heap assertions
• Concurrent or incremental evaluation
• Overhead manager
• Tighter overhead guarantees

32
Related Work

• Much related work in paper
• Typestate and leak detection
• Aspect Oriented Programming
• Monitoring Oriented Programming
• Heap analysis tools
• Real time garbage collection

33
