For ions we must adjust the number of electrons available, A

1
The Octet Rule Examples

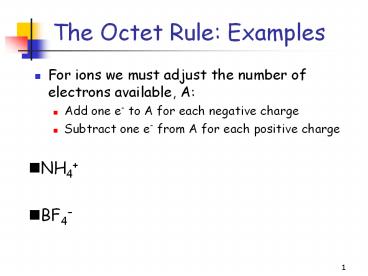

• For ions we must adjust the number of electrons
  available, A
• Add one e- to A for each negative charge
• Subtract one e- from A for each positive charge

• NH4
• BF4

2
Example CO32-
3
Resonance

• There are three possible structures for CO32-
• The double bond can be placed in one of three
  places

• These are called equivalent resonance structures
• The real structure of the CO32- anion is an
  average of these three resonance structures

4
Resonance

• There are no single or double bonds in CO32-
• All three bonds are equivalent
• They are intermediate between the single and
  double bond

5
Resonance Other Examples

• SO3

6
Resonance Other Examples

• NO3

7
Resonance Other Examples

• SO42

8
Exceptions to the Octet Rule

• In those cases where the octet rule does not
  apply, the substituents attached to the central
  atom nearly always attain noble gas
  configurations
• The central atom does not have a noble gas
  configuration but may have fewer than 8 or more
  than 8 electrons

9
Examples

• BBr3

• AsF5

10
Assignments Reminders

• Go through the recent lecture notes
• Read Chapter 7 completely, except for Sections
  7-7 7-8
• Homework 4 due by Oct. 16 _at_ 3 p.m.
• Review Session _at_ 515 p.m. on Sunday

11
CHAPTER 8

• Molecular Structure Covalent Bonding Theories

12
Stereochemistry

• The study of the three-dimensional shapes of
  molecules
• With the knowledge acquired so far we will be
  able to predict the shapes of molecules and ions
• Our instrument Valence Shell Electron Pair
  Repulsion theory (VSEPR theory R. J. Gillespie)

13
VSEPR Theory

• In any molecule or ion there are regions of high
  electron density
• Bonds (shared electron pairs)
• Lone pairs (unshared electrons)
• Due to electron-electron repulsion, these regions
  are arranged as far apart as possible
• Such arrangement results in the minimum energy
  for the system

14
BeCl2
15
BBr3
16
CH4
17
PCl5
18
SF6
19
Five Basic Geometries
Linear
Trigonal
Tetrahedral
Octahedral
Trigonal bipyramidal
20
SiF4
21
NH3
22
Electronic Geometry and Molecular Geometry

• Electronic geometry
• Distribution of regions of high electron density
  around the central atom
• Molecular geometry
• Arrangement of atoms around the central atom

23
H2O
