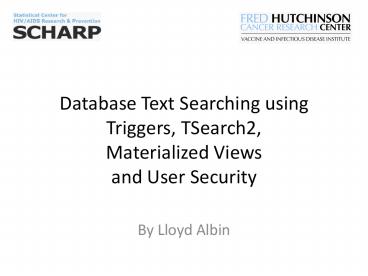

Database Text Searching using Triggers,
TSearch2,Materialized Viewsand User Security

• By Lloyd Albin

2
SCHARPThe Statistical Center for HIV/AIDS
Research Prevention

• The Statistical Center for HIV/AIDS Research
  Prevention (SCHARP) is part of the program of
  Population Sciences within the Vaccine and
  Infectious Disease Institute (VIDI) of the Fred
  Hutchinson Cancer Research Center in Seattle,
  Washington. SCHARP provides statistical
  collaboration to infectious disease researchers
  around the world and conducts a complementary
  program of statistical methodology, and
  mathematical modeling research. SCHARP also
  collects, manages, and analyzes data from
  clinical trials and epidemiological studies
  dedicated to the elimination of infectious
  disease as a threat to human health.
• Formerly known as HIVNET, SCHARP has been in
  existence since 1994. We currently serve as the
  Statistical and Data Management Center for the
  HIV Prevention Trials Network (HPTN), the HIV
  Vaccine Trials Network (HVTN), and the
  Microbicide Trials Network (MTN). The HVTN, HPTN,
  and MTN are part of the Division of AIDS (DAIDS)
  of the National Institute of Allergy and
  Infectious Diseases (NIAID), a component of the
  National Institutes of Health (NIH). SCHARP also
  collaborates with other organizations, including
  the Chinese Center for Disease Control and
  Prevention, the Center for HIV-AIDS Vaccine
  Immunology (CHAVI), the Partnership for AIDS
  Vaccine Evaluation (PAVE), and the International
  Maternal Pediatric Adolescent AIDS Clinical
  Trials (IMPAACT).
• SCHARP conducts clinical trials in over 19
  countries around the globe, including several
  Sub-Saharan African and Caribbean countries,
  India, Russia, China, Thailand, Brazil, and Peru.

3
The Project

• Create a search engine to search the database and
  return relevant results without knowing what
  tables or columns to search.
• Return result that the logged in user has select
  (read) access to.

4
Other Issues

• Joining all the tables and search all the columns
  can take a very long time
• The Tsearch2 encoder is not fast.
• With both of these issues, it caused me to use
  the materialized view, so that all the encoding
  was already done.

5
The Solution

• Add triggers to the tables that we wish to be
  searched and have them update a materialized view
  that contains the GIS version of the data created
  by TSearch2
• Create a function that searches this materialized
  view and returns the results.
• Now go back to that function and add in User
  security, so that the user only sees data that
  they have permission to view.

6
Install TSearch2

• Due to the fact that we are running Solaris 9
  with PostgreSQL v8.2.x we had to install
  TSearch2.
• We are have just completed upgrading to Solaris
  10 and are planning to upgrade to PostgreSQL
  v8.3.x in October and will be revising these
  tools at that point.
• Also an issue is that we are running the 64 bit
  version of PostgreSQL and this makes the upgrades
  harder.
• To Install Tsearch2
• psql -h server_name -U postgres -d database_name


7
The Materialized View

• CREATE TABLE "tools"."search_table" (
• "search_id" SERIAL,
• "row_id" TEXT,
• "column_name" NAME,
• "table_name" NAME,
• "schema_name" NAME,
• "database_name" NAME,
• "server_name" NAME,
• "vector" TSVECTOR,
• "description" TEXT,
• CONSTRAINT "search_table_pkey" PRIMARY
  KEY("search_id")
• ) WITH OIDS
• CREATE INDEX "search_table_index" ON
  "tools"."search_table"
• USING gist ("vector" "public"."gist_tsvector_ops
  ")

8
The Trigger

• CREATE TABLE "al"."list_ldms_additive_code" (
• "pk" SERIAL,
• "ldms_additive_code" VARCHAR(255),
• "additive_description" TEXT,
• "info_source" VARCHAR(255),
• "notes" TEXT,
• CONSTRAINT "list_ldms_additive_code_ldms_additiv
  e_code_key" UNIQUE("ldms_additive_code"),
• CONSTRAINT "list_ldms_additive_code_pkey"
  PRIMARY KEY("pk")
• ) WITH OIDS
• CREATE TRIGGER "search_list_ldms_additive_code_tr"
  AFTER INSERT OR UPDATE OR DELETE
• ON "al"."list_ldms_additive_code" FOR EACH ROW
• EXECUTE PROCEDURE "tools"."update_search"(atlassql
  -a, pk)

9
Search Function Examples

• Search Function
• SELECT FROM tools.database_search
  (search_string, server_name, database_name,
  schema_name, table_name, column_name)
• Search Parameters
• search_string is mandatory and is really the only
  item needed. If you just fill in this one without
  filling in any other items, the the entire
  database will be searched for the text string.
• server_name is optional and really reserved for
  future use. (If you are using schema_name, you
  may also wish to specify server_name and
  database_name also to have your code pre-written
  for the future.)
• database_name is optional and really reserved for
  future use. (If you are using schema_name, you
  may also wish to specify server_name and
  database_name also to have your code pre-written
  for the future.)
• schema_name is optional. This allows you to
  search a specific schema instead of the entire
  database.
• table_name is optional. This allows you to search
  a specific table. Without specifying the
  schema_name it will search all tables with that
  table name across in the entire database.
• column_name is optional. This allows you to
  search a specific column. Without specifying the
  table_name or schema_name it will search all
  tables across in the entire database that use
  that column_name.
• The server_name, database_name, schema_name,
  table_name, and column_name allow you to perform
  a WHERE on the results before the search is done
  instead of afterwards. This makes the search
  function much faster as it does not need to
  search all those extra results.
• Search Strings Commands
• and
• or
• ! not
• () grouping
• Search String Examples
• yellow
• grass green
• sun (yellow red)

10
Search Function Examples

• Search String Results Examples
• SELECT FROM tools.database_search ('yellow',
  '', '', '', '', '')

SELECT FROM tools.database_search ('grass
green', '', '', '', '', '')
11
Search Function Examples
SELECT FROM tools.database_search ('sun
(yellow red)', '', '', '', '', '')
12
Search Function Examples
SELECT FROM tools.database_search ('sun
!red)', '', '', '', '', '')

• Bugs / Notes
• If your key field data contains a ' the response
  may not be escaped and so therefore may be
  unusable. This needs to be verified and then
  fixed if this is the case.
• This function does not understand when you switch
  roles. This is because the function needs to run
  with its own permissions and this will skew the
  results if it was using the role permissions.
• Security Note
• You will only see the responses for tables that
  you have SELECT permissions.

13
Bulk Update(Add an entire table)

• Insert Search Data Function
• SELECT tools.insert_search_data ('server_name,
  schema_name, table_name')
• SELECT tools.insert_search_data ('server_name,
  schema_name, table_name, ignore_column_name,
  ...')
• Insert Search Data Parameters
• server_name The name of the server that that
  the table resides in.
• schema_name The name of the schema that that
  the table resides in.
• table_name The name of the table that you want
  to be searchable.
• ignore_column_name The name of the column in
  the table that you do not wish to be searchable,
  such as personal data, payroll data, id keys,
  etc.
• Search String Examples
• SELECT tools.insert_search_data('atlassql-test,
  public, testing') SELECT tools.insert_search_dat
  a('atlassql-test, public, testing, key_id,
  not_string')
• Notes
• If you run this command more than once on the
  same table, you will get duplicate results. You
  must run the drop_search_data function between
  each insert_search_data function.
• If any records are inserted, updated, or deleted
  while this is happening you may have some
  integrity issues.
• If you are dropping and re-creating the
  view/tables, it is better to drop the table, run
  the drop_search_data function, then create the
  table, add the trigger and finally insert the
  data. This way there will not be any data
  integrity issues.
• This function is really just designed for doing
  the initial inserts for an existing table that
  the trigger is being added to.

14
Bulk Delete(Entire table or more at once)

• Drops Search Data Function
• SELECT tools.drop_search_data (server_name,
  database_name, schema_name, table_name)
• Drop Search Data Parameters
• server_name is optional and really reserved for
  future use. (If you are using schema_name, you
  may also wish to specify server_name and
  database_name also to have your code pre-written
  for the future.)
• database_name is optional and really reserved for
  future use. (If you are using schema_name, you
  may also wish to specify server_name and
  database_name also to have your code pre-written
  for the future.)
• schema_name is optional. This allows you to
  search a specific schema instead of the entire
  database.
• table_name is optional. This allows you to search
  a specific table. Without specifying the
  schema_name it will search all tables with that
  table name across in the entire database.
• You must enter one of the above or nothing will
  be processed
• Search String Examples
• SELECT tools.drop_search_data ('atlassql-test',
  'atlastest', 'public', 'testing')
• SELECT tools.drop_search_data ('atlassql-test',
  'atlastest', 'public', '')
• SELECT tools.drop_search_data ('atlassql-test',
  'atlastest', '', '')

15
Lookup Role Users

• User Search Function
• This function will return to you a list of
  everybody who is attached to a role (user or
  group) that has inherit privileges turned on.
• SELECT FROM tools.lookup_role_users('role_name')

• Search Parameters
• role_name
• This is either a user or group name
• Search String Examples
• SELECT FROM tools.lookup_role_users('dba')
• SELECT FROM tools.lookup_role_users('lalbin')
• Search String Results Examples
• SELECT FROM tools.lookup_role_users('dba')
• SELECT FROM tools.lookup_role_users('lalbin')

16
Lookup User Permissions

• User Privilege Search Function
• This function returns to you a list of the items
  and the users who have the privilege type
  requested. This function does drill down through
  the groups also to find additional users why have
  inherit privileges turned on. You also must use
  the DISTINCT because this function returns
  duplicates because of the drill down that it
  performs.
• SELECT DISTINCT FROM tools.display_user_perms('i
  tem_type','privilege_type')
• Search Parameters
• item_type
• r ordinary table
• i index
• S sequence
• v view
• c composite type
• s special
• t TOAST table
• privilege_type
• r SELECT ("read")
• w UPDATE ("write")
• a INSERT ("append")
• d DELETE
• R RULE

17
Lookup User Permissions

• Search String Examples
• SELECT DISTINCT FROM tools.display_user_perms('r
  ','r') WHERE nspname 'public'
• SELECT DISTINCT FROM tools.display_user_perms('r
  ','r') WHERE rolname 'lalbin'
• SELECT DISTINCT FROM tools.display_user_perms('r
  ','r') WHERE relname 'testing'
• SELECT DISTINCT FROM tools.display_user_perms('v
  ','r') WHERE rolname 'lalbin'
• SELECT DISTINCT FROM tools.display_user_perms('r
  ','w') WHERE rolname 'lalbin'
• Search String Results Examples
• SELECT DISTINCT FROM tools.display_user_perms('r
  ','r') WHERE nspname 'public'

18
Lookup User Permissions

• SELECT DISTINCT FROM tools.display_user_perms('r
  ','r') WHERE rolname 'lalbin'

• Security Note
• This function does not understand when you switch
  roles. This is because the function needs to run
  with its own permissions and this will skew the
  results if it was using the role permissions.
• This function will only return results from the
  database that you are currently logged into.

19
Foreign Key Relationships(Crabbing or Crawling
the Data sideways)

• Foreign Key Relationship Search Function
• SELECT FROM tools.foreign_key_details
  (schema_name, table_name, direction)
• Foreign Key Relationship Parameters
• schema_name The name of the schema that that
  the table resides in.
• table_name The name of the table that you want
  to be searchable.
• direction 0 - returns tables that are
  referenced by this data, 1 - returns tables that
  are reference by this data.
• Search Foreign Key Relationship Examples
• SELECT FROM tools.foreign_key_details('public',
  'testing, 0)
• Search Foreign Key Relationship Results Examples
• SELECT FROM tools.foreign_key_details ('al',
  'list_antibody, 0)

• Security Note
• The function knows which role you are logged in
  as and will return the appropriate results.

20
update_search()

• CREATE OR REPLACE FUNCTION "tools"."update_search"
  () RETURNS trigger AS
• body
• Half of this code was taken from the shadow_fn
• If shadow_fn has been updated you may wish to
• also apply those updates here.
• my updates_table 0
• my database_name ""
• my server_name
• if (length(_0) 0)
• server_name _0
• else
• server_name "atlassql-test"
• if the search_table_updates table doesn't
  exist then error

21
update_search()

• get the primary key values for the row
• sql "SELECT column_name FROM
  information_schema.key_column_usage "
• ."WHERE table_schema'"._TD-table_schem
  a."' "
• ."AND table_name'"._TD-table_name."'
  "
• ."AND position_in_unique_constraint IS
  NULL "
• ."ORDER BY ordinal_position"
• rv spi_exec_query(sql)
• join primary key fields into one big field
• my oldnew _TD-event eq "DELETE" ?
  "old" "new"
• my _at_pkey_vals map vals_-column_name
  oldnew _at_rv-rows
• my _at_pkey_cols map _-column_name
  _at_rv-rows
• my pkey join(",",_at_pkey_vals)
• my pkey join("''",_at_pkey_cols,_at_pkey_vals)

• pkey pkey . "''"
• my pkey ""
• while (_at_pkey_vals)
• if (length(pkey))

22
update_search()

• insert for each changed field
• foreach my c (_at_cols)
• process_column 0
• update only the changed columns
• if (valscold ne valscnew)
• process_column 1
• if UPDATE and the keys have changed, update
  all columns
• if (_TD-event eq "UPDATE")
• if (pkey ne pkey_update)
• process_column 1

23
update_search()

• if (_TD-event eq "INSERT")
• sql "INSERT INTO
  tools.search_table "
• ."(row_id, column_name,
  table_name, schema_name, "
• ."database_name, server_name,
  vector, description) "
• ."VALUES ('pkey', 'c',
  '"._TD-table_name."', "
• ."'"._TD-table_schema."',
  current_database(), 'server_name', "
• ."to_tsvector('".valscnew
  ."'), '".valscnew."')"
• spi_exec_query(sql)
• elsif (_TD-event eq "UPDATE")
• sql "UPDATE tools.search_table
  SET "
• ."row_id 'pkey',
  column_name 'c', "
• ."table_name
  '"._TD-table_name."', schema_name
  '"._TD-table_schema."', "
• ."database_name
  current_database(), server_name 'server_name',
  "
• ."vector to_tsvector('".val
  scnew."'), description '".valscnew."'
  "
• ."WHERE "
• ."row_id 'pkey_update' AND
  column_name 'c' AND "

24
database_search(search text, server, database,
schema, table, column)

• CREATE OR REPLACE FUNCTION "tools"."database_searc
  h" (text, text, text, text, text, text) RETURNS
  SETOF "tools"."schema_search_t" AS
• body
• my row
• my search_config ""
• if (length(_1) 0)
• if (length(search_config) 0)
• search_config search_config . " AND
  server_name '" . _1 . "'"
• else
• search_config " WHERE server_name '" .
  _1 . "'"
• if (length(_2) 0)

25
database_search(search text, server, database,
schema, table, column)

• if (length(_4) 0)
• if (length(search_config) 0)
• search_config search_config . " AND
  table_name '" . _4 . "'"
• else
• search_config " WHERE table_name '" .
  _4 . "'"
• if (length(_5) 0)
• if (length(search_config) 0)
• search_config search_config . " AND
  column_name '" . _5 . "'"

26
database_search(search text, server, database,
schema, table, column)

• my sth spi_query("SELECT m.search_id, "
• ."headline(m.description, q) As headline, "
• ."rank(m.vector, q) as rank, m.row_id, "
• ."m.column_name, m.table_name, "
• ."m.schema_name, m.database_name, "
• ."m.server_name "
• ."FROM (SELECT FROM "
• ."(SELECT FROM tools.search_table
  ".search_config.") AS t "
• ."LEFT JOIN (SELECT DISTINCT from
  tools.display_user_perms('r', 'r') "
• ."WHERE rolname SESSION_USER) AS u "
• ."ON u.relname t.table_name AND u.nspname
  t.schema_name "
• ."WHERE u.rolname IS NOT NULL) AS m, "
• ."to_tsquery('_0') AS q "
• ."WHERE vector _at__at_ q "
• ."ORDER BY rank(vector, q) DESC")
• while (defined (row spi_fetchrow(sth)))
• return_next(

27
display_user_perms(item type, access type)

• CREATE OR REPLACE FUNCTION "tools"."display_user_p
  erms" (text, text) RETURNS SETOF
  "tools"."user_perms" AS
• body
• First Value Passed
• r ordinary table
• i index
• S sequence
• v view
• c composite type
• s special
• t TOAST table
• Second Value Passed
• r -- SELECT ("read")
• w -- UPDATE ("write")
• a -- INSERT ("append")
• d -- DELETE
• R -- RULE
• x -- REFERENCES
• t -- TRIGGER

28
display_user_perms(item type, access type)

• my who_user spi_fetchrow(who_user_table)
• my sth spi_query("SELECT current_database()
  AS
• catname, nc.nspname,
• c.relname, a.rolname
• FROM pg_catalog.pg_class AS c
• LEFT JOIN pg_catalog.pg_authid AS a ON a.oid
  c.relowner
• LEFT JOIN pg_catalog.pg_namespace AS nc ON
  nc.oid c.relnamespace
• WHERE c.relkind '_0' AND nc.nspname !
  'pg_'
• AND c.relacl IS NULL AND (NOT
  pg_is_other_temp_schema(nc.oid))
• ORDER BY c.relname")
• while (defined (row spi_fetchrow(sth)))
• if (length(row-rolname) 0)
• user login
• user_rtn who_user-session_user
• user via login then changed by set
  role
• user_rtn who_user-current_user

29
display_user_perms(item type, access type)

• if (length(row3-rolname) 0)
• user login
• user_rtn who_user-session_user
• user via login then changed by set
  role
• user_rtn who_user-current_user

• else
• user_rtn row3-rolname
• return_next(
• catname row-catname,
• nspname row-nspname,
• relname row-relname,
• rolname user_rtn
• )

30
display_user_perms(item type, access type)

• while (defined (row spi_fetchrow(sth)))
• postgresarwdxt/postgres,main_ror/post
  gres
• xxxx -- privileges granted to
  PUBLIC
• unamexxxx -- privileges granted to a
  user
• group gnamexxxx -- privileges granted to a
  group
• Trim first and last characters ""
• create array at ","
• _at_users_privs split(/,/,
  substr(row-relacl,1,-1))
• my user_privlages
• Loop through all the users
• foreach user_privlages (_at_users_privs)
• if (substr(user_privlages,0,5) eq
  "group")

31
display_user_perms(item type, access type)

• user_rtn user_privs0
• return_next(
• catname row-catname,
• nspname row-nspname,
• relname row-relname,
• rolname user_rtn
• )
• my sth2 spi_query("SELECT FROM
  tools.lookup_role_users('row-rolname')")
• while (defined (row2 spi_fetchrow(sth2)))

• elog(INFO, row2-rolname . "" .
  user_privs1)
• if (length(row2-rolname) 0)
• user login
• user_rtn who_user-session_user

• user via login then changed by
  set role

32
lookup_role_users (name)

• CREATE OR REPLACE FUNCTION "tools"."lookup_role_us
  ers" (name) RETURNS SETOF "tools"."lookup_role_use
  rs" AS
• body
• my row
• my row2
• my sth spi_query("select u.rolname,
  u.rolinherit
• FROM pg_auth_members LEFT JOIN pg_authid u
• ON pg_auth_members.member u.oid
• LEFT JOIN pg_authid r
• ON pg_auth_members.roleid r.oid
• WHERE r.rolname '_0'
• AND u.rolinherit TRUE")
• while (defined (row spi_fetchrow(sth)))
• moved to be part of the above query
• if (row-rolinherit eq 't')
• return_next(
• rolname row-rolname

33
foreign_key_details(schema name, table name,
direction)

• CREATE OR REPLACE FUNCTION "tools"."foreign_key_de
  tails" (text, text, integer) RETURNS SETOF
  "tools"."foreign_key_details_t" AS
• body
• my sql
• my rv2
• my row2
• elog(NOTICE,"ROW START")
• sql "SELECT tc.constraint_name, "
• ."tc.constraint_type, "
• ."tc.table_name, "
• ."kcu.column_name, "
• ."tc.is_deferrable, "
• ."tc.initially_deferred, "
• ."rc.match_option AS match_type, "
• ."rc.update_rule AS on_update, "
• ."rc.delete_rule AS on_delete, "
• ."ccu.table_schema AS
  references_schema, "
• ."ccu.table_name AS references_table, "
• ."ccu.column_name AS references_field "

34
foreign_key_details(schema name, table name,
direction)

• if (_2 0)
• sql sql . " AND tc.table_name
  '"._1."' "
• ."AND tc.table_schema '"._0."' "
• else
• sql sql . " AND ccu.table_name
  '"._1."' "
• ."AND ccu.table_schema '"._0."' "
• rv2 spi_query(sql)
• while (defined (row2 spi_fetchrow(rv2)))
• return_next(
• constraint_name row2-constraint_name,

35
user_perms

• CREATE TYPE "tools"."user_perms" AS (
• "catname" NAME,
• "nspname" NAME,
• "relname" NAME,
• "rolname" NAME
• )

36
lookup_role_users

• CREATE TYPE "tools"."lookup_role_users" AS (
• "rolname" NAME
• )

37
schema_search_t

• CREATE TYPE "tools"."schema_search_t" AS (
• "search_id" INTEGER,
• "headline" TEXT,
• "rank" REAL,
• "row_id" TEXT,
• "column_name" NAME,
• "table_name" NAME,
• "schema_name" NAME,
• "database_name" NAME,
• "server_name" NAME
• )

38
foreign_key_details_t

• CREATE TYPE "tools"."foreign_key_details_t" AS (
• "constraint_name" NAME,
• "table_name" NAME,
• "column_name" NAME,
• "references_schema" NAME,
• "references_table" NAME,
• "references_field" NAME
• )

39
Future Enhancements

• Finish the code so that it fully supports
  multi-databases and multi-servers
• Update the code for the built in TSearch2 in
  PostgreSQL v8.3.x

40
Additional Possible Talks

• 64 Bit PostgreSQL Windows Drivers
• How to Create and Install both the 32bit the
  64bit drivers on the same computer and the
  reasons for doing so.
• Materialized Views
• Using Triggers for real time materialized views.
• Using a cron job for materialized snapshots (with
  table safety in case snapshot generation fails).
• Shadow Tables, backup tables that show all
  changes (what) and by who and when the took
  place.
• Microsoft Access
• Using Microsoft Access as a front end for
  PostgreSQL databases.
• Implementing PosgreSQL user right within your
  Access Database.
• How to remove the username and/or password from
  Access so that others cant gain access to your
  account.
• Limitations of Data compared to PostgreSQL and
  things to watch out for when moving data between
  the systems.
• Microsoft Excel
• Using PostgreSQL data in Data Tables and Pivot
  Tables.
• How to remove the username and/or password from
  Excel so that others cant gain access to your
  account.
• Writing Data back into PostgreSQL.
• How to fix all your links in Excel to a
  PostgreSQL server that no longer exists and
  redirect them to a new server.
