Lecture 4a: Cameras

1

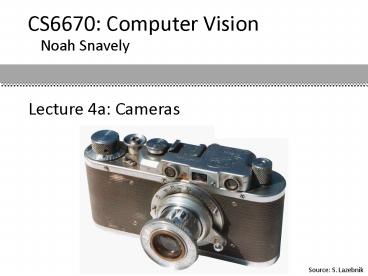

Lecture 4a Cameras
CS6670 Computer Vision
Noah Snavely
Source S. Lazebnik
2
Reading

• Szeliski chapter 2.2.3, 2.3

3
Image formation

• Lets design a camera
• Idea 1 put a piece of film in front of an
  object
• Do we get a reasonable image?

4
Pinhole camera

• Add a barrier to block off most of the rays
• This reduces blurring
• The opening known as the aperture
• How does this transform the image?

5
Camera Obscura

• Basic principle known to Mozi (470-390 BC),
  Aristotle (384-322 BC)
• Drawing aid for artists described by Leonardo da
  Vinci (1452-1519)

Gemma Frisius, 1558
Source A. Efros
6
Camera Obscura
7
Home-made pinhole camera
Why so blurry?
http//www.debevec.org/Pinhole/
Slide by A. Efros
8
Shrinking the aperture

• Why not make the aperture as small as possible?

• Less light gets through
• Diffraction effects...

9
Shrinking the aperture
10
Adding a lens

• A lens focuses light onto the film
• There is a specific distance at which objects are
  in focus
• other points project to a circle of confusion
  in the image
• Changing the shape of the lens changes this
  distance

11
Lenses
F
focal point

• A lens focuses parallel rays onto a single focal
  point
• focal point at a distance f beyond the plane of
  the lens (the focal length)
• f is a function of the shape and index of
  refraction of the lens
• Aperture restricts the range of rays
• aperture may be on either side of the lens
• Lenses are typically spherical (easier to produce)

12
Thin lenses

• Thin lens equation
• Any object point satisfying this equation is in
  focus
• What is the shape of the focus region?
• How can we change the focus region?
• Thin lens applet http//www.phy.ntnu.edu.tw/java
  /Lens/lens_e.html (by Fu-Kwun Hwang )

13
Depth of Field
f / 5.6
f / 32

• Changing the aperture size affects depth of field
• A smaller aperture increases the range in which
  the object is approximately in focus

Flower images from Wikipedia http//en.wikipedia
.org/wiki/Depth_of_field
14
Depth of Field
15
The eye

• The human eye is a camera
• Iris - colored annulus with radial muscles
• Pupil - the hole (aperture) whose size is
  controlled by the iris
• Whats the film?

• photoreceptor cells (rods and cones) in the retina

16
Eyes in nature eyespots to pinhole camera
17
Eyes in nature
(polychaete fan worm)
Source Animal Eyes, Land Nilsson
18
Before Film was invented
Lens Based Camera Obscura, 1568
Srinivasa Narasimhans slide
19
Film camera
Still Life, Louis Jaques Mande Daguerre, 1837
Srinivasa Narasimhans slide
20
Silicon Image Detector
Silicon Image Detector, 1970
Shree Nayars slide
21
Digital camera

• A digital camera replaces film with a sensor
  array
• Each cell in the array is a Charge Coupled Device
• light-sensitive diode that converts photons to
  electrons
• other variants exist CMOS is becoming more
  popular
• http//electronics.howstuffworks.com/digital-camer
  a.htm

22
Color

• So far, weve talked about grayscale images
• What about color?
• Most digital images are comprised of three color
  channels red, green, and, blue which combine
  to create most of the colors we can see
• Why are there three?

23
Color perception

• Three types of cones
• Each is sensitive in a different region of the
  spectrum
• but regions overlap
• Short (S) corresponds to blue
• Medium (M) corresponds to green
• Long (L) corresponds to red
• Different sensitivities we are more sensitive
  to green than red
• varies from person to person (and with age)
• Colorblindnessdeficiency in at least one type of
  cone

24
Field sequential
YungYu Chuangs slide
25
Field sequential
YungYu Chuangs slide
26
Field sequential
YungYu Chuangs slide
27
Prokudin-Gorskii (early 1900s)
http//www.loc.gov/exhibits/empire/
YungYu Chuangs slide
28
Prokudin-Gorskii (early 1990s)
YungYu Chuangs slide
29
Color sensing in camera Prism

• Requires three chips and precise alignment
• More expensive

30
Color filter array
Bayer grid
Estimate missing components from neighboring
values(demosaicing)
Why more green?
Source Steve Seitz
31
Bayers pattern
YungYu Chuangs slide
32
Foveon X3 sensor

• Light penetrates to different depths for
  different wavelengths
• Multilayer CMOS sensor gets 3 different spectral
  sensitivities

YungYu Chuangs slide
33
Color filter array
red
green
blue
output
YungYu Chuangs slide
34
X3 technology
red
green
blue
output
YungYu Chuangs slide
35
Foveon X3 sensor
X3 sensor
Bayer CFA
YungYu Chuangs slide
36
Historical context

• Pinhole model Mozi (470-390 BC), Aristotle
  (384-322 BC)
• Principles of optics (including lenses) Alhacen
  (965-1039)
• Camera obscura Leonardo da Vinci (1452-1519),
  Johann Zahn (1631-1707)
• First photo Joseph Nicephore Niepce (1822)
• Daguerréotypes (1839)
• Photographic film (Eastman, 1889)
• Cinema (Lumière Brothers, 1895)
• Color Photography (Lumière Brothers, 1908)
• Television (Baird, Farnsworth, Zworykin, 1920s)
• First consumer camera with CCD Sony Mavica
  (1981)
• First fully digital camera Kodak DCS100 (1990)

Alhacens notes
Niepce, La Table Servie, 1822
CCD chip
