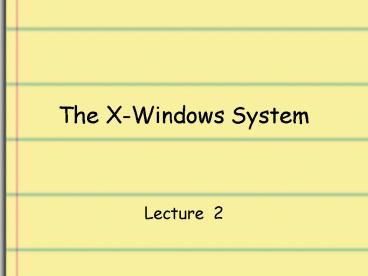

The X-Windows System

• Lecture 2

2
X-Windows

• X-Windows is a network-based windowing system
  developed at MIT in 1986. It was designed to
  provide a standard graphical interface which
  would work on a wide variety of graphic
  workstations. By developing a strict graphics
  communication protocol (the X-protocol) and a
  programming library (Xlib), it is easier to
  transfer a program from one system architecture
  to another.

3
X-protocol

• The X-protocol is the communications language
  between the user's screen (the Display or
  X-Server) and the running X-windows program (the
  X-Client).
• Note that the normal sense most programmers have
  of the client-server structure are reversed For
  X, the program is the client, the 'user' is the
  server.

4
X-protocol

• X-windows abstracts the communications medium
  communications between the display and the
  program may be through a variety of mechanisms
• through UNIX Interprocess Communications
• If client and server are on the same computer
  system
• through a physical network
• Ethernet, ATM, Tokenring, etc.
• In the physical network case, the Display may be
  an X-terminal, or another computer running an
  X-Server
• another UNIX system
• a PC running an X-emulator (e.g. Exceed)

5
Example of an X Windows Session

• Sequence of events between the server and the
  client
• The user sets the DISPLAY environment variable
  and ensures that the remote computer has
  permission to use the display.
• The user starts a process (X-client) on the
  remote computer.
• The X-client then establishes an X display
  connection with the users X server.
• The X-server and X-client communicate with each
  other using the X-protocol to create and destroy
  windows, to manage their layout, to receive user
  input, and to report events.

6
X-Windows

• X Windows provides only a means of creating and
  displaying a hierarchy of windows, drawing within
  them and receiving input from the users Display.
  It is not a graphical user interface by itself.
  This means that it does not dictate how to lay
  windows out, nor how menus, buttons, and other
  interface objects (commonly called Widgets)
  should look and work.
• This is not a bug, it is truly a feature. The
  designers wanted to provide a graphical interface
  system which allowed graphical workstations to
  work with each other. If the appearance of the
  GUI was regulated, then no one would comply and
  every vendor would use their own standards
  creating impossibly many versions.

7
X-Windows Programming

• Writing programs for X windows can be a
  frustrating task, even for experienced
  programmers. A common program has the following
  steps
• Get any command-line options the user entered.
• Establish a connection to the users Display
• Load resources using the resource manager
  routines
• Setup fonts and colors based on values specified
  in the resources
• Decide on the initial position and size of the
  top-level window
• Create the top-level window
• Set window manager properties to inform the
  window manager of the size and location of the
  window
• Create a graphics context for the top-level
• Set necessary window attributes
• Select events occurring in the top-level that
  should be processed by the application
• Map the top-level window, making it visible on
  the Display.
• Create the rest of the windows in the hierarchy.
  Save Ids for later.
• Read, interpret and process events in a loop
• When finished, destroy the top-level, close the
  connection, and exit.

8
X Windows is Event Driven

• One of the characteristics of X windows
  programming which differs from standard
  programming is that it is event-driven. This
  gives the user more control.
• After the program initializes its top-level
  window, it enters the main part of the program,
  the Event Loop
• The Event Loop is an infinite loop which checks
  for X Events on the Event Queue.
• Events are generated by interaction with the
  Display. This includes, but are not limited to,
  keyboard input, mouse input, window exposure and
  communications from the X-server.
• If no events are present, it continues looping.
• If an event is present, it processes that event
  calling appropriate functions for the event
• An X client may select the kind of Events it will
  respond to.
• The loop is broken only upon exit of the
  application.

9
What is the X-Protocol

• The X-Protocol is the center of the X-System. It
  is a set of bytecodes which transfer information,
  events, and more, between the users Display and
  the users program.
• X was designed to be hardware/OS independent.
  Data is exchanged asynchronously over a 2-way
  path enabling a stream of 8-bit bytecodes.
• X uses most kinds of networks. It may use
  standard IPC, network protocols, or packet
  protocols like TCP/IP.

10
What is Xlib?

• Xlib is the C-library which provides a low-level
  interface to the X-Protocol. Its use allows
  coders to avoid having to issue X-protocol
  bytecodes directly.
• Composed of over 300 procedures
• connecting to the Display
• handling events
• handling pixmaps
• creating/destroying windows
• drawing and more
• Xlib programming is tedious, but better than
  issuing bytecodes conforming to X-Protocol.

11
Xt Intrinsics

• The Xt Intrinsics library is the structure on top
  of Xlib, which uses an object-oriented approach
  to implementing basic building blocks called
  Widgets.
• Widgets simplify and organize X-Windows
  programming.

12
Xt Intrinsics

• Provide a set of utility functions which provide
• one-step initialization of an applications main
  window
• reading and interpreting user-defined resource
  files
• Widget creation and destruction
• Event Handling
• X programs using Intrinsics are smaller and
  easier to code
• Most other toolkits (Motif, Athena,) are built
  on top of the Intrinsics
• Xlib routines are still needed for drawing lines
  and other fine control tasks
• The basic data structures in Xt can be used to
  derive new objects.
• Programs using toolkits tend to use more
  resources.

13
Example

• Task
• Create a simple, empty window on the screen.
  Some resource editing is also included in the
  example. In this case, the resource governing
  the window's size is adjusted. This resizes the
  empty window, making it larger and more visible.
• This example program is based from the
  examples in the book, The Definitive Guides to
  the X Window System Volume Six, Motif
  Programming Manual, written by Dan Heller

14
/ Include the needed libraries for this sample
program / include ltXm/Xm.hgt / Global
Variables Most of the widgets in the
program are kept global so callback functions
that will appear in later examples may access
them. / Widget toplevel //
A single widget, this will be the
// top level window of the
program (the
// window whose parent is the Root window of
// the X
Terminal XtAppContext app //
The application context, which will
// store some data
internal to XIntrinsics
// that is associated with the
application.
15
int main(int argc, char argv)
/------------------------------------------------
---------\ Initialize an X Window, no set
width or height.

Create the top level window, storing
its information in the Widget
toplevel Using the
application context app
"Hello" is the top level window's resource
name No special options needed,
Command line argument filter No fallback
resources required
\------------------------------------------------
---------/ toplevel XtVaAppInitialize
(app, "Hello", NULL, 0,
argc, argv, NULL, NULL) / Change the
toplevel widget's resources /
XtVaSetValues(toplevel, XmNwidth,
200, XmNheight, 100,
NULL) / Map the widget (the top level
window) and make it visible on the screen /
XtRealizeWidget(toplevel)
/-------------------------------------------
\ Enter the main event loop using
the application context in app.
This makes the program wait for events
from the user \------------------------------
-------------/ XtAppMainLoop(app) return
1
16
Compiling and Linking X Programs

• You may have to add include paths for the X
  headers, and for the X libraries
• You have to add links to the X libraries
• Usually -lXt -lX11
• Sometimes more
• cc program.c -o program -lXt -lX11
