Safe RTL Annotations for Low Power Microprocessor Design

1

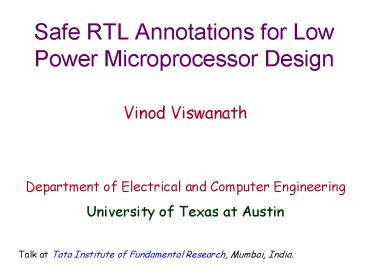

Safe RTL Annotations for Low Power Microprocessor
Design
Vinod Viswanath Department of Electrical and
Computer Engineering University of Texas at Austin
Talk at Tata Institute of Fundamental Research,
Mumbai, India.
2
Outline

• Power Dissipation in Hardware Circuits
• Instruction-driven Slicing to attain lower power
  dissipation
• Automatically annotates microprocessor
  description at the Register Transfer Level and
  Architectural level
• Correctness of the introduced annotations
• Case studies

3
Power Dissipation
P 1/2 C V2DD f N QSC VDD f
N Ileak VDD

• Switching activity power dissipation
• To charge and discharge nodes
• Short Circuit power dissipation
• High only for output drivers, clock buffers
• Static power dissipation
• Due to leakage current

4
Switching Activity Power Dissipation

• Reduce the squared term VDD
• Leads to exponential increase in Ileak
• Host of techniques to reduce switching power at
  the gate level
• Clock gating
• Relatively much lesser at the RTL
• Use program structure and dataflow information
  available at that level of abstraction

5
Instruction-driven Slice

• An instruction-driven slice of a microprocessor
  design is
• all the relevant circuitry of the design required
  to completely execute a specific instruction
• Parts of the decode, execute, writeback etc.
  blocks
• Cone of influence of the semantics of the
  instruction

6
Instruction-driven Slicing

• Given a microprocessor design and an instruction
• Identify the instruction-driven slice
• Shut off the rest of the circuitry
• This might include
• Gating out parts of different blocks
• Gating out floating point units during integer
  ALU execution
• Turning off certain FSMs in different control
  blocks since exact constraints on their inputs
  are available due to instruction-driven slicing

7
Algorithm (High Level)

• Algorithm instruction-driven-slicing.
• Begin
• Inputs vRTL (Verilog RTL), insts (instructions)
• Output aRTL (Annotated RTL)
• Parse vRTL to obtain the Abstract Syntax Program
  Graph (ASPG)
• For each instruction I in insts repeat
• Slice the ASPG for instruction I
• Traverse the ASPG
• Add annotation variables if such a block is found
• If a particular flop is already gated, then
• add the current annotation in an optimal
  fashion
• Return the annotated ASPG
• Generate Verilog code (aRTL) for the annotated
  ASPG
• End.

8
Instructions as LTL Properties

• Let I i1 Æ X i2 Æ XX i3 ... Xn-1 in be an
  instruction written as an LTL property, such that
  ir represents the conditions for the instruction
  I on clock cycle r.
• i1 represents the instruction word.

9
RISC Pipeline (OR1200)

• 5 stage RISC pipeline implementation
• Condition for slicing on ADDC instruction
• i1 ((icpu_dat_i31266b 111000) Æ
• (!rst) Æ (!flushpipe) Æ (!if_freeze))
• i2 (!id_freeze)
• i3 (!ex_freeze)
• i4 (!mem_freeze)
• i5 (!wb_freeze)
• I i1 Æ X i2 Æ X2i3 Æ X3i4 Æ X4i5

10
OR1200 ADDC Instruction

• Introduces five variables
• iADDC_if i1
• iADDC_id 1 iADDC_if Æ i2
• iADDC_ex 1 iADDC_id Æ i3
• iADDC_mem 1 iADDC_ex Æ i4
• iADDC_wb 1 iADDC_mem Æ i5

11
or1200_ctrl.lsu_op
12
or1200_ctrl.pre_branch_op
13
Correct Annotations

• Notion of correctness
• Original RTL and the annotated RTL should be
  functionally equivalent under all conditions
• Correctness theorem
• (defthm or1200_slicing_correct
• (equal (or1200_cpu n)
• (or1200_cpu_sliced n)))

14
ACL2 Theorem Prover

• First order logic general purpose theorem prover
• Breakdown the theorem into sub-goals
• Many engines work on the sub-goals and will
  either prove them or break them down further and
  add to the central pool of goals to be proved
• Success story in Hardware
• Verified FDIV in the AMD processors

15
Proof Methodology

• The RTL is a shallow embedding in ACL2
• Convert Verilog RTL into ACL2RTL
• We have created a large RTL library to recognize
  as well as analyze ACL2RTL
• Slicing is done on the Verilog code
• Both original and annotated Verilog are converted
  into ACL2 and we construct the functional
  equivalence proof in ACL2

16
Verilog to ACL2
17
Methodology

• In order to demonstrate our technique
• We have incorporated instruction-driven slicing
  as part of the traditional design flow
• The vRTL model is annotated to obtain the aRTL
  model
• Synopsys Design Environment has been sufficiently
  modified to accept the aRTL, SPEC2000 benchmarks
  and power process parameters and estimate the
  power dissipation due to switching activity
• The annotated Architectural model is fed to the
  SimpleScalar simulator with the Wattch power
  estimator to estimate the power dissipation

18
Methodology
19
Experiment OR1200

• We have used our tool-chain to test our
  methodology on OR1200
• OR1200 is a pipelined microprocessor implementing
  the OpenRISC ISA.
• 5-stage integer pipeline with single instruction
  issue per cycle
• We have annotated both the RTL and the
  architectural models of OR1200

20
OR1200 single instruction issue pipelined
microprocessor
21
OR1200 Power Gain Results

• Results are shown after annotating the
• RTL (left) and Architectural (Right) models
• For un-sliced and sliced on 1, 4, 10 instructions
• For SPECINT2000 benchmarks
• Power dissipation decreases consistently

22
OR1200 Results (contd.)
Fig.2a
Fig.2b
Fig. 1

• Power gains are consistently good (Fig. 1)
• Power gains far outperform area losses (Fig 1)
• Flop distribution shown before slicing (Fig. 2a)
  after slicing on add (Fig. 2b) and after slicing
  on load (Fig. 2c)

Fig.2c
23
Experiment PUMA

• We have used our tool-chain to test our
  methodology on PUMA
• PUMA is a dual-issue, out-of-order super-scalar,
  fixed-point PowerPC core
• We have annotated both the RTL and the
  architectural models of PUMA

24
PUMA a fixed point PowerPC core
25
PUMA Power Gain Results

• Results are shown after annotating the
• RTL (left) and Architectural (Right) models
• For un-sliced and sliced on 1, 4, 10 instructions
• For SPECINT2000 benchmarks
• Power dissipation decreases consistently

26
PUMA Results (contd.)
Fig.3a
Fig. 1
Fig. 2
Fig.3b

• Power gains are good upon slicing for a few
  instructions (7) before delay losses start
  dominating (Fig. 1)
• Power gains far outperform area losses (Fig 2)
• Flop distribution shown before slicing (Fig. 3a)
  after slicing on add (Fig. 3b) and after slicing
  on load (Fig. 3c)

Fig.3c
27
Comparing OR1200 and PUMA
28
Conclusions

• Proposed Instruction-driven Slicing as a new
  technique to automatically reduce power
  dissipation
• Implemented the methodology of incorporating
  instruction-driven slicing into the design flow
  tool-chain
• Inserting these annotations preserves the
  functionality of the circuit

29
Conclusions (continued)

• This technique seems most applicable to
  single-issue multi-staged pipelined machines.
• When there are multiple instructions in-flight in
  the same pipeline stage, the gains of a
  single-instruction-abstraction are lost.
• Graphics processors, various embedded
  applications are more often better suited for
  this technique than general purpose out-of-order
  superscalars.
