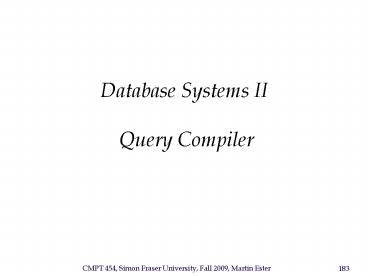

Database Systems II Query Compiler

Introduction

- The Query Compiler translates an SQL query into a

physical query plan, which can be executed, in

three steps - The query is parsed and represented as a parse

tree. - The parse tree is converted into a relational

algebra expression tree (logical query plan). - The logical query plan is refined into a physical

query plan, which also specifies the algorithms

used in each step and the way in which data is

obtained.

Introduction

SQL query

parse

parse tree

convert

answer

logical query plan

execute

query rewrite

Pi

improved l.q.p

pick best

estimate result sizes

(P1,C1),(P2,C2)...

l.q.p. sizes

estimate costs

consider physical plans

P1,P2,..

Introduction

- Example
- SELECT B,D
- FROM R,S
- WHERE R.A c ? S.E 2 ? R.CS.C
- Conceptual evaluation strategy
- Perform cartesian product,
- Apply selection, and
- Project to specified attributes.
- Use as starting point for optimization.

Introduction

?B,D sR.Ac? S.E2 ? R.C S.C (RXS)

Introduction

Example ?B,D sR.A c sS.E

2 R S

natural join

- This logical query plan is equivalent.
- It is more efficient, since it reduces the sizes

of the intermediate tables.

Introduction

- Example
- Needs to be refined into physical query plan.
- E.g., use R.A and S.C indexes as follows
- (1) Use R.A index to select R tuples with

R.A c - (2) For each R.C value found, use S.C index

to find matching tuples (3)

Eliminate S tuples S.E ? 2 - (4) Join matching R,S tuples, project
- B,D attributes and place in result

Parsing

- Parse Trees
- Nodes correspond to either atoms (terminal

symbols) or syntactic categories

(non-terminal symbols). - An atom is a lexical element such as a keyord,

name of an attribute or relation, constant,

operator, parenthesis. - A syntactic category denotes a family of query

subparts that all play the same role within a

query, e.g. Condition. - Syntactic categories are enclosed in triangular

brackets, e.g. ltConditiongt.

Parsing

- Example
- SELECT title
- FROM StarsIn
- WHERE starName IN (SELECT name
- FROM MovieStar
- WHERE birthdate LIKE 1960)

Parsing

ltQuerygt

ltSFWgt

SELECT ltSelListgt FROM ltFromListgt

WHERE ltConditiongt

ltAttributegt ltRelNamegt

ltTuplegt IN ltQuerygt

title StarsIn

ltAttributegt ( ltQuerygt )

starName ltSFWgt

SELECT ltSelListgt FROM ltFromListgt

WHERE ltConditiongt

ltAttributegt ltRelNamegt

ltAttributegt LIKE ltPatterngt

name MovieStar

birthDate 1960

Parsing

- Grammar for SQL
- The following grammar describes a simple subset

of SQL. - Queries ltQuerygt SELECT ltSelListgt FROM

ltFromListgt WHERE ltConditiongt - Selection lists ltSelListgt ltAttributegt,

ltSelListgt ltSelListgt ltAttributegt - From lists ltFromListgt ltRelationgt,

ltFromListgt ltFromListgt ltRelationgt

Parsing

- Grammar for SQL
- Conditions ltConditiongt ltConditiongt AND

ltConditiongt ltConditiongt ltAttributegt IN

(ltQuerygt) ltConditiongt ltAttributegt

ltAttributegt ltConditiongt ltAttributegt LIKE

ltPatterngt - Syntactic categories Relation and Attribute are

not defined by grammar rules, but by the

database schema. - Syntactic category Pattern defined as some

regular expression.

Conversion to Query Plan

- How to convert a parse tree into a logical query

plan, i.e. a relational algebra expression? - Queries with conditions without subqueries are

easy - Form Cartesian product of all relations in

ltFromListgt. - Apply a selection sc where C is given by

ltConditiongt. - Finally apply a projection pL where L is the

list of attributes in ltSelListgt. - Queries involving subqueries are more difficult.
- Remove subqueries from conditions and represent

them by a two-argument selection in the

logical query plan. - See the textbook for details.

Algebraic Laws for Query Plans

- Introduction
- Algebraic laws allow us to transform a

Relational Algebra (RA) expression into an

equivalent one. - Two RA expressions are equivalent if, for all

database instances, they produce the same answer. - The resulting expression may have a more

efficient physical query plan. - Algebraic laws are used in the query rewrite

phase.

Algebraic Laws for Query Plans

- Introduction
- Commutative law Order of arguments does

not matter. x y y x - Associative law May group two uses of the

operator either from the left or the right.

(x y) z x (y z) - Operators that are commutative and associative

can be grouped and ordered arbitrarily.

Algebraic Laws for Query Plans

Natural Join, Cartesian Product and Union

R S S R (R S) T R (S T)

R x S S x R (R x S) x T R x (S x T) R U S

S U R R U (S U T) (R U S) U T

Algebraic Laws for Query Plans

Natural Join, Cartesian Product and Union

- R S S R
- To prove this law, need to show that any tuple

resulting from the left side expression is also

produced by the right side expression, and vice

versa. - Suppose tuple t is in R S.
- There must be tuples r in R and s in S that agree

with t on all shared attributes. - If we evaluate S R, tuples s and r will

againresult in t.

Algebraic Laws for Query Plans

Natural Join, Cartesian Product and Union

- R S S R
- Note that the order of attributes within a tuple

doesnot matter (carry attribute names along). - Relation as bag of tuplesAccording to the same

reasoning, the number of copies of t must be

identical on both sides. - The other direction of the proof is essentially

the same, given the symmetry of S and R.

Algebraic Laws for Query Plans

Selection

sp1?p2(R) sp1vp2(R)

sp1 sp2 (R) sp1 (R) U sp2 (R)

sp1 sp2 (R) sp2 sp1 (R)

- Simple conditions p1 or p2 may be pushed down

further than the complex condition.

Algebraic Laws for Query Plans

Bag Union

- What about the union of relations with

duplicates (bags)? - R a,a,b,b,b,c
- S b,b,c,c,d
- R U S ?
- Number of occurrences either SUM or MAX of

occurrences in the imput relations. - SUM R U S a,a,b,b,b,b,b,c,c,c,d
- MAX R U S a,a,b,b,b,c,c,d

Algebraic Laws for Query Plans

Selection

- s p1vp2 (R) sp1(R) U sp2(R)
- MAX implementation of union makes rule work.
- Ra,a,b,b,b,c
- p1 satisfied by a,b, p2 satisfied by b,c
- sp1vp2 (R) a,a,b,b,b,c sp1(R)

a,a,b,b,b sp2(R) b,b,b,c sp1 (R) U

sp2 (R) a,a,b,b,b,c

Algebraic Laws for Query Plans

Selection

- s p1vp2 (R) sp1(R) U sp2(R)
- SUM implementation of union makes more sense.
- Senators () Reps ()
- T1 p yr,state Senators, T2 p yr,state

Reps - T1 Yr State T2 Yr State
- 97 CA 99 CA
- 99 CA 99 CA
- 98 AZ 98 CA
- Use SUM implementation, but then some laws do

not hold.

Union?

Algebraic Laws for Query Plans

Selection and Set Operations

sp(R U S) sp(R) U sp(S) sp(R - S) sp(R) - S

sp(R) - sp(S)

Algebraic Laws for Query Plans

Selection and Join

- p predicate with only R attributes
- q predicate with only S attributes
- m predicate with attributes from R and S
- sp (R S)
- sq (R S)

sp (R) S R sq (S)

Algebraic Laws for Query Plans

Selection and Join

sp?q (R S) sp (R) sq (S) sp?q?m

(R S) sm (sp R) (sq S) spvq (R

S) (sp R) S U R (sq S)

Algebraic Laws for Query Plans

Selection and Join

sp?q (R S) sp sq (R S) sp R

sq (S) sp (R) sq (S)

Algebraic Laws for Query Plans

Projection

- X set of attributes
- Y set of attributes
- XY X U Y
- pxy (R)
- May introduce projection anywhere in an

expression tree as long as it eliminates no

attributes needed by an operator above and no

attributes that are in result

px py (R)

Algebraic Laws for Query Plans

Projection and Selection

- X subset of R attributes
- Z attributes in predicate P (subset of R

attributes) - px (spR)
- Need to keep attributes for the selection and

for the result

sp px (R)

Algebraic Laws for Query Plans

Projection, Selection and Join

pxy sp (R S)

pxy sp pxz (R) pyz (S) Y subset of

S attributes z subset of R attributes used

in P z subset of S attributes used in P

Improving Logical Query Plans

- Introduction
- How to apply the algebraic laws to improve a

logical query plan? - Goal minimize the size (number of tuples,

number of attributes) of intermediate results. - Push selections down in the expression tree

as far as possible. - Push down projections, or add new projections

where applicable.

Improving Logical Query Plans

- Pushing Selections
- Replace the left side of one of these (and

similar) rules by the right side - Can greatly reduce the number of tuples of

intermediate results.

sp1?p2 (R) ? sp1 sp2 (R) sp (R S) ? sp

(R) S

Improving Logical Query Plans

- Pushing Projections
- Replace the left side of one of this (and

similar) rules by the right side - Reduces the number of attributes of

intermediate results and possibly also the

number of tuples.

px sp (R) ? px sp pxz (R)

Improving Logical Query Plans

- Pushing Projections
- Consider the following example
- R(A,B,C,D,E) P (A3) ? (Bcat)
- Compare
- pE sp (R) vs. pE sppABE(R)

Improving Logical Query Plans

- Pushing Projections
- What if we have indexes on A and B?
- B cat A3
- Intersect pointers to get pointers to matching

tuples - Efficiency of logical query plan may depend on

choices made during refinement to physical plan. - No transformation is always good!

Improving Logical Query Plans

- Grouping Associative / Commutative Operators
- For operators which are commutative and

associative, we can order and group their

arguments arbitrarily. - In particular natural join, union,

intersection. - As the last step to produce the final logical

query plan, group nodes with the same

(associative and commutative) operator into

one n-ary node. - Best grouping and ordering determined during

the generation of physical query plan.

Improving Logical Query Plans

Grouping Associative / Commutative Operators

?

U

C

D

E

U

C

D

E

A

B

A

B

From Logical to Physical Plans

- So far, we have parsed and transformed an SQL

query into an optimized logical query plan. - In order to refine the logical query plan into

a physical query plan, we - consider alternative physical plans,
- estimate their cost, and
- pick the plan with the least (estimated) cost.
- We have to estimate the cost of a plan without

executing it. And we have to do that efficiently!

From Logical to Physical Plans

- When creating a physical query plan, we have

to decide on the following issues. - order and grouping of operations that are

associative and commutative, - algorithm for each operator in the logical plan,
- additional operators which are not represented

in the logical plan, e.g. sorting, - the way in which intermediate results are

passed from one operator to the next, e.g. by

storing on disk or passing one tuple at a time.

Estimating the Cost of Operations

- Intermediate relations are the output of some

relational operator and the input of another one. - The size of intermediate relations has a major

impact on the cost of a physical query plan. - It impacts in particular - the choice of an

implementation for the various operators

and - the grouping and order of commutative

/ associative operators.

Estimating the Cost of Operations

- A method for estimating the size of an

intermediate relation should be - reasonably accurate,- efficiently computable,-

not depend on how that relation is computed. - We want to rank alternative query plans w.r.t.

their estimated costs. - Accuracy of the absolute values of the

estimates not as important as the accuracy of

their ranks.

Estimating the Cost of Operations

- Size estimates make use of the following

statistics for relation R - T(R) tuples in R
- S(R) of bytes in each R tuple
- B(R) of blocks to hold all R tuples
- V(R, A) distinct values for attribute A in

R. - MIN(R,A) minimum value of attribute A in R.
- MAX(R,A) maximum value of attribute A in

R.HIST(R,A) histogram for attribute A in R. - Statistics need to be maintained up-to-dateunder

database modifications!

Estimating the Cost of Operations

R A 20 byte string B 4 byte

integer C 8 byte date D 5 byte

string

T(R) 5 S(R) 37 V(R,A) 3 V(R,C)

5 V(R,B) 1 V(R,D) 4

Estimating the Cost of Operations

- Size estimate for W R1 x R2
- T(W) T(R1) ? T(R2)
- S(W) S(R1) S(R2)
- Size estimate for W sAa (R)
- Assumption values of A are uniformly distributed

over the attribute domain - T(W) T(R)/V(R,A) S(W) S(R)

Estimating the Cost of Operations

- Size estimate for W s z ? val (R)
- Solution 1 on average, half of the tuples will

satisfy an inequality condition - T(W) T(R)/2
- Solution 2 more selective queries are more

frequent, e.g. professors who earn more than

200000 (rather than less than 200000) - T(W) T(R)/3

Estimating the Cost of Operations

- Solution 3 estimate the number of

attributevalues in query range - Use minimum and maximum value to define range of

the attribute domain. - Assume uniform distribution of valuesover the

attribute domain. - Estimate is the fraction of the domain thatfalls

into the query range.

Estimating the Cost of Operations

R

Z

MIN(R,Z)1 V(R,Z)10 W sz ? 15

(R) MAX(R,Z)20

f 20-151 6 (fraction of range)

20-11 20 T(W) f ? T(R)

Estimating the Cost of Operations

- Size estimate for W R1 R2
- Consider only natural join of R1(X,Y) and

R2(Y,Z). - We do not know how the Y values in R1 and R2

relate- disjoint, i.e. T(R1 R2) 0,- Y

may be a foreign key of R1 and the primary

key of R2, i.e. T(R1 R2) T(R1),- all

the R1 and all the R2 tuples have the same Y

value, i.e. T(R1 R2) T(R1) ?T(R2).

Estimating the Cost of Operations

- Make several simplifying assumptions.
- Containment of value sets V(R1,Y) ? V(R2,Y) ?

every Y value in R1 is in R2 - V(R2,Y) ? V(R1,Y) ? every Y value in

R2 is in R1 - This assumption is satisfied when Y is foreign

key in R1 and primary key in R2. - Is also approximately true in many other cases.

Estimating the Cost of Operations

- Preservation of value setsIf A is an attribute

of R1 but not of R2, thenV(R1 R2,A)

V(R1,A). - Again, holds if the join attribute Y is foreign

key in R1 and primary key in R2. - Can only be violated if there are dangling

tuples in R1, i.e. R1 tuples that have no

matching partner in R2.

Estimating the Cost of Operations

- Uniform distribution of attribute values the

values of attribute A are uniformly distributed

over their domain, i.e. P(Aa1) P(Aa2) . . .

P(Aak). - This assumption is necessary to make cost

estimation tractable. - It is often violated, but nevertheless allows

reasonably accurate ranking of query plans.

Estimating the Cost of Operations

- Independence of attributes the values of

attributes A and B are independent from each

other, i.e. P(AaBb) P(Aa) and P(BbAa)

P(Bb) . - This assumption is necessary to make cost

estimation tractable. - Again, often violated, but nevertheless allows

reasonably accurate ranking of query plans.

Estimating the Cost of Operations

- Suppose that t1 is some tuple in R1, t2 some

tuple in R2. - What is the probability that t1 and t2 agree on

the join attribute Y? - If V(R1,Y) ? V(R2,Y), then the Y value of t1

appears in R2, because of the containment of

value sets. - Assuming uniform distribution of the Y values in

R2 over their domain, the probability of t2

having the same Y value as t1 is 1/V(R2,Y).

Estimating the Cost of Operations

- If V(R2,Y) ? V(R1,Y), then the Y value of t2

appears in R1, and the probability of t1 having

the same Y value as t2 is 1 / V(R1,Y). - T(W) number of pairs of tuples from R1 and R2

times the probability that an arbitrary pair

agrees on Y. - T(R1 R2) T(R1) T(R2) /

max(V(R1,Y), V(R2,Y)).

Estimating the Cost of Operations

- For complex query expressions, need to estimate

T,S,V results for intermediate results. - For example, W sAa (R1) R2
- treat as relation U
- T(U) T(R1)/V(R1,A) S(U) S(R1)
- Also need V (U, ) for all attributes of U(R1)!

Estimating the Cost of Operations

R 1 V(R1,A)3 V(R1,B)1 V(R1,C)5

V(R1,D)3

U sAa (R1)

V(U,A) 1 V(U,B) 1 V(U,C) T(R1)/ V(R1,A)

V(U,D) ... somewhere in between

Estimating the Cost of Operations

- R1(A,B), R2(A,C).
- Consider join U R1 R2.
- Estimate V results for U.
- V(U,A) min V(R1, A), V(R2, A) Holds due to

containment of value sets. - V(U,B) V(R1, B)
- V(U,C) V(R2, C) Holds due to

preservation of value sets.

Estimating the Cost of Operations

- Consider the following example
- Z R1(A,B) R2(B,C) R3(C,D)
- T(R1) 1000 V(R1,A)50 V(R1,B)100
- T(R2) 2000 V(R2,B)200 V(R2,C)300
- T(R3) 3000 V(R3,C)90 V(R3,D)500
- Group and order as (R1 R2) R3

Estimating the Cost of Operations

- Partial result U R1 R2
- T(U) 1000?2000 / 200
- V(U,A) 50
- V(U,B) 100
- V(U,C) 300

Estimating the Cost of Operations

- Final result Z U R3
- T(Z) 1000?2000?3000 / (200 ? 300)
- V(Z,A) 50
- V(Z,B) 100
- V(Z,C) 90
- V(Z,D) 500
