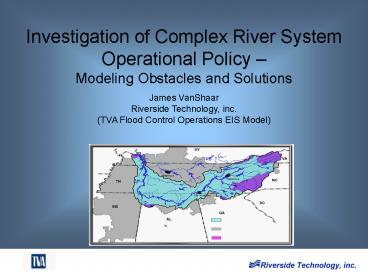

Investigation of Complex River System Operational Policy Modeling Obstacles and Solutions

1
Investigation of Complex River
SystemOperational Policy Modeling Obstacles
and Solutions James VanShaarRiverside
Technology, inc.(TVA Flood Control Operations
EIS Model)
2
RESERVOIR OPERATIONS STUDY Background

• Purpose
• To determine if changes in reservoir system
  operating policies could create greater overall
  public value

3
RESERVOIR OPERATIONS STUDY Background

• Purpose
• To determine if changes in reservoir system
  operating policies could create greater overall
  public value
• System
• Integrated system provides multiple benefits
• Trade-offs create competing demands for use of
  water
• Stakeholders have different views on priorities

4
RESERVOIR OPERATIONS STUDY Background

• Purpose
• To determine if changes in reservoir system
  operating policies could create greater overall
  public value
• System
• Integrated system provides multiple benefits
• Trade-offs create competing demands for use of
  water
• Stakeholders have different views on priorities
• Plan
• Two-year Reservoir Operations Study initiated
• Any and all uses of the water that flows through
  the reservoir system and all aspects of the
  current operating policies

5
RESERVOIR OPERATIONS STUDY Background
Issues

• Flood risk
• Water quality
• Economic
• Environmental
• Cultural
• Navigation
• Water supply
• Recreation (reservoir and downstream)
• Hydropower and non-hydropower generation
• Public values on the use of water
• Support of other federal agencies

6
RESERVOIR OPERATIONS STUDY Background

• Base Case Simulation
• 99 years at 6 hour timestep 144k timesteps

7
RESERVOIR OPERATIONS STUDY Background

• Base Case Simulation
• 99 years at 6 hour timestep 144k timesteps

8
RESERVOIR OPERATIONS STUDY Background

• Base Case Simulation
• 99 years at 6 hour timestep 144k timesteps
• 36 dams and 14 damage centers

9
RESERVOIR OPERATIONS STUDY Background

• Base Case Simulation
• 99 years at 6 hour timestep 144k timesteps
• 36 dams and 14 damage centers
• 69 historic storms scaled 1.5x, 2.0x and 2.5x

10
RESERVOIR OPERATIONS STUDY Background

• Base Case Simulation
• 99 years at 6 hour timestep 144k timesteps
• 36 dams and 14 damage centers
• 69 historic storms scaled 1.5x, 2.0x and 2.5x

Lather. Rinse. . .
11
RESERVOIR OPERATIONS STUDY Background

• Base Case Simulation
• 99 years at 6 hour timestep 144k timesteps
• 36 dams and 14 damage centers
• 69 historic storms scaled 1.5x, 2.0x and 2.5x
• Alternative Scenarios
• Modify for alternative operational policy
• Repeat for 5 alternative operational policies.

12
RESERVOIR OPERATIONS STUDY Background

• Base Case Simulation
• 99 years at 6 hour timestep 144k timesteps
• 36 dams and 14 damage centers
• 69 historic storms scaled 1.5x, 2.0x and 2.5x
• Alternative Scenarios
• Modify for alternative operational policy
• Repeat for 5 alternative operational policies.

13
RESERVOIR OPERATIONS STUDY Background

• Base Case Simulation
• 99 years at 6 hour timestep 144k timesteps
• 36 dams and 14 damage centers
• 69 historic storms scaled 1.5x, 2.0x and 2.5x
• Alternative Scenarios
• Modify for alternative operational policy
• Repeat for 5 alternative operational policies.
• Analysis
• Extract seasonal and annual peak flow / pool /
  stage
• Compare Alternatives against Base Case
• If necessary, combine / revise alternatives.
  Repeat.

14
Model Design Major Concerns

• Run-time
• Model size
• Accuracy of policy representation
• Decision tracking debugging, calibration,
  reproduction
• Extensibility to alternatives

15
Model Design Power production rule set

• Generic Tributary Algorithms
• Applied to virtually all non-sloped power
  reservoirs
• Foundation of all operation policy
• Quarantined deviation code for non-conformist
  projects

16
Model Design Power production rule set

• Mainstem Fixed Rule (sloped-power reservoir)
• Acceptable discharge vs. pool elevation
  operational points

17
Model Design Power production rule set

• Mainstem Fixed Rule (sloped-power reservoir)
• Acceptable discharge vs. pool elevation
  operational points
• Recovery mode
• Fixed rule curve abandonment

18
Model Design Power production rule set
19
Model Design Power production rule set

• Results of rule set design
• Carefully tested, compact, reused code base
• Eliminated re-firing of rules
• Decision variables stored
• Limited re-solution of objects
• Individual policy relegated to parameters, not
  logic

20
Model Application System Segmentation

• Space

21
Model Application System Segmentation
22
Model Application System Segmentation

• Space
• Four Models
• Reuse of power rule set
• Time

23
Model Application Control and Data Management
24
Model Application Control and Data Management
25
Model Application Control and Data Management
26
Model Application Control and Data Management

• Control Algorithm For each successive run
  period--
• Modify TSTool and RiverWare batch control files
• Run TSTool initialization commands
• Access archived data
• Locate RiverWare input in expected directory
• Run RiverWare using its control file
• Import data
• Simulation
• Export data
• Save model with new name
• Run TSTool archival commands
• Store results in archive time series files

27
Model Application Control and Data Management

• Design Storms
• Apply revised control algorithm for each storm
• Revision includes consideration for
• Appropriate initial data
• Storage location of new archival data

28
Model Application Results of Approach

• Flexibility
• Debugging
• Event isolation
• Run-time
• Consistency throughout alternatives
• Built-in archival of runs / models / decisions
• Elimination of model size concerns

29
Alternative Scenarios Alternative
Operational Scenario Flood Frequency and Damage
Curves
Dollars of Damage
Percent Exceedance
30
Conclusion
Thank you for your time and attention. Any
Questions?
31
Thank you.
Fall Creek Falls, TN
