Internet Traffic Monitoring and Analysis : Methods and Applications

1

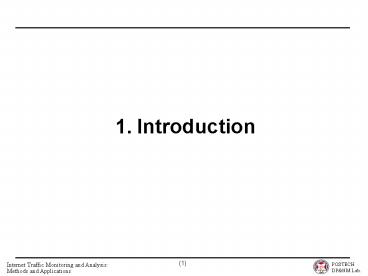

Introduction
2
1. Introduction - Evolving IP Network Environment

• WAN SONET/SDH (OC3, OC12, OC48, OC192), ATM,
  WDM/DWDM
• LAN 10/100 Mbps to 1 Gbps to 10 Gbps Ethernet
• Broadband Internet Access Cable Modem, ADSL,
  VDSL
• Wireless Access WLAN (IEEE 802.11), Wireless
  Internet
• Wired/Wireless Convergence Softswitch, Media
  Gateway, NGCN

3
1. Introduction Growth of Internet Use

• The number of Internet users is growing

Source Nua Inc.
Internet traffic has increased dramatically
Source Americas Network

• Internet usage is growing rapidly!

4
1. Introduction Reliance on Internet

• The Internet generated revenue has been
  increasing rapidly!

Source Active Media.

• Internets importance and reliance are increasing!

5
1. Introduction Internet Applications

• Stand-alone applications can now utilize
  networking
• Cooperative editing MS Word
• Use of FTP EditPlus, UltraEdit,
• Web page or HTML format
• New network applications
• Online games, shopping, banking, stock trading,
  network storage
• VOD, EOD, VOIP

6
1. Introduction Structure of Applications

• Client-Server
• Traditional structure

server
client

• Peer-to-Peer (P2P)
• New concept between file sharing and transferring
• Generates high volume of traffic

peer
discovery, content, transfer query
peer
peer

• Structures of applications are changing!

7
1. Introduction Types of Traffic

• Static sessions vs. Dynamic sessions

connect
connect
Negotiate allocate
use static protocol, port
use dynamic protocol, port
disconnect
disconnect
control
data

• Bursty data transfer vs. Streaming data transfer

packet
network
packet
network

• Types of traffic are various and increasing!

8
Introduction Internet Protocol Distribution
2003.09.16 1936 POSTECH Internet Junction
Traffic

• Transport Protocol Distribution
• The amount of UDP flows is increasing by P2P
  application
• The amount of ICMP flows is increasing by
  Internet worm

9
Introduction Port number usage in TCP/UDP

• Port Number Distribution in bytes

?
?
UDP Port Number Distribution
TCP Server Listening Port Number Distribution

• Proportion of Internet Applications

?
2003.09.16 1936 POSTECH Internet Junction
Traffic

• Which applications generate this large amount of
  traffic?

10
1. Introduction Motivation

• Needs of Service Providers
• Understand the behavior of their networks
• Provide fast, high-quality, reliable service to
  satisfy customers and thus reduce churn rate
• Plan for network deployment and expansion
• SLA monitoring, Network security
• Increase Revenue!
• Usage-based billing for network users (like
  telephone calls)
• Marketing using CRM data
• Needs of Customers
• Want to get their moneys worth
• Fast, reliable, high-quality, secure, virus-free
  Internet access
• To Satisfy Service Providers Needs to Satisfy
  Their Customers!

11
1. Introduction Application Areas

• Network Problem Determination and Analysis
• Traffic Report Generation
• Intrusion Hacking Attack (e.g., DoS, DDoS)
  Detection
• Service Level Monitoring (SLM)
• Network Planning
• Usage-based Billing
• Customer Relationship Management (CRM)
• Marketing

12
1. Introduction Issues in Traffic Monitoring

• Choices
• Single-point vs. Multi-point monitoring
• Number of probing or test packet generation point
• In-service vs. Out-of-service monitoring
• Whether monitoring should be executed during
  service or not
• Continuous vs. On-demand monitoring
• Monitoring executes continuously or by on-demand.
• Packet vs. Flow-based monitoring
• Collect packets or flows from network devices.
• One-way vs. Bi-directional monitoring
• Monitor forward path only / forward and return
  path
• Trade-offs
• Network bandwidth
• Processing overhead
• Accuracy
• Cost

13
1. Introduction Problems

• Capturing Packets
• High-speed networks (Mbps ? Gbps ? Tbps)
• High-volume traffic
• Streaming media (Windows Media, Real Media,
  Quicktime)
• P2P traffic
• Network Security Attacks
• Flow Generation Storage
• What packet information to save to perform
  various analysis?
• How to minimize storage requirements?
• Analysis
• How to analyze and generate data needed quickly?
• What kinds of info needs to be generated? ?
  Depends on applications

14
1. Introduction RD Goals

• Develop methods to
• Capture all packets
• Generate flows
• Store flows efficiently
• Analyze data efficiently
• Generate various reports or information that are
  suitable for various application areas
• Develop a flexible, scalable traffic monitoring
  and analysis system for high-speed, high-volume,
  rich media IP networks
