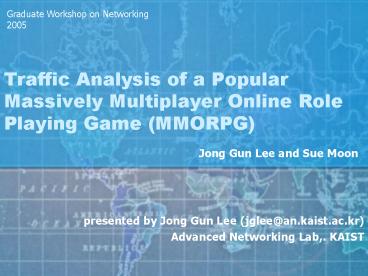

Traffic Analysis of a Popular Massively
Multiplayer Online Role Playing Game (MMORPG)
Jong Gun Lee and Sue Moon

• presented by Jong Gun Lee (jglee_at_an.kaist.ac.kr)
• Advanced Networking Lab,. KAIST

2
Breakdown

• Introduction
• Motivation Background
• Problem definition
• Part I Traffic identification
• Heuristic method
• Result of heuristic method
• Part II Basic analysis
• Session duration
• Packet size distribution
• Part III Further analysis
• Feasibility of the use of TCP protocol
• Latency
• Conclusion Future work

3
Introduction

• Game traffic
• Amount
• about 35 of total backbone traffic at 2000 2
• These days probably more
• Characteristic of game traffic
• is different from one of other typical
  applications
• Game categories
• First person shooter games
• Unreal Tournament and Counter Striker
• Real-time strategy games
• Starcraft and Warcraft I, II
• MMORPGs
• World of Warcraft , Lineage I, II, and GuildWar
• Casual games
• Board games, Racing games, and etc

4
Motivation

• So far,
• there are much researches on FPS and RTS games
• But, a little researches on MMORPG
• Why ?
• Until now, the major games are FPS and RTS games
• It is not easy to get the traffic of MMORPG
• because of game company policy and privacy issues
• But,
• MMORPGs are getting more popular
• We also need the characteristics of MMORPGs
• So,
• we collect and analyze the traffic of
• World of Warcraft (WOW), a popular MMORPG

5
Problem definition

• To find the similar and different things
• between FPS games and MMORPGs
• in aspect of traffic characteristics
• To check the feasibility
• of the use of TCP protocol in MMORPGs
• This result is a preliminary result of game
  traffic analysis

6
World of Warcraft

• Typical MMORPG
• Blizzard Entertainment
• At Dec 2004 test version
• Central server architecture
• TCP protocol
• Game server 3724 port

7
Dataset

• Collected the packets at KAIST core router
• 1Gbps fiber link
• Link utilization about 7080 (up to 100)
• Using GIGEMON 4.3GE
• Description

8
How to get the game traffic

• We consider the traffic which are
• long-lived flows (class I) and
• flows generated by normal playing (class II)

9
Heuristic method

• Terminology
• S packet to KAIST, C packet from KAIST, F a
  flow
• port port number, pkts of packets
• size flow size, dura flow duration
• Roadmap
• Step 0 Preprocessing step
• Collect Sport 3724
• Make flows according to 5-tuples
• Step 1 filtering step
• Cport gt 1024 and Cport ! p2p application port
  number (4662)
• Step 2 heuristic step
• Fdura gt 180
• 40 lt (Fsize / Fpkts) lt 70
• Fpkts gt 540

10
Result of heuristic method

• Result with Jun11 (having biggest of flows)
• after filtering step
• Type I error (false positive rate)
• 1.28 (1/352)
• Because we exclude non-class I and II
• Type II error (false negative rate)
• 0.01 (2/16,378)

11
Summary of Part I

• It is difficult to get game traffic from game
  company
• because of company policy and security issues
• Therefore, we make a simple heuristic method
• for game traffic identification
• to use simple flow characteristics
• Simple, efficient, and with good performance

12
Session duration

• About 50 players play within 1.5 hours, and
• about 90 players do within 5 hours
• This session duration is much longer that one of
  FPS
• Curve shape of these traffics is similar to one
  of FPS

FPS game (Counter-strike) 4
13
Session duration

• Fitting session duration(Dec24) with Weibull
  distribution
• Weibull distribution one of the most widely used
  lifetime distributions in reliability engineering
  1
• Good fitting result
• between session duration of WOW and Weibull
  distribution

CDF fitting
PDF fitting
14
Packet size distribution

• Average packet size of inbound traffic
• Diverse packet size because of central server
  architecture
• Average packet size of outbound traffic
• Size of each flow / of packets of the flow
• Mean 52.1271, standard derivation 3.8232
• FPS game mean outbound packet size about
  7080 3

15
Packet size distribution

• Size of each packet in one flow (Jun11)
• Plot packet size distribution of each flow
• Defined packet size according to activity
• such as walk and attack

Average packet size about 70bytes
16
Summary of Part II
17
Retransmission

• TCP protocol has several overheads
• when comparing with UDP protocol
• such as retransmission and longer header length
• We check whether retransmission affect on game
  playing, or not

18
Latency

• Definition of latency
• the time interval between sending a packet
• and receiving the corresponding ACK packet
• Almost all the packets received the ACK packets
• within 60msec
• FPS 50100ms 5

19
Summary of Part III

• Retransmission
• At most only 1 of total packets per flow
• Retransmission scheme may be no problem
• Latency
• Almost all of the packets receive ACK packets
  within 60ms
• When comparing to sensitivity of FPS games
• latency may be no problem
• TCP protocol is proper to MMORPG architecture
• with these result

20
Conclusion

• Simple but efficient game traffic identification
  method
• with several flow characteristics
• On two axis, analyzed the game traffic
• In basic step
• Compare the characteristics of WOW with ones of
  FPS games
• Session duration and packet size distribution
• In further step
• Check the feasibility of the use of TCP protocol
• Retransmission and latency

21
Future work

• More generic game traffic identification
• More in-depth analysis of game traffic
• Other network characteristics
• such as bandwidth and network dynamics
• TCP vs. UDP protocol in game architecture
• Game architecture
• with less delay and
• robustness to the number of player
• Analysis on other genres game
