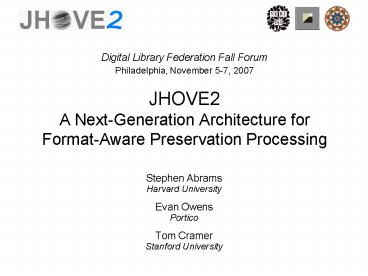

JHOVE2 A NextGeneration Architecture for FormatAware Preservation Processing

1
JHOVE2A Next-Generation Architecture
forFormat-Aware Preservation Processing
Digital Library Federation Fall
Forum Philadelphia, November 5-7, 2007

• Stephen Abrams
• Harvard University
• Evan Owens
• Portico
• Tom Cramer
• Stanford University

2
JHOVE2 project

• Two year NDIIPP-funded collaborative project to
  develop next generation architecture for
  format-aware preservation processing
• Harvard University
• Stephen Abrams, Gary McGath, Robin Wendler
• Portico
• Evan Owens, John Meyer, Sheila Morrissey
• Stanford University
• Tom Cramer, Richard Anderson, Hannah Frost,
  Rachel Gollub, Nancy Hoebelheinrich, Keith
  Johnson
• Open source
• Educational Community License (ECL)
• SourceForge

3
JHOVE2 project goals

• Refactor the existing architecture
• Rectify known inefficiencies and idiosyncrasies
• Simplify the process of integration
• Encourage third-party extensions
• Provide enhancements
• Separate identification from validation
• Standardized error handling
• Standardized handling of validation profiles
• Standardized reporting using METS, with XSL
  transform
• More sophisticated data model
• Arbitrary processing modules

4
JHOVE2 project goals

• Develop modules
• Signature-based identification using DROID
• Validation and characterization
• Symbolic display of selected binary formats
• API-level editing capability
• Policy-based assessment

5
Data model

• Implicit assumption in JHOVE
• 1 object 1 file 1 format
• But what about
• TIFF with embedded ICC profile and XMP metadata
• 1 object 1 file 3 formats
• JPEG 2000 JPX fragmentation
• 1 object n files 1 format
• ESRI Shapefile
• 1 object 3 files 3 formats
• JHOVE2 will support processing of complex
  aggregate objects and nested formatted bit
  streams
• 1 object n files m formats

6
Common backplane

• Outer loop is an iteration over digital objects
• Inner loop of processes applied against each
  object, passing a common memory structure
• while (has-another-object)
• while (has-another-process)
• process (object, state)

7
Validation

• There is a useful distinction between
  well-formedness, validity, renderability, and
  usability
• Well-formedness and validity are bright line
  determinations relative to a specification
• Renderability is a bright line determination
  relative to a specific rendering tool
• Usability is a fuzzy determination relative to
  local policies and heuristics

8
Policy-based assessment

• Evaluate objects based on prior characterization
  and locally-defined policy rules and heuristics,
  for example
• Risk of technological obsolescence
• Risk of transformative loss
• Codify assessment methodologies and best practice
  recommendations
• Develop a formal language in which to express
  policy rules
• Implement a rules engine

9
Format support

• Audio AIFF, WAVE
• Color ICC
• Document PDF
• GIS Shapefile
• Image GIF, JPEG, JPEG 2000, TIFF
• Text ASCII, HTML, SGML, UTF-8, XML

10
Schedule

• 6 months of community outreach, requirements
  gathering, and design
• 6 months implementation of core APIs and the
  engine
• 1 year implementation of modules
• Continual prototyping and re-factoring

11
Questions (for you)?

• Do you care about the open source license (ECL)?
• Do you care about the distribution platform
  (SourceForge)?
• Do you have functional requirements or use cases?
• How do you use JHOVE today?
• What needs doesnt it meet?
• What types of policy assessments do you perform?
• How do you quantify risk?
• What is your underlying assessment model?
• Are you aware of existing expression languages
  and engines for rules-based assessment?

12
Questions (for you)?

• What can we do to facilitate integration into
  existing (or planned) systems and workflows?
• What can we do to facilitate third-party
  development and extension?
• What help would you need to implement your own
  modules?
• Would you be interested in a co-development
  arrangement with the JHOVE2 project?
• Do you have interesting test files that you are
  willing to share?

13
Questions (from you)?
