Approaches To Automated Benchmarking Of Public Sector Web Sites

1

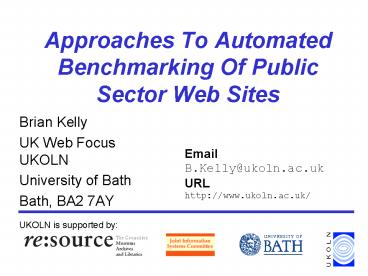

Approaches To Automated Benchmarking Of Public
Sector Web Sites

• Brian Kelly
• UK Web FocusUKOLN
• University of Bath
• Bath, BA2 7AY

Email B.Kelly_at_ukoln.ac.uk URL http//www.ukoln.ac.
uk/
UKOLN is supported by
2
Contents

• Background
• WebWatch Project
• Current Approach
• Pilot UK Local Authority Survey
• Other Approaches
• Discussion
• Conclusions and Recommendations

3
The Problem

• Background
• Local and central government organisations are
  developing Web-based services
• There is a need to audit the services in order to
  measure compliance with standards and guidelines,
  coverage, usability, etc.
• Aim Of This Talk
• This talk describes experiences in the use of
  Web-based auditing services and summarises the
  benefits and limitations of this approach

• NOTE
• The talk does not provide detailed results of a
  survey of UK public sector Web sites although a
  summary of a pilot is given
• The talk does not cover manual evaluation of Web
  sites

4
Web Site Benchmarking

• Why benchmark Web sites?
• To monitor compliance with standards guidelines
• To monitor trends and developments across a
  community
• To allow funders to observe developments
• To allow members of a community to see how the
  community is developing and how they compare with
  the community
• To inform the Web community on the uptake of Web
  standards and protocols e.g.
• inform W3C on extent of compliance with WAI
  guidelines across large communities
• inform e-Government on take-up of E-GIF standards

5
Benchmarking Examples

• Examples
• Do local government Web sites comply with W3C WAI
  guidelines?
• How large are the entry points to local
  government Web sites?
• Do the Web sites comply with HTML, CSS, XML, etc.
  standards?
• Do the Web sites work?
• Does it appear, for example, that awareness of
  the importance of accessibility and standards
  compliance been accepted or does it seem to be
  too difficult to provide compliance?

6
WebWatch Project

• WebWatch project
• Funded for one year by British Library
• Started in 1997
• Software developer recruited
• Development and use of robot software to monitor
  Web sites across communities
• Several surveys carried out
• UK Public Library Web sites
• UK University Web sites
• See lthttp//www.ukoln.ac.uk/web-focus/webwatch/re
  ports/gt

7
WebWatch Mark II

• By 1999
• Funding had finished
• Software developer left
• Realisation that
• Development of in-house software was expensive
• Web site auditing tools were becoming available
• Web site auditing Web services were becoming
  available
• Since 1999
• Use of (mainly) freely available Web services to
  benchmark various public sector Web communities
• Regular columns in Ariadne e-journal
  lthttp//www.ariadne.ac.uk/gt (list at
  lthttp//www.ukoln.ac.uk/web-focus/webwatch/report
  slatest/gt)
• Experience gained in issues of Web site
  benchmarking

8
Benchmarking Web Sites
http//www.cast.org/bobby/

• Bobby is an example of a Web-based benchmarking
  service which provides information on compliance
  with W3C WAI guidelines

9
Use Of The Services

• The benchmarking Web sites are normally designed
  for interactive (manual) use
• However the input to the Web sites can be managed
  automatically, which speeds up the submission
  process
• It would be possible to automate processing of
  the results, but this hasnt (yet) been done
• Lack of software developer resources
• Quality of output needs to be determined
• It should be the responsibility of the service
  provider to provide output in reusable format

10
Displaying Results

• The input to the benchmarking Web services and a
  summary of the results is provided as a Web
  resource.
• This provides
• Openness of methodology
• Ability to compare your Web sites with those
  published

• Technique Used
• Use the Web service on a site
• Copy URL into template
• Determine URL structure
• Use as basis for use with other URLs

http//bobby.cast.org/bobby/bobbyServlet?
URLhttp3A2F2Fwww2.brent.gov.uk2FoutputSubmi
tglwcag1-aaa
11
Use of Bobby
Bobby analysis oflthttp//www.ukonline.gov.uk/gt

• Analysis of UKOnline appears to show a compliant
  site, 0.5K in size.
• Examination show that this is an analysis of a
  Redirect page. Analysis of the destination shows
  lack of compliance with WAI guidelines and a size
  of 1.17 K
• Further examination show that this is an analysis
  of a Frames page. Analysis of the individual
  frames shows
• A file size of 24.8 K for one frame
• The other frame could not be analysed due to lack
  of support for cookies in Bobby

12
Benchmarking Services (2)
http//www.netmechanic.com/

• NetMechanic is another examples of a Web-based
  Web site testing services
• It can check
• Links
• HTML and browser compatibility
• File sizes

13
Benchmarking Sites

• It is possible to benchmark entire Web sites and
  not just individual pages, such as entry points
• Nos. of links to Web site
• Nos. of pages indexed
• Relationships with other Web sites
• You can also measure the server availability and
  uptime (e.g. using Netcraft)

14
Standard Files

• It is also possible to analyse a number of
  standard Web sites files
• The robots.txt file
• Has one been created (to stop robots for
  indexing, say, pre-release information)?
• Is it valid?
• The 404 error page
• Has a tailored 404 page been created or is the
  server default one used?
• Is it rich in functionality (search facility,
  links to appropriate help information, etc.)?
• Search Engine page
• Is a search facility provided, and, if so, what
  type?

Note manual observation of functionality of
these files is currently needed
15
Pilot Benchmarking

• Short-listed candidates for the SPIN 2001-SOCITM
  Web site Awards were used in a pilot benchmarking
  exercise
• Benchmarking initially carried out in July 2001
  (for a paper at the EuroWeb 2001 conference)
• Repeated in April 2002 (allowed trends to be
  spotted)
• Web sites analysed were
• L B Brent L B Camden
• L B Richmond Tameside MBC
• Wokingham Council Dumfries Galloway Council
• Dundee City Council East Renfrewshire Council
• Moray Council West Lothian Council
• Cardiff CC Ceredigion CC
• Isle of Anglesey CC Wrexham CBC
• Antrim BC Armagh DC
• Belfast City Council Newtownabbey BC

5 English, 5 Scottish, 4 Welsh and 4 Northern
Ireland
Findings at lthttp//www.ukoln.ac.uk/web-focus/even
ts/conferences/spin-2002/gt
16
Pilot Benchmarking Findings (1)

• Accessibility (using Bobby)
• In first survey 8 (44) sites had no WAI P1
  errors on home page
• In second survey only 1 site had no P1 errors
• Comments
• Accessibility is an important issue and awareness
  of this is growing. but the most visible page
  on these Web sites tends not to be accessible,
  and this is getting worse
• Discussion
• Bobby changed its service between the two
  surveys. It no longer reports on the file size.
  Has it changed its algorithm for measuring
  accessibility?

17
Pilot Benchmarking Findings (2)

• HTML Quality, etc. (using NetMechanic)
• One home page appeared to have a broken link in
  both surveys, but this appears not to be the case
• All home pages have HTML errors, and in some
  cases this is getting worse (from 4 errors to 101
  errors in one case)
• Comments
• Compliance with HTML standards is needed in order
  to (a) avoid browser dependencies (b) facilitate
  access by specialist browser (c) facilitate
  repurposing.
• The Web sites do not appear to be addressing this
• Many errors could be easily fixed e.g. by
  adding an HTML DTD statement at top of file

18
Pilot Benchmarking Findings (3)

• Web Server Software (using Netcraft)
• 12 Web sites (66.7) use an MS Windows platform,
  5 (27.8) a Unix platform and 1 (5.6) an unknown
  platform.
• Proportions had not changed in second survey
• Will proportions change in light of MS licensing
  fees?
• Link Popularity (using LinkPopularity)
• In the initial survey the most linked-to site in
  the initial survey was Dundee City Council (896
  links according to AltaVista) or L B Brent (626
  links according to Google).
• In the second survey the most linked-to site was
  Brent (883 links according to AltaVista) or
  Cambden (1,810 links according to Google).

19
Pilot Benchmarking Findings (4)

• 404 Page
• 12 Web sites (67) still had the server default
  404 page
• Proportions had not changed in second survey
• Search Engine Page
• 6 Web sites (33) do not appear to have a search
  facility

20
Some Issues (1)

• When using Bobby and NetMechanic different
  results may be obtained.
• This may be due to
• Analysis vs following redirects
• Analysis of frameset page but not individual
  frame pages
• Not analysing images due to Robot Exclusion
  Protocol
• Differences in covering external resources such
  as JavaScript files, CSS, etc.
• Splash screens

21
Some Issues (2)

• Bobby changed its interface, URL, functionality
  and licensing conditions between the two surveys
• URL change meant previous live survey wouldnt
  work
• Bobby no longer provides information on browser
  compatibility errors or file sizes
• The downloadable version of Bobby is no longer
  free (not an issue for this work)
• This illustrates some of the dangers of this
  approach
• It is not known if Bobbys algorithms were
  changed for measuring WAI compliance, which could
  affect comparisons

22
Market For Benchmarking

• There is increasing interest in Web site
  benchmarking
• Consortia e.g. see SOCITM Will you be Better
  Connected in 2001? service at lthttp//www.socitm.
  gov.uk/mapp/mapdf/Web_inner.pdfgt
• Visual impairment rating
• 12 page report about your site
• Recommendations for improving site
• 495 (subscribers) or 950 for survey
• Industry e.g. companies such as Business2www
• Published factual audit of Local Government sites
• See lthttp//www.business2www.com/gt
• Or Google search for Web auditing

23
Who Does The Work And Why?

• Who should benchmark?
• Community itself (e.g. national association)
• But how self-critical can it be?
• The funders
• But will they take on-board the complexities?
• Neutral body
• But is there an obvious body to do the work?
• What is the purpose of the benchmarking?
• Is it linked to funding, with penalty clauses for
  non-compliance?
• Is it to support the development of the
  community, by highlighting best practices?

24
Technical Issues

• Web Services
• There is a need to develop from use of
  interactive Web sites to services designed for
  machine use
• There may be a role for a Web Service approach
  in which a rich set of input can be provided
  (e.g. using SOAP).
• EARL
• There is a need for a neutral and reusable output
  format from benchmarking services
• W3Cs EARL (Evaluation and Reporting Language)
  may have a role to play
• As EARL is based on RDF it should be capable of
  describing the benchmarking environment in a rich
  and machine understandable way
• See lthttp//www.w3.org/WAI/ER/IG/earl.htmlgt

25
Recommendations (1)

• Standards Bodies (e.g. W3C Equivalent)
• There is a clear need for rigourous definitions
  to assist in Web auditing in order to ensure that
  valid comparisons can be made across auditing
  services
• It would be useful to provide test case Web sites
  in order to compare different audits
• Examples
• Definitions of a page
• Files which should be analysed
• How to handle robot exclusion protocol
• User-agent view

26
Recommendations (2)

• Applications Developers
• There is to ensure that Web-based benchmarking
  services can be tailored and the output can be
  reused
• Benchmarking services should be capable of
  emulating a range of user agents
• Benchmarking services should provide user control
  over compliance with the Robot Exclusion Protocol

• Benchmarking services should provide user control
  over definitions of files to be analysed
• Benchmarking services should provide user control
  over the definition of a page (e.g. include
  redirected pages, sum results of original and
  redirected page, etc.)

27
Recommendations (3)

• There are benefits to communities in monitoring
  trends and sharing best practices which have been
  spotted in benchmarking work
• Lets share the results and issues across our
  related communities
• Lets share the approaches to benchmarking across
  bodies involved in benchmarking

28
Questions

• Any questions?
