Csci 136 Computer Architecture II

1

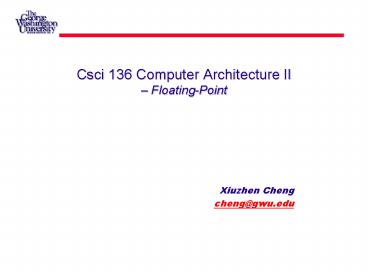

Csci 136 Computer Architecture II Floating-Point

• Xiuzhen Cheng
• cheng_at_gwu.edu

2
Announcement

• Homework assignment 5
• Readings Sections 4.8
• Problems 4.14, 4.15, 4.25-4.28, 4.55, 4.56
• Project 2 is due March 6
• 1st Midterm Thursday, February 26

3
Floating-Point

• What can be represented in N bits?
• Unsigned 0 to 2N-1
• 2s Complement - 2N-1 to 2N-1 - 1
• 1s Complement -2N-11 to 2N-1-1
• Binary Coded Decimal 0 to 10N/4 1
• Excess M -M to 2N - M 1
• (E e M)
• But, what about?
• very large numbers? Will this fit in an
  integer? 9,349,398,989,787,762,244,859,087,678
• very small number? 0.000000000000000000000004569
  1
• rationals 2/3
• irrationals p
• transcendentals e

4
Recall Scientific Notation
exponent
decimal point
Sign, magnitude
23
-24
6.02 x 10 1.673 x 10
radix (base)
Mantissa
Sign, magnitude
e - 127
IEEE F.P. Single 1.Significand x 2

• Issues
• Arithmetic (, -, , / )
• Representation, Normal form (What is
  Normal Form?)
• Range and Precision
• Rounding
• Exceptions (e.g., divide by zero, overflow,
  underflow)
• Errors
• Properties ( negation, inversion, if A ? B then
  A - B ? 0 )

5
Single-Precision Floating-Point
Representation of floating point numbers in IEEE
754 standard single precision
1
8
23
S
E
sign
Significand
mantissa sign magnitude, normalized binary
significand w/ hidden integer bit
1.0Significand
exponent excess 127 binary integer
actual exponent is biased by 127 e E - 127
0 lt E lt 255
S
E-127
N (-1) 2 (1.0Significand)
Special Cases 0 is an expoenent of all 0s 0 0
00000000 0 . . . 0
Magnitude of numbers that can be represented is
in the range
-126
127
2
to
2
which is approximately
-38
38
to
3.40 x 10
1.8 x 10
6
Why use significand vice mantissa?
Representation of floating point numbers in IEEE
754 single precision
1
8
23
S
E
Significand
We store a normalized binary significand w/
hidden integer bit instead of the
mantissa Mantissa 1.0Significand
Exponent-127
Sign
N (-1) 2
(1.0Significand)
Translation After Normalizing, we
ALWAYS eliminate the leading one in the Mantissa.
7
Why use biased exponent?
Representation of floating point numbers in IEEE
754 single precision
1
8
23
S
E
Significand
The exponent is stored as an excess 127 binary
integer What does this mean? actual exponent is
"biased" by 127 or 1023 stored exponent real
exponent 127 for single stored exponent real
exponent 1023 for double
Sign
E - 127
real number (-1) 2
(1.0Significand)
8
F.P. Comparison

• Done as integer comparison. How?
• Sign bit is the MSB
• Exponent is before Significand
• Biased exponent

9
Double-Precision Floating-Point

• Overflow vs. Underflow
• Exponent is too large or too small
• Can you give an example?
• Double precision floating point
• Use two MIPS word 1 sign bit, 11 exponent bits
  and 52 bits of significand
• Magnitude of numbers that can be represented
  2.0x10-308 to 2.0x10308
• Design favors integer comparison
• bias of 1023

10
Floating-Point Representation Examples

• How do we represent -1.5
• Show the IEEE 754 binary representation of the
  number 0.75 in single and double precision
• What decimal number is represented by 1
  100,0000,1 010,0000,0000,0000,0000,0000

11
Floating-Point Representation Examples

• How do we represent -1.5
• -1.5 1 01111111 10 . . . 0
• Show the IEEE 754 binary representation of the
  number 0.75 in single and double precision
• What decimal number is represented by 1
  100,0000,1 010,0000,0000,0000,0000,0000

12
Basic Addition Algorithm
(1) We'll need to convert from significand to
mantissa (2) We'll need to shift the smaller
number so that we have the same exponent num of
shifts Larger Number's exponent - Smaller
Number's exponent (2) right shift smaller
number that many positions (3) add or subtract
the two numbers (4) Normalize a. left shift
result, decrement result exponent (e.g.
0.0001) b. right shift result, increment result
exponent (e.g. 101.1) continue until MSB of
data is 1 (will not be stored) (5) Check for
overflow or underflow (6) if the result is a 0
mantissa, set the exponent to zero by special step
13
An Example for F.P. Addition

• Adding numbers 0.5ten and 0.4375ten, assume
  4bits of precision

14
Floating-Point Multiplication

• Algorithm Z X Y
• result exponent X's exponent Y's exponent
• result exponent sum of stored exponents bias
• remember.. stored exponent real exponent bias
• Multiply the significands Zm Xm x Ym
• Normalization and exception checking (overflow
  and underflow)
• Determine the sign bit
• Multiply numbers 0.5ten and 0.4375ten, assume
  4bits of precision

15
MIPS Floating-Point Instructions

• 32 floating-point registers f0, , f31. Only 16
  of them can be used for single-precision f. p.
  arithmetic
• Floating-point arithmetic add.s, add.d, sub.s,
  sub.d, mul.s, mul.d, div.s, div.d,
• Floating-point comparison c.x.s, c.x.d
• Floating-point data transfer lwc1, swc1, l.d,
  s.d
• Floating-point conditional branch bc1t, bc1f
• See page 291.

16
Accurate Arithmetic

• There are infinite number of numbers between
• 0 and 1, hence even double precision floating
  point can represent only a few of them
• We want the floating point representation to be
  as close as possible to the real number
• IEEE as if computed the result exactly and
  rounded
• Eg. 2/3ten
• Rounding needs extra bits
• IEEE 754 always keeps 2 extra bits on the right
  during intermediate calculations, called guard
  and round, respectively

17
Accurate Arithmetic

• Compute 2.56x100 2.34x102, with 3 significant
  decimal digits.
• Guard Digits digits to the right of the first p
  digits of significand to guard against loss of
  digits can later be shifted left into the
  mantissa (significand) during normalization.

18
Rounding Digits
When normalizing result, if there are some digits
past the right end of the significand
(mantissa) The number should be rounded E.g., B
10, p 3
2-bias
0 2 1.69
1.6900 10 - .0785 10 1.6115 10
2-bias
0 0 7.85
-
2-bias
0 2 1.61
The round digit is carried to the right of the
guard digit so that after a normalizing left
shifts, the result can still be rounded. Consider
1.001 - (1.1 2-4)
19
Rounding Digits
IEEE Standard four rounding modes round
to nearest even (default)
round towards plus infinity round towards minus
infinity round towards 0
round to nearest if guard and round lt B/2 then
truncate gt B/2
then round up
(add 1 to ULP unit in last place) B/2
then round to nearest even digit It can be
shown that this strategy minimizes the mean error
introduced by rounding
20
Rounding Digits
Assume round to nearest even (default) Round
10.1001 (binary) to an integer. Round 10.1000
(binary) to an integer. Round 10.0111 (binary)
to an integer. Round 11.1000 (binary) to an
integer.
21
Sticky Bit
The sticky bit is an additional bit placed to the
right of the guard and round bits when doing
floating point calculations. The sticky bit is
set to 1 if it the value calculated for it is a 1
OR any bit to the right of it is calculated to be
a 1. GRS 1.001 0.0001001 1.001101
1.010 Note In computer hardware terms.. a
"sticky bit" is a bit that remains set until it
is explicitly cleared.
22
Denormalized Numbers

• For single-precision f. p.
• 0 is 00000000000000000000000000000000
• Smallest normalized number is 1.0000 0000 0000
  0000 0000 000 x 2-126
• This is actually a pretty big gap...
• Gradual underflow allow a number to degrade in
  significance until it becomes 0
• By getting rid of implicit leading 1 in front of
  the significand... we can represent a smaller
  number
• We denote a denormlized number by 0 exponent and
  a non-zero significand
• the smallest denormalized number is 0.0000
  0000 0000 0000 0000 001 x 2-126 or 1.0 x 2-149
• For double-precision f. p.
• Smallest denormalized number 1.0 x 2-1074

23
Infinity and NaNs
The result of an operation may overflow, i.e., be
larger than the largest number that can be
represented overflow is not the same as divide
by zero (it raises a different exception)
S 1 . . . 1 0 . . . 0
/- infinity
We represent infinity by exponent of all 1s and
significand of all 0s. It may make sense to do
comparisons with infinity e.g., Y lt infinity may
be a valid comparison
Not a number, but not infinity (e.q. sqrt(-4))
invalid operation exception (unless operation
is or )
S 1 . . . 1 non-zero
NaN
NaNs propagate f(NaN) NaN
24
Pentium Bug

• Pentium FP Divider uses algorithm to generate
  multiple bits per steps
• FPU uses most significant bits of divisor
  dividend/remainder to guess next 2 bits of
  quotient
• Guess is taken from lookup table -2, -1,0,1,2
  (if previous guess too large a reminder, quotient
  is adjusted in subsequent pass of -2)
• Guess is multiplied by divisor and subtracted
  from remainder to generate a new remainder
• Called SRT division after 3 people who came up
  with idea
• Pentium table uses 7 bits of remainder 4 bits
  of divisor 211 entries
• 5 entries of divisors omitted 1.0001, 1.0100,
  1.0111, 1.1010, 1.1101 from PLA (fix is just add
  5 entries back into PLA cost 200,000)
• Self correcting nature of SRT gt string of 1s
  must follow error
• e.g., 1011 1111 1111 1111 1111 1011 1000 0010
  0011 0111 1011 0100 (2.99999892918)
• Since indexed also by divisor/remainder bits,
  sometimes bug doesnt show even with dangerous
  divisor value

25
Pentium bug appearance

• First 11 bits to right of decimal point always
  correct bits 12 to 52 where bug can occur (4th
  to 15th decimal digits)
• FP divisors near integers 3, 9, 15, 21, 27 are
  dangerous ones
• 3.0 gt d ? 3.0 - 36 x 222 , 9.0 gt d ? 9.0 - 36 x
  220
• 15.0 gt d ? 15.0 - 36 x 220 , 21.0 gt d ? 21.0 -
  36 x 219
• 0.333333 x 9 could be problem
• In Microsoft Excel, try (4,195,835 / 3,145,727)
  3,145,727
• 4,195,835 gt not a Pentium with bug
• 4,195,579 gt Pentium with bug(assuming Excel
  doesnt already have SW bug patch)
• Rarely noticed since error in 5th significant
  digit
• Success of IEEE standard made discovery possible
  all computers should get same answer

26
Pentium Bug Time line

• June 1994 Intel discovers bug in Pentium takes
  months to make change, reverify, put into
  production plans good chips in January 1995 4 to
  5 million Pentiums produced with bug
• Scientist suspects errors and posts on Internet
  in September 1994
• Nov. 22 Intel Press release Can make errors in
  9th digit ... Most engineers and financial
  analysts need only 4 of 5 digits. Theoretical
  mathematician should be concerned. ... So far
  only heard from one.
• Intel claims happens once in 27,000 years for
  typical spread sheet user
• 1000 divides/day x error rate assuming numbers
  random
• Dec 12 IBM claims happens once per 24 days Bans
  Pentium sales
• 5000 divides/second x 15 minutes 4,200,000
  divides/day
• IBM statement http//www.ibm.com/Features/pentium
  .html
• Intel said it regards IBM's decision to halt
  shipments of its Pentium processor-based systems
  as unwarranted.

27
Pentium jokes

• Q What's another name for the "Intel Inside"
  sticker they put on Pentiums?
• A Warning label.
• Q Have you heard the new name Intel has chosen
  for the Pentium?
• A the Intel Inacura.
• Q According to Intel, the Pentium conforms to
  the IEEE standards for floating point arithmetic.
  If you fly in aircraft designed using a Pentium,
  what is the correct pronunciation of "IEEE"?
• A Aaaaaaaiiiiiiiiieeeeeeeeeeeee!
• TWO OF TOP TEN NEW INTEL SLOGANS FOR THE PENTIUM
• 9.9999973251 It's a FLAW, Dammit, not a Bug
• 7.9999414610 Nearly 300 Correct Opcodes

28
Pentium conclusion Dec. 21, 1994 500M write-off

• To owners of Pentium processor-based computers
  and the PC community
• We at Intel wish to sincerely apologize for our
  handling of the recently
• publicized Pentium processor flaw.
• The Intel Inside symbol means that your
  computer has a microprocessor second to none in
  quality and performance. Thousands of Intel
  employees work very hard to ensure that this is
  true. But no microprocessor is ever perfect.
• What Intel continues to believe is technically
  an extremely minor problem has taken on a life
  of its own. Although Intel firmly stands behind
  the quality of the current version of the Pentium
  processor, we recognize that many users have
  concerns.
• We want to resolve these concerns.
• Intel will exchange the current version of the
  Pentium processor for an
• updated version, in which this floating-point
  divide flaw is corrected, for
• any owner who requests it, free of charge anytime
  during the life of their
• computer. Just call 1-800-628-8686.
• Sincerely,
• Andrew S. Grove Craig R. Barrett
  Gordon E. Moore
• President /CEO Executive Vice
  President Chairman of the Board
