D. Kampf

1

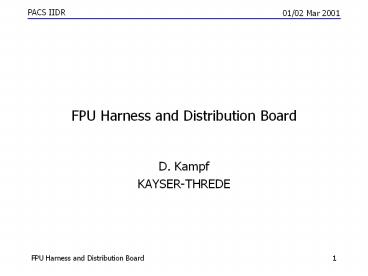

FPU Harness and Distribution Board

• D. Kampf
• KAYSER-THREDE

2
FPU Harness Diagram
3
Specification Harness

• AWG 28 twisted shielded
• Copper wire, insulator PTFE
• Redundant cables in different cable bundle
• Connectors without gasket
• MDM connectors supplying power have pin contacts

4
Harness Status

• Design finished (except pin assignment)
• Measurements of IR-Transmission of Insulation and
  Potting Material of ITT CANNON MDM connectors
• Length of harness not defined yet

5
IR-Transmission Measurement ITT Cannon MDM
connectors
Insulation old
Potting Material
Insulation new
6
IR-Transmission MeasurementsGLENAIR and MALCO
Connectors
Insulation Material MALCO
Potting Material GLENAIR
Potting Material MALCO
7
Connector Set-up

• Potting Material
• Female 0.7 mm
• Male 0.7 mm
• Isolation Material
• Female 1.7 mm 0.8 mm ( gap 0.13 mm2 / pin)
• Male 1.7 mm 5.3 mm ( gap 0.13 mm2 / pin)

8
ITT CANNON MDM Connector
9
ITT CANNON MDM Connector (old)
Insulator 51 pin old material Socket (wall
removed) Insulator Gap Pin
10
ITT CANNON MDM Connector

• Transmission for new ITT Cannon design, two
  connectors (seems to be acceptable)

11
FPU Distribution Board

• 2 Electronic Boards
• First Electronic Board, Detector side
• 25 x 31 pins MDM Connectors for Detectors
• 1 x MDM 9 pins Connector for Heaters (only blue
  Detector)
• 128 capacitors (WMA MKS2 1MicroF 50V)
• Second Electronic Board, Connector Bracket side
• 5 x 31 pins MDM Connectors
• 4 x 25 pins MDM Connectors

12
FPU Distribution Board

• Flex-wire (165 tracks per flex layer) between
  both board
• Flex-wire shielded on both sides
• 6 to 8 layers per board
• Shielding layers in between the layers
• Board and Flex wire material Polymide

13
FPU Distribution Board
130 mm
14
Position of Distribution Board for Red Detector
15
Position of Distribution Board for Blue Detector
16
FPU Distribution Board

• Open Points
• Detailed Specification of the Board
• Numbers of capacitors
• Required separation / distance for noise
  sensitive lines
• Thickness of layers
• No triax harness possible on boards and flex
  cable
• Grounding requirements

17
Filter Wheel 1, Cable C01
18
Filter Wheel 1, Cable C02
19
Filter Wheel 2, Cable C03
20
Filter Wheel 2, Cable C04
21
Calibration Source 1 and 2, Cable C05
22
Chopper, Cable C07
23
Temperature Sensors 1 and 2, Cable C08
24
Temperature Sensors 3 and 4, Cable C06
