Cable Blowing Machine

1

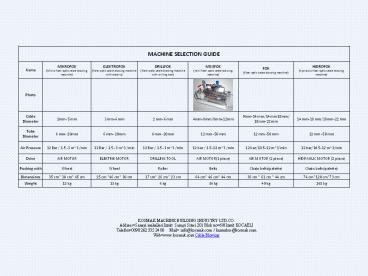

MACHINE SELECTION GUIDE MACHINE SELECTION GUIDE MACHINE SELECTION GUIDE MACHINE SELECTION GUIDE MACHINE SELECTION GUIDE MACHINE SELECTION GUIDE MACHINE SELECTION GUIDE
Name MIKROFOK (Mikro fiber optic cable blowing machine) ELEKTROFOK (fiber optic cable blowing machine with electric) DRILLFOK (fiber optic cable blowing machine with drilling tool) MINIFOK (mini fiber optic cable blowing machine) FOK (fiber optic cable blowing machine) HIDROFOK (hydraulic fiber optic cable blowing machine)
Cable Diameter 1mm- 5 mm 3 mm-6 mm 2 mm-6 mm 4mm-8mm/8mm-12mm 9mm-14 mm/14 mm18mm/ 18mm-22 mm 14 mm-18 mm/18mm-22 mm
Tube Diameter 6 mm- 20mm 6 mm- 20mm 6 mm- 20mm 12 mm -50 mm 12 mm -50 mm 12 mm -50 mm
Air Pressure 12 Bar / 1.5 -3 m3 /min 12 Bar / 1.5 -3 m3 /min 12 Bar / 1.5 -3 m3 /min 12 bar / 1.5-12 m3 /min 12 bar/10.5-12 m3/min 12 bar/10.5-12 m3/min
Drive AIR MOTOR ELEKTRIK MOTOR DRILLING TOOL AIR MOTOR(1 piece) AIR MOTOR (2 piece) HIDRAULIC MOTOR (2 piece)
Pushing with Wheel Wheel Roller Belts Chain belts(palette) Chain belts(palette)
Dimensions 35 cm 30 cm 45 cm 25 cm 46 cm 30 cm 17 cm 26 cm 23 cm 64 cm 46 cm 44 cm 38 cm 61 cm 44 cm 74 cm120 cm73 cm
Weight 18 kg 13 kg 6 kg 36 kg 49 kg 168 kg
KOSMAK MACHINE BUILDING INDUSTRY
LTD.CO. AddressSanayi mahallesi Izmit Sanayi
Sitesi 201 Blok no6/8 Izmit KOCAELI Telefon0090
262 335 24 00 Mail info_at_kosmak.com /
kamerkos_at_kosmak.com Webwww.kosmak.com Cable
Blowing
