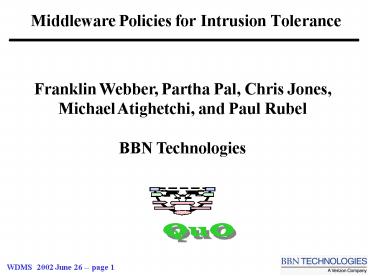

Middleware Policies for Intrusion Tolerance

1
Middleware Policies for Intrusion Tolerance
Franklin Webber, Partha Pal, Chris Jones, Michael
Atighetchi, and Paul Rubel BBN Technologies
QuO
2
Outline

• Using middleware for defense against intrusions
• Defense mechanisms
• Parameterizing defense policies

3
A Distributed Military Application
4
A Cyber-Attack
Hacked!
5
An Abstract View
Data User
Data Source
Data Processing (Fusion, Analysis, Storage, Forwar
ding, etc.)
Attacker
6
Traditional Security
Application
Attacker
Trusted OSs and Network
Private Resources
Private Resources
Limited Sharing
7
Most OSs and Networks In Common Use Are
Untrustworthy
Application
Attacker
OSs and Network
Private Resources
Private Resources
Limited Sharing
8
Cryptographic Techniques Can Block (Most) Direct
Access to Application
C r y p t o
Application
Attacker
OSs and Network
OSs and Network
Private Resources
Private Resources
Limited Sharing
9
Firewalls Block Some Attacks Intrusion Detectors
Notice Others
C r y p t o
Application
Attacker
OSs and Network
IDSs
Firewalls
Raw Resources CPU, bandwidth, files...
10
Defense-Enabled Application Competes With
Attacker for Control of Resources
C r y p t o
Attacker
Application
Middleware for QoS and Resource Management
OSs and Network
IDSs
Firewalls
Raw Resources CPU, bandwidth, files...
11
QuO Adaptive Middleware Technology

• QuO is BBN-developed middleware that provides
• interfaces to property managers, each of which
  monitors
• and controls an aspect of the Quality of Service
  (QoS)
• offered by an application
• specifications of the applications normal and
  alternate
• operating conditions and how QoS should depend
• on these conditions.
• QuO has integrated managers for several
  properties
• dependability
• communication bandwidth
• real-time processing
• (using TAO from UC Irvine/WUStL)
• security (using OODTE access control from NAI)

QuO
12
QuO adds specification, measurement, and
adaptation into the distributed object model
Application Developer
CORBA DOC MODEL
Mechanism Developer
Application Developer
QuO Developer
QUO/CORBA DOC MODEL
Mechanism Developer
13
The QuO Toolkit Supports Building Adaptive Apps
or Adding Adaptation to Existing Apps
QoS Adaptivity Specification
QuO Code Generator
CORBA IDL
Middleware for QoS and Resource Management
14
Implementing Defenses in Middleware

• for simplicity
• QoS concerns separated from functionality of
  application.
• Better software engineering.
• for practicality
• Requiring secure, reliable OS and network support
  is not currently cost-effective.
• Middleware defenses will augment, not replace,
  defense mechanisms available in lower system
  layers.
• for uniformity
• Advanced middleware such as QuO provides a
  systematic way to integrate defense mechanisms.
• Middleware can hide peculiarities of different
  platforms.
• for reuseability
• Middleware can support a wide variety of
  applications.

15
Security Domains Limit the Damage From A Single
Intrusion
domain
host
host
host
router
host
router
host
host
domain
hacked domain
16
Replication Management Can Replace Killed
Processes
domain
host
host
host
router
host
router
host
host
domain
hacked domain
application component replicas
QuO replica management
17
Bandwidth Management Can Counter Flooding Between
Routers
domain
host
host
host
router
host
router
host
host
domain
hacked domain
QuO bandwidth management
RSVP reservation or packet-filtered link
18
Other Defensive Adaptations

• Dynamically configure firewalls to block traffic
• Dynamically configure routers to limit traffic
• Dynamically change communication ports
• Dynamically change communication protocols

19
Defense Strategy

• Use QuO middleware to coordinate all available
  defense mechanisms in a coherent strategy.
• Our best current strategy has two parts
• outrun move application component replicas off
  bad hosts and on to good ones
• contain quarantine bad hosts and bad LANs by
  limiting or blocking network traffic from them
  and, within limits, shutting them down

20
Policy Issues for Outrunning

• Where should new replicas be placed?
• Always in new security domain?
• Always on a new host?
• Unpredictably?
• Should number of replicas change under attack?
• Increase for protection against stealth?
• Decrease for more rapid response?

21
Policy Issues for Containment

• Should quarantine be used?
• Or rely only on self-shutdown based on local
  sensors?
• When is a domain, LAN, or host judged bad?
• Depends on source of warning?
• Depends on repeated warnings?
• Depends on combination of warnings?
• Is agreement necessary before quarantine?
• Yes local decisions are easier to spoof
• No global decisions are impeded by flooding

22
Avoiding Self-Denial-of-Service

• How to prevent attacker from spoofing defense
  into quarantining all security domains?
• Limit number or fraction of quarantined domains?
• Limit rate of quarantining?
• Allow later reintegration of quarantined domains?

23
Conclusion

• The feasibility of adaptive cyber-defense is
  being explored.
• Adaptive cyber-defense is naturally implemented
  in middleware.
• A strategy for cyber-defense can be parameterized
  in several ways.
