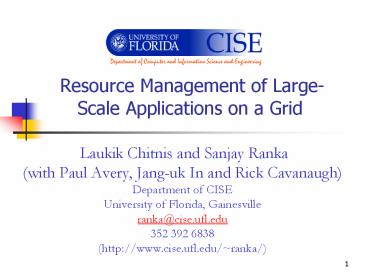

Resource Management of Large-Scale Applications on a Grid

1
Resource Management of Large-Scale Applications
on a Grid

• Laukik Chitnis and Sanjay Ranka
• (with Paul Avery, Jang-uk In and Rick Cavanaugh)
• Department of CISE
• University of Florida, Gainesville
• ranka_at_cise.ufl.edu
• 352 392 6838
• (http//www.cise.ufl.edu/ranka/)

2
Overview

• High End Grid Applications and Infrastructure at
  University of Florida
• Resource Management for Grids
• Sphinx Middleware for Resource Provisioning
• Grid Monitoring for better meta-scheduling
• Provisioning Algorithm Research for multi-core
  and grid environments

3
The Evolution of High-End Applications (and
their system characteristics)

• Geographicallydistributed datasets
• High speed storage
• Gigabit networks

Data Intensive Applications

• Large clusters
• Supercomputers

• Centralmainframes

1980
1990
2000
4
Some Representative Applications

• HEP, Medicine, Astronomy, Distributed Data Mining

5
Representative Application High Energy Physics
1000
20 countries
1-10 petabytes
1-
6
Representative Application Tele-Radiation Therapy
RCET Center for Radiation Oncology
7
Representative Application Distributed Intrusion
Detection
NSF ITR Project Middleware for Distributed
Data Mining (PI Ranka joint with Kumar and
Grossman)
8
Grid Infrastructure

• Florida Lambda Rail and UF

9
Campus Grid (University of Florida)
NSF Major Research Instrumentation Project (PI
Ranka, Avery et. al.) 20 Gigabit/sec Network 20
Terabytes 2-3 Teraflops 10 Scientific and
Engineering Applications
Gigabit Ethernet Based Cluster
Infiniband based Cluster
10
Grid Services

• The software part of the infrastructure!

11
Services offered in a Grid
Resource Management Services
Monitoring and Information Services
Data Management Services
Note that all the other services use security
services
12
Resource Management Services

• Provide a uniform, standard interface to remote
  resources including CPU, Storage and Bandwidth
• Main component is the remote job manager
• Ex GRAM (Globus Resource Allocation Manager)

13
Resource Management on a Grid
LSF
GRAM
Site 2
Site 1
Condor
PBS
fork
Site 3
Site n
The Grid
Narration note the different local schedulers
14
Scheduling your Application
15
Scheduling your Application

• An application can be run on a grid site as a job
• The modules in grid architecture (such as GRAM)
  allow uniform access to the grid sites for your
  job
• But
• Most applications can be parallelized
• And these separate parts of it can be scheduled
  to run simultaneously on different sites
• Thus utilizing the power of the grid

16
Modeling an Application Workflow

• Many workflows can be modeled as a Directed
  Acyclic Graph
• The amount of resource required (in units of
  time) is known to a degree of certainty
• There is a small probability of failure in
  execution (in a grid environment this could
  happen due to resources no longer available)

17
Workflow Resource Provisioning
Executing multiple workflows over distributed
and adaptive (faulty) resources while managing
policies
Large
Precedence
Applications
Time Constraints
Data Intensive
Access Control
Priority
Multi-core
Heterogeneous
Policies
Resources
Multiple Ownership
Quota
Faulty
Distributed
18
A Real Life Example from High Energy Physics

• Merge two grids into a single
• multi-VOInter-Grid
• How to ensure that
• neither VO is harmed?
• both VOs actually benefit?
• there are answers to questions like
• With what probability will my job be scheduled
  and complete before my conference deadline?
• Clear need for a scheduling middleware!

19
Typical scenario
VDT Client
?
?
?
VDT Server
VDT Server
VDT Server
20
Typical scenario
_at__at_
VDT Client
?
?
?
VDT Server
VDT Server
VDT Server
21
Some Requirements for Effective Grid Scheduling

• Information requirements
• Past future dependencies of the application
• Persistent storage of workflows
• Resource usage estimation
• Policies
• Expected to vary slowly over time
• Global views of job descriptions
• Request Tracking and Usage Statistics
• State information important

• Resource Properties and Status
• Expected to vary slowly with time
• Grid weather
• Latency of measurement important
• Replica management
• System requirements
• Distributed, fault-tolerant scheduling
• Customisability
• Interoperability with other scheduling systems
• Quality of Service

22
Incorporate Requirementsinto a Framework
VDT Client
?
?
?

• Assume the GriPhyN Virtual Data Toolkit
• Client (request/job submission)
• Globus clients
• Condor-G/DAGMan
• Chimera Virtual Data System
• Server (resource gatekeeper)
• MonALISA Monitoring Service
• Globus services
• RLS (Replica Location Service)

VDT Server
VDT Server
VDT Server
23
Incorporate Requirementsinto a Framework
?

• Framework design principles
• Information driven
• Flexible client-server model
• General, but pragmatic and simple
• Avoid adding middleware requirements on grid
  resources

VDT Client
Recommendation Engine
VDT Server

• Assume the Virtual Data Toolkit
• Client (request/job submission)
• Clarens Web Service
• Globus clients
• Condor-G/DAGMan
• Chimera Virtual Data System
• Server (resource gatekeeper)
• MonALISA Monitoring Service
• Globus services
• RLS (Replica Location Service)

VDT Server
VDT Server
24
Related Provisioning Software
25

• Innovative Workflow Scheduling Middleware
• Modular system
• Automated scheduling procedure based on modulated
  service
• Robust and recoverable system
• Database infrastructure
• Fault-tolerant and recoverable from internal
  failure
• Platform independent interoperable system
• XML-based communication protocols
• SOAP, XML-RPC
• Supports heterogeneous service environment
• 60 Java Classes
• 24,000 lines of Java code
• 50 test scripts, 1500 lines of script code

26
The Sphinx Workflow Execution Framework
VDT Client
Sphinx Server
Sphinx Client
Chimera Virtual Data System
Clarens
WS Backbone
Request Processing
Condor-G/DAGMan
Data Warehouse
Data Management
VDT Server Site
Globus Resource
Information Gathering
Replica Location Service
MonALISA Monitoring Service
27
Sphinx Workflow Scheduling Server
Sphinx Server
Message Interface

• Functions as the Nerve Centre
• Data Warehouse
• Policies, Account Information, Grid Weather,
  Resource Properties and Status, Request Tracking,
  Workflows, etc
• Control Process
• Finite State Machine
• Different modules modify jobs, graphs, workflows,
  etc and change their state
• Flexible
• Extensible

Graph Reducer
Control Process
Job Predictor
Graph Predictor
Job Admission Control
Graph Admission Control
Graph Data Planner
Data Warehouse
Job Execution Planner
Graph Tracker
Data Management
Information Gatherer
28
SPHINX

• Scheduling in Parallel for Heterogeneous
  Independent NetworXs

29
Policy Based Scheduling

• Sphinx provides soft QoS through time
  dependent, global views of
• Submissions (workflows, jobs, allocation, etc)
• Policies
• Resources
• Uses Linear Programming Methods
• Satisfy Constraints
• Policies, User-requirements, etc
• Optimize an objective function Estimate
  probabilities to meet deadlines within policy
  constraints
• J. In, P. Avery, R. Cavanaugh, and S. Ranka,
  "Policy Based Scheduling for Simple Quality of
  Service in Grid Computing", in Proceedings of the
  18th IEEE IPDPS, Santa Fe, New Mexico, April, 2004

Submissions
Resources
Time
Policy Space
Submissions
Resources
Time
30
Ability to tolerate task failures
Jang-uk In, Sanjay Ranka et. al. "SPHINX A
fault-tolerant system for scheduling in dynamic
grid environments", in Proceedings of the 19th
IEEE IPDPS, Denver, Colorado, April, 2005

• Significant Impact of using feedback information

31
Grid Enabled Analysis

• SC03

32
Distributed Services for Grid Enabled Data
Analysis
Distributed Services for Grid Enabled Data
Analysis
Clarens
Clarens
Globus
Clarens
Clarens
GridFTP
Globus
Globus
MonALISA
33
Evaluation of Information gathered from grid
monitoring systems
34
Limitation of Existing Monitoring Systems for the
Grid

• Information aggregated across multiple users is
  not very useful in effective resource allocation.

• An end-to-end parameter such as Average Job Delay
  - the average queuing delay experienced by a job
  of a given user at an execution site - is a
  better estimate for comparing the resource
  availability and response time for a given user.
• It is also not very susceptible to monitoring
  latencies.

35
Effective DAG Scheduling

• The completion time based algorithm here uses the
  Average Job Delay parameter for scheduling
• As seen in the adjoining figure, it outperforms
  the algorithms tested with other monitored
  parameters.

36
Work in Progress Modeling Workflow Cost and
developing efficient provisioning algorithms

• 1. Developing an objective measure of completion
  time
• Integrating performance and reliability of
  workflow execution P (Time to complete gtT) lt
  epsilon
• 2. Relating this measure to the properties of the
  longest path of the DAG based on the mean and
  uncertainty of time required for underlying tasks
  due to
• 1) variable time requirements due to different
  parameter values
• 2) failure due to change of the underlying
  resources etc.
• 3. Developing novel scheduling and replication
  techniques to optimize allocation based on these
  metrics.

37
Work in Progress Provisioning algorithms for
multiple workflows (Yield Management)
Multiple Workflows
Level 1
Level 1
Level 2
Level 2
Level 3
Level 3
Level 4
Level 4
Dag 1
Dag 2
Dag 3
Dag 5
Dag 4
Dag 1
Dag 2
Dag 3
Dag 5
Dag 4

• Quality of Service guarantees for each workflow
• Controlled (a cluster of multi-core processors)
  versus uncontrolled
• (grid of multiple clusters owned by multiple
  units) environment

38
CHEPREO - Grid Education and Networking

• E/O Center in Miami area
• Tutorial for Large Scale Application Development

39
Grid Education

• Developing a Grid tutorial as part of CHEPREO
• Grid basics
• Components of a Grid
• Grid Services OGSA
• OSG summer workshop
• South Padre island, Texas. July 11-15, 2005
• http//osg.ivdgl.org/twiki/bin/view/SummerGridWork
  shop/
• Lectures and Hands-on sessions
• Building and Maintaining a Grid

40
Acknowledgements

• CHEPREO project, NSF
• GriPhyN/iVDgL, NSF
• Data Mining Middleware, NSF
• Intel Corporation

41
Thank You

• May the Force be with you!

42
Additional slides
43
Effect of latency on Average Job Delay

• Latency is simulated in the system by purposely
  retrieving old values for the parameter while
  making scheduling decisions
• The correlation indices with added latencies are
  comparable, though lower as expected, to the
  correlation indices of un-delayed Average Job
  Delay parameter. The amount of correlation is
  still quite high.

44
SPHINX Scheduling Latency
Average scheduling latency for various number of
DAGs (20, 40 , 80 and 100) with different
arrival rate per minute.
45
Demonstration at Supercomputing
Conference Distributed Data Analysis in a Grid
Environment
The architecture has been implemented and
demonstrated in SC03 and SC04, Arizona, USA, 2003.
46
Scheduling DAGs Dynamic Critical Path Algorithm

• The DCP algorithm executes the following steps
  iteratively
• Compute the earliest possible start time (AEST)
  and the latest possible start time (ALST) for all
  tasks on each processor.
• Select a task which has the smallest difference
  between its ALST and AEST and has no unscheduled
  parent task. If there are tasks with the same
  differences, select the one with a smaller AEST.
• Select a processor which gives the earliest start
  time for the selected task

47
Scheduling DAGs ILP- Novel algorithm to support
heterogeneity (work supported by Intel
Corporation)

• There are two novel features
• Assign multiple independent tasks simultaneously
  cost of task assigned depends on the processor
  available, many tasks commence with a small
  difference in start time.
• Iteratively refine the scheduling - refines the
  scheduling by using the cost of the critical path
  based on the assignment in the previous
  iteration.

48
Comparison of different algorithms
Number of processors 30. Number of Tasks 2000.
Number of processors 30.
49
Time for Scheduling
