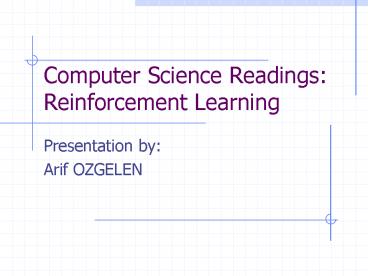

Computer Science Readings: Reinforcement Learning

1
Computer Science Readings Reinforcement Learning

• Presentation by
• Arif OZGELEN

2
How do we perform visual search?

• Look at usual places the item is likely to be.
• If item is small we tend to get closer to the
  area that we are searching in order to heighten
  our ability to detect.
• We look for certain properties of the target
  object which makes it distinguishable from the
  search space. e.g. color, shape, size, etc

3
A Reinforcement Learning Model of Selective
Visual AttentionACM 2001

• Silviu Minut, Autonomous Agents Lab, Department
  of Computer Science, Michigan State University.
• Sridhar Mahadevan, Autonomous Agents Lab,
  Department of Computer Science, Michigan State
  University.

4
The Problem of Visual Search

• GoalTo find small objects in a large usually
  cluttered environment.
• e.g. a pen on a desk.
• Preferrable to use wide-field of view images.
• Identifying small objects require high resolution
  images
• Results in very high dimensional input array.

5
Natures Method Foveated Vision - I

• Fovea Anatomically defined as the central region
  of the retina with high density of receptive
  cells.
• Density of receptive cells decreases
  exponentially from the fovea towards periphery.

6
Natures Method Foveated Vision - II

• Saccades To make up for the loss of information
  incurred by the decrease in resolution in the
  periphery, eyes are re-oriented by rapid
  ballistic motions (up to 900/s) called saccades.
• Fixations Periods between saccades during which
  the eyes remain relatively fixed, to process
  visual information and to select the next
  fixation point.

7
Foveated Vision Eye Scan Patterns
8
Using Foveated Vision

• Using foveal image processing reduces the
  dimension of the input data but in turn generates
  a sequential decision problem
• Choosing the next fixation point requires an
  efficient gaze control mechanism in order to
  direct the gaze to the most salient object.

9
Gaze Control- Salient Features

• In order to solve the problem of gaze control,
  next fixation point must be decided based on low
  resolution images which dont appear in fovea.
• Saliency Map Theory (Koch and Ulmann)
• Task independent bottom up model for visual
  attention.
• Itti and Koch- Based on Saliency Map Theory 3
  types of feature maps (color map, edge map,
  intensity map) are fused together to form
  saliency map.
• Low resolution images alone are usually not
  sufficient for this decision problem.

10
Gaze Control- Control Mechanism Implementation

• Implementation of a high level mechanism is
  required to control low level reactive attention.

• Tsotsos model proposes selective tuning of
  visual processing via a hierarchical winner takes
  all process.
• Information should be integrated from one
  fixation to the next for a global understanding
  of the scene.
• Model top-down gaze control with bottom-up
  reactive saliency map processing based on RL.

11
Problem Definition and General Approach - I

• Given an object and an environment
• How to build a vision agent that learns where the
  object is likely to be found.
• How to direct its gaze to the object.
• Set of Landmarks L0,L1,..,Ln representing
  regions in the environment. A policy on this set
  directs the camera to the most probable region
  containing the target object.

12
Problem Definition and General Approach II

• The approach does not require high level feature
  detectors.
• Policy learned through RL is based on actual
  images seen by the camera.
• Once the direction has been selected the precise
  location of the next fixation point is determined
  by means of visual saliency.
• Camera takes low resolution/wide-field of view
  images at discrete time intervals. Using these
  low resolution images the system tries to
  recognize the target object using a low
  resolution template.

13
Problem Definition and General Approach III

• Since reasonable detection of a small sized
  object is difficult at low resolution, system
  tries to get candidate locations for the target
  object.
• The foveated vision is simuated by zooming in and
  grabbing high resolution/ narrow field-of-view
  images centered at the candidate locations which
  are compared with a high resolution template of
  the target image.

14
Target Object and the Environment
Color template of the target object
(left). Environment (bottom).
15
Reinforcement Learning

• The agent may or may not know the priori the
  transition probabilities and the reward. In this
  case dynamic programming techniques could be
  used to compute an optimal policy.

16
Q-Learning

• In the visual search problem, the transition
  probabilities and the reward are not known to the
  agent.
• A model free Q-learning algorithm used to find
  the optimal policies.

17
States Objects in the Environment

• Recorded scan patterns show that people fixate
  from object to object therefore it is natural to
  define the states as the objects in the
  environment.
• Paradox Objects must be recognized as worth
  attending to, before they are fixated on.
  However, an object cannot be recognized prior to
  the fixation, since it is perceived at low
  resolution.

18
States Clusters of Images

• States are defined as clusters of images
  representing the same region.
• Each image is represented with color histograms
  on a reduced number of bins (48 colors for the
  lab environment).
• Using histogram introduces perceptual aliasing as
  two different images have identical histograms.
• To reduce aliasing, histograms are computed
  distributedly across quadrants. Expected to
  reduce aliasing since natural environments are
  sufficiently rich.

19
Kullback Distance - I
20
Kullback Distance - II
21
Actions

• Actions are defined as the saccades to the most
  salient point.
• A1,..,A8 to represent 8 directions. In addition
  A0 represents the most salient point in the whole
  image.

22
Reward

• Agent receives positive reward for a saccade
  bringing the object in to the field of view.
• Agent receives negative reward if the object is
  not in the field of view after a saccade.

23
Within Fixation Processing

• It is the stage when the eyes fixate on a point
  and the agent processes visual information and
  decides where the fixate next.
• Comprises computation of two components
• A set of two feature maps implementing low level
  visual attention, used to select the next
  fixation point.
• A recognizer, used at low resolution for
  detection of candidate target objects and at high
  resolution for recognition of target.

24
Histogram Intersection

• It is a method used to match two images, I
  (search image) and M (model).
• It is difficult to find a threshold between
  similar and dissimilar images in this method
  unless the model is pre-specified.

25
Histogram Back-projection

• Given two images I and M, histogram back
  projection locates M in I.
• Color histograms hI and hM are computed on the
  same number of color bins.
• Operation requires one pass through I. For every
  pixel (x,y), B(x,y) R(j) iff I(x,y) falls in
  bin j.
• Always finds candidates.

26
Histogram Back-Projection Example
27
Symmetry Operator

• In order to fixate on objects a symmetry operator
  is used since most man-made objects have
  vertical, horizontal or radial symmetry.
• It computes an edge map first and then has each
  pair pi, pj of an edge pixels vote for its
  midpoint by (9).

28
Symmetry Map
29
Model Description - I

• Each low resolution image is processed by two
  main modules
• Top module (RL) learns a set of clusters
  consisting of images with similar color
  histograms. Clusters represents physical regions
  and are used as states in the Q-learning method.
• Second module consists of low-level visual
  routines. Its purpose is to compute color and
  symmetry maps for saliency and to recognize the
  target object at both low and high resolution.

30
Model Description - II

• Each low resolution image is processed by two
  main modules
• Top module (RL) learns a set of clusters

31
Visual Search Agent Model
32
Algorithm - Initialization
33
Algorithm If object found
34
Algorithm If object not found
35
Results

• The agent is trained to learn in which direction
  to direct its gaze in order to reach the region
  where the target object is most likely to be
  found, 400 epochs each.
• Epoch a sequence of at most 100 fixations.
• Every 5th epoch was used for testing where agent
  simply executed the learned policy.
• Performance metric was number of fixations.
• Within a single trial, starting point was the
  same in all test epochs.

36
Experimental Results - I
37
Experimental Results - II
38
Experimental Results - III
39
Sequence of Fixations
40
Experimental Results - IV
41
Experimental Results - V
42
Experimental Results - VI
43
Conclusion

• Developed a model of selective attention for a
  visual search task which, is a combination of
  visual processing and control for attention.
• Control is achieved by means of RL over a low
  level, visual mechanism of selecting the next
  fixation.
• Color and symmetry are used for selection of next
  fixation and it is not necessary to combine them
  in a unique saliency map.
• The information is integrated from saccade to
  saccade

44
Future Work

• Goal is to extend this approach to a mobile
  robot. Problem becomes more challenging as the
  position consequently the appearance of the
  object changes according to the robots position.
  Single template is not sufficient.
• In this paper it is assumed that the environment
  is rich in color so that perceptual aliasing
  would not be an issue. Extension to a mobile
  robot, will inevitably lead to learning in
  inherently perceptually aliased environments.
