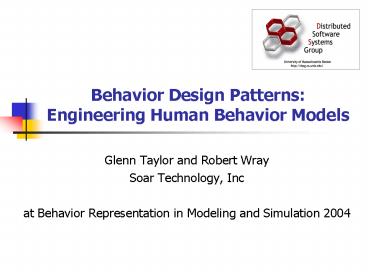

Behavior Design Patterns: Engineering Human Behavior Models

1
Behavior Design PatternsEngineering Human
Behavior Models

• Glenn Taylor and Robert Wray
• Soar Technology, Inc
• at Behavior Representation in Modeling and
  Simulation 2004

2
Contents

• Introduction
• TacAir-Soar
• Fully autonomous system for modeling and
  simulating the tactical air domain
• Behavior Patterns in TacAir-Soar
• Examples
• Move-to-target Pattern
• Ground Attack Pattern
• Conclusion

3
Introduction

• Since 1991, DoD has been working on
  standardization of modeling and simulation
  software
• Reduce the development and maintain costs by
  integrating simulators (for training, planning
  operations, studying past operations) in
  army/navy/air force
• HLA (High Level Architecture) became an IEEE
  standard in 2000
• Providing time synchronization, communication
  mechanism between simulators running in parallel

4

• ModSAF
• Modular Semi-Automated Force
• Software modules and applications that construct
  Distributed Interactive Simulation and Computer
  Generated Forces entities for realistic training,
  test, and evaluation on the virtual battlefield.

• Every vehicles and weapons in U.S. and NATO, and
  past operations are modeled in ModSAF
• U.S. and NATO use ModSAF for their simulation
• Generated forces in ModSAF is not so smart
• Human operators play friend and foe

5
Motivation

• Military simulators needs to imitate
  human-behaviors (combat operations) to make
  virtual battle field more realistic
• Simulate imaginary enemy, evaluate strategies,
• Developing human behavior models often results of
  high costs and long development time
• Due to the lack of reusing methods/techniques
• Behavior models and applications are often
  constructed in an ad-hoc manner (from scratch),
  and not easy to reuse
• Differences in implementation technologies (e.g.,
  programming languages and simulation environment)
  also make difficult to reuse models

6
Research Objective

• Reuse common patterns of human behavior by
  leveraging the notion of design patterns
• Behavior Design Patterns
• Behavior Design Patterns describe successful
  designs for agent behaviors that appear
  repeatedly in agent system designs
• Agents military aircraft pilots
• This research focus on military domains

7
Behavior patterns in TacAir-Soar

• The authors started with studying behaviors in
  TacAir-Soar
• As an initial source for understanding and
  constructing general behavior patterns
• TacAir-Soar defines a behavior model of military
  aircraft pilots that can execute most of the
  operations performed by fixed wing aircrafts

Fixed-wing
Rotary-wing
8
Soar and TacAir-Soar

• Soar
• the basic cycle of taking a State applying an
  Operator, And generating Result
• http//sitemaker.umich.edu/soar/home
• A framework for developing systems that exhibit
  intelligent behavior
• A systems consists of agents
• Agents run in parallel according to their own
  rules
• Soar/IFOR (Intelligent FORce)
• Archive autonomous intelligent forces in
  simulators by combine ModSAF and Soar

9
TacAir-Soar

• TacAir-Soar
• One of applications in Soar/IFOR
• System for modeling and simulating the tactical
  air domain (i.e., military aircrafts and combat
  airspace)
• Military aircrafts and battle fields/combat
  airspaces are modeled using ModSAF
• Enemy forces are controlled by Soar
• Behavior patterns of all military aircrafts and
  pilots in U.S. and NATO are modeled
• consist of 5000 rules
• Providing an interfaces (e.g., virtual cockpit)
  that allow pilots (trainees) to fly and engage
  operations in real-time
• Intelligent Agents for Interactive Simulation
  Environments, AI Magazine, 1999

10

• The authors investigate TacAir-Soar
• What should be called a behavior?
• The authors focus on tactical level
  decision-making process
• Decision making process in agents (pilots) is
  organized in the form of hierarchical tasks,
• ? Engaging an enemy requires being within range
  of a weapon,
• ? Requires maneuvering into position with respect
  to the enemy,
• ? Requires knowing where the enemy is,
• ? etc, etc,

11
Eight groups in behaviors

• Communications
• How and when to talk to other agents
• e.g., radio communication
• Missions
• Mission-specific behaviors, such as for
  air-to-ground missions or air-to-air missions
• e.g., air-to-air missile attack
• Control
• How to direct other agents to take action
• e.g., attack/return command
• Coordination
• How to work with other friendly agents
• e.g., ask air support during ground attack

12

• Flying
• How to fly a plane
• e.g., Controlling pitch, roll, direction, speed,

• Navigation
• How to decide where to go and how to get there
• e.g., following a route, direct to the target,
• Situational Awareness
• How to manage the information in the environment
• e.g., wait for commands, surveillance,
• Action
• interactions with the simulation platform
• e.g., ??

13
Navigation
Sub Categories
Categories
is-a relationship
Behaviors taken by agents
Launch Acceptance Region

• Behavior taxonomy
• Not design patterns yet

dependencies
14
Behavior Design Patterns

• Behavior design patterns are derived from
  taxonomic analysis
• (how??)
• Same as the traditional software design patterns,
  each behavior design pattern consists of
• Pattern Name
• Problem the problem the pattern solves
• Solution description of elements that make up
  the design
• Consequences the results of applying the pattern
  and any tradeoffs in its use
• Example
• Variation points of variation in the pattern

15
examples
solution
Air plane, tank,
Air / Ground domain

• Move-to-Target pattern captures regularities in
  movement behaviors

16
High-level design pattern

• Patterns can describe designs at all levels of
  software designs
• In TacAir-Soar, a high-level behavior corresponds
  to the execution of an entire mission
• ? Entire mission can be one of behavior design
  patterns
• There are many common characteristics between
  different types of missions
• ? Pattern can abstract the difference and provide
  high-level view of missions

17
Ground Attack Mission

• Strike and Close Air Support (CAS) missions share
  a great number of characteristics including
  similar data requirements and phase structures
• CAS use of military aircraft in a ground-attack
  role against targets in close proximity to
  friendly ground troops

• These two missions can be generalized as Ground
  Attach mission

18
Some options after the mission

• Sequence of Ground Attack Mission
• Takes off and flies to some control point
• Awaits target information from the controller
• Executes its attack, joins together with
  accompanying aircrafts, and goes to some exit
  point (egress)

19
Suppression of Enemy Air Defenses (to get the air
supremacy)
Other patterns used in this pattern

• State-based pattern notation

20

• Ground Attach Behavior Design Pattern captures
  the general pattern of ground attack
• Domain experts can focus on the differences
  between the specific behaviors/patterns
• This is in contrast to current methodologies,
  where an engineer have to
• Implement the behavior from scratch, or
• Identify reusable pieces from existing
  implementations of close-air support, strike, and
  other related behaviors

21
Conclusion

• The authors proposes behavior design patterns in
  the tactical air domain
• Patterns capture human behavior models appears
  repeatedly
• TacAir-Soar focus on fixed-wing air human
  behavior models, but the authors plan to expand
  the domain of patterns
