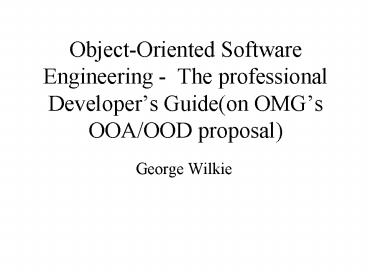

Title: ObjectOriented Software Engineering The professional Developers Guideon OMGs OOAOOD proposal


1
Object-Oriented Software Engineering - The
professional Developers Guide(on OMGs OOA/OOD
proposal)
  • George Wilkie

2
Contents
  • Why should I consider OOAD
  • OO analysis
  • OO design
  • A reference model for OOAD
  • Summary of some OOAD methods.
  • Experience with OOAD
  • Choosing an OOAD method
  • Summary and conclusion.

3
4.1 Why should I consider OO analysis and design
  • OO approaches are seeking to resolve some
    problems that tranditional structured analysis
    and design.
  • The Objects model in OOAD provide a more
    realistic representation, which an end user can
    more readily understand.
  • OOAD provides a consistent approach which maps
    cleanly onto a physical design and
    implementation.
  • OOAD provides a framework which supports reuse
    and extensibility.

4
4.2 OO analysis
  • The result of analysis are requirements
    specifications which clearly describe what the
    software external behavior should be, without any
    prejudgement about how the software will produce
    this exact behaviour.
  • Phases of analysis and design. (P74 figure 4.2)

5
4.2.1 Essence of OO analysis
  • Class relationship diagrams
  • Class inheritance diagrams.
  • Object interaction diagrams
  • Object state tables.
  • User access diagrams.
  • Textual specification documents.

6
4.2.2 OO analysis vs Structured analysis
  • OO technique provides a more consistent approach
    to system modelling.
  • OO view more closely reflects the real world
    where humans are used to thinking in terms of
    things which possess both attributes and
    behaviours.
  • OO provides reuse possibility from the class
    hierarchy views of the system.
  • OO analysis is able to model the user interface
    to a system.

7
4.2.3 Shortcomings of OOA
  • OO analysis techniques are still the subject of
    much debate and research.
  • The mixing of analysis and design methods is a
    problem with OO techniques.

8
4.3 OO design.
  • The difference between OO analysis and design is
    not always very clear.
  • Design considerationsinclude hardware and
    software issues.

9
4.3.1 Problem with traditional structured design
  • It fails to take the evolutionary nature of
    software systems into accounts.
  • Often the data structure aspect is neglected.
  • Working top-down does not promote reusability.

10
4.3.2 Class and application design
  • Class design
  • Identify classes.
  • Identify subclass within each class.
  • Identify abstract behaviour of each class
  • Identify common behavior
  • Identify specific types of behavior
  • Application design is a top-down adn bottom-up
    process, designing teh application from the
    existign building blocks.

11
4.3.3 Benefits from OO design
  • Information hidding.
  • Weak coupling
  • Strong cohesion
  • Exensibility

12
4.3.4 Shortcomings of OOD
  • Identifying class.
  • Blurred boundaries between design and both
    analysis and implemetation.
  • Variable degrees of OO support in existing CASE
    tools.
  • Elaborate and complex notations.

13
4.4 A reference Model for analysis and design
  • A reference model is defined in order to compare
    OO analysis and design methods.
  • P99 Figure 4.12
  • P100 Figure 4.13

14
4.5 Summary of some OO analysis and design methods
  • OO analysis and design
  • Booch method
  • OOSE
  • OSMOSYS
  • OO systems analysis
  • OMT
  • RDD
  • OORASS
  • HOOD
  • OOSD
  • Object-Oriented software development

15
4.5.1 OO analysis and design (Coad and Yourdon)
  • Analysis process five layers
  • P108 notation
  • Design process four components
  • Pragramtics CASE tool support
  • Discussion Simplcity of notation, design phase
    is sketchy and need evlove.

16
4.5.2 Booch method
  • Design process Incremental design, a spiral
    development model.
  • Notation rich in symbols.
  • Pragmatics Rational Rose.
  • Discussion complicated notation, a set of
    techniques without a well-defined process.

17
4.5.3 OOSE
  • The method encompass analysis and design.
  • From requirements models to implementation
    models.
  • Notation P122 P123
  • Pragmatic CASE tool, documentation and published
    text.
  • Discussion Two stage analysis procedure provides
    a more robust model.(use-case, analysis model)

18
4.5.4 OSMOSYS
  • A propretary method
  • The process Two development apporaches
    Functional approach and OO approach.
  • Notation 8 main diagrams.
  • Pragmatic A toolset.
  • Discussion well-documented process and the tool
    support. Concentrated on teh techniques and
    overall process.

19
4.5.5 Object-oriented systems analysis
  • An adaptation of traditional structured methods
    using entity modelling.
  • The analysis process three steps.
  • Notation different diagrams at different stages.
  • Discussion most applicable to real-time systems.
    Lack design procedure and process

20
4.5.6 OMT
  • The process three phase (analysis, system design
    and object design)
  • Notation P134 Fig 4.30
  • Pragmatic OMTool. Published text.
  • Discussion place more emphasis on specifying
    what an object is rather than how it is used.

21
4.5.7 RDD
  • A revolutionary approach.
  • The process The process requires that a written
    specificaton existes and concentrates on
    analysing these requirements.
  • Notation CRC (class, responsibility and
    collaboration)
  • Pragmatic CRC is limited in use to about 20-30
    classes.
  • Discussion Truely OO approach to analysis. In
    RDD the analysis phase is part of design.

22
4.5.8 OORASS
  • The concepts and techniques used in OORASS is
    quite different from others.
  • Concepts Role and role modelling. Role models
    focus on describing patterns of interaction
    without connecting the interactionto particular
    objects.
  • Process Iterative, 6 steps.
  • Notation P141 Fig 4.33 , text notation exists.
  • Pragmatic published articles. CASE tool,
    courses.
  • Discussion A proprietary method. Using roles to
    view analysis .

23
4.5.9 OOSD
  • Notationelaborate notations.
  • Pragmatic CASE tool (from IDE)
  • Discussion Only a notation for OO design.

24
4.5.10 HOOD method
  • Grew out of Ada community
  • Map its features directly to Ada concepts.
  • Not properly Object-oriented.

25
4.5.11 The Object-oriented software development
method
  • The process requirement analysis, preliminary
    design and detailed design.
  • Notation interaction, hierarchy and class
    diagrams, P148 Fig 4.34
  • Pragmatic a highly extensible CASE tool
  • Discussion well suited to the development of
    real time applications.Object interaction
    diagrams are the best feature, while class
    diagrams are not well defined.

26
4.6 Experience with OO analysis and design
  • A foundamental objective of OO analysis and
    design is to derive a good class hierarchy.
  • Four basic kind of class can be identified during
    the developement .
  • Foundation class.
  • Application framework classes.
  • Business classes.
  • Application classes.

27
4.7 Choosing a OO analysis and design method
  • Conceptual issues.
  • General method issues.
  • Techniques.

28
4.8 summary
  • Introduced techniques adn tools to support OO
    analysis and design.
  • Discussed the relative merits and problems with
    OO compared to structured techniques.
  • Some methods are strong on process adn techniques
    but weak on notation while other others are
    strong on notation but the process is almost
    non-existent.
