HTTP for DB Dummies

1

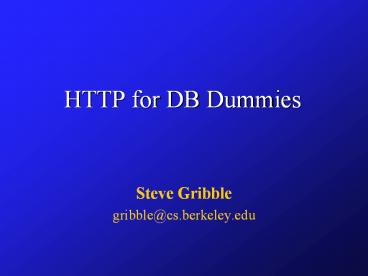

HTTP for DB Dummies

• Steve Gribble
• gribble_at_cs.berkeley.edu

2
The Web

• HTTP 1.0 model (slowly fading out, replaced by
  HTTP 1.1)

Client
Server
TCP
cache
3
The Web
Client
Server
cache
4
Basics of HTTP
5
Structure of a Request
ltMETHODgt ltURLgt ltHTTPVERSIONgt\r\n ltHEADERNAMEgt
ltHEADERVALgt\r\n ltHEADERNAMEgt ltHEADERVALgt\r\n \r
\n ltDATA, IF POSTgt
GET /test/index.html?foobarbaznamesteve
HTTP/1.0\r\n Connection Keep-Alive\r\n User-Agent
Mozilla/4.07 en (X11 I Linux 2.0.36
i686)\r\n Host ninja.cs.berkeley.edu5556\r\n Acc
ept image/gif, image/x-xbitmap, image/jpeg,
image/pjpeg, image/png, /\r\n Accept-Encoding
gzip\r\n Accept-Language en\r\n Accept-Charset
iso-8859-1,,utf-8\r\n \r\n
6
Structure of a Response
ltHTTPVERSIONgt ltSTATUS CODEgt ltMSGgt\r\n ltHEADERNAMEgt
ltHEADERVALgt\r\n ltHEADERNAMEgt
ltHEADERVALgt\r\n \r\n ltDATA, IF NECESSARYgt
HTTP/1.0 200 OK Server Netscape-Enterprise/2.01 D
ate Thu, 04 Feb 1999 002819 GMT Accept-ranges
bytes Last-modified Wed, 01 Jul 1998 170738
GMT Content-length 1848 Content-type text/html
7
TCP level analysis
HTTP 1.0
FTP ( gt2nd file)
8
Interesting TCP gotchas

• Mandatory roundtrips
• TCP three-way handshake
• get request, data return
• new connections for each inlined image
  (parallelize)
• lots of extra syn or syn/ack packets
• Slow-start penalties
• can show only affects fast networks, not modems
• Lots of TCP connections to server
• spatial/processing overhead in server (TCP stack)
• many protocol control block (PCB) TIME_WAIT
  entries
• unfairness because of loss of congestion control
  info

9
Fix?

• Persistent HTTP
• in HTTP/1.0, add Connection Keep-Alive\r\n
  header
• in HTTP/1.1, P-HTTP built in
• Does it help?
• mostly for server-side reasons, not network
  efficiency
• allows pipelining of multiple requests on one
  connection
• Does it hurt?
• how does a client know when document is returned?
• when does the connection get dropped?
• idle timeouts on server side
• client drops connections
• server needs to reclaim resources

10
HTTP/1.0 Client Methods

• GET
• fetch and return a document
• URL can be overloaded to submit form data
• GET /foo/bar.html?xbarbambaz
• POST
• submit a form, and receive response
• HEAD
• like GET, but only return HTTP headers and not
  the data itself. Useful for caching
• PUT, DELETE, LINK, UNLINK
• not really used - big security issues if not
  careful

11
HTTP/1.0 Status Codes

• Family of codes, with 5 types
• 1xx informational
• 2xx successful, e.g. 200 OK
• 3xx redirection (gotcha redirection loops?)
• 301 Moved Permanently
• 304 Not Modified
• 4xx Client Error
• 400 Bad Request
• 401 Unauthorized
• 403 Forbidden
• 404 Not Found
• 5xx Server Error
• 501 Not Implemented
• 503 Service Unavailable

12
HTTP/1.0 Headers (case insensitive?)

• Allow - returned by server
• Allow GET, HEAD
• never used in practice - clients know what they
  can do
• Authorization - sent by client
• Authorization ltcredentialsgt
• Basic Auth is commonly used
• ltcredentialsgt Base64( usernamepassword )
• ok if inside an SSL connection (encrypted)
• Content-Encoding - sent by either
• Content-Encoding x-gzip
• selects an encoding for the transport, not the
  content
• sadly, no common support for encodings (Windows)

13
HTTP/1.0 Headers continued

• Content-Length - sent by either
• Content-Length 56
• how much payload is being sent?
• necessary for persistent HTTP, or for POSTs
• Content-Type - sent by server
• Content-Type text/html
• what MIME type the payload is
• nasty one multipart/mixed
• Date
• Date Tue, 15 Nov 1994 081231 GMT
• 3 accepted date formats (RFC 822, RFC 850,
  asctime())

14
HTTP/1.0 headers, continued

• Expires - sent by server
• Expires Thu, 01 Dec 1994 160000 GMT
• primitive caching expiration date
• cannot force clients to update view, only on
  refresh
• From - sent by client
• From gribble_at_cs.berkeley.edu
• not really used
• If-Modified-Since - sent by client
• If-Modified-Since Sat, 29 Oct 1994 194331 GMT
• server returns data if modified, else 304 Not
  Modified

15
HTTP/1.0 headers, cont

• Last-Modified - returned by server
• Last-Modified Sat, 29 Oct 1994 194331 GMT
• semantically imprecise - file modification?
  Record timestamp? Date in case file dynamically
  generated?
• used with If-Modified-Since and HEAD method
• Location - returned by server
• Location http//www.cs.ubc.ca
• used in case of 3xx redirections
• Pragma - sent by client or server
• Pragma no-cache
• extensibility mechanism. No-cache is the only
  popularly used pragma, AFAIK

16
HTTP/1.0 headers, cont

• Referer - sent by client
• Referer http//www.xxx-smut.com
• specifies address from which request was
  generated
• all sorts of privacy issues - must be careful
  with this
• Server - returned by server
• Server Netscape-Enterprise/2.01
• identifies server software. why? (measurement)
• User-Agent - sent by client
• User-Agent Mozilla/4.07 en (X11 I Linux
  2.0.36 i686)
• identifies client software
• why? Optimize layout, send based on capability of
  client.
• Hint just pretend to be Netscape. MSIE does..

17
HTTP/1.0 Server headers

• WWW-Authenticate - sent by server
• WWW-Authenticate ltchallengegt
• tells client to resend request with
  Authorization header
• Incrementally added hacks
• Accept image/gif, image/jpeg, text/, /
• Accept-Encoding gzip
• Accept-Language en
• Retry-After (date) or (seconds)
• Set-Cookie Part_Number"Rocket_Launcher_0001"
  Version"1" Path"/acme"
• Title (title)

18
HTTP/1.1 Additions

• Lots of problems associated with HTTP/1.0
• the network problems we talked about before
• very poor cache consistency models
• difficulty implementing multi-homed servers
• want 1 IP address with multiple DNS names - how?
• hard to precalculate content-lengths
• connection dropped lost data
• no chunking
• HTTP/1.1 is bloated spec to fix these problems
• introduces many complexities
• no longer an easy protocol to implement

19
HTTP/1.1 - a Taste of the New

• Host www.ninja.com
• clients MUST send this - fixes multi-homed
  problem
• already in most 1.0 and 1.1 clients
• Range bytes300-304,601-993
• useful broken connection recovery (like FTP
  recovery)
• Age ltseconds, dategt
• expiration from caches
• Etag fa898a3e3
• unique tag to identify document (strong or weak
  forms)
• Cache-control ltcommandgt
• marking documents as private (dont keep in
  caches)
• chunked transfer encoding
• segmenting of documents - dont have to calculate
  entire document length. Useful for dynamic query
  responses..

20
Architectural Complexities
21
Caches
Client
Server
TCP
Original web
cache

• Problem no locality
• non-local access pattern (trans-atlantic access)
• servers serving the same bytes millions of times
  to localized communities of users

22
Solution Cache Hierarchy
Client
Server
Cache
Cache
cache
Cache

• NLANR cache hierarchy most widely developed
• informally uses Squid cache
• root servers squirt out 30GB per day
• anybody can join...

23
Gotchas

• Staleness
• HTTP/1.1 cache consistency mechanisms mostly
  solve
• Security
• what happens if I infiltrate a cache?
• servers/clients dont even know this is happening
• e.g. AOL used to have a very stale cache, but
  has since moved to Inktomi
• Ad clickthrough counts
• how does Yahoo know how many times you accessed
  their pages, or more importantly, their ads?

24
CGI-BIN gateways
URL
URL
Client
httpd
CGI code
data
data
File System
cache

• CGI Common Gateway Interface
• interface that allows independent authors to
  develop code that interacts with web servers
• dynamic content generation, especially from
  scripts
• CGI programs execute in separate process,
  typically

25
CGI-BIN to DB gateways
URL
URL
Client
httpd
CGI code
ODBC / JDBC / etc.
data
DB
data
File System
cache

• JDBC/ODBC gateways
• single-node DB, often running on remote host
• long, blocking operations, usually
• nasty transactional issues - how does client know
  that action succeeded or failed?
• Datek/ETrade troubles

26
cgi-bin security

• Lots of gotchas with CGI-BIN programs
• buffer overflows (maximum length checks?)
• shell metacharacter expansion
• what happens if you put
• cat /etc/passwd
• in a form field?
• sending mail, reading files
• redirection - allows bypassing IP address-based
  security

27
Multiple server support

• Weve seen how single IP address can server
  multiple web sites with Host HTTP/1.1 field
• what about having multiple physical hosts serving
  a single web site?
• useful for scalability reasons

Server
Server
Client
TCP
Server
Server
cache
www.hotbot.com
28
Solutions

• DNS round-robin
• assign multiple IP addresses to single domain
  name
• client selects amongst them in order
• shortcomings
• exposes individual nodes to clients
• cant take into account machine capabilities
  (multiprocessors) and currently experienced load
• Front-end redirection
• single front-end node serves HTTP redirect to
  selected backend node
• introduces extra round-trip, FE is single point
  of failure

29
More solutions

• IP-level multiplexing through smart router
• munge IP packets and send them to selected host
• Cisco, SUN, etc. make hardware to do this
• Cisco LocalDirector
• tricky state management issues, failure semantics
• Smart Clients
• Netscape Proxy Autoconfig (PAC) mechanism
• only useful if connecting via proxy
• Javascript selects from amongst proxies
• No HTTP protocol support for smart client access
  to web servers

30
The Real Picture of the Web
URL
Redirector
Client
cache / firewall
data
cache




HTTP Server
HTTP Server
HTTP Server
HTTP Server
I
I
I
I
CGI code
DB
www.nytimes.com
31
Web Characteristics
32
UCB HIP trace

• Web traffic circa 1997 is primarily
• GIF data
• 27 of bytes transferred, 51 of files
  transferred
• average size 4.1 KB
• JPEG data
• 31 of bytes transferred, 16 of files
  transferred
• average size 12.8 KB
• HTML data
• 18 of bytes transferred, 22 of files
  transferred
• average size 5.6 KB
• File sizes, server latency, access patterns
• all heavy-tailed most small, but some very large
• self-similarity everywhere - lots and lots of
  bursts

33
Server-Side Architecture
34
Goals of server

• High capacity web servers must do the following
• rapidly update corpus of content served
• be efficient
• latency serve content as quickly as possible
• throughput parallel requests from large numbers
  of clients
• be extensible
• data-types
• cgi-bin programs
• server plug-ins
• not crash
• remain secure

35
High-level Architecture
Filesystem cache
Network handler
Concurrency subsystem
Protocol parser
CGI interface
36
Concurrency

• How many simultaneously open connections must a
  server handle?
• 1,000,000 hits per day
• 12 hits per second average
• upwards of 50 hits per second peak (bursts,
  diurnal cycle)
• latency
• 10 milliseconds (out of memory) gt 1 connection
• 50 milliseconds (off of disk) gt 3 connections
• 200 milliseconds (CGI disk) gt 10 connections
• 5 seconds (CGI to DB gateway) gt 250 connections
• Depending on expected usage, need very different
  concurrency models

37
Strategies

• Single process, single thread, serialized
• simplest implementation, worst performance
• perfectly fine for low traffic sites
• Multiple processes, single serialized thread /
  process
• Apache web server model
• expensive (context switching, process state, )
• Multithreaded and multiprocess
• complex synchronization primitives needed
• thread creation/destruction vs. thread pool
  management
• Event driven, asynchronous I/O
• eliminates context switch overhead, better memory
  mgmt
• very complex and delicate program flow

38
Disk I/O

• File system overhead
• file system buffer management not optimal
• dont need many of the file system facilities
• modifying files, moving files, locking files,
  seeks
• Alternatives
• directly interact with disk
• very fast, very complex
• in-memory caching on top of file system
• works well given high locality of server access
• be careful to not suffer from double-buffering
• Interaction thread subsystem and disk
• balanced system - enough threads to saturate disk
  I/O

39
Network I/O

• Typical server behaviour rough on network stack
• multiple outstanding connections
• very rapid TCP creation and teardown
• often, very slow last-hop network segment
• Redundant operations performed
• checksum calculations, byte swapping,
• Inefficiencies at packet level
• header, body, FIN usually three separate
  round-trips
• Poor network stack implementations
• TIME_WAIT and IDLE PCB entries on single linked
  list
• Nagles algorithm invoked when it shouldnt be

40
Inline scripting

• Technology server-side includes (SSIs)
• script embedded inside content, interpreted
  before sent back to client
• dynamically computed content inside templates
• authorization (cert lookup or authentication)
• DB lookup (inventory lists, product prices, )
• Challenges
• similar to CGI
• security
• efficiency (latency and throughput)

41
Cheetah (Exokernel)

• Direct access to hardware primitives
• disk, network - eliminate costly OS
  generalizations
• scatter/gather IO primitives
• allow for common disk/network buffers (eliminate
  copy)
• Compiler-assisted ILP
• eliminate redundancies, staging inefficiencies
• HTTP-specialized network stack and file system
• precomputed HTTP headers, minimal copies
• minimize network packets (e.g.piggyback FINs with
  data)
• precomputed TCP/IP checksums

42
Some Parting Thoughts
43
Other things to keep in mind

• There are non-humans on the web
• spiders, crawlers, worms, etc, may behave badly
• infinite FTP directory traps, request bursts, ...
• Netscape, MSIE, and Apache set defacto standards
• their semantics may subtly differ from standards
• error-tolerance of popular clients/servers means
  that everybody must achieve same levels of
  tolerance
• otherwise, you appear to be broken to users
• e.g. Netscape not parsing comments properly
• SSL/X.509
• transport-level security fixes up basic auth
  problems
• eliminates caching or proxy mechanisms
