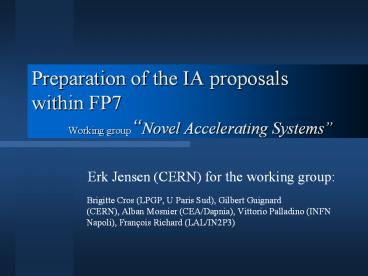

Preparation of the IA proposals within FP7 Working groupNovel Accelerating Systems

1
Preparation of the IA proposals within
FP7 Working groupNovel Accelerating Systems

• Erk Jensen (CERN) for the working group
• Brigitte Cros (LPGP, U Paris Sud), Gilbert
  Guignard (CERN), Alban Mosnier (CEA/Dapnia),
  Vittorio Palladino (INFN Napoli), François
  Richard (LAL/IN2P3)

2
A brief history

• At CARE06
• Idea IA Novel Acceleration Systems (NAS, one
  of 3 planned IAs),
• Consisting of 10 JRAs,
• Based on Letters of Intent received by ESGARD
• Total cost then estimated to 83 M
• Dec. 06 after 1st round of concentration/de-scopi
  ng/merging
• Total cost estimate reduced to 55 M
• Jan. 07 CLIC new parameters announced
• Total cost estimate 48 M
• Proposed to define MICE as TA
• Remaining 8 JRAs, 2 TA (MICE CTF3)
• June 3 IAs to be joined into 1!
• Reduction requested to total cost of lt30 M (!),
  we request guidelines from ESGARD. At the same
  time
• ILC GDE Europe come with additional requests (DR,
  BDS, positron source, low emittance beam
  transport instrumentation)

3
A brief history (contd.)

• July 23rd 07 extended ESGARD meeting with
  directors, guidelines
• Prepare for one IA only,
• Define activities Core (15 M) and Additional
  (lt 8 M),
• Assume ratio contributed/requested budget of 2/1,
• Use the Strategy Document to define priorities.
• Consider to
• Expatriate Laptech to Laserlab II
• Postpone Posipol to a later call!
• End of July I asked the potential collaborators
  for detailed feedback, in particular concerning
  commitments for the matching funds. The received
  feedback showed
• A huge interest to collaborate,
• that the labs are ready to commit money (a lot!),
• that this is not a way to reduce the overall
  budget volume (back up to gt50 M)!

4
A brief history (contd.)

• Sept. 07 ESGARD OMIA Priorities from
  ILC/GDE-Europe and CLIC received,
• Oct. 15th 2nd extended ESGARD meeting with
  directors, presented core and additional as
  requested. Outcome of the meeting
• Retain core only,
• Assume 70k/FTEy throughout,
• Assume ceiling of 15 M for EU contribution
  (strict!)
• Further reductions (after Oct. 15th)
• Reduce by 10 to reserve budgets for NAs and
  TAs
• Reduce (by about 3) to include crab-waist
  proposal
• As a result, we had to implement further
  reductions, and
• I have to apologize that I had no time to inform
  the concerned parties about these rapid and
  drastic changes!

5
The reductions of October (EU part only)
Proposal presently under discussion!
6
In the following, I will present this present
proposal under discussion!
Preliminary!

• 9 work-packages remain
• NC high gradient, Stabilisation, BDS, Drive beam
  phase, Beam Dumps, DR Vacuum, DR SC wiggler,
  FFAG, Positron source
• Of these, I assume that
• FFAG will be in the new JRA ANAC,
• the others will be joined in the JRA NCLinac,
  which I will concentrate on.
• Should DR SC wiggler be joined with other SC
  magnets? In the following, I assume this also.
• I again ask your understanding, but we seem to be
  aiming at a quickly moving target!
• I also assume that EC contribution is 30 of
  total.

7
NCLinac, distribution by WPs
Preliminary!
8
NCLinac, distribution by labs
Preliminary!
9
NCLinac, by labs and WPs
Preliminary!
10
NCLinac, WP1 Normal-Conducting High-Gradient
research
Preliminary!

• Building on the success of CTF3 and complementing
  it,the goal of WP1 is to optimize CTF3 and its
  use towards
• cost- and performance optimized accelerating
  structures and
• their integration in CLIC modules. This also
  requires
• better modelling of breakdown and
• better suppression of HOMs,
• experimental verification
• Partners CIEMAT, Cockcroft/Manchester,
  HIP/Helsinki, Uni Uppsala, (CERN)
• Estimated total 2.8 M
• This WP is complementary to the module
  implementation which is financed 100 by CERN
  and not part of this proposal.

Atomic level simulations
CLIC module
11
NCLinac, WP2 Linac FF stabilisation
Preliminary!

• Strong synergy between ILC and CLIC!
• Main goals
• stabilize elements (linac FF quads, ) to
  sub-nm level to guarantee luminosity, to this
  end
• improve low emittance transport simulation,
• build and test (ATF2 CTF3) interferometric
  monitoring system
• develop implement feedbacks ILC intrapulse,
  CLIC pulse-to-pulse
• Consider Linear Collider environment some
  elements will be inside the detector, consider
  accelerator typical noise (magnetic field,
  coolant flow, radiation ), assure compatibility
  with other installations.
• Partners IN2P3/LAPP, CERN, JAI/Oxford
• Estimated total 2.2 M
• WP results also relevant for X-FEL!

12
NCLinac, WP3 Beam Delivery System
Preliminary!

• Strong synergy between ILC and CLIC!
• Main goals
• develop and test at CTF3 a CLIC crab cavity
  system,
• develop tuning procedures (at ATF2) for ILC
  CLIC, to achieve 35 nm vertical beam size,
• develop BPMs for BDS, test at ATF2,
• develop laser wire scanner profile
  reconstruction, test at PETRAIII and ATF2.
• Partners Cockcroft/LancasterManchester,
  STFC/ASTEC, JAI/RHUL
• Estimated total 1.85 M
• Requires good coordination with WP2!

13
NCLinac, WP4 Drive Beam Phase Control

• CLIC luminosity sensitive to drive beam phase,
  requires phase stabilization (feedback) to
  20fs.
• First step high resolution f-measurement!
• Main goals
• Build, develop and test in CTF3
• low impedance f-pick-up with band-reject filters,
• laser system electro-optical detector
• the phase monitor electronics
• Partners INFN/LNF, CERN, PSI
• Estimated total 1.1 M
• WP results also relevant for X-FEL,
  electro-optical system also for ILC!

Preliminary!
14
NCLinac, WP5 Beam Dumps
Preliminary!

• High priority item for ILC!
• Main goals
• study (at CTF3?) effects of beam generated shock
  waves on windows,
• study alternative technologies (noble gas,
  fluidized particle beds, )
• Partners STFC/RAL (Manchester?, Uppsala?, DESY?)
• Estimated total 0.6 M
• Must still be better defined!

15
NCLinac, WP6 Damping Ring Vacuum
Preliminary!

• Strong synergy between ILC and CLIC, ILC high
  priority!
• Main goals
• develop technical solutions for the vacuum system
  of LC damping rings, to this end
• study coatings with low SEY, low photon
  reflectivity reduced desorption
• study e-cloud suppression at DAFNE,
  photo-emission yield at ESRF,
• develop capability to simulate pressure
  distribution dynamically
• Partners INFN/LNF, CERN, ESRF, Cockcroft
• Estimated total 1.55 M
• WP6 results are relevant for other vacuum
  systems (SPS, )

16
NCLinac, WP7 Positron Source
Preliminary!

• High priority for ILC, synergies with CLIC!
• Main goals
• Develop build demonstrate (at Daresbury target
  facility) a prototype (spinning wheel) target,
• Develop, build and measure short Nb3Sn undulator
  prototype
• Develop, build and test a polarimeter,
• develop helicity flipping schemes,
• study spin tracking.
• Partners STFC/RAL, Daresbury, DESY/Zeuthen, Uni
  Durham
• Estimated total 1.54 M

17
WP7(?) DR Superconducting Wigglers
Preliminary!

• Main goals
• Demonstrate technical feasibility of SC wiggler
  magnet anticipated for CLIC (DR IBS dominated!)
• Test with beam at ANKA,
• Benchmark IBS theories
• Partners FZK/ANKA, CERN, BINP?
• Estimated total 1.53 M

18
WP in ANAC FFAG
Preliminary!

• EMMA, the Electron Model for Muon
  Acceleration, is a proof-of principlenon-scalin
  g FFAG at RAL, scheduled forcompletion July
  2009.
• Main goals
• upgrade EMMA diagnostics,
• study features of non-scaling FFAGs,
• understand their applicability to other
  applications, like muon and proton acceleration
• Partners STFC/RAL, CNRS/LPSC?
• Estimated total 1.27 M

EMMA
19
Transnational Access to MICE

• Goal
• Allow scientists to travel to and work at RAL.
  (RAL to provide administration). No contribution
  to the facility itself.
• Ideas for studies by external parties
• test non flip optics,
• low-beta optics (down to 5 cm vs 42 cm nominal)
• other absorber materials He, Li, LiH, etc..
• LN2 cooled RF cavities
• and with some hardware upgrades
• test a lithium lense available at Novosibirsk
• Muons Inc. to test a section of helicoidal
  channel (MANX)
• test new RF structures

20
Summary

• From the initial ideas (IA NAS) until now, this
  has been a difficult and painful process and
• it isnt over but we must proceed fast
• Next deadline deliverables, milestones, schedule
  and 1st level WBS 21st Oct. 2007!
• Part of what I presented is in discussion and
  preliminary, but I needed to provoke your
  reaction!
• My apologies again I wasnt able to keep you
  informed about these recent, rapid changes!
• Thank you!
