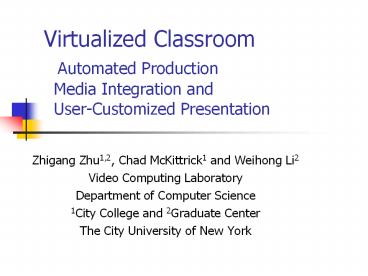

Virtualized Classroom  Automated Production
Media Integration and User-Customized
Presentation
  • Zhigang Zhu1,2, Chad McKittrick1 and Weihong Li2
  • Video Computing Laboratory
  • Department of Computer Science
  • 1City College and 2Graduate Center
  • The City University of New York

2
Outline
  • Background
  • A Bigger Picture
  • Multimedia Virtual Classroom (UMassCCNY)
  • CCNY Virtualized Classroom
  • Automatic capture
  • intelligent media integration
  • user-customized presentation
  • Conclusions and Discussions

3
In cooperation with
  • W. Richards Adrion
  • James F. Kurose
  • Edward M. Riseman
  • RIPPLES Group and Vision Lab
  • University of Massachusetts Amherst
  • Dr. Parviz Kermani
  • e-Learning Lecture Navigator (ELN)
  • Polytechnic University of New York
  • and IBM T.J. Watson Research Center

4
hypothesis, strategy motivation
pedagogy
5
CUNY and CCNY
  • CUNY 20 colleges
  • Ph.D. programs in GSUC
  • CCNY 20, 000 students
  • MS programs only
  • Minority Serving Institute
  • In 2002, URM 66 in engineering, 35 in CS
  • US News 2003 No 2 in diversity
  • large percentage of work students
  • Questions
  • Effective learning tools for recruiting and
    retention

6
MANIC (UMASS)
Multimedia Asynchronous Networked Interactive
Courseware
CMPSCI 453 PPT slides ECE 566 handwriting
7
CD-MANIC the best of both worlds
  • CDs
  • for bandwidth intensive content
  • internet for
  • content updates
  • logging student behavior
  • collaboration
  • search
  • external links
  • overcomes any bandwidth constraints provides
    convenience
  • contents dont change often
  • use anywhere
  • planes, trains, behind firewalls

8
Outline
  • Background
  • A Bigger Picture
  • Multimedia Virtual Classroom (UMassCCNY)
  • CCNY Virtualized Classroom
  • Automatic capture
  • intelligent media integration
  • user-customized presentation
  • Conclusions and Discussions

9
Multimedia Virtual Classroom
  • Automatic data collection and indexing
  • Audio/video
  • PPT, handwriting
  • online materials, etc
  • Collaborative Learning Environment (CLE)
  • Active
  • Coversational
  • Constructive reflective
  • Intentional contextual

10
MVC as an active CLE
  • active
  • Goal active interface, navigation
  • base index, simple search
  • extended search, active objects (text,
    images)
  • learner-controlled interface

11
MVC as an conversational CLE
  • conversational
  • goal support collaboration
  • base threaded discussions
  • CLIMANIC

12
MVC as a constructive reflective CLE
  • constructive reflective
  • goal notation, collaboration
  • base none
  • notes on slides, threaded discussions, save
    CLIMANIC collaborations, integrated reporting

13
MVC as an intentional contextual CLE
  • intentional complex contextual
  • goal problem-focused pedagogy active classroom
    strategy, realistic problem domains
  • base problem-focused learning
  • CASA, on-campus distance learning
    integration, design tools environment
    integration

Integrated Tools
14
MVC supporting learner logger
  • important tool for assessment
  • goal assessing individual and course learning
    goals
  • base quizzer, logger
  • integrate with new tools extended search,
    notation, collaboration
  • extend to integrated design tools environment
  • integrate with CMS (OWL, WebCT, Blackboard)

15
Outline
  • Background
  • A Bigger Picture
  • Multimedia Virtual Classroom (UMassCCNY)
  • CCNY Virtualized Classroom
  • Automatic capture
  • intelligent media integration
  • user-customized presentation
  • Conclusions and Discussions

16
CCNY Virtualized Classroom
  • Automated MM data capture
  • Sensing, synchronization and recording
  • Intelligent MM data integration
  • Video, PPT slides, Mimio handwriting pages
  • Flexible User Interface
  • Course adaptive, user customized
  • Virtualized Classroom (VC)
  • A new e-learning environment generated and
    enhanced from materials captured from real
    classrooms.

17
VC Automatic MM capture
18
Outline
  • Background
  • A Bigger Picture
  • Multimedia Virtual Classroom (UMassCCNY)
  • CCNY Virtualized Classroom
  • Automatic capture
  • intelligent media integration
  • user-customized presentation
  • Conclusions and Discussions

19
VC Media Integration
  • PPT_at_ Slide Mimio page registration
  • Pre-calibration
  • Dynamic calibration
  • Panoramic Video Mosaicing
  • From a panning camera
  • PPT_at_ Slide video image registration
  • Toward a 3D virtual environment

20
VC Media Integration (1)
  • PPT_at_ Slide Mimio page registration

A simple approach mark four corners
21
VC Media Integration (1)
  • PPT_at_ Slide Mimio page registration

A simple approach mark four corners
22
VC Media Integration (1)
  • PPT_at_ Slide Mimio page registration

Question What if one of the devices move?
23
VC Media Integration (1)
  • Dynamic registration of PPT_at_ Slide Mimio page
    because
  • Hard to mark in some cases
  • due to occlusion and height
  • Instructor may forget to do it
  • Devices may not be able to keep stationary
  • Camera, projector, Mimio capture bar
  • completely automatic and mind-free approach

24
(No Transcript)
25
VC Media Integration (2)
Panoramic mosaic from video
26
VC Media Integration (2)
Panoramic mosaic from video
27
VC Media Integration (3)
Replacing the slide projections
28
VC Media Integration (3)
Image Alignment
From Video
From Digital Slide (PPT)
29
VC Media Integration (3)
Image Alignment
30
VC Media Integration (3)
Instructor Extraction
31
VC Media Integration (3)
Instructor Extractionraw
32
VC Media Integration (3)
Instructor Extractionrefined
33
VC Media Integration (3)
Instructor Extractioncontour
34
VC Media Integration (3)
Instructor Extractionand integration
video
shadow
contour
35
VC Media Integration
Toward an immersive VC interface
Question Window, ToC, etc
36
Outline
  • Background
  • A Bigger Picture
  • Multimedia Virtual Classroom (UMassCCNY)
  • CCNY Virtualized Classroom
  • Automatic capture
  • intelligent media integration
  • user-customized presentation
  • Conclusions and Discussions

37
User Customized Presentation
  • Virtualized Classroom Presentation System (VCPS)
    in Java, consists of
  • An authoring tool VCPS creator
  • An presentation interface - VCPS player
  • Features
  • Customized sizes and locations
  • Pop up ToC for indexing
  • Synchronized play, next, last

38
User Customized Presentation
  • PPT panoramic view popup ToC

39
User Customized Presentation
  • PPT Mimio integrated Popup ToC

40
User Customized Presentation
  • PPT Mimio Combined New buttons

41
User Customized Presentation
  • PPT Mimio Combined New buttons ToC

42
User Customized Presentation
  • PPT Mimio Combined images New Buttons

43
User Customized Presentation
  • PPT Mimio Combined images New Buttons

44
User Customized Presentation
  • PPT Mimio Combined images New Buttons

45
User Customized Presentation
  • PPT Mimio Combined images New Buttons

46
User Customized Presentation
  • PPT Mimio Combined images New Buttons

47
User Customized Presentation
  • PPT Mimio Combined images New Buttons

48
Outline
  • Background
  • A Bigger Picture
  • Multimedia Virtual Classroom (UMassCCNY)
  • CCNY Virtualized Classroom
  • Automatic capture
  • intelligent media integration
  • user-customized presentation
  • Conclusions and Discussions

49
Conclusions and Discussions
  • CCNY Virtualized Classroom
  • automatic MM capture
  • intelligent media integration
  • user-customized presentation
  • Multimedia Virtual Classroom (UMassCCNY)
  • Active and collaborative learning
  • Content-based searching and indexing
  • Pedagogy and assessment

50
Thank you !
Questions?
51
AutoAuditorium Interface
52
Just-In-Time (CMU)
53
Virtualized Classroom
video transformation

Remote Reality
Omnidirectional Camera
