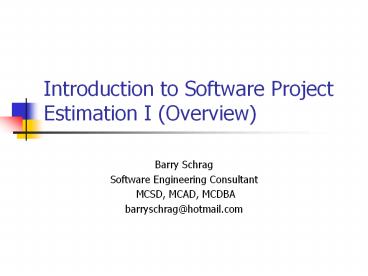

Introduction to Software Project Estimation I
(Overview)
  • Barry Schrag
  • Software Engineering Consultant
  • MCSD, MCAD, MCDBA
  • barryschrag_at_hotmail.com

2
What Are Your Expectations
  • From this class?

3
Introductions
  • Your background
  • Reason for taking this workshop
  • An unusual fact to remember you by!

4
What we will learn
  • This course focuses on an overview of Software
    Estimation knowledge to include the tools,
    techniques, and key concepts used in estimating
    size and effort on software projects. Class
    content, including hands-on exercises, is
    designed to provide team members and Project
    Managers with resources and skills to more
    accurately apply estimating techniques at various
    points in a software engineering process and how
    to interpret the result, reducing risk during the
    software engineering effort. Prerequisite
    Experience in the field of software engineering
    or project management, or relevant
    coursework/knowledge.

5
Info
  • Breaks
  • Food
  • Facilities

6
Workshop Format
  • Introduction
  • Exercise without tools
  • Break
  • Lines of Code Lesson
  • Function Point Lesson
  • Exercise applying Function Point technique
  • Break
  • Lessons learned

7
Software Project Definitions
  • Successful
  • The project is completed on time and on budget,
    with all features and functions as specified
  • Challenged
  • The project is completed and operational, but
    over budget, late, and with fewer features and
    functions that initially specified
  • Failed
  • The project is cancelled before completion, never
    implemented, or scrapped following installation

8
Project Success is Rare
  • 2004 15 failed, 51 challenged, 34 succeeded
  • 2000 23 failed, 49 challenged, 28 succeeded
  • 1995 40 failed, 33 challenged, 27 succeeded
  • 1994 31 failed, 53 challenged, 16 succeeded
    Source Randy Miller, Microsoft

9
Project Status (Standish 2004)
10
Overview
  • Why care about estimates?
  • Repeatability
  • Accuracy to a date
  • Manage resources and cost
  • FP standards group says -4 ? 12
  • LOC estimation error is history dependent - 200
    down to -5 with PSP/PROBE

11
What is an "estimate" ?
  • Our Premise Effort in hours from size
  • More accurate for your team/process
  • Do engineers estimate? Do architects? Do
    scientists?
  • Size ? Effort hours ? Schedule

12
Cone of Uncertainty
  • It is very large during requirements
  • It gets smaller as you proceed through
    yourprocess!

13
Scenario I
  • Read Exercise 1 Initial Estimate
  • Solidify any questions and assumptions
  • Can you make an initial estimate in hours? If
    not, make a guess!
  • If you can, estimate how many defects there will
    be

14
Results
  • What were your estimates?
  • What tools would you use to perform this task?

15
Some facts help in estimation
  • Organization
  • Is there IT Support?
  • What is their current and projected load?
  • Engineering team in place?
  • Engineering Methodology
  • System Specs
  • OS Platform
  • Architecture
  • Backend Database/File System, etc
  • Calculation rule specifics?
  • Report output method /Architecture in place?
  • Retention rate of data?
  • Quality Specification
  • Performance?
  • Concurrency?
  • Sales
  • Lead time
  • Pipleline already full?
  • Project Management
  • Supplier lead time
  • Partner co-operation
  • Partner dependencies

16
Important for Estimation
  • What quality is required
  • How many defects are acceptable after release?
  • How many defects do we need to find?
  • What is our team size
  • What is our team productivity (do we know?)
  • How many hours is the team is available to work
    on this project per day? 6? 8? 10?
  • Are vacation days scheduled?

17
An Estimator uses
  • Product Specs (size only)
  • Team Size (size ? effort)
  • PSP uses a team size of 1
  • Hours available per day for work (effort ?
    schedule)
  • Days off (effort ? schedule)

18
The Cone of Uncertainty
  • What does it look like?
  • What percent of software projects are on time and
    on budget? 29
  • Where does estimation error come from?
    Guessing Historical Analysis

19
Estimation Error
  • Unknown specs account for 33 of error (McConnell
    2006)
  • Lost project hours account for error on schedule
    estimation, not size estimation
  • Remember Size leads to Effort leads to Schedule

20
Scope Creep
  • 2 increase per calendar month in design and
    coding phases (McConnell 2006)
  • From end of requirements to start of coding
    phases chart (Capers Jones, 2002)

21
Estimation Formula
  • Effort in hours
  • Size of Specs
  • Size of Team
  • How do we find the size of specs?
  • Only two ways accepted as better than guessing!
  • Function Points
  • Lines of Code using PROBE in the PSP

22
Line of Code Definitions
  • KLOC (thousands)
  • SLOC (source)
  • LOC
  • CLOC (commented)
  • NCLOC (non commented)

23
System Size Lines of Code
  • Review Table 1
  • The Paradox of Source Code Metrics
  • Read Reading 1
  • Lines of Code as a metric
  • Read Reading 2
  • A Few Words about the PSP and PROBE

24
Size estimating LOC/PROBE
25
LOC PSP/PROBE defects
  • A benefit of this method
  • 30-100 of defects can be found before first
    compile!

26
LOC Has Problems!
  • No theoretical foundation
  • No relationship between lines of code and program
    operation
  • C AB
  • C A B
  • Complexity and errors can increase with equal LOC

27
System Size Lines of Code
  • There is no standard way to measure
  • Wide range of estimates for a language
  • Visual Basic 15 to 41 LOC!
  • LOC counts can be easily misinterpreted and
    misused.
  • Dont mix LOC counts from different languages and
    types of code (i.e. test support, product etc)
  • You can generate almost any productivity number
    you want by changing the way you count LOC.
  • Tools? Code Counter Pro
  • Can estimate ratio of Comment Lines per SLOC

28
Break
  • Be back in . Next up Function Points

29
System Size Function Points
  • 1979, A.J. Albrecht of IBM published a Function
    Point metric as a measure of software
    productivity or unit of work.

30
An Ideal Size Measure Should
  • Be Measurable
  • Be Accountable
  • Be Precise
  • Be Independent of the measurer

31
System Size Function Points
  • Albrecht considered five operations
  • The inputs to the application
  • The outputs from it
  • Inquiries by users (define user)
  • The data files that would be updated by the
    application
  • The interfaces to other applications

32
The generic application
Application
Output simple data
Data values in
Output Calculated data
Data store
33
Modern Function Points
  • After research, empirical weighting factors
    became a standard
  • The number of inputs was weighted by 4
  • The Outputs by 5
  • Inquiries by 4
  • The data file updates by 10
  • The interfaces by 7
  • These weights change based on number of data
    fields used by each operation

34
System Size Function Points
  • IFPUG (International Function Point Users Group)
  • FP ISO 206262003 www.ifpug.org
  • COSMICON (COmmon Software Measurement
    International CONsortium)
  • FFP ISO/IEC 197612003 http//www.cosmicon.com
  • FP measures size of an operation not the direct
    complexity of algorithms
  • Abstracted from language or implementation

35
FP Defect Rates are Known
  • DEFECT ORIGINS Per FP
  • Requirements 1.00
  • Design 1.25
  • Coding 1.75
  • Documentation 0.60
  • Bad Fixes 0.40
  • TOTAL 5.00

36
Generic Application
Data values inExternal Input
Application
Output simple data
Output Calculated data
Data store (Internal Logical Files)
37
External Outputs (EO)
  • An elementary process in which derived data
    passes across the boundary from inside to outside
    the application
  • A report where data is calculated is an example
  • For elaborated definition see Glossary

38
External Inputs (EI)
  • Is an elementary process in which data crosses
    the boundary from outside to inside the
    application
  • For elaborated definition see Glossary

39
External inQuiry (EQ)
  • An elementary process with both input and output
    components that result in data retrieval from one
    or more internal logical files and external
    interface files
  • A report where data is pre-calculated is an
    example
  • For elaborated definition see Glossary

40
Internal Logical Files (ILF)
  • A group of logically related data within the
    application boundary
  • Storage location for the users profile, for
    product, system control info
  • For elaborated definition see Glossary

41
Rating Logical Files

42
External Interface Files (EIF)
  • Data used for reference purposes which resides
    entirely outside the application and is
    maintained by another application
  • This is an Internal Logical File for another
    application
  • For elaborated definition see Glossary

43
EQ and EO
  • IFPUG is very clear on the difference between EQ
    and EO
  • EQ should NOT update an ILF, no derived data is
    created and NO formula or calculations should be
    performed i.e. an EQ is only a query
  • May require a certified FPA to be sure!

44
Function Point Terms Diagram
45
Note About Terms
  • There may be more than one of ANY of the 5 FP
    operations
  • Often more than one ILF in even the smallest
    project
  • Imagine one ILF for Users, another for Invoice,
    Products, System Control data

46
FPA Exercise (Exercise I)
  • We want to build an internet based system which
    signs up users who want service. The system will
    record the user information. It will look up the
    service price for the monthly payment and display
    this to the user before they approve. It will
    use the payment rates which are held in a legacy
    system. Once this payment is calculated, it is
    stored with the users data and is not
    re-calculated again. The system must provide two
    reports 1) a monthly report which details the
    invoice for the user, and 2) an on-demand report
    for management which aggregates the projected
    income across all signed up users for the monthly
    period

47
Exercise I How Many?
  • Match these concepts to the exercise
  • ILF (Internal Logical Files)
  • EIF (External Interface Files)
  • EI (External Input)
  • EO (External Output) -- calculated
  • EQ (External inQuiry) -- just a query

48
Exercise I - Calculate FP Count
  • The number of External Inputs __4 __
  • The External Outputs __5 __
  • External inQuiries __4 __
  • The Internal Logical Files __10 __
  • The External InterFaces __7 __
  • TOTAL FP Estimate __
  • TOTAL Defects Estimate FP 5 __

49
Exercise I - Calculate FP Count
  • The number of External Inputs 24 __
  • The External Outputs 25 __
  • External inQuiries 24 __
  • The Internal Logical Files 110 __
  • The External InterFaces 17 __
  • TOTAL FP Estimate __
  • TOTAL Defects Estimate FP 5 __

50
Exercise I - Calculate FP count
  • The number of External Inputs 24 8
  • The External Outputs 2510
  • External inQuiries 24 8
  • The Internal Logical Files 110 10
  • The External InterFaces 17 7
  • TOTAL FP Estimate 43
  • TOTAL Defects Estimate FP 5 215

51
Exercise I
  • TOTAL FP Estimate 43
  • Note that this is an independent measure of the
    SIZE of the counted functionality!

52
Exercise I hours to release
  • TOTAL FP Estimate 43
  • EFFORT FP process efficiency
  • Now apply the variables --
  • 516 hours to release 43 unadjusted function
    points 12 hours/fp
  • Note that 12 is a LOW estimate of process
    efficiency

53
Note the Weighting Factors
  • Weighting changes based on complexity but for
    that use a certified FP analyst!
  • We will assume average complexity
  • Example Data Elements, see counting practices
    manual!

54
Using Agile process FPA
  • Agile Analyze, Test, Code, Deliver
  • Agile FPA Analyze, Measure, Test, Code, Deliver
  • Use the count as an opportunity to elaborate on
    the requirements
  • Track estimates over time

55
Historical Effort Estimation
  • ISBSG (International Software Benchmarking
    Standards Group)
  • Assumes Average Productivity
  • Staff Months .425 (FP Count .488)
    (Maximum Team Size .697)
  • Assumes 132 project focused hours per staff month
  • Assumes 3rd GL, calibrated by 600 projects

56
Historical Measurement
  • Thousands of projects
  • Consistent sizing with FPA
  • Record of time for each activity
  • Trends emerge
  • Some activities are not performed on every
    project
  • Cost for the activity doesnt vary based on
    project type

57
Activities by Project Type
  Activity by Project Type Activity by Project Type Activity by Project Type Activity by Project Type Activity by Project Type Activity by Project Type
Activity End User MIS Outsource Commercial Systems Military
Requirements   X X X X X
Prototyping X X X X X X
Architecture   X X X X X
Project Plans X X X X X
Initial Design X X X X X
Detailed Design X X X X X
Design Reviews     X X X X
Coding X X X X X X
Reuse Acquisition X   X X X X
Package Purchase   X X   X X
Code Inspections       X X X
Independent verification and validation           X
Configuration Management   X X X X X
Integration   X X X X X
User Documentation X X X X X X
Unit Testing X X X X X X
Function Testing   X X X X X
Integration Testing   X X X X X
System Testing   X X X X X
Field Testing       X X X
Acceptance Testing   X X   X X
Independent Testing           X
Quality Assurance     X X X X
Installation and Training   X X   X X
Project Management   X X X X X
Commonly Used Activities 5 16 20 21 22 25
58
National Average Productivity
  Work Hours per FP Work Hours per FP Work Hours per FP
Activity Minimum Mode Maximum
Requirements 0.38 0.75 2.64
Prototyping 0.53 0.88 5.28
Architecture 0.26 0.44 1.32
Project Plans 0.09 0.26 0.66
Initial Design 0.33 0.75 2.64
Detailed Design 0.44 0.88 5.28
Design Reviews 0.33 0.59 1.76
Coding 0.66 2.64 8.80
Reuse Acquisition 0.07 0.22 0.33
Package Purchase 0.09 0.33 0.38
Code Inspections 0.44 0.88 1.76
Independent verification and validation 0.66 1.06 1.76
Configuration Management 0.04 0.08 0.13
Integration 0.26 0.53 0.88
User Documentation 1.32 1.89 6.60
Unit Testing 0.33 0.88 1.89
Function Testing 0.44 0.88 5.28
Integration Testing 0.33 0.75 1.76
System Testing 0.26 0.66 1.32
Field Testing 0.26 0.59 1.76
Acceptance Testing 0.22 0.38 1.76
Independent Testing 0.44 0.66 1.32
Quality Assurance 0.44 0.88 4.40
Installation and Training 0.22 0.38 0.88
Project Management 0.66 1.32 8.80
Total hours per Function Point 9.50 19.56 69.39
59
EFFORT is Estimated by
  • Wideband Delphi-consensus-based NO!
  • Perform organization calibration to get
  • Hours per Function Point
  • Historical Data gets better over time

60
Estimation Influences Are
  • Additive Error due to Size ? Effort hours ?
    Schedule
  • Error in Size Estimate
  • Error in Effort Estimate
  • Productivity changes due to
  • New team size
  • Work tasks change
  • Hours available to work are altered

61
Estimation Techniques
  • Function Points estimate size independently, and
    can find effort hours after one use
  • PSP/PROBE Proxy-based estimates guess about a
    size to find the effort hours, but get better
    over time
  • See chart slide 24

62
Software Estimation Tools
  • PSP/PROBE is an estimation tool
  • Function Points are an estimation tool
  • LOC counting can be automated, but is only useful
    for comment lines and PSP
  • Function Points are not easy to automate!

63
Estimation Procedures
  • First Estimate Size
  • Count Function Points as a size measurement
  • Or estimate LOC using PSP/PROBE method
  • Determine Productivity
  • Hours/FP or Hours/LOC
  • Calibrate using local history
  • Total Effort Hours
  • Size FP Hours/FP
  • or
  • Use PSP/TSP/PROBE to determine total hours

64
Estimation Method Costs
  • Function Point certification
  • PSP/TSP and PROBE training

65
Project Cost Estimation
  • Effort x (Salary Burden) Cost
  • COCOMO 82 ? COCOMOII (2000) ? F2COCOMO
  • Requirement phase and cost is not estimated by
    any COCOMO method!
  • Assumes 152 hours project time/month
  • F2COCOMO see
  • www.cs.uwaterloo.ca/adcaine/f2cocomo.pdf

66
Size Issues Using FP
  • Little applicability to effort without historical
    data
  • Some Standards are in place, ISO, IEEE
  • History is available using ISBSG database

67
Size Issues Using LOC
  • Problems applying it to different code bases i.e.
  • SQL Data Driven Applications
  • XML, XSLT, ASP, VBScript, Jscript , ASP.NET
  • No standards
  • Cant convert between size models
  • From LOC to FP or FP to LOC NO!
  • Range of LOC/FP is too large to use!

68
Effort Estimation Issues
  • Effort Size Productivity
  • Productivity measured as hours/Function Point
  • Use local productivity Data and ISBSG averages
  • Team history and cohesion do affect results
  • Main point - Record hours worked

69
Schedule Estimation Issues
  • Support
  • Documentation
  • QA (How many defects do you want removed?)
  • Change Requests which are implemented
  • Turnover
  • Team History
  • Record hours worked to do your next estimate
  • Process change

70
Process Change Issues
  • About failure rates of metrics estimation
    initiatives
  • Steven Kan, 2000
  • Management buy-in is most critical!

71
Exercise II
  • Read Exercise II in the handout and perform a
    rough Function Point size estimate using the
    information given
  • Derive hours to complete product using 12 hours
    per function point efficiency
  • Estimate defects in product using the US standard
    of 5 defects per Function Point

72
Scenario II -- what is critical?
  • The user will be presented with a calendar
  • They may choose a date or a holiday
  • They will identify it with a label
  • They will then choose an email notification
  • This data is recorded in the database
  • The system will provide an email notification

73
Scenario II how many items?
  • The user will be presented with a calendar
  • Calendar Date ILF, EO
  • They may choose a date or a holiday
  • EI
  • They will identify it with a label
  • EI
  • They will then choose an email notification
  • EI
  • This data is recorded in the database
  • User Event ILF
  • The system will provide an email notification
  • EO

74
Scenario II
  • EI 34 12
  • EO 25 10
  • EQ 0 4 0
  • ILF 2 10 20
  • We are still assuming average complexity!
  • TOTAL Unadjusted Function Points 42
  • DEFECTS 42 5 210

75
Exercise II hours to release
  • TOTAL FP Estimate 42
  • EFFORT FP process efficiency
  • Now apply the variables --
  • 840 hours to release 42 unadjusted function
    points 20 hours/fp
  • Remember that 20 is an average estimate of
    process efficiency

76
Effort Analysis
  • FP count of SIZE is about equal
  • Exercise I FP count 43 about 516 hours
  • Exercise II FP count 42 about 840 hours
  • Why is there a large hours difference?
  • Calibrate your process efficiency

77
What did we learn?
  • Overview of Software Estimation knowledge
  • Tools, techniques, and key concepts
  • Size and Effort
  • Resources and skills to more accurately apply
    estimating techniques

78
Conclusion
  • Choose an estimating technique
  • Make it part of your process at each step and for
    each change requested
  • It can reveal process efficiency
  • Track error over time and use to predict cone of
    uncertainty in the next cycle

79
Conclusion -- Costs
  • PSP training cost 2 weeks (80 hours)
  • After 2 hours of use, your team process is CMMi
    Level 5
  • TSP training is available for managers
  • Function Point certification costs 2 days
    (16 hours)
  • Will help if you keep history between projects
  • No projections about CMMi level

80
Follow On Course
  • Function Point Analysis Certification
  • PSP Training
  • Be sure to write it in your course evaluation if
    you are inclined to work toward either
    certification
About PowerShow.com
