Data Compression Basics

1

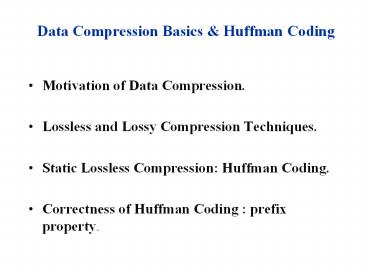

Data Compression Basics Huffman Coding

• Motivation of Data Compression.
• Lossless and Lossy Compression Techniques.
• Static Lossless Compression Huffman Coding.
• Correctness of Huffman Coding prefix property.

2
Why Data Compression?

• Data storage and transmission cost money. This
  cost increases with the amount of data available.
• This cost can be reduced by processing the data
  so that it takes less memory and less
  transmission time.
• Data transmission is faster by using better
  transmission media or by compressing the data.
• Data compression algorithms reduce the size of a
  given data without affecting its content.
  Examples
• . Huffman coding
• . Run-Length coding
• . Lempel-Ziv coding

3
Lossless and Lossy Compression Techniques

• Data compression techniques are broadly
  classified into lossless and lossy.
• Lossless techniques enable exact reconstruction
  of the original document from the compressed
  information while lossy techniques do not.
• Run-length, Huffman and Lempel-Ziv are lossless
  while JPEG and MPEG are lossy techniques.
• Lossy techniques usually achieve higher
  compression rates than lossless ones but the
  latter are more accurate.

4
Lossless and Lossy Compression Techniques (cont'd)

• Lempel-Ziv reads variable-sized input and outputs
  fixed length bits while Huffman coding is the
  exact opposite.
• Lossless techniques are classified into static
  and adaptive.
• In a static scheme, like Huffman coding, the data
  is first scanned to obtain statistical
  information before compression begins.
• Adaptive models like Lempel-Ziv begin with an
  initial statistical distribution of the text
  symbols but modifies this distribution as each
  character or word is encoded.
• Adaptive schemes fit the text more closely but
  static schemes involve less computations and are
  faster.

5
Introduction to Huffman Coding

• What is the likelihood that all symbols in a
  message to be transmitted have the same number of
  occurrences?
• Huffman coding assigns different bits to
  characters based on their frequency of
  occurrences in the given message.
• The string to be transmitted is first analysed to
  find the relative frequencies of its constituent
  characters.
• The coding process generates a binary tree, the
  Huffman code tree, with branches labeled with
  bits (0 and 1).
• The Huffman tree must be sent with the compressed
  information to enable the receiver decode the
  message.

6
Example 1 Huffman Coding

• Example 1 Information to be transmitted over the
  internet contains the following characters with
  their associated frequencies as shown in the
  following table
• .Use Huffman technique to answer the following
  questions
• Build the Huffman code tree for the message.
• Use the Huffman tree to find the codeword for
  each character.
• If the data consists of only these characters,
  what is the total number of bits to be
  transmitted? What is the percentage saving if the
  data is sent with 8-bit ASCII values without
  compression?
• Verify that your computed Huffman codewords are
  correct.

t s o n l e a Characters
53 22 18 45 13 65 45 Frequency

7
Example 1 Huffman Coding (Solution)

• Solution The Huffman coding process uses a
  priority queue and binary trees using the
  frequencies.
• We begin by filling the priority queue with
  one-node binary trees each containing a frequency
  count and the symbol with that frequency.
• The initial priority queue is built by arranging
  the one-node binary trees in decreasing order of
  frequency.
• The object with the lowest priority is designated
  as the front of the queue.
• At each step, the priority queue is manipulated
  as outlined next

8
Example 1 Huffman Coding (Solution)

• The priority queue is manipulated as follows
• 1. Dequeue two trees from the front of the queue.
• 2. Construct a new binary tree from the two trees
  as follows
• a. Construct a new tree by using the two trees
  that were dequeued as
• the left and right subtrees of the new tree
• b. Give the new tree the priority that is the sum
  of the priorities of its left and right subtrees.
• 3. Enqueue the new tree using as its priority the
  sum of the priorities of the two trees used to
  construct it.
• 4. Continue this process until only one tree is
  in the priority queue.

9
Example 1 Huffman Coding Step 1

• front
• l o s n a
  t e
• 13 18 22 45 45 53
  65

10
Example 1 Solution (cont'd)

• front
• s n a
  t e
• 22 31 45 45
  53 65
• l o

11
Example 1 Solution (cont'd)

• front
• n a
  t e
• 45 45 53
  53 65
• s 31
• l
  o

12
Example 1 Solution (cont'd)

• front
• t e
• 53 53 65
  90
• s 31
  n a
• l o

13
Example 1 Solution (cont'd)

• front
• e
• 65 90
  106
• n a 53
  t
• s
  31
•
  l o

14
Example 1 Solution (cont'd)

• front
• 106 155
• 53 t e
  90
• s 31 n
  a
• l o

15
Example 1 Solution (cont'd)

• 261
• 106 155
• 53 t e
  90
• s 31 n
  a
• l o

16
Example 1 Solution (cont'd)

• 261
• 106 155
• 53 t e
  90
• s 31 n
  a
• l o

1
0
1
1
0
0
1
0
0
1
0
1
17
Example 1 Solution (cont'd)

• 261
• 106 155
• 53 t e
  90
• s 31 n
  a
• l o

1
0
1
1
0
0
1
0
0
1
0
1
18
Example 1 Solution (cont'd)

• The sequence of zeros and ones that are the arcs
  in the path from the root to each terminal node
  are the desired codes
• Character a e l
  n o s
  t
• if we assume the message consists of only the
  characters a,e,l,n,o,s and t then the number of
  bits transmitted will be
• 265253345345322418413 696 bits
• If the message is sent uncompressed with 8-bit
  ASCII
• representation for the characters, we have
• 2618 2088 bits, i.e. we saved about 70
  transmission time.

01 000 0011 110 0010 10 111 Codeword
19
Example 1 Solution The Prefix Property

• Data encoded using Huffman coding is uniquely
  decodable. This is because Huffman codes satisfy
  an important property called the prefix property.
• This property guarantees that no codeword is a
  prefix of another Huffman codeword
• For example, 10 and 101 cannot simultaneously be
  valid Huffman codewords because the first is a
  prefix of the second.
• Thus, any bitstream is uniquely decodable with a
  given Huffman code.
• We can see by inspection that the codewords we
  generated (shown in the preceding slide) are
  valid Huffman codewords.

20
Exercises

• Using the Huffman tree constructed in this
  session, decode the following sequence of bits,
  if possible. Otherwise, where does the decoding
  fail?
• 10100010111010001000010011
• Using the Huffman tree construted in this
  session, write the bit sequences that encode the
  messages
• test , state , telnet , notes
• Mention one disadvantage of a lossless
  compression scheme and one disadvantage of a
  lossy compression scheme.
• Write a Java program that implements the Huffman
  coding algorithm.
