Title: Testing%20Terminology

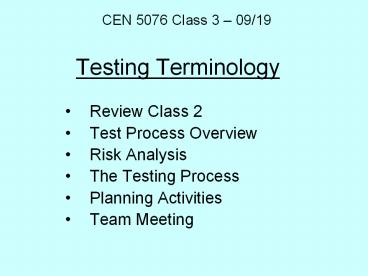

Testing Terminology
CEN 5076 Class 3 09/19
  • Review Class 2
  • Test Process Overview
  • Risk Analysis
  • The Testing Process
  • Planning Activities
  • Team Meeting

Laws of Testing Handbook of SSE
  • Online debugging is more efficient than offline
    debugging (Sackmans).
  • Testing can show the presence but not the absence
    of errors (Dijkstra).
  • A developer is unsuited to test his or her code
  • Approximately 80 percent of defects come from 20
    percent of modules (Paret-Zipf-type)
  • Performance testing benefits significantly from
    system-level benchmarks (Gray-Serlin)

Laws of Testing Handbook of SSE
  • Usability is quantifiable (Nielsen-Norman law).
  • Partition testing is more effective than random
    testing (Gutjahrs hypothesis).
  • The adequacy of a coverage criterion can only be
    intuitively defined (Weyukers hypothesis).
  • The test suite needed to verify an arithmetic
    path expression can be determined
    (Endres-Glatthaar hypothesis).
  • Suspicion-based testing can be more effective
    than most other approaches (Hamlets hypothesis).

Taxonomy of OO Classes
  • Class Abstraction Technique (CAT) that support
    implementation-based testing.
  • Catalogs classes based on the characteristics of
    a class.
  • Class characteristics for a given class C are
    the properties of the features in C and the
    relationships C has with other classes in the
    implementation. The properties of the features
    in C describe how criteria such as types,
    accessibility, shared class data, polymorphism,
    dynamic binding, deferred features, exception
    handling, and concurrency are represented in the
    attributes and routines of C.
  • Clarke and Malloy SEA 04

Taxonomy of OO Classes cont
Descriptors Type Nomenclature Attributes
Routines Families (Nested) New
(Constant) NA no type (Multi-Parents)
Recursive New P primitive type (Friend)
Concurrent Recursive P reference to P
(Has-Friend) Polymorphic Redefined U
user-defined type Generic Private
Concurrent U reference to U Concurrent
Protected Synchronized L library Abstract
Public Exception-R L reference to L
Inheritance-free Constant Exception-H A
any type (generics) Parent Static
Has-Polymorphic A reference to A External
Child - Non-Virtual m ltngt parameterized
type Internal Child - Virtual m ltn gt
reference to - - Deferred parameterized
type - - Private where m e U,
L - - Protected n is any combination of
- - Public P, P, U, U, L, L, A, A
- - Static -
Taxonomy of OO Classes cont
Types of Inheritance
  • Model Inheritance is-a relation between
    abstractions in the model.
  • Subtype
  • View
  • Restriction
  • Extension
  • Variation inheritance expresses relations
    within the software itself rather than the model.
  • Functional
  • Type
  • Uneffecting

Types of Inheritance
  • Software inheritance describes a class by how
    it differs from another class.
  • Reification
  • Structure
  • Implementation
  • Facility constant, machine
  • Bertrand Meyer 96

Planning for Testing
  • Testing requires considerable resources.
  • Good planning and good management is required for
    the effective utilization of these resources.
  • Want to plan a test process that complements your
    development process.
  • Want to analyze the risks associated with
    verifying the required functionality.
  • Need to develop test plans for the different
    levels and types of testing required for a
    comprehensive test process.

Testing Process Overview
  • Testing is applied at various points during
  • Development and testing processes have different
    goals and different measures of success.
  • Development strives to build a product that meets
    a need.
  • Testing strives to answer questions about the
    product, including whether the product meets the
    need that it is intended to meet.

Testing Process Overview
  • Example
  • The lower the defect rate (ratio of test cases
    that fail to the total number used), the more
    successful the development process is considered
    to be.
  • The higher the defect rate, the more successful
    the testing process is considered to be.
  • The roles of development and testing are usually
    assigned to different people.
  • Developers are responsible for some testing,
    e.g., unit testing and integration testing.

Testing Process Overview
  • To ensure testing is carried out with the same
    vigor when it is done by developers a buddy
    system is used.
  • Buddy system functionality is partitioned and 2
    developers take turns in writing code and
  • The development and testing processes are in a
    feedback loop, recall testing model USDP diagram.
  • Recall in the USDP increments of the system are
    usually developed.

Testing Process Overview
  • Incremental approach
  • Increment 1 Analysis , Design, Implementation,
  • Increment 2 Analysis , Design, Implementation,
  • Increment n Analysis , Design, Implementation,

Testing Process Overview
  • The testing perspective must be considered,
    preferably by professional testers, when
    development methods and tools are selected.
  • The form and quality of the requirements
    specification also affects the testing process.
  • Product requirements comprise the source of test
    cases in system and acceptance testing.
  • System testers should participate in the
    gathering and validation of the reqs. need to
    understand reqs., assess risks, and check for

Testing Process Overview
  • Testability
  • The degree to which a system or component
    facilitates the establishment of test criteria
    and the performance of tests to determine whether
    those criteria have been met. IEEE 610
  • The degree to which a requirement is stated in
    terms that permit establishment of test criteria
    and performance of tests to determine whether
    those criteria have been met. IEEE 610
  • Test criteria
  • - The criteria that a system or component must
    meet in order to pass a given test. IEEE 610

Testing Process Overview
  • There are two types of testing criteria
  • Test data selection criterion represents a rule
    used to determine which test case to select.
  • Test data adequacy criterion a rule used
    determine whether or not sufficient testing has
    been performed.
  • Test data selection criterion serves as the basis
    for picking a test set to satisfy some goal,
    while a test data adequacy criterion checks to
    see whether a previously selected test set
    satisfies the goal. Weyuker 93

Testing Process Overview
  • STEP Testing technique Hetzel 84
  • Analysis product to be tested is examined to
    identify any special features that must receive
    particular attention and to determine test cases
    that should be constructed.
  • Construction artifacts that are needed for
    testing are created. Test cases are translated
    into programming languages and scripting
    languages, or they are entered in a tool-specific
    language. Data sets required for testing are

Testing Process Overview
  • STEP Testing technique Hetzel 84 cont
  • Execution and Evaluation most visible and
    recognized part of the test effort. Test cases
    are executed and the results examined to
    determine if the software passed or failed the
    test suite.
  • Test suites must be maintained, i.e.,
  • as reqs. changed so does the test suite,
  • as problems are found by users test cases will be
    added to catch those problems.

Risk Analysis A Tool for Testing
  • Risk
  • Anything that threatens the successful
    achievement of a projects goal.
  • An event that has some probability of occurring,
    and if it does there will be some lost.
  • Risk-based testing principle
  • Test most heavily those portions of the system
    that pose the highest risk to the project to
    ensure that the most harmful faults are
  • Risk analysis a procedure for identifying risks
    and for identifying ways to prevent potential
    problems from becoming real.

Risk Analysis A Tool for Testing
  • Each project requires it own individual analysis,
    therefore it is important to apply testing
    strategies that make sense.
  • Effective software testing 50 specific ways
    to improve your testing. E. Dustin 2003 see
    updated online course syllabus
  • Some of these strategies include
  • Select test-design techniques numerous
    techniques are available.

Risk Analysis A Tool for Testing
  • Select testing tools decide on the
    vendor-provided tools how the tools will be
    used, which team member will use them.
  • Develop in-house test harness or scripts.
  • Determine test personnel and expertise required.
  • - To write test harness and scripts a developer
    must be included in the testing team.
  • - Automation skills required for capture/playback
  • - Domain expertise usually required.

Risk Analysis A Tool for Testing
  • Determine testing coverage
  • It is essential that testers understand the
    coverage required e.g., may be a contractual
    agreement in SRD.
  • There might be a code coverage requirement e.g.,
  • Determine test coverage given the resources,
    schedules, tools, task at hand, and risks of not
    testing an item.
  • Beizer estimates that from 2 to 80 of the
    application size can be code to support testing.

Risk Analysis A Tool for Testing
  • Establish release criteria
  • - Indicate when testing can be considered
  • Try to state in a quantifiable manner e.g., use
    cases 1, 3, and 4 need to be defect free.
  • Set the testing schedule
  • Consider the testing phases
  • - Different test strategies apply to different
    test phases. (see V-model for testing phases in
    traditional model)

Risk Analysis A Tool for Testing
  • High risk factors
  • Short time-to-market
  • Can prevent adequate testing.
  • Test strategies adapted for the time available.
  • New design process
  • Intro of new design tools, techniques.
  • Example change from USDP to eXtreme programming
    approach or vise versa.
  • New technology
  • Complexity
  • - Identify high risk uses case during reqs.

Risk Analysis A Tool for Testing
  • Frequency of use
  • This functionality usually represents the core of
    the application.
  • Untestable functional and non-functional reqs.
  • A reason to quantify non-functional requirements.
  • Must make all requirements testable.
  • Other sources of risk
  • - Prog. Languages permits certain classes of
    errors and inhibit others e.g., strong typing vs.
    weak typing.

Risk Analysis A Tool for Testing
  • Class Project
  • Each use case should have a risk, frequency, and
    criticality associated with it.
  • Review each of the use cases to ensure the above
    properties are quantified and valid.
  • Produce a ranked list of use cases. Focus on the
    implemented use cases.
  • Use the risk, frequency, and criticality to
    identify the testing effort (time and personnel)
    required for each use case during system testing.

A Testing Process
  • Dimensions of software testing (think of the
    attributes in italics as a continuum)
  • Who performs the testing?
  • Developer, tester, independent tester.
  • Which pieces will be tested?
  • Test nothing, test a sample, test everything.
  • Use a systematic approach. P. 81

A Testing Process
  • Dimensions of software testing cont
  • When will testing be performed?
  • When components are developed, when all
    components are developed and integrated.
  • How will testing be performed?
  • Specification, implementation.
  • How much testing is adequate?
  • Not testing, exhaustive testing.

Roles in Testing Process
  • Test plan should
  • Identify the roles each person will be assigned.
  • For each role allocate time and effort.
  • Schedule time allocated for each part of the
    testing effort.
  • Development schedule drives much of the testing
  • Identify the resources needed for the testing
    effort e.g., h/w, s/w, expertise

Roles in Testing Process
  • Roles
  • Unit tester responsibility is to test the
    individual classes (cluster of classes) as they
    are produced.
  • Integration tester responsibility testing a set
    of objects that are being brought together from
    different development sources e.g., individuals
    or teams.
  • System tester has domain knowledge and is
    responsible for independently verifying that the
    completed application satisfies the reqs.

Roles in Testing Process
  • Test manager responsible for managing the test
    process i.e., requesting, coordinating, and
    making effective use of the resources allocated.
  • Other Roles see handout Dustin
  • Team lead technical leadership for the test
    program, including test approach.
  • Test engineers (usability, manual, automated,
    network, security) specialist testers in each
    of the areas.
  • Test environment specialist installs test tools
    and establishes test-tool environment

Test Plan
  • Class Project
  • Roles for testing each model test manager, test
    engineer (system, integration, class) tester, and
    minute keeper.
  • Keep a diary of all activities performed at each
  • Use information in handout to identify the
    duties/skills of each person on the team e.g., P.
    73 first entry in table 13.2 .

Roles in Testing Process
  • Each diary entry should contain start time of
    meeting, end time of meeting, persons present,
    location of meeting, description of topics
    discuss (bullet form), tasks assigned to team
  • Roles in the team will be rotated as each USDP
    model is tested. Initially students that
    developed the applications will be domain
  • Use an automated tool to generate a testing
    schedule e.g., MS project. Identify tasks,
    milestones, and deliverables for the testing

A Detailed Set of Test Activities
  • Fig 3.11 Synopsis of testing activities, P. 88
  • Domain analysis
  • Application analysis
  • Architectural design
  • Detailed design
  • Class implementation
  • Application implementation

  • IEEE 829 Standard Test Plan outline
  • 1.0 Introduction high level view of the
    testing, includes type of testing e.g., class,
    subsystem, system, acceptance, release.
  • 2.0 Test Items defines the scope, h/w and s/w
    to be tested.
  • 3.0 Tested Features parts of the s/w spec to
    be tested.
  • 4.0 Features Not Tested includes features
    already tested
  • 5.0 Testing Strategy and Approach
  • 5.1 Syntax

  • 5.2 Description of Functionality
  • 5.3 Arguments for Test includes preconditions
  • 5.4 Expected Output
  • 5.5 Specific Exclusions
  • 5.6 Dependencies
  • 5.7 Test Case Success/Failure Criteria
  • 6.0 Pass/Fail Criteria for the Complete Test
  • 7.0 Entrance Criteria/Exit Criteria
  • 8.0 Test-Suspension Criteria and Resumption

  • 9.0 Test Deliverables/Status Communication
  • 10.0 Testing Tasks
  • 11.0 H/w and S/w reqs.
  • 12.0 Problem Determination and Correction
  • 13.0 Staffing and Training Needs/Assignments
  • 14.0 Test Schedules
  • 15.0 Risks and Contingencies
  • 16.0 Approvals

  • Visit the following site for more information
  • http//www.coleyconsulting.co.uk/IEEE829.htm
  • http//www.evolutif.co.uk/tkb/guidelines/ieee829/e

Project Test Plan
  • Summarizes testing strategy to be employed for
    the project.
  • Fig. 3.15 P. 97 summarizes the activities that
    are required, the frequency with which each
    activity will be employed, and the entity
    responsible for this testing phase. Required for
    class project!
  • Fig. 3.16 P. 97 associates each of the testing
    phases with the specific strategy for that phase.
    Required for class project!

Component Test Plan
  • Defines the overall strategy and specific test
    cases that will be used to test a certain
  • One plan per significant component (see uses
  • Fig. 3.17 P. 100 shows a template for the test
    plan. Required for class project!
  • Each section of the plan contains two types of
    guided information

Component Test Plan
  • Project criteria standards that have been
    agreed upon and how thoroughly each component
    will be tested,
  • e.g., 100 of the postconditions on modifier
    methods should be tested.
  • Project procedures techniques that have been
    agreed upon as the best way to handle a task.
    Provides the details of the test strategies that
    were identified in the project plan.
  • e.g., constructing a Parallel Architecture for
    Class Testing (PACT) class for each component
    that will be tested.

Component Test Plan
  • Sections of template
  • Objectives for the class - prioritized list of
    objectives for the component.
  • Guided Inspection Requirements (see P.99).
  • Building and Retaining Test Suites
  • Process of creating test driver classes.
  • Scheduled deadline for delivery of test cases.
  • The specification of the test driver
  • Relative number of test cases (prioritized ) in
    each of the following categories.

Component Test Plan
  • Functional Test Cases
  • Approach used to develop test cases from the
  • The class invariant method
  • Identify the types of objects being tested.
    Based on the initial state of the object.
  • Structural Test Cases
  • Info about test cases developed for code coverage
    and code-review process.
  • How to use the required test-coverage tool

Component Test Plan
  • State-Based Test Cases
  • State representation for object.
  • Approach used to generate test cases.
  • Interaction Test Cases
  • How dependencies will be handled.
  • Creation of stubs required to handle cycles.

Use Case Test Plan
  • Describes the system level test to be derived
    from a single use case.
  • Incorporated by reference into both the
    integration and systems test plan.
  • Types of use cases
  • High-level are abstract use cases that are the
    basis for being extended to end-to-end use cases.
  • Functional sub-use cases are aggregated into
    end-to-end system-level use cases.
  • End-to-end represents a complete transaction in
    the operation of the system.

Use Case Test Plan
  • Other uses cases
  • Report access information in the system,
    summarize it, and format it for presentation to
    the user.
  • Boundary describe startup, shutdown, and
    exceptional conditions.
  • Figs 3.18, 3.19, and 3.20, Pgs 102, 103, and 104.

Integration Test Plan
  • Very important in the incremental development
  • Integrates individual classes into a cluster
    (component), components into subsystems,
    subsystems into the system.
  • In most cases there is a need for test drivers
    and stubs.
  • Integration test provides information on the
    order of testing the individual classes,
    components, subsystems.

Integration Test Plan
  • Test cases span the parts of the system being
  • More complex and comprehensive than the typical
    unit test.
  • Format follows that of the system test plan (Fig.
    3.21 P. 105)

System Test Plan
  • Summarizes the individual use case test plans and
    provides information on additional types of
    testing .
  • Note that the most of the information provided by
    the IEEE test plan format have already been
    captured in the individual test plans.
Write a Comment
User Comments (0)
About PowerShow.com
