Title: Hydrologic and Hydraulic Models


1

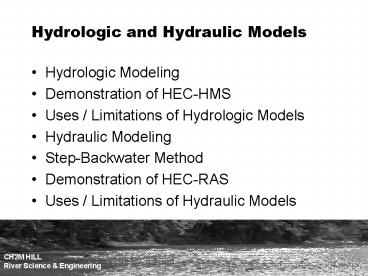

Hydrologic and Hydraulic Models
  • Hydrologic Modeling
  • Demonstration of HEC-HMS
  • Uses / Limitations of Hydrologic Models
  • Hydraulic Modeling
  • Step-Backwater Method
  • Demonstration of HEC-RAS
  • Uses / Limitations of Hydraulic Models

2
Hydrologic Modeling
  • Simulate the precipitation-runoff processes of
    dendritic watershed systems
  • Q f (cover, rainfall intensity, area)
  • Models simplify organization and management of
    complex basins

3
Hydrologic Model Uses
  • Water availability
  • Urban drainage
  • Flow forecasting
  • Impacts of urbanization
  • Reservoir spillway design
  • Flood damage reduction
  • Floodplain regulation

4
Hydrologic Model Uses
  • Landuse change hydrologic impacts
  • Water resources systems operation
  • Restoration studies

5
HEC-HMS
  • HEC-HMS USACE Hydrologic Engineering Center -
    Hydrologic Modeling System
  • Automates precipitation - runoff calculations
  • Organizes calculations for complex basins

6
HEC-HMS DEMO
  • Rancho Seco Powerplant Project
  • Objectives
  • Determine 100-year discharge with impervious area
    of new plant
  • Site Conditions

7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
HEC-HMS DEMO
  • Create basin model
  • Run basin model
  • Discuss model output

13
Hydrologic Model Limitations
  • Backwater effects
  • Floodplain storage
  • Interaction of channel slope and hydrograph
  • Configuration of flow networks
  • Subcritical and supercritical flow
  • Availability of data for calibration

14
Hydraulic Modeling
  • Simulate characteristics of flow through channels
    (or over floodplains)
  • Water Surface Elevation
  • Velocity
  • Sediment Transport
  • Most commonly applied models based on the step
    backwater method

15
Step Backwater Method
  • Balance energy between cross sections
  • EXS1 EXS2
  • Requires geometry and other attributes of both
    cross sections

16
Step Backwater Method
17
Step Backwater Method
  • HP1 HV1 HP2 HV2 Losses
  • or p rgh 1/2rV2 constant
  • HP2 (depth at initial XS) must be known
  • Using geometry and flow rate, calculate velocity
    at downstream XS and resulting velocity head
    (HV2) V2/2g
  • Guess water surface elevation of upstream XS (HP1)

18
Step Backwater Method
  • Compute velocity and velocity head (HV1) for
    upstream XS
  • Compute losses (friction and eddy)
  • Substitute into energy equation
  • Iterate until error is acceptable
  • Repeat for next upstream cross section

19
Step Backwater Method
  • Select cross sections to capture
  • Changes in flow rate
  • Changes in roughness
  • Changes in conveyance (geometry, slope)
  • Large distances

20
HEC-RAS
  • HEC-RAS USACE Hydrologic Engineering Center -
    River Analysis System
  • Automates step backwater method
  • Organizes complex channel calculations

21
HEC-RAS DEMO
  • Rancho Seco Powerplant Project
  • Objectives
  • Determine water surface elevations during
    100-year discharge
  • Determine velocity in channel and near proposed
    powerplant
  • Assess capacity of existing flood control
    infrastructure
  • Site Conditions

22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
HEC-RAS DEMO
  • Show network
  • Show cross sections
  • Run model
  • Discuss profile
  • Discuss 3D profile

31
HEC-RAS Uses
  • Flood studies
  • Channel alteration design
  • Encroachment studies
  • Stream restoration design
  • Bridge pier design
  • Culvert design
  • Scour investigations

32
HEC-RAS Limitations
  • 1-dimension only
  • Data required for calibration
  • Gauge data vs Normal depth
  • The depth at which flow is steady and hydraulic
    characteristics are uniform.
  • Tweakability
  • Calculations invisible

33
Other Hydraulic Models
  • 1-D
  • Mike-11 (Danish Hydraulic Institute)
  • WS-PRO, BRI-STARS (FHWA)
  • UNET (USACE)
  • 2-D
  • AquaDyn (Softkit Technologies)
  • Mike-21 (Danish Hydraulic Institute)
  • RMA-2 (USACE-WES)

34
Other Hydraulic Models
  • 3-D
  • UnTRIM
  • 2-D and 3-D costly, mostly used in research

35
Two Dimensional Hydraulic and Sediment Transport
Modeling
  • RMA-2 and SED2D
  • Calibrated using available information
  • Focused on in-channel flows (i.e. 45,000 cfs and
    below)
  • Velocities and shear stresses

36
Watershed Hydrology
  • Watershed includes LMR and East Fork LMR
  • Area 1,758 mi2
  • Reservoir regulation since 1975
  • Caesar Creek Lake and William H. Harsha Lake
    control 33 of watershed area
  • Reduced peak flows
  • Backwater vs downvalley floods

37
(No Transcript)
38
(No Transcript)
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
(No Transcript)
51
(No Transcript)
52
Useful urls
  • http//www.hec.usace.army.mil/
  • http//www.dhi.dk/
  • http//water.usgs.gov/software/wspro.html
  • http//www.fhwa.dot.gov/bridge/bristars.htm
