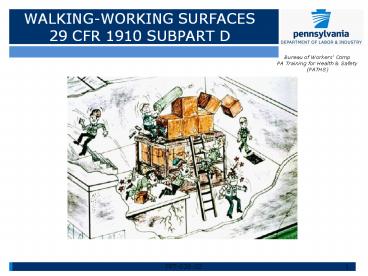

WALKING-WORKING SURFACES 29 CFR 1910 SUBPART D

1
WALKING-WORKING SURFACES29 CFR 1910 SUBPART D
Bureau of Workers Comp PA Training for Health
Safety (PATHS)
2
Introduction

• Slips, trips and falls cause
• The majority of general industry accidents
• 15 percent of all accidental deaths
• More fatalities than all other causes, except
  motor vehicles
• OSHAs standards for walking and working surfaces
  apply to all permanent places of employment,
  except where only domestic, mining or
  agricultural work is performed.

3
General RequirementsHousekeeping

• Workplaces must be kept clean, orderly
  and sanitary.
• Workroom floors must be maintained as clean
  and dry as possible.

4
General RequirementsAisles and Passageways

• Keep clear and move obstructions that could
  create a hazard.
• Mark permanent aisles and passageways.
• Aisles must be sufficiently wide where mechanical
  handling equipment is used.

5
General RequirementsCovers and Guardrails
Provide covers/guardrails to protect workers from
the hazards of open pits, tanks, vats, ditches,
etc.
6
General Requirements Skylight Floor
Opening

• Every skylight floor opening and hole shall be
  guarded by a standard skylight screen or a fixed
  standard railing on all exposed sides.

7
General Requirements Pit
Trapdoor Floor Opening

• Every pit and trapdoor floor opening,
  infrequently usedguarded by a floor opening
  cover of standard strength and construction.

• While the cover is not in place, the pit or trap
  opening must be constantly attended by someone or
  protected on all exposed sides by removable
  standard railings.

8
General RequirementsFloor Loading Protection

• Load ratings must be marked on plates and
  conspicuously posted.
• Do not exceed the load rating limit.

9
Floor Opening
An opening measuring 12 inches or more in its
least dimension in a floor, platform, pavement or
yard through which people may fall.
10
Guarding Floor OpeningsDefinitions

• Standard railing
• Consists of top rail, mid rail and posts
• Height from upper surface of top rail to floor
  level is 42 inches
• Mid rail height is 21 inches
• Standard toeboard
• - 4 inches high, with not more than ¼ inch
  clearance above the floor

11
Stairway Floor Openings
Must be guarded by a standard railing on all
exposed sides (except at entrance)
12
Ladderway Floor Openings

• Guard with a standard railing with toeboard on
  all exposed sides (except entrance).
• Guard the passage through the railing with a
  swinging gate or offset it to prevent someone
  from walking into the opening.

13
Floor Hole

• An opening measuring less than 12 but more than
  1 in its least dimension in a floor, platform,
  pavement or yard through which materials, but not
  persons, may fall.
• Every floor hole that people can accidentally
  walk into must be guarded by either
• a standard railing with toeboard or
• a cover

14
Wall Openings

• Opening at least 30 high and 18 wide, in a wall
  or partition, through which persons may fall.
• Wall openings from which there is a drop of more
  than 4 feet must be guarded.

15
Open-sided Floors and Platforms

• Open-sided floors or platforms 4 or more above
  adjacent floor or ground level must be guarded by
  a standard railing (or equivalent) on all open
  sides, except where there is an entrance to a
  ramp, stairway or fixed ladder.
• A toeboard is required when beneath the open
  sides
• persons can pass,
• there is moving machinery, or
• there is equipment where falling materials could
  create a hazard.

Unguarded Platform
16
Open-sided Floors, Walkways, Platforms and
Runways

• Regardless of height, a standard railing and
  toeboard must be used to guard
• open-sided floors
• - walkways
• - platforms, or
• - runways
• Above or adjacent to dangerous equipment,
  pickling or galvanizing tanks, degreasing units
  and similar hazards

17
Stairways
Flights of stairs with four or more risers must
have standard stair railings or handrails.
18
Fixed Industrial Stairs

• Treads must be slip resistant with uniform rise
  height and tread width
• Must be able to carry 5 times expected load
  minimum of 1,000 pounds
• Minimum width of 22

Violation here several steps bent and damaged,
no railings/handrails, tools on stairs
19
Portable Ladders

• Ladders used to gain access to a roof or other
  area must extend at least 3 above the point of
  support.
• Remove defective ladders from service and tag or
  mark Dangerous, Do Not Use
• Never use ladders in a horizontal position as
  scaffolds or work platforms.
• Never use metal ladders near electrical
  equipment.

Notice step ladder in use safer to use
straight ladder
20
Portable Wood Ladders

• Free from sharp edges, splinters, wear and decay
• Step ladders
• - Type I 3 to 20 (heavy duty use)
• - Type II 3 to 12 (medium duty)
• - Type III 3 to 6 (light duty)
• These have a metal spreader or locking device

21
Portable Wood ladders - Inspection 29
CFR 1910.25 (d)(1)(x)

• Regularly inspect ladders
• Those with defects should be withdrawn from
  service for repair or destruction
  and tagged or marked as "Dangerous, Do Not Use"

22
Portable Ladders

• Single/Straight ladder
• 30 feet or less
• Extension ladder
• 60 feet or less
• Painters ladder
• 12 feet or less

23
Care and Use of Ladders

• Ladders must be maintained in good condition
  at all times
• Joints must be tight
• Metal bearings of lock, wheels, pulleys, etc.,
  must be lubricated
• Frayed or badly worn rope must be replaced
• Safety feet and other auxiliary equipment must be
  in good condition
• Ladders must be inspected frequently

24
Ladders and Electricity

• Metal ladders conduct electricity be careful
  where they are located when in use
• Suggest metal ladders have a sign stating not
  for use around electricity or electrical lines

25
Ladder Angle Portable Rung and Cleat Ladders

• Use at angle where the horizontal distance from
  the top support to the foot of the ladder is ¼
  the working length of the ladder (length along
  ladder between the foot and top support)

26
Safe Use of Ladders

• Make sure the ladder is strong enough and long
• enough for the job.
• Carefully inspect the ladder before you use it.
• Place the ladder on a firm, level surface with
  its
• feet parallel to the wall it is resting
  against.
• Face the ladder when ascending or descending.

27
Safe Use of Ladders

• Ensure rungs are free from grease/oil.
• Always maintain 3 points of contact when
  ascending or descending.
• Never splice ladders together.

Employee is maintaining three points of contact
while working
28
Fixed Ladders

• Permanently attached to a structure,
  building or equipment
• Cages or wells are required if longer
  than 20 to a maximum unbroken length of 30
• Ladder safety devices may be used on tower, water
  tank and chimney ladders over 20 in unbroken
  length instead of cage protection

29
Safe Use of Ladders Any Safety
Issues Here?
Rail Bent
Rail Bent
Bracket Bent Shelf Missing
Bracket Bent Shelf Missing
30
ScaffoldingGeneral Requirements

• Must be capable of supporting four times the
  maximum intended load.
• Do not alter or move while in use.
• Protect workers on scaffolds from overhead
  hazards.
• If higher than 10, use guardrails, midrails and
  toeboards.
• Use wire mesh between the toeboard and guardrail
  if people work or pass underneath.
• Must be equipped with access ladder or
  equivalent.

31
Scaffolding

• Designed by qualified person and built loaded
  to design
• Footing or anchorage of scaffolds must be
  sound, rigid and capable of carrying the maximum
  intended load without displacement
• Must be capable of supporting at least 4
  times the maximum intended load

32
Any Problems Here?
Scaffolding unsafe no guardrails, not supported
or anchored properly, etc.
33
Summary

• Slips, trips and falls constitute the majority
  of general industry accidents.
• OSHAs standards for walking and working
  surfaces include requirements for guarding
  floor/wall openings and holes, housekeeping,
• industrial stairs and ladders.
• Maintaining proper clearance and aisle space
  helps to prevent accidents and injuries.
• Keeping working surfaces clean, dry and
  uncluttered can prevent many workplace accidents.

34
Remember

• A slip/trip/fall can occur in just one second,
  and that one second can change your life.
• Be careful, be safe and use common sense when it
  comes to maintaining and using walking and
  working surfaces.

35
Questions
