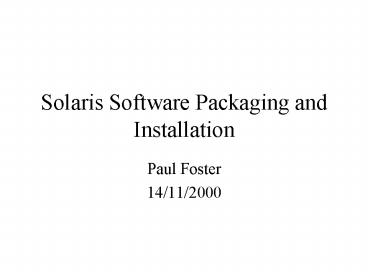

Solaris Software Packaging and Installation

1
Solaris Software Packaging and Installation

• Paul Foster
• 14/11/2000

2
Overview

• Solaris package mechanism related tools
• Building packages
• Preparing packages for burning on CD
• Sample Package

3
Seven Steps to a Package on CD

• Build Install Tree
• Build the pkginfo file
• Build the prototype file
• Write your post_install, pre_remove and request
  scripts
• Build the package
• Build an ISO Image using mkisofs
• Burn a CD using the ISO Image

4
Solaris Package Process
pkginfo
mkisofs
SourceFiles
Install Scripts
ISO Image
pkgmk
Package
Burn CD
prototype
pkgproto
CD Package
5
Key files in a package

• Key Files
• pkginfo general information about
  the package
• post_install runs after files are
  extracted
• pre_remove runs prior to software removal
• request prompts installer for
  extra information
• prototype description of files
  permissions
• 3 types of files
• -i installation files (/var/sadm/ltpkgnamegt)
• -f normal files
• -d directories

6
post_install/pre_remove/request

• Must be Bourne Shell Scripts (/bin/sh)
• Scripts run as root - so use explicit paths (e.g.
  /bin/rm)
• Make parts conditional ( if HPOV installed then
  do x,y,z)
• Save modified files in a safe place to aid
  re-installing
• Modifications to files use sed - especially for
  delete
• Small progress messages / Detailed error messages

• Request script can be used to read license keys,
  etc.
• Can place helper scripts in /var/sadm/ltpkgnamegt
  if desired
• Exit status of 0 indicates no errors

7
The pkginfo file

• Specifies
• name of the package (short long form)
• where to install package (e.g. /opt/pfp)
• revision information
• contact details

8
Run-time Environment Settings

• Exported variables are the settings from your
  pkginfo file
• BASEDIR/opt/pfp
• CLIENT_BASEDIR/opt/pfp
• DESCPauls Sample Package
• INSTDATENov 14 2000 0828
• INST_DATADIR/scratch1/tmp/paul/packaging/installa
  tion_package
• NAMEpfpEMS
• OAMBASE/usr/sadm/sysadm
• PKGpfp
• PKGINSTpfp
• PKGSAV/var/sadm/pkg/pfp/save
• PSTAMPpf200006161700
• TZAustralia/Queensland
• VERSION2.0,REV2000.6.23.12.00

9
Making a Prototype(pkgproto ltpathnamegt)

• i postinstall
• i preremove
• i request
• i pkginfo
• i preremove.sed
• d none bin 0755 bin bin
• f none bin/flex 0750 bin bin
• f none bin/lcc 0751 bin bin

10
Making a Package(pkgmk -o -d ltpathgt -f prototype
-r ltprototype treegt)

• Examplepkgmk -o -d ./installation_tree -f
  prototype -r ./prototype_tree
• installation_tree is the target package
  directory
• prototype describes how I want
  things installed
• prototype_tree is my source files copied
  from the build area

11
Installing our package(pkgadd -d ltdrivegt
ltpkgnamegt)

• bash /usr/sbin/pkgadd -d /scratch/tmp/paul/packag
  ing/installation_package pfp
• Processing package instance ltpfpgt from
  lt/scratch1/tmp/paul/packaging/installation_package
  gt
• pfpEMS
• (sparc) 2.0,REV2000.6.23.12.00
• CiTR Pty Ltd.
• The selected base directory lt/opt/pfpgt must exist
  before installation is attempted.
• Do you want this directory created now y,n,?,q
  y
• Using lt/opt/pfpgt as the package base directory.
• Processing package information.
• Processing system information.
• Verifying disk space requirements.
• Checking for conflicts with packages already
  installed.
• Checking for setuid/setgid programs.

12
Installing our Package (cont.)

• This package contains scripts which will be
  executed with super-user
• permission during the process of installing this
  package.
• Do you want to continue with the installation of
  ltpfpgt y,n,? y
• Installing pfpEMS as ltpfpgt
• Installing part 1 of 1.
• /opt/pfp/bin/flex
• /opt/pfp/bin/lcc
• verifying class ltnonegt
• Executing postinstall script.
• Installation of ltpfpgt was successful.

13
Information about our package(pkginfo -l -d
ltpathgt ltpkgnamegt)

• bash /usr/bin/pkginfo -l -d /cdrom/cdrom0 pfp
• PKGINST pfp
• NAME pfpEMS
• CATEGORY system
• ARCH sparc
• VERSION 2.0,REV2000.6.23.12.00
• BASEDIR /opt/pfp
• VENDOR CiTR Pty Ltd.
• DESC Pauls Sample Package
• PSTAMP pf200006161700
• HOTLINE Please contact your local system
  administrator.
• STATUS spooled
• FILES 8 spooled pathnames
• 1 directories
• 2 executables
• 5 package information files
• 1067 blocks used (approx)

14
Removing our package(pkgrm ltpkgnamegt)

• bash /usr/sbin/pkgrm pfp
• The following package is currently installed
• pfp pfpEMS
• (sparc) 2.0,REV2000.6.23.12.00

• Do you want to remove this package? y
• Removing installed package instance ltpfpgt
• This package contains scripts which will be
  executed with super-user
• permission during the process of removing this
  package.
• Do you want to continue with the removal of this
  package y,n,?,q y
• Verifying package dependencies.
• Processing package information.
• Executing preremove script.
• Removing pathnames in class ltnonegt
  (...Some stuff deleted...)
• Updating system information.
• Removal of ltpfpgt was successful.

15
/var/sadm/pkg

• Your pre_remove script lives here until the
  package is removed
• pkginfo file determines what gets put in here
• If your package fails to remove cleanly
• Hand cleanup
• Edit the pre_remove to exit 0 immediately
• Do the pkgrm

16
Burning the package onto a CD

• mkisofs - builds an ISO9660 file
  systeme.g.mkisofs -l -o /tmp/cd.iso -a -r -v -A
  ems ./installation_package
• Later versions (1.12) support a -J flag (Joilet
  support) and tools for verification of ISO images
• Newer versions are downloadable off the net.
• cd.iso suitable for burning onto a CD(Solaris
  readable by default, PC readable with -J flag)

17
A Working Example

• For a very simple fully integrated/automated
  example
• Build a prototype tree
• Builds a prototype
• Builds a package
• Builds an ISO file system
• Makefile to perform all tasks in correct order
• See /home/foster/tweek/solaris_package.tar.gz

18
Other Thoughts

• Alteration of Build Process to Instrument
  Binaries
• Simple code generation of build information
• Release Number, Build Description, Incremental
  Build No, etc.
• Doesnt depend on revision control strings
  embedded in binary (not everyone uses RCS/CVS)
• Manifest of installed binaries (e.g. TP414.1
  experience)
• Solaris JumpStart Mechanism
• Automated rebuilding of test machine (TV935.3
  experience)
