Title: Electronic Soft Starters for Marine


1

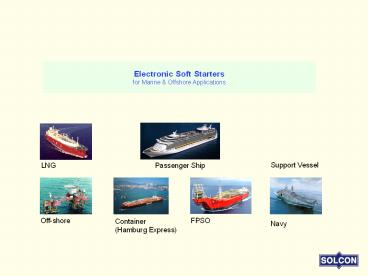

Electronic Soft Starters for Marine Offshore
Applications
2
About Solcon
  • Established in 1977, Solcon is designing,
    manufacturing and marketing soft starters,
    protection relays and control systems.
  • Solcon provides the worlds most comprehensive
    line of Low Voltage (LV) and Medium Voltage (MV)
    Soft Starters
  • 40,000 installations since 1977 in Industrial,
    Marine and Offshore Applications.

3
About Solcon
  • Assembly plants in Germany, Korea, Taiwan, USA
    and Canada. Worldwide Service centers.
  • Supplying to the largest electrical contractors
    and shipyards,
  • Solcon is the largest supplier of soft starters
    for the marine industry.

4
Soft Starters for Marine Offshore Applications
  • Solcon offers the most comprehensive line of soft
    starters
  • - LV SST up to 3MW / 1000V
  • - MV SST up to 50MW / 15KV
  • We offer
  • - Vast experience in Marine Offshore
    Applications (see Reference List)
  • - Special software to reduce inrush current
    voltage drop
  • - Heavy duty products, easy to install,
    friendly operation
  • - Marine Approvals
  • About 40 of our sales are to the Marine
    Offshore Industries
  • Solcon starters are used by major marine
    companies in Europe Asia
  • Service centers in many countries

5
M.V. Soft Starters HRVS-DN
  • The HRVS-DN MV Soft Starters
  • Comprehensive line 60 -2500A, 2300 -15000V
  • Designed for generator supply (Pgen / Pmotor
    1.6)
  • Low initial current ( 0.7In) and voltage drop
    (lt100V _at_6600V)
  • Advanced Motor Protection Package
  • Easy commissioning and maintenance, field
    testing with a L.V. motor
  • Patent pending - Wireless SCR Firing System
  • Patent pending Electronic Potential
    Transformer (EPT)
  • Fiber optic control
  • Meets Partial Discharge test requirements
  • Friendly operation, Multi Languages LCD -
    English, German, French, Spanish
  • Communication MODBUS, PROFIBUS and others
  • Chassis or cabinet type, various options are
    available

6
Starting Large Motors on board ships
  • Typical starting methods
  • Direct On Line (DOL)
  • Star-Delta
  • Autotransformer (ATS)
  • Electronic Soft Starters
  • Electronic Frequency Drives (VFD)
  • What is the optimum starting method for marine
    application ?

7
Direct On Line Starting (DOL)
Direct On Line Starting results in High Inrush
Current Mechanical Shock
  • The high inrush current can result in voltage
    drops
  • The high mechanical shock can result in damage to
    the motor, load and transmission system (gear,
    belt, etc.). It can also require frequent
    maintenance.

8
Star-Delta Starting
Two steps starting Y connected (58 Un),
transfer to Delta (100 Un)
  • Transfer to Delta by timer - open loop control,
    which may result in very high inrush current if
    transfer is done before motor reached close to
    full speed
  • Step angle of 30

9
Autotransformer Starting (ATS)
The inrush current of the transformer in an
Auto-transformer starter may be too quick for the
EVR to respond, resulting in a voltage drop
10
Reduced Voltage Starters (Soft Starters)
M/V Blue Marlin, converted by HHI. Electrical
Integrator Alstom. Application Starting 2
Thrusters (Lips) 4.5MW, 6.6KV Required Starting
from 2 (out of 3) generators 3.2MW each Customer
considered using VFD or Soft Starters.
11
Comparison Electronic SST vs. DOL
D.O.L
Soft-starter
Motor Current
Motor Torque
12
Safe Starting Stopping
  • Supervision of motor and load during acceleration
    and deceleration

Closed current loop motor condition is monitored
during starting running
13
Thyristor Arrangement 3.3 - 6.6KV
Thyristor circuits, Solid state, no moving parts
14
Thyristor Arrangement 10 - 15 KV
Thyristor circuits, Solid state, no moving parts
Solcon supplies soft starters for motors up to
50MW at 15KV
15
Soft starter Voltage Ramp-up
16
Soft starter Voltage Ramp-up
17
Soft starter Current Limit
18
Current Voltage during starting (MV)
Special software Limits initial current to 70
In Voltage drop lt10.
FPSO Fluminense - Load Gas Compressor -
Generator 21/28MW - Tested Motor 3.5MW -
Current Limit 3.7 x In - Starting Time 4.7 Sec.
19
Pump Starting D.O.L
The fast increase of speed results in fast change
of flow high pressure
20
Soft starter - Torque Control (Starting)
21
Soft Starters for Pump Starting
  • Special software for Pump Control, reducing
    hammering problems

22
Soft Starters Eliminating Voltage Drops
  • Electronic soft starters eliminate the inrush
    current voltage drop
  • Low initial current ( 0.7In) and voltage drop
    (lt100V _at_6600V)
  • Smooth voltage Ramp-up to full voltage
  • Designed for generator supply (Pgen / Pmotor
    1.6)

23
Soft Starters Reduced Maintenance
  • Electronic soft starters reduce starting torque
    mechanical shock
  • Smooth Acceleration Deceleration (extending
    systems life expectancy)

24
Advanced Motor Protection
The Soft starter provides ideal protection for
the motor the load
  • Start
    Run Soft Stop Stop
  • Too Many Starts - - -
  • Long Start Time (Stall) - - -
  • O/C Shear pin
  • Overload - - -
  • Under Current - - -
  • Under / No Voltage -
  • Over Voltage -
  • Phase Loss -
  • Phase Sequence -
  • Wrong Con/ Shorted SCR - -
  • Continues on next page

25
Advanced Motor Protection
  • Start
    Run Soft Stop Stop
  • Heat-sink Over temp. - -
  • External Fault 1 2
  • Unbalance Current -
  • Ground Fault Current. -
  • Power On no Start - - -
  • By-pass Open - - -

26
Soft Starters Ease of Communication
  • Full remote control - Start, stop, parameter
    settings and supervision
  • via Communication RS485 with MODBUS or PROFIBUS
    Protocols

27
MV Soft Starters up to 50MW, 15KV
2300- 6600V
10-15KV
28
Easy Operation
  • Easy adjustments for all applications, matching
    motor - load characteristics

29
When To Use Soft Starters
  • Summary
  • When starting current must be reduced to avoid
    voltage drops, due to the low ratio between motor
    / Generator power.
  • When starting torque must be reduced (mechanical
    problems)
  • When starting complicated mechanical loads
  • When starting sensitive loads
  • When starting high inertia loads (long starting
    time)
  • For frequent starting
  • Preventing over pressure and hammer effect in
    pump applications

30
Typical Applications on ships
Cargo Pumps (LNG), Ballast pumps ,Hydraulic pumps
(power packs)
31
Solcons MV Soft Starters HRVS-DN
  • Heavy duty design for Marine Off-shore
    Applications
  • Easy commissioning and operation, field testing
    with a L.V. motor
  • Comprehensive line 2300 -15000V up to 50MW
  • Advanced Motor Protection package
  • Communication MODBUS or PROFIBUS

32
Solcons MV Soft Starters HRVS-DN
  • Patent pending - Wireless SCR Firing System (no
    wires in the power section)
  • Patent pending Electronic Potential Transformer
    (EPT)
  • Fiber optic control
  • Meets Partial Discharge test requirements
  • Chassis or cabinet type, various options are
    available

33
Available Ratings
  • Voltages groups
  • 2300, 3300, 4160V
  • 5500, 6000, 6600V
  • 10000, 11000V
  • 13,800, 15000V

34
Construction
35
Medium Voltage Section
36
Medium Voltage Block Diagram
37
Low Voltage Section
38
Control Module
Option cards
Fiber optic board
1. Analogue board (Analogue output related to
motors current) 2. Relay Card, installed for
synchronous motors and optional communication
option.
µP
3. Communication Board, RS 485
Power Supply Board
39
Mechanical Construction 6600V lt600A
40
Medium Voltage Soft Starters HRVS-DN
  • LED LCD
  • LEDs for quick status display
  • LCD Illuminated, with 2 lines, 16 characters
    each,
  • Language selection English, French, German
    Spanish
  • Six keys, factory default parameters

41
Control Wiring
42
FPSO
Courtesy Jurong Shipyard
Vessel Fluminense Operator Shell Electrical
contractor Siemens Marine Location Bijupira oil
field near Brazilian coast 3 x 6.6KV, 400A Soft
Starters for Compressors 3 x 6.6KV, 400A Soft
Starters for Water Injection Pumps 1 x 6.6KV,
400A Soft Starter for Emergency Fire Pump Ship
Owner Shell
43
FPSO - Fluminense
44
FPSO
Vessel Modec venture 11 Customer SANTOS
(Australia) Main Contractor MODEC
(Japan) Electrical contractor Terasaki
(Japan) Shipyard Jurong (Singapore)
Soft-Starters 3 x Water Injection Pumps
(11KV/250A) 3 x Gas Compressors (6.6KV/250A) 1 x
Hot Oil Pump (6.6KV/140A) Ship Owner Modec
45
FPSO
Vessel Berge-helena Customer Bergessen, Norway
Soft-Starters 3 x Water Injection Pumps
(11KV/250A) Ship Owner Bergessen
46
FPSO
Vessel Petrojarl 1 First FPSO concept for
PGS Electrical system Stadt Norway
(ABB) Water Injection Pump 6600V, 1.8 MW Ship
Owner PGS (Petroleum Geo Services)
47
FPSO
  • FPSO Petrojarl II - Foinhaven
  • Electrical Contractor Siemens Norway
  • Water Injection Pumps (11KV/350A)
  • Ship Owner PGS (Petroleum Geo Services)

48
FPSO
Vessel Bunga Kerta Electrical contractor
Terasaki Shipyards MISC, Malaysia Nishishiba
Pumps 2 speed motor at 6.6KV, 35A and 140A
49
FPSO
Main Contractor Samsung Heavy Industries,
Supplied through ABB Marine, Norway (Similar
supplied to Daewoo Hyundai shipyards through
Terasaki and CA). LNG Cargo Pumps Compressor,
6.6KV, 70A and 140A Multi-start - 2 soft
starters, each starting 5 motors Ship Owner
Woodside
50
FPSO
Main Contractor SBM Monaco Application KUITO
FPSO (Angola) - Water Injection Pump ABB Motor -
6.6KV, 144A, 1.5MW
51
Multi-Start (Solcon, first to introduce
Multi-start method)
LB1 (Bypass)
LB2 (Bypass)
LB3 (Bypass)
SST
L1 (Line)
L2 (Line)
L3 (Line)
M1
M2
M3
Motor Protection Relay
Configurations 2-4 (5) motors, with/without
bypass, PLC or Relays, etc.
52
Multi-Start (Solcon, first to introduce
Multi-start method)
Disconnect
Disconnect
Disconnect
Motor Fuses
Motor Fuses
Motor Fuses
LB2 (Bypass)
LB3 (Bypass)
LB1 (Bypass)
SST
L1 (Line)
L2 (Line)
L3 (Line)
M1
M2
M3
Motor Protection Relay
Configurations 2-4 (5) motors, with/without
bypass, PLC or Relays, etc.
53
Support Vessels
M/S Blue Marlin WARTSILA / LIPS extendable
thruster Electrical Contractor HHI 2 x 6600V,
4.5MW Retractable Thruster Ship Owner Dockwise
Shipping B.V., Netherlands
54
Offshore Platform
Helder A Platform, North Sea, six MV SST are
installed and operating Customer UNOCAL 76
(United Oil of California) Special requirements
Dual voltage at 2.3 3.3KV and Max. cabinet
height - 1.5 meter Platform Owner Shell
(Previously UNOCAL 76)
55
Offshore Platform
Current signal phase 1 while starting the
compressor (5 sec)
Place ONGC MPS INDIA (Oil Natural Gas
Corporation of India, Mumbai South
Platform) Location 160Km from Bombay Main
Contractor Hyundai Heavy Industries Electrical
Contractor CA Motor TEMIC (ToshibaMitsubishi
) 11,000V, 232A, 3.8MW, 1480RPM, 50Hz Load
Centrifugal Booster Gas Compressor with "Step
Up" gear 9300RPM. Generators Two
11000V,630A,12000KVA, 9600KW generators One
11000V,252A,5000KVA,4000KW generator
ONGC MPS INDIA before the expansion
56
Dredger Ship
Dredger Ship - picture shown for reference only
Main Contractor A Dutch Shipyard Electrical
Contractor - Siemens Holland 2 x HRVS-DN 6600V,
300A (Dredge Pumps) Ship Owner IADC Penta-Ocean
Construction Co., Ltd
57
Unmanned Underwater Crawler
  • Driving a hydraulic pump motor for Oil and Gas
    fields, development

Application Underwater Crawler Hydraulic
drilling pump motor Starter Supplier Emko Kimo
India 1 x HRVS-DN 3000V, 23A, 80KW (hydraulic
Power Pack) Starting Conditions - 7.6 x In
(175A), 3000 RPM Motor, 255NM Crawler
Manufacturer THEIS Brandschutztechnik Gmbh,
Siegen, Germany
58
Floating crane of ZPMC 7000 Tons
  • Main Contractor Shanghai Zhenhua Port Machinery
    CO.,LTD.
  • Customer Shanghai Salvage Bureau of The Ministry
    of Communication PRC
  • 7000T Floating crane of ZPMC, Thruster
  • Multi-start - 2 soft starters, 6.3KV, 250A

59
Floating crane of ZPMC 4000 Tons
Main Contractor 711 Institute of
Shanghai Customer Guangzhou Salvage Bureau of
The Ministry of Communication PRC supplied to
JingJiang Eastern Shipyard 4000T Floating crane
of ZPMC, Thruster Multi-start - 3 soft starters
6.0KV, 250A
60
Main Propulsion
Largest in the world 11MW Main Propulsion
soft-starters
Passenger Vessel BC Ferries C-Class type
ferries Project Contractor Flensburger
Schiffbau, Germany Integrator - SAM Germany
Motor type - 6 x 11MW at 6.6KV, Main Propulsion,
2 per Ferry Ship Owner BC Ferries
61
Passenger Ship - Bow Thruster
Passenger Ship Genesis with 6,400 Passengers
capacity Project Contractor Motor type - 11KV
at 5MW, Bow Thruster Ship Owner Royal Caribbean
62
LV Soft Starters up to 3MW, 1000V
63
RVS-DN Approvals
64
Autotransformer Starting Voltage Drop
65
Passenger Ship Bow Thruster
Soft Starter for the Moby-Wonder Bow
Thruster Ship Owner Moby Lines
66
Passenger Ship - Refrigeration Compressors
Passenger Ship Cilja Lines, 20 different
installations Project Contractor - York Sweden
Electrical Contractor - Electromontage Motor
type - 450KW Chillers Ship Owner Cilja Lines
67
Passenger Ferry Bow Thruster
Blue Star Paros, 2 starters 690V, 1800A -
Thrusters 4 starters 690V, 820A - AC
Chillers Ship Owner Blue Star Maritime S.A.
68
Container Carrier
M/S Hamburg Express Ballast pumps 9 x 580A RVS-DN
starters, 440V Ship Owner Hapag Lloyd
69
Seismic Research Vessels
BGP-Pioneer Bow Thruster at 0.5MW / 440V Ship
Owner TGS
70
Support Vessels
MV Lochnagar Ulstein for Petro Bras Croatian
Shipyard Bow Thruster at 1.8MW / 690V
71
Buoy Tanker Platform Storage
Ship Name - Navion Hispania Ship Type - Buoy
tanker platform with storage tank for loading and
offloading Application - bow Thruster 690V,
2400A Electrical Contractor - Aker Norway
Power section in the rear part Control module in
the front part
72
Coal Carrier Caribbean Islands
Ship Name Gdansk Nassau Ship Type Coal
Carrier Application - bow Thruster 690V,
2150A Electrical Contractor - ABB
RVS-DN 2150 bow thruster
73
Support Vessels
  • Vessel Name - MV Botnica
  • Main Contractor Aker Finnyards
  • Sub Contractor Ulstein Norway
  • Motor type - 4 x Hydraulic Power Packs, each
    450KW (for crane)

74
Support Vessels
  • MV Northern Eagle
  • Sabroe Refrigeration Compressors,
  • 440V, 220KW

75
Support Vessels
  • MS Syklus
  • Hydraulic Stern Thrusters 220KW

76
Private Yachts
  • MS Leinebris
  • Ulstein Bow Thruster 110KW

77
Three Italian LNG Carriers
  • WMO shipyard (Jotland - Denmark)
  • 3 Vessels at 3 x 220KW LNG Pumps per vessel

78
Seismic Research Main Propulsion
  • CGG FOHN
  • Shipyard La-Spezia (Italy)
  • Schottel 360 Azimuth Main Propulsion
  • 2 x 1.1MW

79
Offshore Platform
  • Pemex (Petroleum of Mexico)
  • Pol-Chuc platform, Dos-Bocas
  • 6 water injection pumps 480V, 300HP
  • Platform Owner PEMEX

80
AKAL-J Mexico
6 x Crude oil and Gas pumps (480V/390A)
81
Oil Gas
Pemex (Petroleum of Mexico) Abkatun-A platform,
Dos-Bocas location, 3 air-compressors 480,
200HP Platform Owner PEMEX
82
Unmanned Underwater ROV (Remote Operated Vehicle)
  • 1 x RVS-DX Driving a hydraulic power pack for the
    Explorer 4 robotic arm

83
M/S Seaway Commander
  • 12 x RVS-DN Driving a medium voltage transformer
    440-3300V

12 Units for special Application to Stolt
84
Naval Application
Italian Aircraft Carrier Cavour All auxiliary
motors of the gas turbines Shock tested for 100G
85
Naval Application
Italian / French Navies 4 x AAW class Horizon
Frigates 16 Auxiliary motors of the gas turbines
60-132KW / 440V Tested For 200G MILC 2210
specificatiuon
Test Certificates
86
SEM-N for Naval Applications
  • MIL-Spec tests included
  • - Temperature cycle
  • - Mechanical shock
  • - Vibration
  • - Humidity condensation
  • - Salt mist

87
Motor Protection Marine and Offshore - DGF
  • MPR-6 DGF (Directional Ground Fault)

MCC by Terasaki (Japan)
88
Motor Protection Marine and Offshore
LNG FINIMA 8 Protection Relays
89
Thank you
About PowerShow.com
