Title: Edexcel organic reaction mechanisms

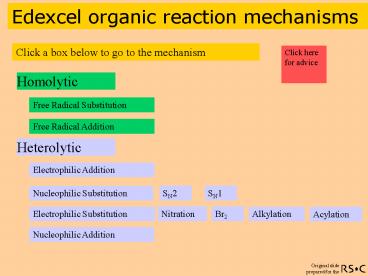

1
Edexcel organic reaction mechanisms
Click a box below to go to the mechanism
Click here for advice
Homolytic
Free Radical Substitution
Free Radical Addition
Heterolytic
Electrophilic Addition
SN1
SN2
Nucleophilic Substitution
Electrophilic Substitution
Alkylation
Nitration
Br2
Acylation
Nucleophilic Addition
2
Free radical substitution
chlorination of methane
i.e. homolytic breaking of covalent bonds
Overall reaction equation
CH4 Cl2
CH3Cl HCl
Conditions
ultra violet light
excess methane
to reduce further substitution
3
Free radical substitution mechanism
ultra-violet
initiation step
two propagation steps
termination step
minor termination step
4
Further free radical substitutions
Overall reaction equations
CH3Cl Cl2
CH2Cl2 HCl
CH2Cl2 Cl2
CHCl3 HCl
CHCl3 Cl2
CCl4 HCl
Conditions
ultra-violet light
excess chlorine
5
Free radical addition
addition polymerisation of ethene
i.e. homolytic breaking of covalent bonds
Overall reaction equation
n H2CCH2
polyethene
ethene
Conditions
free radical source
(a species that generates free radicals that
allow the polymerisation of ethene molecules)
6
Free radical addition mechanism
initiation step
chain propagation steps
Addition of H2CCH2 repeats the same way until
termination step
polyethene
7
Electrophilic addition
bromine with propene
mechanism
CH3CHCH2
Br2
CH3CHBrCH2Br
1,2-dibromopropane
hydrogen bromide with but-2-ene
mechanism
CH3CHCHCH3
HBr
CH3CH2CHBrCH3
2-bromobutane
8
bromine with propene
Electrophilic addition mechanism
reaction equation
carbocation
1,2-dibromopropane
9
hydrogen bromide with trans but-2-ene
Electrophilic addition mechanism
reaction equation
carbocation
2-bromobutane
10
Nucleophilic substitution
hydroxide ion with bromoethane
mechanism
CH3CH2Br
OH-
CH3CH2OH Br-
(aqueous)
ethanol
hydroxide ion with 2-bromo,2-methylpropane
mechanism
(CH3)3CBr
OH-
(CH3)3COH Br-
(aqueous)
2-methylpropan-2-ol
11
hydroxide ion with bromoethane (SN2)
Nucleophilic substitution mechanism
ethanol
SN2
reaction equation
2(species reacting in the slowest step)
S (substitution)
N(nucleophilic)
12
OH- ion with 2-bromo,2-methylpropane (SN1)
Nucleophilic substitution mechanism
2-methylpropan-2-ol
SN1
reaction equation
1(species reactingin the slowest step)
S (substitution)
N(nucleophilic)
13
Nucleophilic substitution
cyanide ion with iodoethane
mechanism
CH3CH2I (ethanol)
CN-(aq)
CH3CH2CN I-
propanenitrile
cyanide ion with 2-bromo,2-methylpropane
mechanism
(CH3)3CBr
(ethanol) CN-
(aqueous)
(CH3)3CCN Br-
2,2-dimethylpropanenitrile
14
cyanide ion with iodoethane (SN2)
Nucleophilic substitution mechanism
propanenitrile
SN2
2(species reacting in the slowest step)
S (substitution)
N(nucleophilic)
reaction equation
15
CN- ion with 2-bromo,2-methylpropane (SN1)
Nucleophilic substitution mechanism
SN1
2,2-dimethylpropanenitrile
1(species reactingin the slowest step)
S (substitution)
N(nucleophilic)
reaction equation
