Title: Instruction-Level Parallelism


1

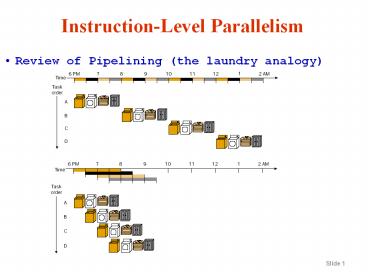

Instruction-Level Parallelism
  • Review of Pipelining (the laundry analogy)

2
Instruction-Level Parallelism
  • Review of Pipelining (Appendix A)

3
Instruction-Level Parallelism
  • Review of Pipelining (Appendix A)
  • MIPS pipeline five stages
  • IF instruction fetch
  • ID instruction decoding and operands fetch
  • EX execution using ALU, including effective
    address and target address computing
  • MEM accessing memory for L S instructions
  • WB write result back to (destination) register

4
  • The naïve MIPS pipeline

5
Instruction-Level Parallelism
  • The naïve MIPS pipeline -- implementation

6
Instruction-Level Parallelism
  • A series of datapaths shifted in time

7
Instruction-Level Parallelism
  • A pipeline showing the pipeline registers between
    stages

8
The major hurdles of pipelining pipeline hazards
  • Structural Hazards resource conflicts, such as
    bus, register file ports, memory ports, etc.

9
The major hurdles of pipelining pipeline hazards
  • Data Hazards data dependency (producer-consumer
    relationship, or read after write). Some can be
    resolved by forwarding

10
The major hurdles of pipelining pipeline hazards
  • Data Hazards data hazards detection in MIPS
    pipeline

11
The major hurdles of pipelining pipeline hazards
  • Data Hazards the logic for forwarding of data in
    MIPS pipeline

12
The major hurdles of pipelining pipeline hazards
  • Data Hazards the forwarding of data in MIPS
    pipeline

13
The major hurdles of pipelining pipeline hazards
  • Data Hazards Some cannot be resolved by
    forwarding, thus requiring stalls

14
The major hurdles of pipelining pipeline hazards
  • Data Hazards Avoid non-forwardable data hazards
    through compiler scheduling

15
The major hurdles of pipelining pipeline hazards
  • Branch (Control) Hazards can cause greater
    performance loss (e.g., a 3-cycle loss in the
    naïve MIPS pipeline)

16
The major hurdles of pipelining pipeline hazards
  • Branch (Control) Hazards improved MIPS pipelined
    with one-cycle loss

17
The major hurdles of pipelining pipeline hazards
  • Reducing branch penalties
  • Freeze or Flussh
  • Predict-not-taken or Predict-taken
  • Delayed Branch
  • Branch instruction
  • Sequential successor
  • Branch target if taken
  • Canceling/nullifying
  • Branch if prediction
  • incorrect

18
The major hurdles of pipelining pipeline hazards
  • Scheduling the branch delay slot

19
Performance of Pipelining
  • Example 1
  • Consider an unpipelined machine A and a pipelined
    machine B where CCTA 10ns, CPI(A)ALU CPI(A)Br
    4, CPI(A)l/s 5, CCTB 11ns. Assuming an
    instruction mix of 40 for ALU, 20 for branches,
    and 40 for l/s, what is the speedup of B over A
    under ideal conditions?

20
Performance of Pipelining
  • Impacts of pipeline hazards

21
Performance of Pipelining
  • Performance of branch schemes
  • Overall costs of a variety of branch schemes
    with the MIPS pipeline

22
Performance of Pipelining
  • Example 2 For a deeper pipeline such as that in
    a MIPS R4000, it takes three pipeline stages
    before the target-address is known and an
    additional stage before the condition is
    evaluated. This leads to the branch penalties for
    the three simplest branch schemes listed below
  • Find the effective addition to the CPI arising
    from branches for this pipeline, assuming that
    unconditional, untaken conditional, and taken
    conditional branches account for 4, 6, and 10,
    respectively.
  • Answer

23
What Makes Pipelining Hard to Implement?
  • Exceptional conditions (e.g., interrupts, etc)
    often change the order of instruction execution

24
What Makes Pipelining Hard to Implement?
  • Actions needed for different types of exceptional
    conditions

25
What Makes Pipelining Hard to Implement?
  • Stopping and Restarting Execution Two Challenges

26
What Makes Pipelining Hard to Implement?
  • Stopping and Restarting Execution Two Challenges
    (contd)

27
What Makes Pipelining Hard to Implement?
  • Precise Exception Handling in MIPS

Pipeline Stage Problem exceptions occurring
IF Page fault on instruction fetch misaligned memory access memory protection violation
ID Undefined or illegal opcode
EX Arithmetic exception
MEM Page fault on data fetch misaligned memory access memory-protection violation
WB None
28
What Makes Pipelining Hard to Implement?
  • Precise Exception Handling in MIPS

29
Extending MIPS Pipeline to Handle Multicycle
Operations
  • Handle floating point operations single cycle
    (CPI1) ? very long CCT or highly complex logic
    circuit
  • Multiple cycle ?long latency with EX cycle
    repeated many times and/or with multiple PF
    function units
  • The MIPS pipeline with three additional
    unpipelined, floating point units

30
Extending MIPS Pipeline to Handle Multicycle
Operations
  • Pipelining FP functional units
  • Latency number of intervening cycles between the
    producer and the consumer of an operand -- 0 for
    ALU and 1 for LW
  • Initiation interval number of minimum cycles
    between two issues of instructions using the same
    functional unit.

F. Unit Int. ALU Data Mem FP Add Multiply Divide
Latency 0 1 3 6 24
Init. Interval 1 1 1 1 25
31
Extending MIPS Pipeline to Handle Multicycle
Operations
  • Pipeline timing of a set of independent FP
    instructions
  • A typical FP code sequence showing the stalls
    arising from RAW hazards
  • Three instructions want to perform a write back
    to the FP register simultaneously

MUL.D IF ID M1 M2 M3 M4 M5 M6 M7 MEM WB
ADD.D IF ID A1 A2 A3 A4 MEM WB
L.D IF ID EX MEM WB
S.D IF ID EX MEM WB
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
L.D. F4,0(R2) IF ID EX MM WB
MUL.D F0,F4,F6 IF ID Stall M1 M2 M3 M4 M5 M6 M7 MM WB
ADD.D F2,F0,F8 IF Stl ID Stl Stl Stl Stl Stl Stl A1 A2 A3 A4 MM WB
S.D. F2,0(R2) IF Stl Stl Stl Stl Stl Stl ID EX Stl Stl Stl MM
1 2 3 4 5 6 7 8 9 10 11
MUL.D F0, F4, F6 IF ID M1 M2 M3 M4 M5 M6 M7 MEM WB
IF ID EX MEM WB
IF ID EX MEM WB
ADD.D F2, F4, F6 IF ID A1 A2 A3 A4 MEM WB
IF ID EX MEM WB
IF ID EX MEM WB
L.D. F2, 0(R2) IF ID EX MEM WB
32
Extending MIPS Pipeline to Handle Multicycle
Operations
  • Difficulties in exploiting ILP various hazards
    that impose dependency among instructions, as a
    result
  • RAW(read after write) j tries to read a source
    before i writes to it
  • WAW(write after write) j tries to write an
    operand before it is written by i
  • WAR(write after read) j tries to write a
    destination before it is read by
  • Implementing pipeline in FP hazards and
    forwarding in longer latency pipelines
  • Divide not fully pipelined (structural hazard)
  • Multiple writes in a cycle and arrive at WB
    variably,WAW and structural hazards. Would there
    be WAR?
  • Out-of-order completion of instructions ? more
    problems for exception handling
  • Higher RAW frequency and longer stalls due to
    longer latency

33
Extending MIPS Pipeline to Handle Multicycle
Operations
  • Introduce interlock
  • tracking the use of write port at ID and stalling
    issue if detected
  • use shift register for tracking issued
    instructions' use of write port
  • stall when entering MEM
  • can stall any of the contending instructions,
  • no need to detect conflict early when is it
    harder to see,
  • give priority to the unit with the longest
    latency,
  • can cause bottleneck stalling
  • WAW occurs if LD is issued one cycle earlier and
    has F2 as destination (WAW with ADDD) Solution
  • delay issuing LD until ADDD enters MEM, or,
  • stamp out result of ADD
  • Hazard detection with FP pipeline
  • check for structural hazards a. functional
    units, b. write ports
  • check for RAW hazard source reg. in ID dest.
    reg. (issued)
  • check for WAW hazard dest reg. in ID dest.
    reg. (issued)

34
Extending MIPS Pipeline to Handle Multicycle
Operations
  • Maintain precise exception
  • Example of out-of-order completion
  • DIVF F0, F2, F3 exception of
    SUBF at end of ADDF
  • ADDF F10, F10, F8 cause imprecise
    exception which
  • SUBF F12, F12, F14 cannot be solved
    by HW/SW
  • Solutions
  • Fast imprecise (tolerable in 60's 70s, but much
    less so now due to pipelined FP, virtual memory,
    and IEEE standard) or slow precise
  • Buffering of result until all predecessors
    finish
  • the bigger the difference among instruction
    execution lengths, the more expensive to
    implement (e.g., large number of comparators and
    MUXs and large amount of buffer space)
  • history file keeps track of register values
  • future file keeps newer values of registers
    until all predecessors are completed
  • Quasi-precise exception keep enough information
    for trap-handling routine to create a precise
    sequence for exception
  • operations in the pipeline and their PCs
  • software finishes all instructions issued prior
    to the latest completed instruction
  • Guarded issuing issue only if it is certain that
    all prior instructions will complete without
    causing an exception
  • stalling to maintain precise exception

35
The MIPS R4000 Pipeline
  • R4000 pipeline leads to a 2-cycle load delay

36
The MIPS R4000 Pipeline
  • R4000 pipeline leads to a 3-cycle basic branch
    delay since the condition evaluation is performed
    during the EX stage

37
Dynamic Scheduling with Scoreboard
  • Dynamic Scheduling hardware re-arranges the
    instruction execution order to reduce stalls
  • handles situations where dependences are unknown
    or difficult to detect at compile time, thus
    simplifying the compiler design
  • increases portability of the compiled code
  • solves problems associated with the so-called
    head-of-the-queue (HOTQ) blocking caused by
    in-order issue of earlier pipelines. Example
  • MIPS, which is in-order issue, can be made to
    out-of-order execute (implying out-of-order
    completion) by splitting ID into two phases (1)
    In-order Issue check for structural hazards. (2)
    Read operands wait until no data hazards, then
    read operands (and then execute, possibly
    out-of-order!). The HOTQ problem above can be
    solved in this new MIPS!

38
Dynamic Scheduling with Scoreboard
39
Dynamic Scheduling with Scoreboard
40
Dynamic Scheduling with Scoreboard
41
Dynamic Scheduling with Scoreboard
42
Dynamic Scheduling with Scoreboard
43
Dynamic Scheduling with Scoreboard
44
Dynamic Scheduling with Scoreboard
45
Unpipelined Processor (MIPS)
46
Pipelined Processor (MIPS)
47
The Eight-stage Pipeline of the R4000
48
A 2-cycle Load Delay of The R4000 Integer Pipeline
