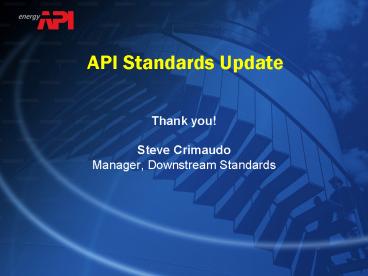

Title: API Standards Update


1
API Standards Update
  • Thank you!
  • Steve Crimaudo
  • Manager, Downstream Standards

2
API Tank Standards Update
  • From API Petroleum Facts At A Glance
  • January 2013 release
  • U.S. deliveries from primary storage of motor
    gasoline in January 2013 8,384,000 b/d (January
    2012 8,187,000 b/d). API
  • U.S. deliveries from primary storage of
    distillate fuel oil (home heating and diesel) in
    January 2013 3,595,000 b/d (January 2012
    3,823,000 b/d). API
  • www.api.org - Publications Standards
    Statistics

3
API Tank Standards Update
  • From API Petroleum Facts At A Glance
  • January 2013 release
  • Total petroleum products delivered to the
    domestic market in January 2013 17,962,000 b/d
    (January 2012 18,280,000 b/d). API
  • Note Previous months data is published by API
    on the third Thursday of each month.
  • www.api.org - Publications Standards
    Statistics

4
API History
  • 1919 API founded as non-profit national trade
    association, New York City
  • 1980s API relocates to Washington, DC
  • 1995 API Dallas Standards Office relocates to
    Washington, DC
  • 2007 Opened first of 3 planned international
    offices in Beijing, China
  • 2011 Singapore and Dubai, UAE offices opened

5
Background on API Standards Program
  • The API Standardization Department was formed in
    1923, with the first API standard published the
    following year on drilling threads.
  • All industry segments now active in
    standardization
  • Exploration and Production
  • Pipeline Transportation
  • Refining
  • Marketing

6
API Standards
  • API now publishes more than 600 technical
    standards covering all aspects of the oil and
    natural gas industry
  • Foundation of Self Supporting Programs
  • Basis for Worldwide Operations
  • Core of Institutes Technical Authority

7
Standards Development Process
  • The API Standards program is accredited by the
    American National Standards Institute (ANSI)
    the program was reaccredited by ANSI in Oct. 2011
    following a 2010 audit. - Openness, Balance,
    Consensus, Due Process - Regular program audits
    (conducted by ANSI)
  • Transparent process (anyone can comment on any
    document in process) - All comments must be
    considered

8
Standards Development Process
  • Developed by consensus (does not mean unanimity)
  • Committee balance between users/owner operators,
    manufacturers and contractors/consultants
  • Standards developed using ANSI approved API
    Standards Development Procedures (available
    on-line at www.api.org)
  • API corporate membership is not a requirement for
    participation on API standardization committees.
  • Support from your management to participate is.

9
Use of API Standards
  • De facto international standards
  • Adoption by reference common by State and Federal
    agencies BSEE, USCG, DOT, OSHA and EPA
  • API does not promote adoption - prefer voluntary
    use
  • Written for flexibility as performance based
    documents

10
API Standards Committee Structure
Committee on Standardization of Oilfield
Equipment Materials
Committee on Petroleum Measurement
Committee on Refinery Equipment
  • Marketing/Aviation
  • Pipeline Transportation
  • Safety Fire Protection

To support the Standards there are Certification
programs API Monogram Program, Individual
Certification Programs and others, www.api.org
- Certification Programs
11
AST Standards
  • API publishes over 70 standards, recommended
    practices, and bulletins covering various aspects
    of tank operations
  • Design Construction
  • Inspection
  • Measurement and emissions
  • Safety Fire Protection - Safe Entry, Overfill
    Protection
  • Environmental - Leak detection, Release
    Prevention, Emissions
  • For committee access
  • mycommittees.api.org/standards/cre/scast/default.a
    spx
  • Next Standards meeting April 22 25, 2013
  • www.api.org/events-and-training/calendar-of-events
    .aspx

12
AST Standards - History
  • From 653 - Annex A Background on Past Editions
    of API Welded Storage Tank Standards
  • API published a specification for welded steel
    storage tanks in July 1936 entitled API Standard
    12C, All-Welded Oil Storage Tanks. Fifteen
    editions and seven supplements to API 12C were
    published between 1936 and 1958.
  • API 12C was replaced by API Standard 650, Welded
    Tanks for Oil Storage in December 1961 11
    editions and 22 supplements, revisions or addenda
    to API 650 have been issued since.

13
Design Construction
  • API 620, Design and Construction of Large,
    Welded, Low-Pressure Storage Tanks
  • Designed for metal temperatures not greater than
    250F and with pressures in their gas or vapor
    spaces not more than 15 lbf/in. sq. gauge
  • Appendix Q covers liquefied gases at temperatures
    not lower than 325F
  • Appendix R covers refrigerated products at
    temperatures from 40F to 60F

14
Current Edition of API 620
  • Addendum 3 to the 11th Edition was published
    March 2012
  • The 12th Edition is currently being worked

15
Approved Changes to API 620Fall 2012 - 1
  • 620-RQREF
  • (625-038 as Balloted) API 620 Q R Reference
    to API 625
  • Purpose Clarify that API 620 Q or R requires
    the rules of API 625 for the associated tank
    system.
  • 620-310 Clarify Product Temp. Material
    requirements for Pipe in App. R
  • Purpose Clarify the status of pipe and other
    A333 seamless.

16
Approved Changes to API 620 Fall 2012 - 2
  • 620-311 Consider the use of ASTM A844 Plate
  • Purpose Inclusion of ASTM A844 as an
    alternative to A553 for 9 nickel steel.
  • 620-329 Edit R.5.5 to include magnetic-particle
    testing for carbon steel.
  • Purpose To allow the use of magnetic-particle
    testing when carbon steels are used in
    Appendix R tanks in accordance with R.5.5.

17
API Standard 625 - Tank Systems for Refrigerated,
Liquified Gas Storage
  • API 625 is a new standard for refrigerated tank
    systems
  • Integrates the three related standards - API
    625, API 620 and ACI 376
  • Brings American standards up to date with
    coverage of the single, double and full
    containment concepts

18
API Standard 625 - Tank Systems for Refrigerated,
Liquified Gas Storage
  • API 625 and the revisions to API 620 were worked
    by the Refrigerated Tank Task Group (RTTG) for
    several years.
  • API 625, Tank Systems for Refrigerated Liquefied
    Gas Storage 1st Edition was published August
    2010
  • Addendum 1 to the 1st Edition is currently being
    worked.

19
Approved Changes to API 625Fall 2012 - 1
  • 625-039 Full Containment Tanks With Nozzles
  • Purpose Move special case of Full or Double
    Containment tanks with nozzles below the
    liquid level to the standard section defining
    tank types.

20
Tank Design Construction
  • API 650, Welded Tanks for Oil Storage
  • Primary construction code for refinery and
    storage terminal ASTs
  • Covers material, design, fabrication, erection
  • and testing requirements
  • For tanks whose entire bottom is uniformly
    supported

21
Current Edition of API 650
  • API 650, Welded Tanks for Oil Storage
  • 12th Edition was published March 5, 2013!!
  •

22
Approved Changes to API 650Fall 2012 - 1
  • 650-706 Internal Floating Roof Leg Vent Setting
  • Purpose Eliminate an arbitrary level range over
    which internal floating roof leg or cable
    activated vents must remain open.
  • 650-746 Definition of f and fc in V.3.1
  • Purpose Review values in relationship to
    stainless steel. Remove the reference to the
    tables in the definition of f. Revise the
    definition of fc.

23
Approved Changes to API 650Fall 2012 - 2
  • 650-756 Clarify usage of stainless structural
    members within S.3.4.3 and S.3.4.4
  • Purpose Provide provisions for using stainless
    steel structural members manufactured by hot
    formed or built up processes.
  • 650-764 Piping Flexibility E.7.3
  • Purpose Clarify that the uplift displacements
    estimates in E.7.3.1 do not need to be added
    to the values in Table E-8 nor multiplied by
    Cd

24
Approved Changes to API 650Fall 2012 - 3
  • 650-765 Revise the requirements of Sections
    W.4.9 W.4.10
  • Purpose To reduce the requirements of
    manufacturers for preparing detailed design
    calculations for bid submittals.

25
API 650 now part of API Monogram Program
  • New APPENDIX Y API MONOGRAM (informative)
  • Y.1 Introduction
  • Y.2 API Monogram Marking Requirements
  • Licenses for
  • - Shop Built Tanks (Appendix J) and
  • - Fabricated Steel Plates
  • are available
  • www.api.org - Certification Programs

26
API 650 API Monogram Program
27
API 650 API Monogram Program
  • Active 650 Monogram Licenses
  • Imeteco S.A. - 650-0001
  • Guayas, Ecuador
  • Ferrofab F.Z.E. - 650-0002
  • Dubai, United Arab Emirates
  • Carlos Caballero SRL - 650-0005
  • Santa Cruz, Bolivia
  • Palmer Mfg Tank, Inc. - 650-0006
  • Garden City, Kansas
  • Haug S.A. - 650-0007
  • Callao, Peru (Applicant)

28
Tank Inspection
  • API 653, Tank Inspection, Repair, Alteration, and
    Reconstruction
  • Referenced or adopted in state and federal
    regulations
  • Minimum requirements for maintaining the
    integrity of tanks after they are placed in
    service
  • Applicable to welded, riveted, non refrigerated,
    and atmospheric pressure ASTs

29
Current Edition of API 653
  • API 653, Tank Inspection, Repair, Alteration, and
    Reconstruction
  • Addendum 2 to the 4th Edition was published
    January 2012
  • Page Proofs for Addendum 3 are currently being
    worked.

30
Approved Changes to API 653Fall 2012 - 2
  • 653-260 Weld Repair and NDE
  • Purpose Clarify acceptance criterion for each of
    the weld defects described in Section 9.6.
  • 653-267 Insulated Tank Roofs in App C Inspection
    Checklists
  • Purpose Clarify Appendix C inspection checklists
    regarding insulated roofs especially regarding
    water ingress.
  •

31
Additional Standards being revised by SCAST - 1
  • 12 Series Documents
  •
  • The 12 Series Task Group has begun work on to
    update the 12 Series Production Tank Standards
    and Specifications.
  • Meetings are planned for the 2013 Spring Refining
    Meeting for those with production tank
    experience.
  •

32
Additional Standards being revised by SCAST - 2
  • Tank Safe Entry Documents
  • Revisions to API Standard 2015, Requirements for
    Safe Entry and Cleaning of Petroleum Storage
    Tanks, Sixth Edition, 2006 - are currently being
    worked
  • Revisions to API Recommended Practice 2016,
    Guidelines and Procedures for Entering and
    Cleaning Petroleum Storage Tanks, First Edition,
    2006 - are currently being worked.

33
Additional Standards being revised by SCAST - 3
  • Tank Cathodic Protection and Lining Documents
  •
  • Revisions to RP 651, Cathodic Protection of
    Aboveground Petroleum Storage Tanks, Third
    Edition, 2007 - are currently being worked
  •
  • Revisions to RP 652, Linings of Aboveground
    Petroleum Storage Tank Bottoms, Third Edition,
    2005 - are currently being worked.
  •

34
Inspection Codes
  • API 570 - Piping Inspection Code
  • First published in 1993
  • Minimum requirements for inspection, repair,
    alteration, and rerating of in-service process
    piping systems
  • Complements API Standards 510 and 653

35
Additional API Inspection Codes
  • RP 574 - Inspection of Piping, Tubing, Valves,
    and Fittings
  • RP 575 - Inspection of Aboveground Storage Tanks
  • RP 576 - Inspection of Pressure-Relieving
    Devices
  • RP 578 - Material Verification Program for New
    and Existing
  • Alloy Piping Systems
  • RP 579 - Fitness-for-Service

36
Release Prevention Leak Detection
  • Pub. 306 - An Engineering Assessment of
    Volumetric Methods of Leak Detection in
    Aboveground Storage Tanks
  • Pub. 307 - An Engineering Assessment of Acoustic
    Methods of Leak Detection in Aboveground Storage
    Tanks
  • Pub. 315 - Assessment of Tankfield Dike Lining
    Materials and Methods
  • Pub. 322/323 - An Engineering Assessment of
    Volumetric/Acoustic Methods of Leak Detection in
    Aboveground Storage Tanks

37
Marketing Operations
  • Recent Activity
  • Work currently to develop a new
  • Light Product Quality Recommended Practice RP
    1640
  • similar to RP 1595 for Jet Fuel though with
    less requirements.
  • Also
  • API Recommended Practice 1626, Storing and
    Handling Ethanol and Gasoline-ethanol Blends at
    Distribution Terminals and Filling Stations
  • Second Edition, Addendum 1 was published in
    August 2012
  • API Recommended Practice 1615, Installation of
    Underground Petroleum Storage Tank Systems
  • Sixth Edition was published in March 2011

38
Measurement
  • MPMS Chap 2 - Tank Calibration
  • MPMS Chap 3 - Tank Gauging
  • MPMS Chap 4 - Proving Systems
  • MPMS Chap 16 - Measurement of Hydrocarbon Fluids
    by Weight or Mass
  • MPMS Chap 19 Emission Calculations (Developed
    with EPA review and commentary.)
  • Note MPMS Manual of Petroleum Measurement
    Standards which is maintained by the COPM,
    Committee on Petroleum Measurement

39
Emissions
  • MPMS Chap 193 Part D - Fugitive Emissions Test
    Method of Deck-Seam Loss Factors for Floating
    Roof Tanks
  • MPMS Chap 194 - Recommended Practice for
    Speciation of Evaporative Losses
  • Pub. 2557 - Vapor Collection and Control
    Operations for Storage and Transfer Operations in
    the Petroleum Industry
  • Pub. 4588 - Development of Fugitive Emission
    Factors and Emission Profiles for Petroleum
    Marketing Terminals, Volume 1

40
Other Related Publications
  • Std 2000 - Venting Atmospheric and Low-Pressure
    Storage Tanks Non refrigerated and Refrigerated
  • RP 651 - Cathodic Protection of Aboveground
    Storage Tanks
  • STD 2510 - Design and Construction of Liquefied
    Petroleum Gas Installations (LPG) Committee to
    revise and update is currently being formed

41
SAVE THE DATE!
  • 2013 API Storage Tank Conference and Safe Tank
    Entry WorkshopCo-Sponsored by the Steel Tank
    Institute and NFPAOctober 21-24, 2013San
    Francisco, CA

42
API Tank Standards Update
  • Thank you!
  • Stephen Crimaudo
  • Manager, Downstream Standards
  • 1220 L Street, NW
  • Washington, DC 20005-4070
  • Phone 202-682-8151
  • crimaudos_at_api.org
  • www.api.org
  •   mycommittees.api.org/standards/cre/scast/default
    .aspx
About PowerShow.com
