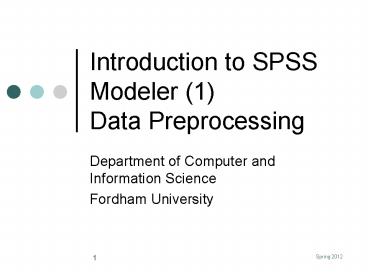

Introduction to SPSS Modeler (1) Data Preprocessing

1
Introduction to SPSS Modeler (1)Data
Preprocessing

• Department of Computer and Information Science
• Fordham University

2
Working with SPSS Modeler

• A three-step process of working with data.
• Read data into SPSS Modeler.
• Run the data through a series of manipulations.
• Send the data to a destination.
• This sequence of operations is known as a data
  stream because the data flows record by record
  from the source through each manipulation and,
  finally, to the destination--either a model or
  type of data output.

3
Streams, Outputs, Models Manager
Stream Canvas
Project Window
Palettes
Nodes
4
Stream Canvas

• Streams are created by drawing diagrams of data
  operations relevant to your problem on the main
  canvas in the interface. Each operation is
  represented by an icon or node, and the nodes are
  linked together in a stream representing the flow
  of data through each operation.
• You can work with multiple streams at one time in
  SPSS Modeler, either in the same stream canvas or
  by opening a new stream canvas. During a session,
  streams are stored in the Streams manager, at the
  upper right of the SPSS Modeler window.

5
Nodes Palette

• Most of the data and modeling tools in IBM SPSS
  Modeler reside in the Nodes Palette, across the
  bottom of the window below the stream canvas.
• To add nodes to the canvas, double-click icons
  from the Nodes Palette or drag and drop them onto
  the canvas. You then connect them to create a
  stream, representing the flow of data.

6
Modeler Managers

• At the top right of the window is the managers
  pane. This has three tabs.
• Streams tab open, rename, save, and delete the
  streams created in a session.
• Outputs tab display, save, rename, and close
  the tables, graphs, and reports, which are
  produced by stream operations.
• Models tab is the most powerful of the manager
  tabs. This tab contains all model nuggets, which
  contain the models generated in SPSS Modeler, for
  the current session. These models can be browsed
  directly from the Models tab or added to the
  stream in the canvas.

7
Project Pane

• On the lower right side of the window is the
  project pane, used to create and manage data
  mining projects (groups of files related to a
  data mining task). There are two ways to view
  projects you create
• The Classes view
• The CRISP-DM view (recommended)

8
Create a Stream

• To build a stream that will create a model, we
  need at least three elements
• A source node that reads in data from some
  external source.
• A source or Type node that specifies field
  properties, such as measurement level (the type
  of data that the field contains), and the role of
  each field as a target or input in modeling.
• A modeling node that generates a model nugget
  when the stream is run.

9
Source Nodes

• Source nodes enable you to import data stored in
  a number of formats, including flat files, IBM
  SPSS Statistics (.sav), SAS, Microsoft Excel, and
  ODBC-compliant relational databases. You can also
  generate synthetic data using the User Input node.

10
Excel Source Node

• The Excel source node enables you to import data
  from any version of Microsoft Excel.

11
Excel Source Node

• File type. Select the Excel file type that you
  are importing.
• Import file. Specifies the name and location of
  the spreadsheet file to import.
• Choose worksheet. Specifies the worksheet to
  import, either by index or by name.
• By index. Specify the index value for the
  worksheet you want to import, beginning with 0
  for the first worksheet, 1 for the second
  worksheet, and so on.
• By name. Specify the name of the worksheet you
  want to import. Click the ellipses button (...)
  to choose from the list of available worksheets.

12
Excel Source Node

• Range on worksheet. You can import data beginning
  with the first non-blank row or with an explicit
  range of cells.
• Range starts on first non-blank row. Locates the
  first non-blank cell and uses this as the upper
  left corner of the data range.
• Explicit range of cells. Enables you to specify
  an explicit range by row and column. For example,
  to specify the Excel range A1D5, you can enter
  A1 in the first field and D5 in the second (or
  alternatively, R1C1 and R5C4). All rows in the
  specified range are returned, including blank
  rows.
• On blank rows. If more than one blank row is
  encountered, you can choose whether to Stop
  reading, or choose Return blank rows to continue
  reading all data to the end of the worksheet,
  including blank rows.
• First row has column names. Indicates that the
  first row in the specified range should be used
  as field (column) names. If not selected, field
  names are generated automatically.

13
Type Node Field Ops

• Field properties can be specified in a source
  node or in a separate Type node. The
  functionality is similar in both nodes.
• Type node should be connected with the source
  node.

14
Measurement Level

• Measurement level (formerly known as "data type"
  or "usage type") describes the usage of the data
  fields. The measurement level can be specified on
  the Types tab of a source or Type node. For
  example, you may want to set the measurement
  level for an integer field with values of 1 and 0
  to Flag. This usually indicates that 1 True and
  0 False.

15
Measurement Level

• Default
• Data whose storage type and values are unknown
  (for example, because they have not yet been
  read) are displayed as ltDefaultgt.
• Continuous
• Used to describe numeric values, such as a range
  of 0100 or 0.751.25. A continuous value can be
  an integer, real number, or date/time.
• Categorical
• Used for string values when an exact number of
  distinct values is unknown. This is an
  uninstantiated data type, meaning that all
  possible information about the storage and usage
  of the data is not yet known.
• Once data have been read, the measurement level
  will be Flag, Nominal, or Typeless, depending on
  the maximum number of members for nominal fields
  specified in the Stream Properties dialog box.

16
Measurement Level

• Flag
• Used for data with two distinct values that
  indicate the presence or absence of a trait, such
  as true and false, Yes and No or 0 and 1. The
  values used may vary, but one must always be
  designated as the "true" value, and the other as
  the "false" value. Data may be represented as
  text, integer, real number, date, time, or
  timestamp.
• Nominal
• Used to describe data with multiple distinct
  values, each treated as a member of a set, such
  as small/medium/large. Nominal data can have any
  storage numeric, string, or date/time.

17
Measurement Level

• Ordinal
• Used to describe data with multiple distinct
  values that have an inherent order, e.g. salary
  categories or satisfaction rankings.
• The order is defined by the natural sort order of
  the data elements, e.g. 1, 3, 5, while HIGH, LOW,
  NORMAL (ascending alphabetically).
• Typeless
• Used for data that does not conform to any of the
  above types, for fields with a single value, or
  for nominal data where the set has more members
  than the defined maximum. It is also useful for
  cases in which the measurement level would
  otherwise be a set with many members (such as an
  account number).

18
Auto Data Prep Field Ops

• Automated Data Preparation (ADP) handles the task
  for preparing data for analysis.
• analyzing your data
• identifying fixes
• screening out fields that are problematic or not
  likely to be useful
• deriving new attributes when appropriate,
• and improving performance through intelligent
  screening techniques.
• Using ADP enables you to make your data ready for
  model building quickly and easily, without
  needing prior knowledge of the statistical
  concepts involved.

19
Auto Data Prep Field Ops

• when ADP prepares a field for analysis, it
  creates a new field containing the adjustments or
  transformations, rather than replacing the
  existing values and properties of the old field.
  The old field is not used in further analysis
  its role is set to None.

20
Data Audit Node - Output

• The Data Audit node provides a comprehensive
  first look at the data you bring into IBM SPSS
  Modeler, presented in an easy-to-read matrix that
  can be sorted and used to generate full-size
  graphs and a variety of data preparation nodes.

21
Perform Data Audit
22
Statistics and Charts
23
Data Quality

• The Quality tab in the audit report displays
  information about outliers, extremes, and missing
  values.

24
Missing Values SuperNode

• After specifying an impute method for one or more
  fields, to generate a Missing Values SuperNode,
  from the menus choose
• Generate gt Missing Values SuperNode
• Within the SuperNode, a combination of model
  nugget, Filler, and Filter nodes is used as
  appropriate. To understand how it works, you can
  edit the SuperNode and click Zoom In, and you can
  add, edit, or remove specific nodes within the
  SuperNode to fine-tune the behavior.

25
(No Transcript)
26
Generate Filter Node

• Alternatively, you can generate a Select or
  Filter node to remove fields or records with
  missing values. For example, you can filter any
  fields with a quality percentage below a
  specified threshold.

27
(No Transcript)
28
Outlier and Extreme SuperNode

• Outliers and extreme values can be handled in a
  similar manner. Specify the action you want to
  take for each fieldeither coerce, discard, or
  nullifyand generate a SuperNode to apply the
  transformations.

29
Outliers and Extreme Values

• Standard deviation from the mean
• Detects outliers and extremes based on the number
  of standard deviations from the mean. For
  example, if you have a field with a mean of 100
  and a standard deviation of 10, you could specify
  3.0 to indicate that any value below 70 or above
  130 should be treated as an outlier.
• Interquartile range
• Detects outliers and extremes based on the
  interquartile range, which is the range within
  which the two central quartiles fall (between the
  25th and 75th percentiles). For example, based on
  the default setting of 1.5, the lower threshold
  for outliers would be Q1 1.5 IQR and the
  upper threshold would be Q3 1.5IQR. Note that
  using this option may slow performance on large
  datasets.

30
Handling Outliers and Extreme Values

• Action
• Coerce
• Replaces outliers and extreme values with the
  nearest value that would not be considered
  extreme.
• Example if an outlier is defined to be anything
  above or below three standard deviations, then
  all outliers would be replaced with the highest
  or lowest value within this range.
• Discard
• Discards records with outlying or extreme values
  for the specified field.
• Nullify
• Replaces outliers and extremes with the null or
  system-missing value.
• Coerce outliers / discard extremes
• Discards extreme values only.
• Coerce outliers / nullify extremes
• Nullifies extreme values only.

31
(No Transcript)
32
Zoom In SuperNode
33
Reset Field in Type Node
34
(No Transcript)
35
Excel Export Node

• The Excel export node outputs data in Microsoft
  Excel format (.xls). Optionally, you can choose
  to automatically launch Excel and open the
  exported file when the node is executed.

36
(No Transcript)
37
Binning Node Field Ops

• The Binning node enables you to automatically
  create new nominal fields based on the values of
  one or more existing continuous (numeric range)
  fields.

38
Binning Techniques

• Using the Binning node, you can automatically
  generate bins (categories) using the following
  techniques
• Fixed-width binning
• Tiles (equal count or sum)
• Mean and standard deviation
• Ranks
• Optimized relative to a categorical "supervisor"
  field

39
Select Bin Fields
40
Bin Values
41
Binning Result
42
Filter Node Field Ops

• You can rename or exclude fields at any point in
  a stream with a filter node.

43
(No Transcript)
