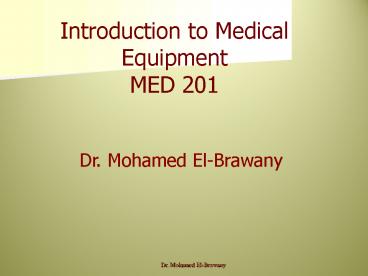

Introduction to Medical Equipment MED 201
Dr. Mohamed El-Brawany
2
Introduction I

• Late 19th and Early 20th centuries
• Measuring and recording biopotential
• Electrosurgery (incisions by resistive heating)
• Heart stimulation (defibrillator and pacemaker)
• X-Ray (Rontgen 1895)
• Electronic Acquisition of radiographic data
• Radionuclides (1948 iodine , thyroid)

3
Introduction II

• Ultrasound
• MRI
• Principle and chemical application 1946,
• Applied in human 1980.
• Development of Electronics and computers made
  these technologies feasible.

4
Origin of Medical Measurements

• Internal Energy
• External Energy

5
Identifying Unknown System

• Set of Input /Output equations

6
Living organism as a black box

• Electrical, mechanical, acoustical, thermal,
  chemical, optical, hydraulic and pneumatic
  systems all interacting with each other
• Powerful computer,
• Communication system, and
• Control System

7
Difficulties of Bio-measurements I

• I/O relationships are not deterministic
• Accessibility problem
• Interaction among the variables
• Effect of measuring device
• Patient safety
• Pain and discomfort

8
Difficulties of Bio-measurements II

• Variability of the Data
• Lack of Knowledge
• Artifacts
• Energy Limitations

9
Man-Instrument System Objectives

• Information gathering
• Diagnosis
• Evaluation
• Monitoring
• Control

10
Man-instrument System Components
11
Biomedical Instruments Types

• Research Instr. Used for
• Info gathering
• Are
• More complex
• More specialised
• Used by skilled person

• Clinical Instr. Used for
• Diagnosis
• Care
• Treatment
• Must be
• Rugged
• Easy to use
• Used by nurse or physician

12
Biomedical Instruments Measurements
