Title: Standard UML: Communication and Dynamic Behavior


1

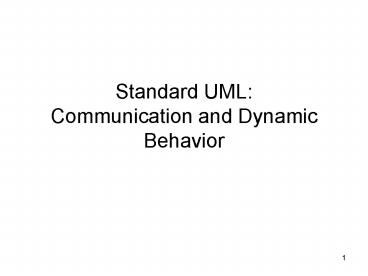

Standard UML Communication and Dynamic Behavior
2
UML Collaboration (Object Message)
Diagrams Black Box Testing
3
  • UML language contains many methods which will not
    be covered here.
  • (And some of the methods we are covering are not
    officially part of UML, although they are often
    used with UML, e.g., CRC cards).
  • What we have covered so far
  • use cases, data flow diagrams--for requirements
    analysis, design specification
  • ER diagrams, CRC cards--for initial design
  • To be covered
  • collaboration or object-message diagrams, state
    diagrams, sequence diagrams--for more detailed
    design and dynamic aspects

4
  • Remember
  • Errors caught at the design stage will be much
    less costly to fix than errors that make it to
    the implementation stage, just as errors caught
    at the specification stage are much easier to fix
    than errors caught at the design stage.
  • You cannot just write down an ER specification
    and complete set of CRC cards. Design requires
    discussion and modification.
  • As you work on the design, you should refer to
    the specification, including use cases and any
    additional materials, to check that your design
    is meeting this specification and to revise and
    refine the design as necessary.
  • As you work on the ER diagram and CRC cards, you
    MAY want to revisit the specifications

5
  • Additional UML tools we will use
  • Collaboration or Object message diagrams
  • State diagrams
  • Sequence diagrams
  • These allow us to further refine the design, in
    preparation for coding.

6
  • Collaboration or Object message diagrams
  • Each responsibility on a CRC card will be
    implemented as one or more functions, with
    information being shared by the collaborators as
    needed.
  • The collaboration or object message diagram
    makes each information-sharing event explicit, by
    showing the flow of function calls or messages
    related to that event, and gives a more precise
    way to check on the design being constructed.
  • Collaboration diagrams make explicit the
    communications specified through the ER diagram
    and the CRC cards
  • They also help to define Black Box tests
  • (Not ALL functions need to be diagrammed this
    way, if the information-sharing mechanism is
    simple and obvious.)
  • Note what differences are there between
    hardware-level communications and software-level
    communications?

7
Information Sharing options (software?) In a
collaboration or object message diagram we use a
rectangle to represent each participating object
(labeled by object name or by class name object
name) and we denote each function call by a
labeled line or arrow from the calling object to
the object responsible for carrying out the
function. These calls can be sequentially
numbered. These connecting lines can also be
labeled to show the status of the objects
carrying out the functions in question. Labels
used are S--the object itself F--data field of
the object itself P--procedure parameter G--global
variable L--local variable
8
Example A contrived but instructive example in
Practical Object-Oriented Development in C and
Java by Cay Horstmann (Wiley 1997) considers the
case where an object of class Car must carry out
the operation add_gas by accessing an object from
class GasStation. Note what would be the
relationship of Car and GasStation in the ER
diagram? This example can be used to show the
differences in the cases above, as follows
9
buy_gas
void Caradd_gas(GasStation
station)

station.buy_gas()

//add_gas has procedure
parameter of type //GasStation
buy_gas
void Caradd_gas( )

the_gas_station.buy_gas()

//there
is ONE global gas station buy_gas
void Caradd_gas( )

_my_gas_station -gt
buy_gas()

//car has ptr to its "own" station, a field
in //the car object
Associated test(s) ?
Associated test(s) ?
Associated test(s) ?
10
buy_gas
void Caradd_gas( )

GasStation station new GasStation( )

station -gt buy_gas()
delete
station //"build and
destroy a station (local variable)
2. buy_gas void
Caradd_gas( )
GasStation
station find_gas_station()

station -gt buy_gas()
//Car class has a
find_gas_station
1.find_gas_station //operation which it must
ask itself to //carry out the return
value, of type //GasStation, is a local
variable
Associated test(s) ?
Car
GasStation station
L
S
Associated test(s) ?
11
Here is another example, also taken from
Horstmann, which is more realistic. This diagram
shows the messages necessary to execute the
"process_dialing" operation in a mail system.
Note that "receive_message" can be carried out in
two ways, depending on whether the message is for
the administrator or for a general reader. The
steps to be carried out are 1. Read input 2a.
If input is 9999, have administrator mailbox
receive message. 2b1. If input is another
extension, find the mailbox for that
extension. 2b2. Have that mailbox receive a
message.
12
InputReader
process_dialing 1. read_input
MailSystem
G
S
2a. receive message
2b1. locate mailbox
AdminMailbox
F
2b2. receive message
L
Mailbox
Steps 1. read_input 2. receive message (case a
or case b)
13
  • Example In the bank example, what are examples
    of appropriate communication mechanisms and
    associated black box tests
  • For each module
  • Between modules?
  • 1.____________
  • 2.____________
  • 3.____________
  • 4.____________
  • 5.____________
  • 6.____________
  • 7.____________
  • 8.____________
  • 9.____________

9
8
1
7
6
2
4
5
3
14
Example What about the safe-home
system? What modules might there be? What will
be the responsibilities of each module? What
communication is needed? What if we add other
features, such as environmental modeling?
15
UMLModeling Dynamic Behavior State and Sequence
Diagrams (replacements for flow charts)
16
State Diagram another way of adding detail to
the design--models dynamic behavior describes
all the possible states a particular object can
be in and how that object's state changes as a
result of events that affect that object usually
drawn for a single class to show behavior of a
single object used to clarify dynamic behavior
within the system, as needed
17
A state diagram contains a "start" point, states,
and transitions from one state to another. Each
state is labeled by its name and by the
activities which occur when in that state.
Transitions can have three optional labels
Event Guard / Action. A transition is
triggered by an Event. If there is no Event,
then the transition is triggered as soon as the
state activities are completed. A Guard can be
true or false. If the Guard is false, the
transition is not taken. An Action is completed
during the transition.
18
Example this state diagram example for an
"order" in an order-processing system is from
Fowler and Scott, UML Distilled (Addison-Wesley,
1997)
start
/get first item
not all items checked /get next item
all items checked all items available
Dispatching
Checking
initiate delivery
check item
all items checked some items not in stock
delivered
item received all items in stock
Delivered
Waiting
item received some items not in stock
19
Sequence Diagram a sequence diagram also
models dynamic behavior typically a sequence
diagram shows how objects act together to
implement a single use case messages passed
between the objects are also shown sequence
diagrams help to show the overall flow of control
in the part of the program being modeled they
can also be used to show concurrent
processes asynchronous behavior
20
Objects in the sequence diagram are shown as
boxes at the top below each object is a dashed
vertical line--the objects lifeline an arrow
between two lifelines represents each
message arrows are labeled with message names
and can also include information on arguments and
control information two types of
control condition, e.g., is greaterthan
zero iteration, e.g., for all array
items return arrows can also be included
21
Example from Fowler and Scott, UML Distilled
(note dashed horizontal line denotes
return)
an Order Entry window
an Order
an Order Line
a Stock Item
prepare()
for all order lines
prepare()
hasStockcheck()
hasStock
remove()
needsReorder needsToReorder()
needsReorder new
a Reorder Item
a Delivery Item
hasStock new
22
Questions What needs to be added to deal with
hardware? What needs to be added to deal with
real-time systems and scheduling?
