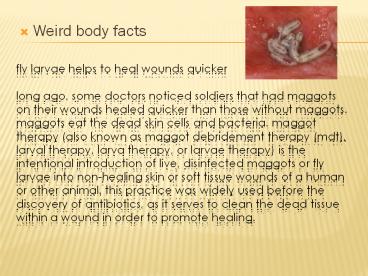

Title: Weird body facts
1fly larvae helps to heal wounds quickerlong
ago, some doctors noticed soldiers that had
maggots on their wounds healed quicker than those
without maggots. maggots eat the dead skin cells
and bacteria. maggot therapy (also known as
maggot debridement therapy (mdt), larval therapy,
larva therapy, or larvae therapy) is the
intentional introduction of live, disinfected
maggots or fly larvae into non-healing skin or
soft tissue wounds of a human or other animal.
this practice was widely used before the
discovery of antibiotics, as it serves to clean
the dead tissue within a wound in order to
promote healing.
2Sulci -fissures between convolutions of brain
3Organization of the nervous system
The Nervous System
Central Nervous System
Peripheral Nervous System
Brain
Spinal Cord
Somatic
Autonomic
Parasympathetic
Sensory
Motor
Sympathetic
4Vertebrate Nervous System
- Two divisions
- Central nervous system (CNS)- act as a
coordinating centre (brain spinal cord) - Peripheral nervous system (PNS)- effectors, carry
information to and from the CNS. - Further divided into
- Somatic control skeletal muscle, bones skin
- Autonomic control internal organs of body
- Sympathetic
- Parasympathetic
5Anatomy of a nerve cell
6Anatomy of Nerve Cells
- Two different types of cells
- Glial (neurological cells non-conducting, offer
structural support and metabolism of nerve cells) - Neurons (functional units of nervous system)
- Three groups
- Sensory Neurons
- Interneurons
- Motor Neurons
- http//www.youtube.com/watch?vFZ3401XVYwwfeature
related
7Three types of neurons
- Sensory (Afferent) Neurons
- INPUT from sensory organs to brain and spinal
cord - Sense and relay information from environment to
CNS - Located in clusters called ganglia
-
- Interneurons
- PROCESSING
- Link neurons within body
- Integrate and interpret sensory information and
connect neurons to outgoing motor neurons -
- Motor (Efferent) Neurons
- OUTPUT
- Relay information to effectors, (muscles, organs,
glands effectors as they produce responses) away
from the CNS
8Relaying the signal
- Messages move from dendrite, through the nerve
cell body, to the axon - Axons are covered with a myelin sheath
(insulation), made by Schwann cells which prevent
loss of charged ions from nerve cells - Areas between sections of myelin are called nodes
of Ranvier nerve impulses jump from one node to
another, speeding up messages
9(No Transcript)
10- All nerve fibres found within peripheral nervous
system contain a thin membrane called neurilemma
which surrounds axon - Neurilemma promotes regeneration of damaged axons
- Not all nerve cells contain neurilemma and a
myelin sheath - Nerves containing mylenated fibres and neurilemma
called white matter due to whitish appearance - Grey matter lack myelin sheath and neurilemma and
do not regenerate after injury
11Multiple sclerosis myelin sheath destruction
12The REFLEX ARC
- The simplest neural circuit is the reflex arc.
Reflexes are involuntary. No brain coordination
is used. 5 essential components - Receptor
- Sensory neuron
- Interneuron (in spinal cord)
- Motor neuron
- Effector
13REFLEX ARC
14- http//www.youtube.com/watch?vY5nj3ZfeYDQ
15Homework
- Complete Move Fast! Poster lab write-up
- Read pg 354-360
- Qs 7, 9, 10
16Electrochemical Impulse
- The Electrocardiogram (ECG) is used to diagnose
heart problems. - The Electroencephalograph (EEG) is used to
measure brain-wave activity - Action Potential the voltage difference across
a nerve cell membrane when the nerve is excited - Resting Potential voltage difference across a
nerve cell membrane during the resting stage
(usually negative) - Unlike most cells, neurons have a rich supply of
positive and negative ions inside and outside the
cell
17A sodium-potassium pump maintains resting
membrane potential after ions leak down their
concentration gradient - 3 Na ions are actively
pumped out while 2 K ions are pumped in.
18ACTION POTENTIAL
- action potentials the movement of an electrical
impulse along the plasma membrane of an axon. -
- that are abrupt, pulse-like changes in the
membrane potential that last a few ten
thousandths of a second. - Action potentials can be divided into three
phases the resting or polarized state,
depolarization, and repolarization - The amplitude of an action potential is nearly
constant and is not related to the size of the
stimulus, so action potentials are all-or-nothing
events.
19- Depolarization must be completed and the nerve
repolarized before the next action potential can
be conducted as nerves conducting an impulse
cannot be activated until the condition of the
resting membrane is restored - This time is called the refractory period
(usually 1-10 ms) -
20(No Transcript)
21Action Potential
22- ION GATES CONTROL THE MOVEMENT OF IONS ACROSS THE
CELL MEMBRANE. - The separation of electrical charges by the
polarized membrane has the ability to do work,
expressed in millivolts (mV). - Upon excitation, nerve cell membrane becomes more
permeable to Na than K - Na ions rush into cell causing depolarization
- Once voltage inside cell is ve, then Na gates
close - The sodium-potassium pump located in cell
membrane restores condition of resting membrane
by transporting Na ions out of the neuron while
moving potassium ions inside the neuron in a
ration of 3 Na 2K ions - ATP fuels the pump
23Saltatory Conduction
24All or none response
- A nerve or muscle fibre responds completely or
not to a stimulus. - Nerves have a threshold levelminimum level of a
stimulus required to produce a response.
25Homework
- Watch Nerve Impulse Animation and make notes
- Synapses - Mouse Party Task Due Friday June 3rd
- Go tohttp//learn.genetics.utah.edu/content/addic
tion/drugs/mouse.html - Explore the effects of any three of the following
drugs on brain function in mice - Heroine, ecstasy, marijuana, methamphetamine,
alcohol, cocaine, LSD - In your own words, explain how the drug affects
brain function and draw a labeled diagram of the
synapse depicting the effects for each drug
26Terminology
- Synapse
- Region at which neurons come nearly together to
communicate. (neuron or effector organ) - Synaptic Cleft
- Gap between neurons (at a synapse)
- Impulses can not propagate across a cleft
- Synaptic Vesicle
- Packets of neurotransmitter in presynaptic neuron
- Presynaptic Neuron
- Neuron sending a signal (before the synapse)
- Postsynaptic Neuron
- Neuron receiving a signal (after the synapse)
27(No Transcript)
28(No Transcript)
29Neurotransmitters
5 general criteria 1) synthesized and
released by neurons 2) released at the nerve
terminal in a 'chemically identifiable' form
3) the chemical should reproduce the activity of
the presynaptic neuron 4) can be blocked by
competitive antagonist based on concentration
5) active mechanisms to stop the function of the
neurotransmitter Classical transmitters are
small molecules (often amino acid based)
Non-classical transmitters can be peptides or
even gasses
305 Steps of Neurotransmission
1) synthesis of the neurotransmitter
precursors and enzymes should be in the
correct place 2) storage of neurotransmitter
OR precursor often stored in presynaptic
vesicles
315 Steps of Neurotransmission
3) release of the neurotransmitter generally
by vesicle fusion 4) binding to target
receptor ionotropic receptors open ion
channels metabotropic receptors modulate
other signals
325 Steps of Neurotransmission
5) termination of the signal active
termination caused by reuptake or chemical
breakdown For e.g. acetylcholine is broken down
by . . . passive termination uses diffusion
33(No Transcript)
34Types of Neurotransmitters
Acetylcholine muscles, learning, memory
Serotonin (a derivative of tryptophan) sleep, relaxation, self esteem, too little depression, perception
Norepinephrine (aka noradrenaline) stress and fight/flight response, sympathetic NSBP heart rate
Dopamine prolactin (milk production), involved in pleasure, movement
Endorphins (-) pain, involved in pleasure
GABA (gamma aminobutyric acid) (-) anxiety, too little in parts of brain can lead to epilepsy
Glutamate Most common NT, memory, toxic
35FLIGHT OR FIGHT RESPONSE
- Sympathetic component prepares body for stress
neurotransmitter usednorepinephrine - Diverts blood from internal organs to skeletal
muscles, heart brain - Parasympathetic brings things back to normal
neurotransmitter usedacetylcholine - Work in conjunction/opposition to each other
- Ex. on / off switches
36(No Transcript)
37You come across a bear on your walk to
schoolwhat happens?
- Sympathetic nervous system does what?
- Increases heart rate
- Increases breathing rate
- Dilates bronchioles
- Dilates pupils
- Inhibits digestion
38- Acetylcholine make post-synaptic membrane
permeable to Na - Cholinesterase (enzyme)breaks down
Acetyltcholine...prevents constant depolarization
39CENTRAL NERVOUS SYSTEM
- concentrated in the anterior portion of most
animals - brain is covered by meninges
- three-layer protective membrane forms the
blood/brain barrier - determines which chemicals will reach the brain
- cerebrospinal fluid surrounds brain and spinal
cord - acts as a shock absorber and a transportation
medium of materials - carries nutrients to brain cells
- relays wastes from cells to blood
40The Spinal Cord
- carries sensory nerve messages from receptors of
brain and relays motor nerve messages to - muscles
- organs
- glands
- interneurons are organized into nerve tracts
which connect the spinal cord with the brain - dorsal nerve tract brings sensory info into
spinal cord - ventral nerve tract carries motor info from
spinal cord to peripheral muscles, organs, and
glands
41(No Transcript)
42The Brain
- comprised of three main regions
- forebrain
- midbrain
- Hindbrain
43Forebrain
- contains paired olfactory lobes
- receive info about smells
- thalamus (below the cerebrum)
- relay, consciousness, pain
- hypothalamus (below thalamus) (temperature,
water, hunger, thirst, sex drive) - direct connection between hypothalamus and
pituitary connects nervous system with endocrine
system - cerebrum (2 hemispheres connected by the corpus
callosum, surrounded by cerebral cortex and
divided into 4 lobes - frontal- voluntary muscles, walking, speech,
personality, intellect - parietal- touch, temperature awareness, emotion,
interpreting speech - occipital- vision and interpreting visual
information - temporal vision, hearing, memory,
interpretation of sensory information
44The Brain
http//www.youtube.com/watch?vYpAe3mk1koQfeature
related
45Midbrain
- relays information to sensory areas (connective)
- temporal- vision and hearing, linked to memory
- Associative cortex conceptualization, planning,
contemplation, memory. - Motor cortex voluntary movement of skeletal
muscles. - Sensory cortex vision, hearing, smell.
46Hindbrain
- Primitive, controls breathing, heart rate, blood
pressure. - Main regions of hindbrain
- cerebellum, pons, and medulla oblongata
-
- Cerebellum
- located immediately beneath two cerebral
hemispheres - largest section of hindbrain
- deals with coordination and muscle control.
47- Pons acts as a bridge.
- Passes information between two regions of
cerebellum and between cerebellum and medulla -
- Medulla oblongata
- Acts as connection between peripheral and central
nervous system - controls involuntary muscle action
- diaphragm, heart rate, blood vessel dilation etc.
- also acts as coordinating centre for autonomic
nervous system.
48Autonomic nervous system
- Sympathetic NS prepares body for stress
- Parasympathetic NS return body to normal
- Check out table
49Natural Painkillers
- Endorphins bond to sites on pain receptor ganglia
(Substania GangliaSG). - Opiates simulate natural endorphins (p. 437)
- Heroin, codeine, morphine etcmust continue to
take in order to keep working (addiction!)
50HomeWork
51- Quick quiz
- Quizzes on a range of bio topics )
- Another good quiz
- A virtual body
