Voice Transformations

1

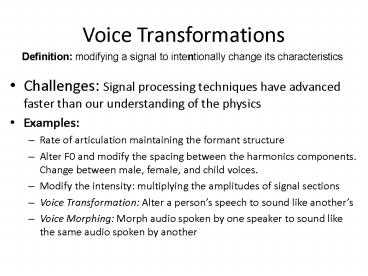

Voice Transformations
Definition modifying a signal to intentionally
change its characteristics

• Challenges Signal processing techniques have
  advanced faster than our understanding of the
  physics
• Examples
• Rate of articulation maintaining the formant
  structure
• Alter F0 and modify the spacing between the
  harmonics components. Change between male,
  female, and child voices.
• Modify the intensity multiplying the amplitudes
  of signal sections
• Voice Transformation Alter a persons speech to
  sound like anothers
• Voice Morphing Morph audio spoken by one speaker
  to sound like the same audio spoken by another

2
Heliums Effect on Speech

• Changes the formants (resonances of F0), but not
  the pitch
• Vocal tension, geometry, and length affects the
  pitch
• Speed of sound greater, so resonances shifted
  higher
• Diagram Second formant shifted to the right, off
  the diagram.
• Less power at lower frequencies vowels
  articulate differently

Normal voice spectrum
Helium voice spectrum
The vertical lines are resonances of F0
3
Voice Characteristics

• Breathy voice The amplitude the first F0
  harmonic/amplitude much larger than the amplitude
  of the second F0 harmonic (large vocal opening)
• Creaky voice Small or negative value, when
  subtracting the amplitude of higher formants of
  F0 from the amplitude of first F0 (spectral tilt)

4
Vowel Acoustics

• Each person has a unique acoustic space vowels
  exhibit patterns within that space
• Vowels are primarily distinguished by their first
  two formant frequencies F1 and F2
• F1 corresponds to vowel height
• A smaller F1 amplitude implies a higher vowel
• A larger F1 amplitude implies a lower vowel
• F2 corresponds to a front or back vowel
• A smaller F2 amplitude implies a back vowel
• A larger F2 amplitude implies a front vowel
• Lip rounding tends to lower both F1 and F2

5
at different pitches
100 Hz
120 Hz
150 Hz
F1 moves slightly to the right and F2 to the left
as F0 increases
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
Men lower F0, Women higher F0
10
(No Transcript)
11
Synthesizing Speech

• Source-filter model
• Excitation glottal signal (source)
• Time varying linear filter (vocal tract)
• Simplest form
• Excitation
• Quasi-periodic pulse sequences (voiced speech)
• Noise (unvoiced speech)
• Time varying linear filter (Linear prediction)
• Challenge define an excitation sequence that
  produces natural sounding speech

12
Synthesis Approaches

• Multi-pulse sequences of zeros and ones to better
  represent the glottal excitation
• Combine a series of sinusoids to create glottal
  like excitation.
• Determine F0 and use harmonics of F0 as
  excitation inputs.
• Concatenation and unit selection approaches

Most modern synthesis implementations utilize
unit selection. However, because of a desire to
implement voice transformation algorithms, there
is a renewed focus on utilizing digital signal
processing techniques
13
Pitch and Rate of Change

• TD-PSOLA (Time domain pitch synchronized
  overlap and add)
• Advantages
• Does a good job when changes are less than a
  factor of two
• Time domain algorithm very efficient
• Disadvantages Not sufficient for complex
  transformations
• Maintain amplitude and phase relationships
  between formants
• Repeated fricative frames starts sounding tonal.
  Reversing or randomizing fricative spectrums
  helps, but not for voiced fricatives.
• Increased articulation compresses
  vowels/consonants by 50/25 (We protect
  consonants which carry more information).
• The pitch values and contour are affected.
• Non-linearities between sub-glottal resonances
• Unexpected artifacts contained in the synthesized
  signal

14
Energy Modification

• Naïve approach Multiply each sample by some
  constant.
• Problems
• When we speak louder, we emphasize some parts of
  the signal more than others we stress consonants
  more than vowels.
• More sub-glottal pressure will stress higher
  frequencies more than those that are lower
• Pitch tends to rise as speech becomes louder.

15
Harmonic Plus Excitation Model

• Speech harmonic and excitation components
• Harmonic Vocal tract as a linear prediction
  filter
• Noise component collection of sinusoids with
  time varying amplitudes and frequencies
• Harmonic component Linear prediction
• yn rn ?i1,P aiyn-P or yn ?i1,P aiyn-P
• Residue rn excitation and nasal/sub-glottal
  non-linearities)
• Excitation Signal Estimate e(t) ?k0,K(t)
  mk(t)eifk(t)
• K(t) is the number of sinusoids at time t
• mk is the amplitude of the kth sinusoid at time t
• fk(t) is the phase of the kth sinusoid at time t

16
The Harmonic Model
Excitation signal e(t) ?k0,K(t) mk(t)eifk(t)

• Questions to answer
• How do we determine which sine waves to use?
• How do we determine the phases and amplitudes?
• How many sine waves should we use?
• How do we represent unvoiced speech?
• Note f k(t) 2pkF0(t)
• The sinusoids are harmonics of F0 (fundamental
  frequency)
• Otherwise this would be a sinusoidal model (not
  harmonic)

17
Linear Interpolation
Goal Compute partial phases/amplitudes at time, t

• Formula (y-y0)/(x-x0) (y1-y0)/(x1-x0)
• Application
• Assume window size w ms
• Frame n represents time nw
• Frame n1 represents time (n1)w
• nw lt t lt (n1)w is time of interest
• x0, x1 phases at times nw, (n1)w
• y0, y1 amplitudes at times nw, (n1)w
• x, y phase and amplitude at time t

Note Cubic interpolation uses the successive and
previous windows and interpolates points between
18
McAulay-Quatieri Algorithm

• Perform FFT on the signal
• Extract peak frequencies with phases/amplitudes.
• Find F0 whose harmonics closely represent the
  partials
• Connect partials of successive and previous
  windows
• Generate time varying sign waves cubic
  interpolation
• Apply to the vocal track filter to generate
  synthesized speech
• Death of a track If no matching successive
  window partial
• Birth of a track If no matching previous window
  partial
• Partial An FFT peak extracted with its phases
  and amplitudes
• Track Connections between partials of adjacent
  windows
• Note Typical number of partials for synthesis
  is from 20 to 160.

19
Sinusoid Death and Birth
20
Unvoiced Speech

• Problem
• Unvoiced speech resembles noise
• Noise requires too many sinusoids for an accurate
  representation
• Signal transformations (such as stretching) to
  closely related harmonics produces sound heard as
  (wormy or jittery)
• Unvoiced tracks span only a small number of
  windows so interpolation methods become
  problematic
• Solution Bandwidth enhanced oscillators

21
Definitions

• Carrier signal A sinusoidal signal transmitted
  at a steady frequency
• Modulation the process of varying one or more
  properties of a high-frequency carrier periodic
  waveform
• Oscillation is the repetitive variation,
  typically in time

22
Bandwidth Enhanced Oscillation

• Technique A partials energy is increased
  relative to its spectral amplitude and spread
  across adjacent frequencies
• Details (a) The center frequency stays the same,
  (b) Energy is spread evenly on both sides (c)
  Random modulations
• Parameters widening amount, fall off intensities
• Result A closer representation to the original
  signal

1. Partial with no widening (b) Partial with
   moderate widening (c) Partial with large amount
   of widening

23
Algorithm Refinements

• Add bandwidth enhanced oscillation
• Vary the spread of bandwidths based on the amount
  of voicing in the signal
• Formula Yt ?k0,K-1 ?n0,N(Ak(t) ßt)
  sin(kNnF0 ?k(t))
• Yt is the synthesized signal at time t
• Ak(t) is the carrier frequency amplitude at time
  t
• k is a harmonic multiple of F0 (partial) K
  number of partials
• ?k(t) of phase of the kth partial
• N is the number of oscillations for introducing
  noise
• Nn is the output of a random number generator to
  modulate F0
• ß is a noise modulation factor
