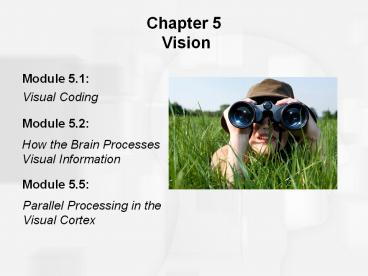

Chapter 5 Vision

1
Chapter 5 Vision

• Module 5.1

• Visual Coding

• Module 5.2

• How the Brain Processes Visual Information

Module 5.5
Parallel Processing in the Visual Cortex
2
Sensation and PerceptionImportant Vocabulary
Terms

• Sensation is the process of receiving,
  transducing, and coding stimulus energy in the
  world.
• Stimulus energy is physical energy, such as
  light, sound, heat
• Sense organs such as eyes, ears, skin receive
  energy

3
Sensation and PerceptionImportant Vocabulary
Terms

• Reception the absorption of physical energy by
  receptors
• Transduction the conversion of physical energy
  into electrochemical energy

4
Sensation and PerceptionImportant Vocabulary
Terms

• Perception the brains process of organizing and
  interpreting sensory information to give it
  meaning
• Coding a one-to-one communication between an
  aspect of a physical stimulus and an aspect of
  nervous system activity

5
Neuroanatomy Handout 4 The Visual System

• Sclera (A)
• Outermost layer of eye white, fibrous,
  protective globe
• Cornea (A1) Clear disk at front of eye focuses
  light rays onto the receptor cells at back of eye
  (retina)
• Aqueous humor (B) Fluid in the very front of the
  eyeball refracts light rays onto retina

6
Neuroanatomy Handout 4 The Visual System

• Iris (C) Colored part in center of eye ring
  of muscles that controls amount of light that
  gets into eye
• Pupil (D) Opening in center of eye (appears
  black) constricts or dilates with movement of
  iris

7
Neuroanatomy Handout 4 The Visual System

• Lens (E) Along with cornea, focuses light onto
  receptor cells
• Vitreous humor (F) Fluid filling majority of
  eyeball refracts lightwaves
• Retina (G) lined with visual receptor cells,
  rods and cones

8
Neuroanatomy Handout 4 The Visual System

• Rods (I) - most abundant in the periphery of the
  eye
• 120 million per retina
• respond to faint light
• Cones (J) - most abundant in and around the fovea
• 6 million per retina
• essential for color vision, which requires bright
  light
• Photopigments chemicals released by rods and
  cones when struck by light

9
Neuroanatomy Handout 4 The Visual System

• The fovea (G2) central portion of the human
  retina which allows for acute and detailed
  vision.
• Packed tight with receptor cells

10
Neuroanatomy Handout 4 The Visual System

• Rods and cones are located in the outmost layer
  of the eye.
• They communicate their messages to neurons called
  bipolar cells (K) and horizontal cells, which are
  located closer to the center of the eye.
• Bipolar cells send messages to ganglion cells (L)
  and amacrine cells that are even closer to the
  center of the eye.

11
Neuroanatomy Handout 4 The Visual System

• Axons of ganglion cells (L1) join one another to
  form the optic nerve.
• The optic nerve (L2) exits through the back of
  the eye and travels to the brain.

12
Neuroanatomy Handout 4 The Visual System

• Blind spot (G1) The point at which the optic
  nerve leaves the back of the eye
• it contains no receptor cells
• It does contain retinal veins and arteries (H)

13
Visual Coding and the Retinal Receptors

• Perception of color is dependent upon the
  wavelength of the light.

14
Visual Coding and the Retinal Receptors

• Visible wavelengths depend upon species
  receptors.
• Human range 350 nanometers (violet, short
  wavelength) to 700 nanometers (red, long
  wavelength).
• Some species can detect ultraviolet light

15
(No Transcript)
16
Visual Coding and the Retinal Receptors

• Discrimination among colors depends upon the
  combination of responses by different neurons.
• Two major interpretations of color vision
• Trichromatic theory/Young-Helmholtz theory
• Opponent-process theory

17
Visual Coding and the Retinal Receptors

• Trichromatic theory - Color perception occurs
  through the ratio of activity across the three
  types of cones
• short wavelength
• medium-wavelength
• long-wavelength

18
Visual Coding and the Retinal Receptors

• More intense light increases the brightness of
  the color but does not change the ratio and thus
  does not change the perception of the color
  itself.

19
(No Transcript)
20
Visual Coding and the Retinal Receptors

• The opponent-process theory (Ewald Hering)
  suggests that we perceive color in terms of
  paired opposites.
• white/black
• red/green
• yellow/blue
• A possible mechanism for the theory is that
  bipolar cells are excited by one set of
  wavelengths and inhibited by another.

21
(No Transcript)
22
(No Transcript)
23
Negative color afterimage
24
Visual Coding and the Retinal Receptors

• The opponent-process and trichromatic theories
  cant explain
• Color constancy, the ability to recognize color
  despite changes in lighting.
• Retinex theory suggests the cortex compares
  information from various parts of the retina to
  determine the brightness and color for each area.

25
Visual Coding and the Retinal Receptors

• Color vision deficiency impairment in perceiving
  color differences
• X-linked trait
• Causes
• lack of a type of cone
• cone has abnormal properties
• Most common form difficulty distinguishing
  between red and green

26
The Neural Basis of Visual Perception

• Ganglion cell axons form the optic nerve.

27

• Optic chiasm place where the two optic nerves
  meet.
• In humans, half of the axons from each eye cross
  to the other side of the brain.
• Most axons go to the lateral geniculate nucleus,
  a smaller amount to the superior colliculus and
  fewer go to other areas.

28

• Visual field the whole area of the world that
  you can see at a given time
• Receptive field the portion of the visual field
  to which any one neuron responds

29
Eyes Rightby Oliver Sacks

• From The Man Who Mistook His Wife for a Hat

30
The Neural Basis of Visual Perception

• Some people with damage to the primary visual
  cortex (V1) show blindsight, an ability to
  respond to visual stimuli that they report not
  seeing.

31
The Neural Basis of Visual Perception

• Visual agnosia is the inability to recognize
  objects despite satisfactory vision.
• Caused by damage to the pattern pathway usually
  in the temporal cortex.
• Video link (1.5m)
• http//www.youtube.com/watch?vrwQpaHQ0hYwfeature
  related
• Prosopagnosia is the inability to recognize
  faces.
• Occurs after damage to the fusiform gyrus of the
  inferior temporal cortex.
• Video link (5.5m)
• http//www.youtube.com/watch?vXLGXAiSpN00feature
  fvw

32
The Neural Basis of Visual Perception

• The visual system has neural plasticity
• Blind Learn to See with Tongue, video link
  (3m)
• https//www.youtube.com/watch?vOKd56D2mvN0
