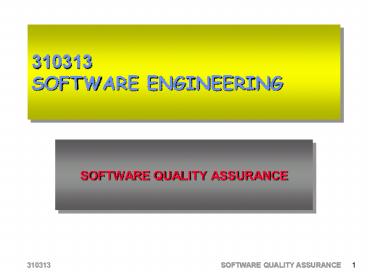

Title: SOFTWARE QUALITY ASSURANCE


1
310313SOFTWARE ENGINEERING
  • SOFTWARE QUALITY ASSURANCE

2
LEARNIING OBJECTIIVES
  • 1. Understand the quality management process and
    the central
  • process activities of quality assurance, quality
    planning and
  • quality control.
  • 2. Understand the importance of standards and
    metrics in the
  • quality management process.
  • 3. Know what is software configuration
    management, why it is
  • important and what are its major activities.
  • 4. Understand the principles of software process
    improvement and
  • why process improvement is worthwhile.

3
SOFTWARE QUALITY ASSURANCE OUTLINE
10, 12
  • Software Quality Assurance
  • Life Cycle Role
  • Purpose and Impoetance
  • Techniques Standards and Metrics
  • Achieving Software Quanlity
  • Achieving Product Quality
  • Design Quality Metrics
  • Formal Approaches
  • Program Quality Metrics
  • Achieving Project Quality
  • Reviews
  • Software Configuration Management
  • Achieving Process Quality
  • ISO 9001/9000-3
  • SEI Process Capability Maturity Model
  • Achieving People Quality
  • The People Capability Maturity Model

4
SOFTWARE QUALITY ASSURANCE LIFE CYCLE ROLE
5
THE PURPOSE SOFTWARE QUALITY ASSURANCE
  • Quality assurance consists of those procedures,
    techniques, and tools applied by professionals to
    ensure that a product meets or exceeds
    pre-specified standards during its development
    cycle. E.H. Bersoff

quality assurance Defines organizational
standards that lead to
high quality software. quality
planing Selects appropriate standards and
tailors them to
a specific software product. quality control
Ensures standards are followed. Continuous
quality improvement should be the overall goal.
6
WHY SQA ACTIVITIES PAY OFF
cost to find and fix a defect
log scale
7
SQA AN UMBRELLA ACTIVITY
Standards and Procedures
Metrics and Measurement
The foundation of quality assurance.
Methods and Tools
Testing
Software Quality Assurance Techniques
Software Configuration Management
Formal Technical Reviews
8
SOFTWARE QUALIITY ASSURANCE TECHNIQUES
  • Includes all techniques used to improve the
    quality of the software
  • 1. developing and applying standards
  • To ensure repeatability of the development
    process
  • 2. developing and using metrics and measurement
    procedures
  • To meet designgoals and improve the software
    development process
  • 3. using appropriate methods and tools for system
    development
  • To achieve a high quality system
  • 4. doing formal technical reviews at each step
  • To uncover quality problems and to sign-off
  • 5. using software configuration management and
    change control
  • To ensure changes are managed and controlled
  • 6. performing multi-tiered testing
  • To ensure effective defect detection. (BUT
    testing is not a panacea)

9
SQA STANDARDS
  • Why are software standards important for SQA ?
  • 1. They encapsulate best (or most appropriate)
    practices
  • Acquired after much trial and error helps
    avoid previous mistakes
  • 2. They provide a framework around which to
    implement SQA process
  • Ensures that best practices are properly
    followed
  • 3. They assist in ensuring continuity of project
    work
  • Reduces learning effort when starting new work
  • product standards define the characteristics all
    product artifacts should exhibit so as to have
    quality
  • process standards define how the software
    process should be conducted to ensure quality
    software

Standards Handbook needed!
Each project needs to decide which standards
should be ignored used as is modified
created.
10
SQA TECHNIQUES METRICS
  • A metric is any type of measurement that relates
    to a software system product , process or related
    artifact

Why are metrics important for Software Quality
Assurance? 1. Metrics can be used to control
(i.e., plan and manage) the development
process (e.g., effort expended, elapsed
time,budget spent, etc.). 2. Metrics can be used
to predict an associated product quality
(e.g., cyclomatic complexity can predict ease of
maintenance). Metrics are the only objective way
to measure quality attributes of software
otherwise it is all opinion and guess work.
11
ACHIEVING SOFTWARE QUALITY
set of activities
How can we achieve software quality?
measurement feedback
Process
template
software engineers
set of artifacts
Product
Project
People
participate
result
education training
management monitoring
testing measurement
12
ACHIEVING SOFTWARE QUALITY(contd)
  • 1. We have a set of standards and quality
    attributes that a software product must meet.
  • There are design goal to achieve.
  • 2. We should be able to measure the quality of a
    software product.
  • There is a way to determine how well the
    productconforms to the design goal.
  • 3. We should track the values of the quality
    attributes.
  • So that it is possible to assess ,over time, how
    well we are doing in achieving the design goal.
  • 4. We use information about software quality to
    improve the quality of future software products.
  • There is feedback into the software development
    process.

13
ACHIEVING PRODUCT QUALITY DESIGN GOALS
  • Recall that a design goal is an (external)
    attribute that we want
  • the system to have such as
  • safety understandability portability
  • security testability usability
  • reliability adaptability reusability
  • resilience modularity efficiency
  • robustness maintainability learnability
  • Usually, we can only asses whether a system has
    one of these
  • attributes (i.e., meets its design goals) after
    it is completed!
  • However, we would like to assess whether we are
    achieving a
  • design goal during the systems development? How
    to do it?

Try to use internal attributes to assess
(predict) whether the system will meet its design
goals.
14
ACHIEVING PRODUCT QUALITY DESIGN GOALS(contd)
  • Examples of possible relationships between
    external andinternal attributes

External(design goal) maintainability reliability
portability usability
Internal(measurable) of parameters cyclomatic
complexity lines of code of error
messages length of user manual
Problems 1. hard to formulate and validate
relationships between internal and external
attributes 2. software metrics must be
collected, calibrated, interpreted
15
ACHIEVING PRODUCT QUALITY DESIGN QUALITY METRICS
  • For a design component, a key design goal is
    maintainability.
  • For design components maintainability is related
    to
  • cohesion - how closely related is the
    functionality of the component?
  • coupling - how independent is the component?
  • understandability - how easy is it to understand
    what the component does?
  • adaptability - how easy is it to change the
    component?
  • Problem most of these cannot be measured
    directly, but it is reasonable to infer that
    there is a relationship between these attributes
    and the complexity of a component
  • measure complexity

How?
16
ACHIEVING PRODUCT QUALITY DESIGN QUALITY METRICS
  • 1) Structural fan-in/fan-out
  • fan-in the number of calls to a component by
    other components
  • fan-out the number of components called by a
    component
  • high fan-in gt high coupling
  • high fan-out gt calling component has high
    complexity
  • 2) Informational fan-in/fan-out
  • consider also the number of parameters passed
    plus access to shared data structures
  • complexity component-length x (fan-in x
    fan-out)2
  • It has been validated using the Unix system
  • It is a useful predictor of effort required for
    implementation

17
ACHIEVING PRODUCT QUALITY DESIGN QUALITY METRICS
  • 3) IEEE Standard 982.1-1988
  • looks at subsystem properties (number of
    subsystems and degree of coupling)database
    properties (number of attributes and classes)
  • Compute a design structure quality indexDSQI
    (0-1)
  • Used to compare with past designs if DSQI is
    too low,further design work and review may be
    required
  • We can also consider changes made throughout the
    lifetime of the software and compute how stable
    the product is (i.e., how many changes have been
    made in subsystems in the current release)
  • Define a software maturity indexSMI (0-1)
  • As SMI approaches 1, the product begins to
    stabilize

18
IEEE STANDARD 982.1-1988
This slide is for information only you are not
required to know this!
  • S1 the total number of subsystems defined in
    the program architecture
  • S2 the number of subsystems whose correct
    function depends on the source of data input or
    that produces data to be used elsewhere
  • S3 the number of subsystems whose correct
    function depends on prior processing
  • S4 the number of database items (includes data
    objects and all attributes that define objects)
  • S5 the total number of unique database items
  • S6 the number of database segments (different
    records or individual objects
  • S7 the number of subsystems with a single entry
    and exit

19
IEEE STANDARD 982.1-1988
This slide is for information only you are not
required to know this!
  • Program structureD1 1 if the architecture was
    developed using a distinct methodD1 0
    otherwise
  • Subsystem independence D2 1 - (S2/S1)
  • Subsystems not dependent on prior processing D3
    1 - (S3/S1)
  • Database size D4 1 - (S5/S4)
  • Database compartmentalization D5 1 - (S6/S4)
  • Subsystem entrance/exit characteristic D6 1 -
    (S7/S1)
  • DSQI ?wiDi wi relative weighting of each Di

20
IEEE STANDARD 982.1-1988
This slide is for information only you are not
required to know this!
  • SMI MT - (Fa Fc Fd)MT
  • MT the number of subsystems in the current
    release
  • Fc the number of subsystems in the current
    release that have been changed
  • Fa the number of subsystems in the current
    release that have been added
  • Fd the number of subsystems in the preceding
    release that were deleted in the current release

21
ACHIEVING PRODUCT QUALITY PROGRAM QUALITY METRICS
For an implementation component, the key quality
attributes are reliability and difficulty of
implementation.
  • Some approaches to measure reliability and/or
    difficulty a) Halsteads Software
    Science
  • Looks at operators and operands in an
    implementation component and calculates values
    for component volume, V, component difficulty, D,
    and effort, E, required to implement the
    component.
  • n1 number of unique operators in a component
  • n2 number of unique operands in a component
  • N1 the total number of operators
  • N2 the total number of operands
  • L N1 N2 (component length)
  • V L log2(n1 n2) (component volume in
    bits)
  • D (n1/2) (N2/n2) (difficulty of implementing
    the component)
  • E V D (effort required to implement the
    component)

22
ACHIEVING PRODUCT QUALITY PROGRAM QUALITY METRICS
  • 2) McCabes Complexity Metric
  • Looks at control flow in a component.
  • Cyclomatic Complexity measures components
    logical complexity
  • an indication of the testing difficulty of a
    component
  • Studies have shown a distinct relationship
    between the Cyclomatic Complexity of a component
    and the number of errors found in the source
    code, as well as the time required to find and
    fix errors.
  • 3) Other program quality metrics
  • line of code (LOC) length of identifiers
  • depth of conditional nesting

Standards can be established to avoid complex
components and/or highlight problem components.
23
ACHIEVING PRODUCT QUALITY FORMAL APPROACHES
  • a) Proving programs/specifications correct
  • Logically prove that requirements have been
    correctly transformed into programs
  • (e.g., prove assertions about programs)
  • b) Statistical Quality Assurance
  • Categorize and determine cause of software
    defects
  • Use 80-20 rule ? 80 of defects can be traced to
    20 of causes
  • Isolate and correct 20 of the causes
  • effort directed to things that cause the
    majority of defects
  • c) The Cleanroom Process
  • A combination of above two approaches

24
ACHIEVING PROJECT QUALITY REVIEWS
  • The principal method of validating the quality of
    a project.

requirements walkthroughs
Leads to early discovery of defects
Requirements capture
analysis walkthroughs
Analysis
design walkthroughs
Design
Requirements, Analysis and Design introduce
50-60 of all defects.
code walkthroughs
Implementation
test plan review
Formal technical reviews can uncover 75 of these!
Testing
25
ACHIEVING PROJECT QUALIITYSOFTWARE CONFIGURATION
MANAGEMENT (SCM)
26
SOFTWARE CONFIGURATION MANAGEMENT (SCM)
10.2
  • Software Configuration Management is an activity
    executed throughout the system life cycle to
    control the change to the products and life cycle
    artifacts.

To what do we want to control changes?
Software Configuration Management plans
programs specifications documents/manuals
procedures data
identify
support
control
report
audit
configuration item an artifact to which we want
to control changes
27
SCM ITEM ITEM IDENTIFCATION AND DESCRIPTION
10.3.1
  • Each configuration item must be identified and
    described
  • a unique name
  • configuration item type
  • project identifier
  • change and/or version information
  • resources the configuration item provides or
    requires
  • pointer to actual configuration item
  • The configuration items also must be organized
    (i.e., need to define the relationships that
    exist between configuration items)
  • object diagram ltpart-ofgt domain model
  • domain model ltrelated-togt use-case model

This is metadata about configuration items
This information is use to define and construct a
software library (database) that stores, manages
and tracks configuration items.
28
SCM ITEMS VERSIONS
  • A configuration item usually evolves throughout
    the software engineering process (i.e., it will
    have several versions)
  • An evolution graph can be used to describe
    aconfiguration items change history
  • version
  • Configuration itemk is obtained by modifying
    configuration itemi
  • usually a result of bug fixes, enhanced system
    functionality, etc.
  • itemk supercedes original itemi created in a
    linear order
  • branch
  • A concurrent development path requiring
    independent configuration management
  • variant
  • Different configurations that are intended to
    coexist
  • e.g., different configurations depending on
    operating system type
  • Oracle for Windows Oracle for Linux

29
SCM ITEMS EVOLUTION GRAPH
version
1.0
branch line
branch line
2.0
2.0.2.1
2.0.1
2.1
2.0.2.2
2.0.2
2.2
2.0.2.3
3.0
parallel development
mainline development
30
SCM SUPPORT SOFTWARE LIBRARY
10.3.5
  • A software library provides facilities to store,
    label, identify versions and track the status of
    the configuration items

Used for
developers workspace
used by a single developer
everyday development
check-in/check-out of configuration items
Stores tracks
master directory
used by other developers
promotions
after SQA
Stores tracks
software repository
releases
for users
31
SCM BASELINES
10.3.2
  • A baseline is a time/phase in the software
    development (usually a project milestone) after
    which any changes must be formalized (e.g., go
    through a formal change control procedure).
  • To become a baseline, the configuration item must
    first pass a set of formal review procedures
    (e.g., formal code review, documentation review,
    etc.).
  • It then becomes part of the project software
    library.
  • After this a check-out procedure is applied
    to the item(i.e., access to and change of the
    configuration item is controlled)
  • Any modified configuration item must again go
    through a formal review process before it can
    replace the original (baselined) item.
  • Requires a version control mechanism.

32
SCM BASELINES
Requirements gathering
Requirements Specification
Analysis
Analysis Specification
Design
Design Specification
Implementation
Source code, manuals
Testing
Test Plans/Procedures/Data
Operational System
33
SCM CHANGE CONTROL
STOP
  • change request submitted byusers/developers
  • change control authority evaluates,decides and
    issues an engineeringchange order if approved
  • configuration item is checked-out,changed,
    checked-in after SQA,and version controlled
  • configuration item made availablefor use
    (promotion release)

Uncontrolled change rapidly leads to chaos !
34
SCM CHANGE CONTROL
  • change request from user/developer
  • change control authority evaluates and decides
  • request is queued for action change request is
    denied
  • assign individuals to configuration items user
    is informed
  • check-out configuration items
  • make changes
  • review (audit) the change
  • check-in the configuration items that have
    been changed
  • establish a baseline for testing
  • perform quality assurance and testing activities
  • promote changes for inclusion in next release
  • rebuild appropriate version of software
  • review (audit) the change to all configuration
    items
  • include changes in release
  • distribute the release

can be applied tointernal requests(i.e., user
developer)andexternal requests(i.e., user
end-user)
35
SCM AUDIT AND STATUS REPORTING
  • Audit ensures that changes have been properly
    implemented.
  • Have the proper steps and procedures been
    followed? checklist
  • Usually done by Quality Assurance (QA) group if
    SCM is a formal activity.

Status reporting keeps all parties informed and
up-to-date on the status of a change.
  • Status reporting is a communication mechanism
    among project members to help keep them
    coordinated.
  • Status reporting allows management/users to
    determine who made
  • what changes, when and why.

36
SCM BENEFITS
  • Reduces the effort required to manage and effect
    change
  • Resulting in improved productivity
  • Leads to better software integrity and security
  • Resulting in increased quality
  • Generates information about the process
  • Resulting in enhanced management control
  • Maintains a software development database
  • Resulting in better record keeping and
    tracking

37
ACHIEVING PROCESS QUALITY
  • Unlike manufactured products, software
    development has some unique factors that affect
    its quality
  • software is designed, not manufactured
  • software development is creative, not mechanical
  • individual skills and experience have a
    significant influence
  • external factors (application novelty, commercial
    pressure)
  • Software development processes are organization
    specific
  • Sometime peopletechnology may be more important
    than process
  • Insufficient resources will always adversely
    affect quality

38
ACHIEVING PROCESS QUALIITY ISO 9001/9000-3
39
ACHIEVING PROCESS QUALITY ISO 9001/ 9000-3
Specific a generic quality model
Focus is on process management
The ISO quality Model need to be customized
for a particular organization
  • certification is easy can be a marketing ploy

40
ISO 9001/9000-3 STANDARD (1/3)
This slide is for information only you are not
required to know this!
  • A. Quality system framework
  • 1. Management responsibility
  • quality policy defined, documented, understood,
    implemented and maintained
  • responsibilities and authorities for all
    personnel defined
  • in-house verification resources defined, trained
    and funded
  • a designated manager ensures that the quality
    program is implemented and maintained
  • 2. Quality system
  • requires a documented quality system be
    established
  • should be an integral process throughout the
    entire life cycle
  • 3. Internal quality system audits
  • requires audits be planned and performed
  • results communicated to management
  • deficiencies corrected
  • 4. Corrective action
  • requires causes of non-conforming product be
    identified
  • potential causes of non-conformance eliminated
  • procedures changed as a result

41
ISO 9001/9000-3 STANDARD (2/3)
This slide is for information only you are not
required to know this!
  • B. Quality Life Cycle Activities
  • 1. Contract review
  • contracts are reviewed to determine whether the
    requirements are adequately defined, agree with
    the bid, and can be implemented
  • 2. Purchasers requirements specification
  • procedures to identify and collect purchasers
    requirements
  • 3. Development planning
  • production processes are defined and planned
  • 4. Quality record
  • quality assurance process is planned
  • 5. Design and implementation
  • procedures to control and verify the design
  • includes planning design
  • activities, identifying inputs and outputs,
    verifying the design and controlling design
    changes
  • 6. Testing and validation
  • requires systems/products to be tested and
    validated before use
  • records of testing are kept
  • 7. Acceptance
  • procedures for acceptance should be established
  • 8. Replication, delivery and installation
  • procedures for the above should be established
    and maintained
  • 9. Maintenance
  • requires that maintenance activities be performed
    as specified

42
ISO 9001/9000-3 STANDARD (3/3)
This slide is for information only you are not
required to know this!
  • C. Quality System Supporting Activities
  • 6. Tools and Techniques
  • are applied appropriately to support the
    development process
  • 7. Purchasing
  • purchased products conform to their specified
    requirements
  • 8. Included software product
  • should be verified and maintained
  • 9. Training
  • training needs should be identified and training
    provided since related tasks may require
    qualified personnel
  • training records should be maintained
  • 1. Configuration management
  • process of development and maintenance should be
    documented and controlled
  • 2. Document control
  • distribution and modification of documents should
    be controlled
  • 3. Quality records
  • quality records should be collected, maintained
    and dispositioned
  • 4. Measurement
  • where appropriate, adequate statistical
    techniques should be identified and used to
    verify the acceptability of process capability
    and product characteristics
  • 5. Rules, practices and conventions
  • are in place and followed

43
ACHIEVING PROCESS QUALITYTHE SEI CAPABILITY
MATURITY MODEL (CMM)
12.3
  • SEU-CMM intended to help a software
    organizationimprove their software development
    processes.
  • Level 1 Organization Initial process (ad hoc)
  • no formal procedures, no cost estimates, no
    project plans,no management mechanism to ensure
    procedures are followed
  • Level 2 Organization Repeatable process
    (intuitive)
  • basic project controls intuitive methods used
  • Level 3 Organization Defined process
    (qualitative)
  • development process defined and institutionalized
  • Level 4 Organization Managed process
    (quantitative)
  • measured process process database established
  • Level 5 Organization Optimizing process
  • improvement feedback rigorous defect-cause
    analysis and prevention

Focus is on process improvement
44
CAPABILITY MATURITY MODEL (CMM)
This slide is for information only you are not
required to know this!
  • Key Processes in Place
  • Level 1 Initial process
  • Level 2 Repeatable process
  • Requirements Management
  • Software Project Planning
  • Software Project Tracking Oversight
  • Software Subcontract Management
  • Software Quality Assurance
  • Software Configuration Management
  • Level 3 Defined process
  • Organization Process Focus
  • Organization Process Definition
  • Training Program
  • Integrated Software Management
  • Software Product Engineering
  • Intergroup Coordination
  • Peer Reviews
  • Level 4 Managed process
  • Quantitative Process Management
  • Software Quality Management
  • Level 5 Optimizing process
  • Fault Prevention
  • Technology Change Management
  • Process Change Management

45
ACHIEVING PROCESS QUALITY NOTES
  • It is possible for a Level 1 organization to
    receive ISO 9000 certification!
  • A Level 3 organization would have little
    difficulty in obtaining ISO 9000 certification.
  • A Level 2 organization would have significant
    advantage in obtaining ISO 9000 certification.
  • excellent software developers (e.g., space
    shuttle) attain around level 3-4 only

46
ACHIEVING PEOPLE QUALITYPEOPLE CAPABILITY
MATURITY MODEL (PCMM)
  • Intended to improve knowledge and skill of people.
  • Level 1 Initial
  • no technical or management training
    providedstaff talent not a critical resource
    no organizational loyalty
  • Level 2 Repeatable
  • focus on developing basic work practices staff
    recruiting, growth and development important
    training to fill skill gaps performance
    evaluated
  • Level 3 Defined
  • focus on tailoring work practices to
    organizations business strategic plan to locate
    and develop required talent skills-based
    compensation
  • Level 4 Managed
  • focus on increasing competence in critical
    skills mentoring team-building quantitative
    competence goals evaluation of effectiveness of
    work practices
  • Level 5 Optimizing
  • focus on improving team and individual skills
    use of best practices

Focus is on people improvement
47
SQA THE BOTTOM LINE
  • an organization should have a quality manual
    which documents its quality assurance procedures
  • each project should have a quality plan which
    sets out the quality attributes that are most
    important for that project and how they will be
    assessed
  • an organization should have established standards
    for documentation
  • mechanisms (processes) should be established that
    monitor compliance with all quality requirements
    of the organization
  • reviews are the primary means of carrying out
    quality assurance
  • metrics can be used to highlight anomalous parts
    of the software which may have quality problems

48
SUMMARY SOFTWARE QUALITY
  • Quality software does not just happen!
  • Quality assurance mechanisms should be built into
    the software development process
  • Developing quality software requires
  • Management support and involvement
  • Gathering and use of software metrics
  • Policies and procedures that everyone follows
  • Commitment to following the policies and
    procedures even when things get rough!

Testing is an important part of quality
assurance, but its not all there is to obtaining
a quality software product.
About PowerShow.com
