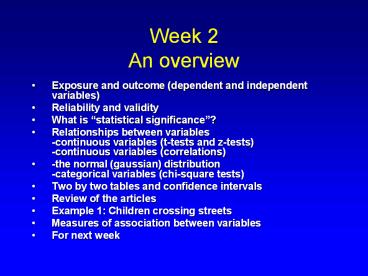

Week 2 An overview

1
Week 2An overview

• Exposure and outcome (dependent and independent
  variables)
• Reliability and validity
• What is statistical significance?
• Relationships between variables-continuous
  variables (t-tests and z-tests)-continuous
  variables (correlations)
• -the normal (gaussian) distribution-categorical
  variables (chi-square tests)
• Two by two tables and confidence intervals
• Review of the articles
• Example 1 Children crossing streets
• Measures of association between variables
• For next week

2

• A somewhat advanced society has figured how to
  package basic knowledge in pill form. A student,
  needing some learning, goes to the pharmacy and
  asks what kind of knowledge pills are available.
  The pharmacist says "Here's a pill for English
  literature." The student takes the pill and
  swallows it and has new knowledge about English
  literature!
• "What else do you have?" asks the student. "Well,
  I have pills for art history, biology, and world
  history, "replies the pharmacist. The student
  asks for these, and swallows them and has new
  knowledge about those subjects!
• Then the student asks, "Do you have a pill for
  statistics? "The pharmacist says "Wait just a
  moment", and goes back into the storeroom and
  brings back a whopper of a pill that is about
  twice the size of a jawbreaker and plunks it on
  the counter. "I have to take that huge pill for
  statistics?" inquires the student.
• The pharmacist understandingly nods his head and
  replies "Well, you know statistics always was a
  little hard to swallow."

3
Epidemiologic study designs

• Randomized controlled trial
• Considered the gold standard
• Exposure is assigned randomly
• Participants followed over time to assess outcome
• Analytic comparison of risk or benefit in exposed
  vs. not exposed
• Can be applied to program evaluation

4
Epidemiologic study design 2

• 2. Cohort study
• One group exposed
• Other group unexposed
• Participants followed over time to assess outcome
• Analytic comparison of risk in exposed vs. not
  exposed
• Can be applied to program evaluation

5
Epidemiologic study designs 3

• 3. Case-control study
• Based on outcome
• Exposure is compared in those with and without
  outcome
• Analytic comparison of risk in exposed vs. not
  exposed
• 4. Descriptive study
• Provides descriptive statistics of problem under
  study
• No analytic comparison of risk / benefit
• Often precedes analytic studies

6
Dependent vs independent variables

• Remember the exposure/outcome relationship
• Another way to describe it is to attribute
  dependent and independent variables-the outcome
  depends on the independent exposure variables
• It is the association between these variables
  that leads us to statistical tests
• The test we use depends on the type of variable

7
Statistical significance

• What is statistical significance?
• The probability that the observed relationship
  could have happed by chance
• The p-value and confidence interval are the usual
  measures of significance
• Set by tradition at 0.05 or 95
• The higher the p value, the more likely it could
  have happened by chance
• The wider the confidence interval, the more
  likely it could have happened by chance
• Both driven by variability in the data and sample
  size

8
Types of variables

• Continuous variables
• -variables for which there is a range of
  responses
• e.g., age, blood pressure, weight
• Categorical variables
• Variables that fall into categories
• e.g, gender, smoking status

9
Hypothesis testing for continuous variables

• Mean (the average number)
• -calculated by summing all the numbers and
  dividing by n
• -Hypothesis testing usually done using a t-test
  to compare the 2 means
• -Significance of t-test based on sample size and
  variability within the data
• Median (the number in the middle)
• -not usually tested
• Mode (the most frequent response)
• -not usually tested

10
Hypothesis testing for categorical variables

• Counts (how many fall within each category)
  Compare using 2X2 table
• Proportions (what percentage fall within each
  category)
• Compare 2 proportions
• Frequency distributions (comparing counts and
  percentages between categories)
• Compare using chi-square test

11
2X2 tables the foundation
Disease or other outcome No disease or other outcome
Exposed a b
Not exposed c d
12
2X2 tables estimating associations
Disease or other outcome No disease or other outcome
Exposed a b ab
Not exposed c d cd
ac bd abcd
13
Odds ratios and relative risks

• Odds ratios (ad/bc) calculate the odds of an
  outcome given an exposure
• Relative risk (a/ab)/c/cd) calculates the
  relative risk of an outcome in exposed compared
  to non-exposed group
• Statistical packages calculate confidence
  intervals

14
Confidence intervals

• Confidence intervals are used for hypothesis
  testing in 2X2 tables (and others)
• The width of a confidence interval is based on
  the variablility within the data and the sample
  size
• An OR or RR of 1 no association
• A confidence interval that crosses 1 is NOT
  statistically significant

15
Regression lines and correlation

• Correlation is the measure of the way one
  variable is associated with another
• Can be done with 2 continuous variables
• The regression line is the best fit between 2
  variables
• Ranges from -1 to 1

16
Article review

• Questions to consider
• What is the research question?
• What is their study design?
• What is the exposure variable(s)?
• What is the outcome variable?
• What are the strengths and limitations?
• Who funded the study?
• How compelling are the findings?

17

• Example 1
• Statistical associations of the number of streets
  crossed by children and
• -socio-economic indicators-child pedestrian
  injury rate

18
Background

• Child pedestrian injury rate has been declining
  in many countries, including Canada
• Concern has been expressed that the decline is
  due to a reduction in exposure to traffic (i.e.,
  children are driven or bussed rather than walking)

19
Objective

• The objective of this study was to measure the
  number of streets children cross on one day
• To see if the number of streets crossed varies by
  socio-economic status
• To see if the child pedestrian injury rate is
  associated with the number of streets crossed

20
Variables

• Number of streets crossed as reported by parents
  from a random sample of schools in Montreal
• Socio-economic status measured by-car
  ownership-parental education-home ownership
• Injury rate in police district as reported by the
  police

21
Methods

• Frequency distribution of average of streets
  crossed presented by age and SES
• Statistical testing for the differences between
  means for categorical variables
• Scatterplot generated and regression line
  calculated

22
Table 1 Number of Streets Crossed by Age and
Socio-economic Indicators
Age N Mean SD
5 6 487 3.8 4.2
7 730 4.2 5.0
8 9 519 4.8 5.3
10 657 5.5 5.8
11 12 108 6.6 6.3
Number of cars
0 467 5.9 5.8
1 1191 4.8 5.3
2 815 3.8 4.8
Home Ownership
Rent home 1213 5.5 5.6
Own home 1210 3.8 4.7
23
Comparing average streets crossed by car ownership
No car 1 car
Average streets crossed (Mean) 5.9 4.8
Standard deviation 5.8 5.3
Sample size 467 1171
Z Test for difference between means 13.8, plt0.001
24
(No Transcript)
25
Measures of association between variables

• Tied in to the concept of reliability and
  validity
• Sometimes we need to test a new variable in
  relation to an old one
• For example, a new questionnaire, faster blood
  test, etc.
• Several ways to measure association
• Cronbachs alpha, kappa, sensitivity,
  specificity, positive predictive value, negative
  predictive value

26
Cronbachs alpha

• Measures the reliability of a psychometric
  instrument
• Assesses the extent to which a set of test items
  can be treated as measuring a single latent
  variable
• Mean correlation between a set of items with the
  mean of all the other items
• Looks at variation between individuals compared
  to variation due to items
• Can be between infinity and 1 (although usually
  only between 0 and 1)
• Usually considered good if gt 0.8

27
Kappa

• Measures the extent to which ratings given by 2
  raters agree
• Often used when experts are assigning scores
  based on opinions (e.g., medication errors)
• Gives credit when scores match exactly, takes
  away agreement when they dont
• Can be between 0 and 1
• Usually considered good if gt 0.7

28
Sensitivity and specificity

• Sensitivity
• Measures the extent to which a test agrees with a
  gold standard
• Often used when trying out a new diagnostic test
• Reports how often the new test agrees with the
  old when positive
• Captures the false negatives
• Calculated using a 2 X 2 table
• Acceptability of score depends on test qualities

29
Sensitivity and specificity

• Specificity
• Measures the extent to which a test agrees with a
  gold standard
• Often used when trying out a new diagnostic test
• Captures the false positives
• Reports how often the new test agrees with the
  old when negative (eg accurately reports the
  absence of the condition)
• Calculated using a 2 X 2 table
• Acceptability of score depends on test qualities

30
2X2 tables revisited
Gold standard (has condition) Gold standard (does not have condition)
New test a b
New test - c d
31
Calculating sensitivity and specificity

• Sensitivity number who are both disease positive
  and test positive/number who are disease positive
• a/ac
• Specificity number who are both disease
  negative and test negative/number who are disease
  negative
• d/db

32
Understanding sensitivity and specificity

• Sensitivity is high when the test picks up a lot
  of the true disease (has few false negatives)
  High sensitivity is important for infectious
  diseases (e.g., HIV)
• Specificity is high when the test does not have
  false positives. This is important when the
  consequences of treating the disease are
  significant (e.g., cancer)

33
Positive and negative predictive value

• Tells you how good a test is at predicting
  whether a patient actually has the disease
• Positive predictive value is the probability that
  the patient has the disease given a positive test

• Depends on sensitivity, specificity and the
  prevalence of the disease

34
Overview

• Different types of variables are measured and
  presented differently
• P values and confidence intervals are the measure
  of statistical significance
• Tell us the probability that these results could
  have happened by chance
• Cronbachs alpha, kappa, sensitivity and
  specificity tell us about relationships between
  measurements

35
For next week 1

• Read Chapter 3 in the text
• Read the ICES privacy document (www.ices.on.ca)
• Think about privacy and confidentiality
• What issues are relevant to you in your current
  research?

36
(No Transcript)
37
For next week 2

• Identify your data set
• Where did it come from?
• How was it collected?
• What type of variables does it include?
• What is your research question?
• What are your exposure variables?
• What is your outcome variable?
• If you are not familiar with SPSS it is STRONGLY
  recommended that you complete the tutorial
